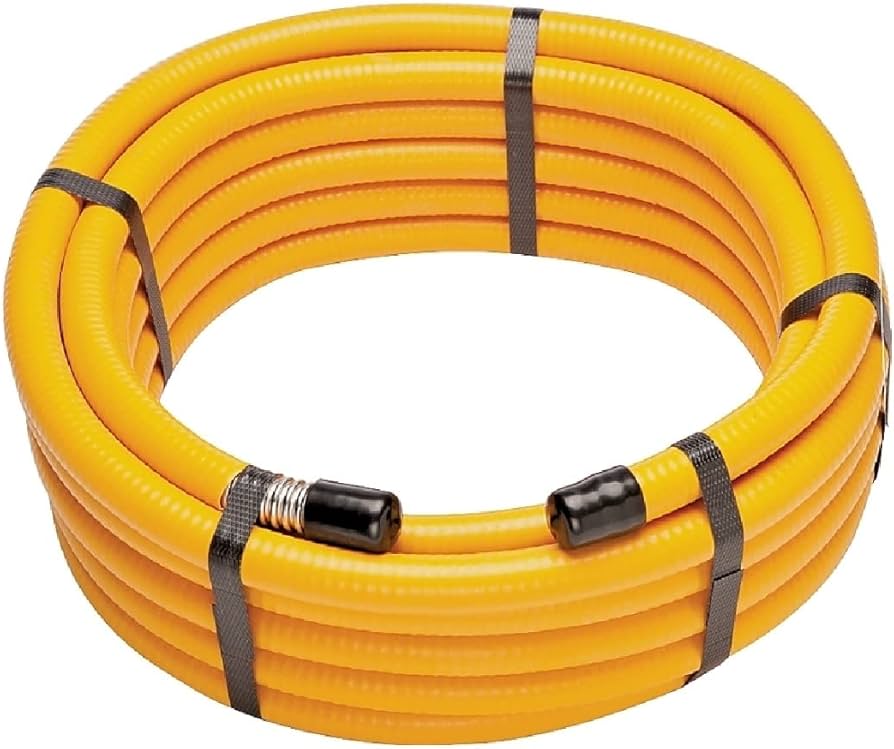

Pro Flex CSST Installation: The Ultimate Training Guide & Plumbing Book

Are you a plumber, contractor, or DIY enthusiast feeling overwhelmed by the complexities of installing Corrugated Stainless Steel Tubing (CSST)? You are not alone. Many professionals struggle to find a single, comprehensive resource that bridges the gap between manufacturer specifications and real-world application, often leading to costly rework or safety hazards. This Pro Flex Pro Flex CSST Installation Training Guide Plumbing Book overview is designed to be your definitive roadmap, simplifying the process while ensuring strict adherence to safety codes and industry best practices. Whether you are upgrading an old iron pipe system or installing gas lines in a new construction project, understanding the nuances of Pro Flex systems is critical for success.

What Makes Pro Flex CSST Different from Traditional Black Iron Pipe?

When approaching a gas piping project, the first question most installers ask is, “Why choose CSST over traditional black iron?” The shift toward Pro Flex CSST represents a significant evolution in plumbing efficiency, but it requires a different mindset than working with rigid steel.

Traditional black iron pipe is heavy, requires threading, and involves numerous fittings that increase the potential for leaks. In contrast, Pro Flex CSST is lightweight, flexible, and can be snaked through walls and floors with minimal fittings. According to industry data, installations using CSST can be up to 35% faster than traditional methods, significantly reducing labor costs.

However, speed should never compromise safety. The core difference lies in the material properties and the specific bonding requirements. Unlike black iron, which acts as its own ground, CSST requires a dedicated bonding clamp to protect against lightning-induced punctures. Ignoring this distinction is the number one cause of failure in modern gas line inspections.

Key Comparison: Black Iron vs. Pro Flex CSST

For a deeper historical context on gas piping materials and their evolution, you can refer to the detailed entries on plumbing systems available on Wikipedia.

Essential Tools and Preparation for a Code-Compliant Install

Before you make your first cut, proper preparation is non-negotiable. A successful Pro Flex CSST installation relies heavily on having the correct toolkit. Using improvised tools can damage the stainless steel corrugation, leading to immediate failure or long-term fatigue cracks.

The Mandatory Toolkit

To ensure a professional result, every installer must have the following:

1. CSST Tube Cutter: Never use a hacksaw or standard pipe cutter. Only a specialized rotary cutter ensures a square, burr-free end.
2. Torque Wrench: This is critical. Over-tightening fittings can crack the flare, while under-tightening causes leaks. Most Pro Flex fittings require a specific torque setting, typically between 30 to 40 ft-lbs, but always check the specific fitting label.
3. Bonding Clamp Kit: Must be listed for CSST use (often brass or bronze) to ensure proper electrical continuity.
4. Pipe Deburring Tool: To clean the inside edge of the cut tube gently.
5. Leak Detection Solution: A non-corrosive bubble solution approved for gas lines.

Pro Tip: Always verify the local building codes before starting. While the International Fuel Gas Code (IFGC) provides a baseline, states like California or cities like Chicago often have amendments that supersede general guidelines.

Step-by-Step: How to Install Pro Flex CSST Safely

This section serves as the core “training manual” portion of our guide. Follow these steps precisely to ensure a safe, leak-free system.

Step 1: Planning the Route

Map out your path from the meter or manifold to the appliance. Pro Flex CSST can be run through studs, joists, and plates without drilling oversized holes, provided you maintain protection against physical damage.

• Rule: Maintain at least 1 inch of clearance from electrical wiring to prevent arcing risks.
• Constraint: Do not run CSST in areas where it may be subject to corrosive chemicals or excessive heat (above 125°F / 52°C).

Step 2: Measuring and Cutting

Measure the required length carefully, adding a slight slack for movement but avoiding excessive loops.

1. Place the tube cutter squarely around the CSST.
2. Rotate the cutter smoothly until the tube separates. Do not squeeze too hard; let the wheel do the work.
3. Inspect the cut. It must be perfectly square. If it is angled, recut.
4. Use the deburring tool to remove any microscopic shards from the inner diameter.

Step 3: Installing the Fittings

This is where most errors occur. Pro Flex uses a flare-style fitting system.

1. Slide the nut onto the tube, followed by the insert (if applicable per specific model).
2. Push the tube firmly into the fitting body until it bottoms out. You should feel a solid stop.
3. Hand-tighten the nut first to ensure threads are not cross-linked.
4. Crucial Step: Use your calibrated torque wrench to tighten the nut to the manufacturer’s specification. Listen for the “click” of the wrench. Do not overtighten.

Step 4: Bonding and Grounding

This step distinguishes a professional job from a dangerous one. CSST must be bonded to the home’s electrical grounding system to dissipate lightning energy.

• Locate the main electrical service panel ground bus or the metallic gas piping entry point.
• Attach the listed bonding clamp directly to the CSST fitting or the first rigid pipe connector.
• Run a minimum 6 AWG copper wire (or as per local code) from the clamp to the grounding point.
• Ensure the connection is tight and free of paint or corrosion.

Step 5: Pressure Testing

Never skip the pressure test.

1. Cap all open ends.
2. Pressurize the system with air or nitrogen to 1.5 times the operating pressure (typically 10–14 psi for residential low-pressure systems, or higher for high-pressure tests depending on code).
3. Let the system sit for at least 10 minutes (longer for large commercial runs).
4. Apply leak detection solution to every joint. If bubbles form, you have a leak. Depressurize, fix the joint, and retest.

Common Mistakes to Avoid During CSST Installation

Even experienced plumbers can stumble when switching to CSST. Based on field reports and inspection failures, here are the top pitfalls:

• Ignoring Lightning Bonding: This is the most critical safety oversight. Unbonded CSST is vulnerable to lightning strikes, which can puncture the thin wall of the tubing and cause a gas fire.
• Using the Wrong Cutter: Using a hacksaw creates metal shavings that can enter the gas stream, clogging valve orifices in furnaces and water heaters.
• Over-Torquing Fittings: More torque does not mean a better seal. It often deforms the flare, creating a path for gas to escape.
• Running Through Sharp Edges: While CSST is tough, dragging it across a sharp metal stud without a grommet can wear through the outer jacket over time due to vibration.
• Skipping the Manifold System: While “home-run” (manifold) systems are ideal for CSST, some installers try to daisy-chain appliances like iron pipe. This negates the pressure drop advantages of CSST.

FAQ: Frequently Asked Questions About Pro Flex CSST

1. Is Pro Flex CSST safe for indoor installation?

Yes, Pro Flex CSST is fully certified for indoor residential and commercial use, provided it is installed according to the manufacturer’s instructions and local codes. The key safety requirement is proper bonding to mitigate lightning risks and ensuring the yellow jacket (for natural gas) or black jacket (for propane) is not damaged during installation.

2. Can I install CSST myself, or do I need a licensed plumber?

This depends entirely on your local jurisdiction. In many US states, gas line installation requires a licensed professional due to the inherent explosion risks. Even where DIY is legally permitted, obtaining a permit and passing a municipal inspection is mandatory. We strongly recommend hiring a certified professional to ensure insurance coverage remains valid.

3. What is the difference between yellow and black CSST?

The color coding indicates the intended fuel type. Yellow jacketed CSST is typically rated for natural gas, while black jacketed CSST is often rated for propane (LP) or fuel oil, though some modern brands offer dual-rated tubing. Always check the printing on the tube itself to confirm its rating before installation. Mixing them up can lead to compatibility issues with regulator pressures.

4. How often does CSST need to be inspected?

CSST systems generally require less maintenance than black iron because they have fewer joints. However, visual inspections should be conducted annually to check for physical damage, corrosion of the bonding clamp, or signs of tampering. If you smell gas or suspect a leak, evacuate immediately and call emergency services; do not attempt to inspect it yourself.

5. Does Pro Flex CSST require a special permit?

Yes, almost all gas piping work, including CSST installation, requires a building permit. The permitting process ensures that your plan is reviewed for code compliance and that a final inspection verifies the pressure test and bonding. Skipping permits can result in fines and voided home insurance policies.

6. What happens if the CSST is punctured by lightning?

If the system is properly bonded, the electrical charge is safely directed to the ground, preventing a puncture. If unbonded, a lightning strike nearby can induce a current high enough to arc through the thin stainless steel wall, causing a gas leak and potential fire. This is why the bonding step in our training guide is non-negotiable.

Conclusion

Mastering the installation of Pro Flex CSST is a valuable skill that modernizes your plumbing capabilities, offering speed, efficiency, and reliability. By following this Pro Flex Pro Flex CSST Installation Training Guide Plumbing Book summary, you ensure that every project meets the highest safety standards and regulatory requirements. Remember, the flexibility of CSST is its greatest asset, but only when paired with rigorous attention to cutting, torquing, and bonding protocols.

Gas piping is not an area for shortcuts. The difference between a successful installation and a catastrophe often comes down to a single correctly tightened fitting or a properly attached bonding clamp. Take pride in doing the job right, prioritize safety above all else, and always stay updated with the latest code changes.
