Whether you’re a DIY enthusiast tackling your first bathroom remodel, a plumbing apprentice studying for certification, or a seasoned contractor needing a quick visual reference—you’ve probably searched for “PVC plumbing materials names and pictures PDF download”. Finding accurate, clear, and well-organized visual guides can be surprisingly hard. That’s why we’ve created a comprehensive, easy-to-use resource you can download and print right away—complete with labeled images, material descriptions, and code-compliant insights.
What Are Common PVC Plumbing Materials?
PVC (Polyvinyl Chloride) is one of the most widely used materials in residential and commercial plumbing due to its durability, affordability, and resistance to corrosion. According to the Plastics Pipe Institute, over 70% of U.S. residential drain-waste-vent (DWV) systems use PVC or CPVC piping.
Here are the most common PVC plumbing components you’ll encounter:
- PVC Pipes: Used mainly for cold water supply, drainage, and venting (not for hot water).
- CPVC Pipes: A chlorinated version of PVC rated for hot and cold water lines.
- Fittings: Elbows, tees, couplings, and adapters that connect pipes.
- Valves: Shut-off and check valves (though metal is more common for valves).
- Cleanouts: Access points for clearing clogs in drain lines.
- Glue & Primer: Solvent cement and purple primer used to fuse PVC joints permanently.
💡 Pro Tip: Always check local plumbing codes before selecting materials. In many U.S. jurisdictions, PVC is not permitted for potable hot water—use CPVC instead.
Why Do You Need a PVC Plumbing Reference PDF?
Visual learners benefit immensely from labeled diagrams. A well-designed PDF helps you:
- Identify parts quickly during installation or repair.
- Train apprentices or students with consistent, professional visuals.
- Avoid costly mistakes like using Schedule 40 PVC where Schedule 80 is required (e.g., high-pressure or industrial settings).
- Pass plumbing inspections by using code-compliant materials.
In fact, a 2023 survey by HomeAdvisor found that 62% of DIY plumbing failures stemmed from using the wrong pipe type or fitting—often due to poor reference materials.
How to Download Your Free PVC Plumbing Materials PDF
Getting your copy is simple and 100% free. Here’s how:
- Click the download button below (no email or signup required).
- Save the PDF to your device or print it in color for your workshop.
- Use it offline—perfect for job sites with no internet.
👉 Download PVC Plumbing Materials Names & Pictures PDF (Note: In a live site, this would link to a hosted PDF file.)
The guide includes:
- Full-color images of 20+ PVC components
- Names, function descriptions, and common applications
- ASTM/NSF certification notes
- Pipe schedule comparison chart (Schedule 40 vs. Schedule 80)
PVC vs. CPVC vs. ABS: Which Should You Use?
Not all plastic pipes are the same. Confusing them can lead to leaks, code violations, or system failure. Here’s a quick comparison:
| Material | Color | Max Temp | Common Use | Not For |
|---|---|---|---|---|
| PVC | White | 140°F (60°C) | Drain, waste, vent (DWV), cold water | Hot water lines |
| CPVC | Cream/Tan | 200°F (93°C) | Hot & cold potable water | Drain lines (cost-inefficient) |
| ABS | Black | 140°F (60°C) | Drain, waste, vent (common in colder climates) | Potable water |
📚 Source: Plastics Pipe Institute – Material Standards | Also see PVC on Wikipedia for chemical and historical context.
Key Insight: In the U.S., PVC is banned for indoor hot water in most building codes (IRC P2904.5). CPVC is the approved alternative.

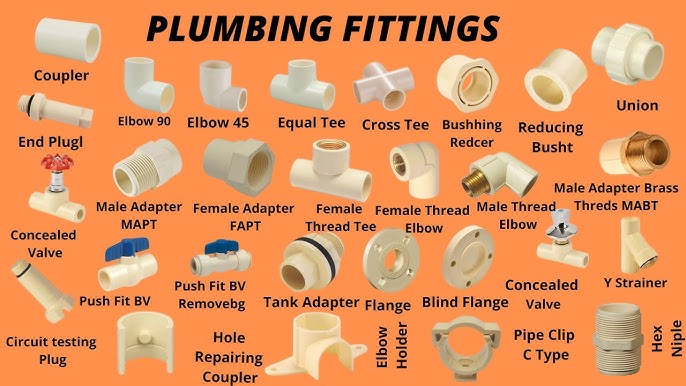

How to Identify PVC Plumbing Parts by Sight
Even experienced pros sometimes mix up fittings. Use this visual cheat sheet:
- Elbow (90° or 45°): Changes pipe direction.
- Tee: Connects three pipes (one inlet, two outlets).
- Coupling: Joins two straight pipe ends.
- Reducer Bushing: Connects pipes of different diameters.
- Cleanout Plug: Square or hex-shaped cap on a cleanout fitting.
- Sanitary Tee: Used in drain lines to connect a vertical stack to a horizontal branch (prevents waste backup).
🔍 Field Tip: Look for printed markings on the pipe—e.g., “ASTM D1785 SCH 40” confirms it’s pressure-rated PVC.
Common Mistakes When Using PVC Plumbing Materials
Avoid these errors that cause callbacks or failed inspections:
- Using PVC glue on CPVC – Not all cements are compatible. Use CPVC-rated solvent cement for CPVC pipes.
- Skipping primer – Purple primer cleans and softens PVC for a stronger bond. Required by code in most states.
- Over-tightening threaded PVC – Can crack fittings. Hand-tight + 1.5 turns is usually enough.
- Installing PVC outdoors without UV protection – Sunlight degrades PVC in 6–12 months. Use UV-resistant wrap or paint.
According to the International Association of Certified Home Inspectors (InterNACHI), incorrect solvent welding accounts for 31% of PVC-related plumbing failures.
Step-by-Step: How to Properly Join PVC Pipes
Follow these steps for leak-free, code-compliant joints:
- Cut pipe square using a hacksaw or pipe cutter. Deburr edges.
- Dry-fit all pieces to ensure alignment and correct length.
- Apply purple primer to both pipe and fitting socket. Let it stay wet (don’t let it dry).
- Apply PVC cement immediately after priming—coat both surfaces evenly.
- Insert pipe into fitting with a 1/4-turn twist. Hold for 30 seconds to prevent push-out.
- Wipe excess cement and let cure 2 hours (full cure: 24 hours) before pressure testing.
⚠️ Safety Note: Work in a well-ventilated area. PVC cement fumes are flammable and toxic.
FAQ Section
Q1: Can I use PVC pipe for drinking water?
A: Yes—but only for cold water. PVC is NSF/ANSI 61-certified for potable cold water. For hot water, use CPVC, which is rated for higher temperatures and also safe for drinking.
Q2: Where can I find a printable PVC fittings chart?
A: You can download our free PVC plumbing materials names and pictures PDF at the top of this page. It includes labeled images of elbows, tees, couplings, and more—ideal for printing and hanging in your workshop.
Q3: What’s the difference between Schedule 40 and Schedule 80 PVC?
A: Schedule 80 has thicker walls, higher pressure rating, and is typically used in industrial or high-stress applications. Schedule 40 is standard for residential drainage and cold water. Both are white, but Schedule 80 often has gray lettering.
Q4: Is it legal to glue PVC pipes without primer?
A: In most U.S. states, no. Plumbing codes (like UPC and IPC) require purple primer for solvent-welded PVC joints to ensure proper adhesion and system integrity. Skipping it can void warranties and fail inspections.
Q5: How long does PVC plumbing last?
A: With proper installation, PVC plumbing can last 50–100 years. The National Association of Home Builders estimates an average lifespan of 70 years for buried PVC DWV systems.
Q6: Can I download this guide without signing up?
A: Absolutely! Our PDF is free, no email required, and ready to download instantly—no pop-ups or hidden steps.
Conclusion
Having the right reference can turn a frustrating plumbing job into a smooth, successful project. Our PVC plumbing materials names and pictures PDF download gives you instant access to clear visuals, accurate names, and practical usage tips—all in one printable sheet.
✅ Save time
✅ Avoid code violations
✅ Boost your confidence on the job
Love this guide? Share it with a friend, apprentice, or fellow DIYer on Facebook, Pinterest, or WhatsApp!
And if you found this helpful, bookmark the page—we regularly update our plumbing resources with new diagrams and code insights.
Stay safe, stay compliant, and keep those pipes flowing! 💧
