Rough In Framing a Shower Wall for Plumbing: The Complete Guide

Planning a bathroom remodel or new build? One of the most critical—but often overlooked—steps is rough in framing a shower wall for plumbing. Get it wrong, and you’ll face leaks, mold, or even structural damage down the line. Get it right, and you’ll set a rock-solid foundation for a durable, water-tight shower that lasts decades. This guide walks you through every essential step with clarity, confidence, and code compliance in mind—whether you’re a DIYer or a seasoned contractor.

Why Proper Shower Wall Framing Matters

Before hammer meets nail, understand this: a poorly framed shower wall compromises everything—from tile adhesion to plumbing integrity. According to the National Association of Home Builders (NAHB), over 60% of bathroom-related callbacks in new construction stem from moisture intrusion due to improper framing or plumbing rough-in.

The goal? Create a cavity that:

• Accommodates supply lines and drainpipes without compression
• Supports waterproofing membranes and tile backing
• Meets local building codes (typically based on the International Residential Code or IRC)

What Does “Rough In Framing a Shower Wall for Plumbing” Mean?

“Rough in” refers to the initial phase of construction where framing, electrical, and plumbing systems are installed before walls are closed up with drywall or backer board. For showers, this includes:

• Building the wall structure (studs, headers, blocking)
• Cutting precise openings for plumbing fixtures (shower valve, drain, supply lines)
• Installing backing for fixtures like grab bars or shower benches

This phase is your last chance to inspect and adjust plumbing before it’s hidden forever.

Step-by-Step: How to Rough In Framing a Shower Wall for Plumbing

Follow these steps carefully. Precision here saves hours of rework later.

1. Plan Based on Fixture Layout

Start with your shower fixture plan. Know:

• Shower valve type (single-handle, thermostatic, etc.)
• Drain location (center, offset, linear)
• Supply line positions (hot/cold, typically 8″ apart on center)

✅ Pro Tip: Most valves require a 4″–6″ deep cavity behind the finished wall. Standard 2×4 walls (3.5″ depth) often aren’t enough—consider 2×6 framing or furring strips.

2. Frame the Wall with Moisture-Resistant Materials

• Use kiln-dried, straight 2×4 or 2×6 studs spaced 16″ on center.
• Never use green-treated lumber inside walls—it can corrode copper pipes (per IRC R317.1.2).
• At the shower base, install a pressure-treated sole plate if it contacts concrete.

3. Install Plumbing Blocking and Backing

Critical support points need solid wood backing:

• Shower valve: Install horizontal 2x blocking between studs at valve height (typically 48″–52″ from subfloor).
• Grab bars: Add blocking at 33″–36″ height (ADA-compliant).
• Shower bench or niche: Frame with double studs and cross-blocking.

🔧 Example: For a standard thermostatic valve, cut a 6″ x 6″ access hole in the drywall later—but during rough-in, ensure at least 8″ of unobstructed space behind the wall.

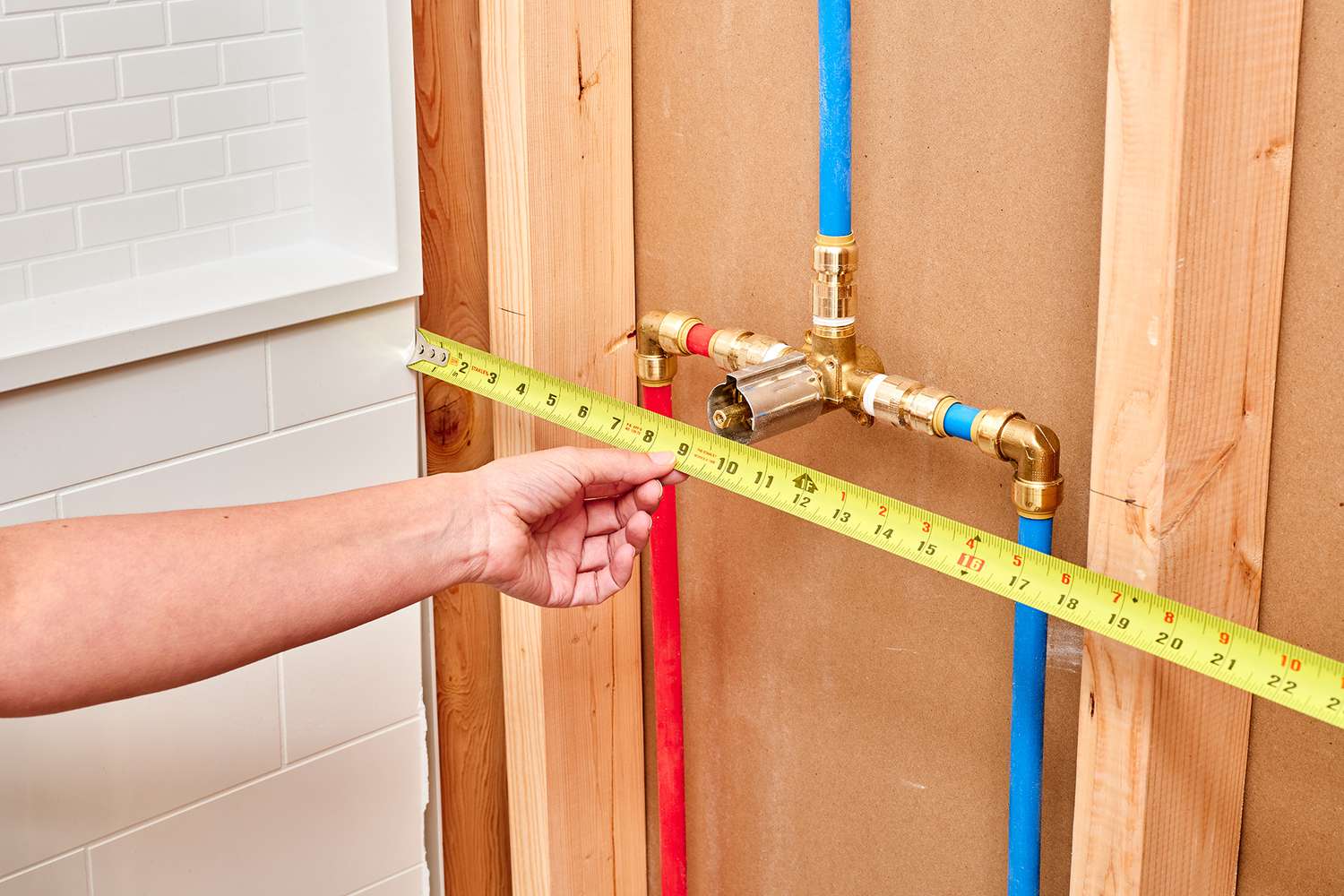

4. Run Plumbing Lines Before Closing Walls

• Supply lines (PEX or copper) should run parallel to studs, not diagonally.
• Maintain 1.5″ clearance from framing edges to prevent nail/screw punctures (IRC P2907.3).
• Drainpipes (typically 2″ PVC) slope ¼” per foot toward the main stack.
• Pressure-test all supply lines at 80 PSI for 2 hours before inspection.

5. Coordinate with Waterproofing

Modern showers require a waterproof membrane (like Schluter Kerdi or RedGard) behind tile. Your framing must:

• Be flat and plumb (no bowing > ⅛” over 4 ft)
• Allow seamless membrane overlap at corners
• Support cement backer board (e.g., HardieBacker) with proper fastener spacing

📊 Stat Alert: A 2023 study by the Tile Council of North America found that 78% of shower failures were due to poor substrate prep—not tile quality.

Common Mistakes to Avoid

For more on building material standards, see the International Residential Code overview on Wikipedia.

Tools & Materials Checklist

Framing:

• 2×4 or 2×6 SPF lumber
• Circular saw or miter saw
• Framing nailer (or hammer + 16d nails)
• Level (4-ft and torpedo)

Plumbing Rough-In:

• PEX tubing or copper pipe
• SharkBite or sweat fittings
• Pipe hangers (every 32″ for vertical runs)
• Drain assembly (2″ PVC with proper venting)

Safety & Prep:

• Moisture meter (wood <15% MC)
• Stud finder with AC detection
• Pipe insulation (for cold climates)

How Thick Should a Shower Wall Be?

Most showers use 2×4 walls (3.5″ deep), but this often isn’t enough for modern valves. Solutions:

• Option 1: Frame with 2×6 studs (5.5″ cavity)—ideal for new builds.
• Option 2: Add ½” furring strips to 2×4 walls to gain depth.
• Option 3: Use low-profile valves designed for shallow walls (e.g., Moen M-PACT).

Always check manufacturer specs—some valves require minimum 4″ clearance behind finished wall.

FAQ: Rough In Framing a Shower Wall for Plumbing

Q1: Can I frame a shower wall with metal studs?
A: Yes, but with caveats. Use 20-gauge or heavier metal studs, and ensure all plumbing penetrations are protected with grommets or plastic sleeves to prevent pipe abrasion. Metal doesn’t rot, but it conducts cold—add insulation in cold climates.

Q2: How far apart should hot and cold supply lines be?
A: Standard is 8 inches on center for shower valves. Always confirm with your valve manufacturer—some require 6″ or 10″.

Q3: Do I need a permit for shower plumbing rough-in?
A: Yes, in nearly all U.S. jurisdictions. Plumbing work must be inspected before walls close. Skipping this risks failed inspections, fines, or insurance denial after water damage.

Q4: Should the shower drain be centered?
A: Not necessarily. Center drains are common, but linear drains require framing along the wall edge. Always align the drain with the lowest point of your sloped shower pan (¼” per foot).

Q5: Can I install blocking after the wall is framed?
A: Yes—use “ladder blocking” (two horizontal pieces with vertical spacers) or retrofit toggle-style backing boards. But it’s far easier (and stronger) to install blocking during initial framing.

Q6: What’s the biggest time-saver during rough-in?
A: Dry-fit everything first. Mock up your valve, test fit pipes, and mark stud locations before cutting or nailing. A 10-minute dry run prevents 3 hours of rework.

Conclusion

Rough in framing a shower wall for plumbing isn’t just carpentry—it’s the backbone of a safe, long-lasting bathroom. By following code-compliant techniques, planning for waterproofing, and avoiding common pitfalls, you’ll build a shower that performs as beautifully as it looks.

Don’t risk leaks, callbacks, or costly rip-outs. Use this guide as your checklist—and share it with your contractor or DIY crew!

👉 Found this helpful? Share on Facebook, Pinterest, or Reddit to help others build smarter showers!

Remember: Great bathrooms start behind the walls.
