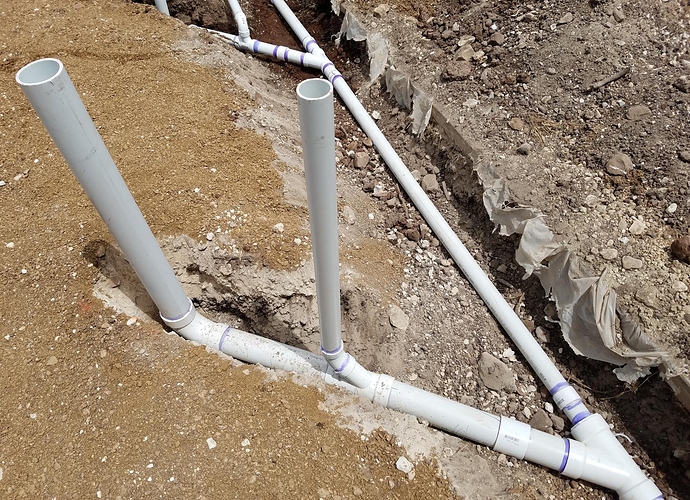

If you’re building or remodeling a bathroom on a concrete slab foundation, getting the rough in plumbing for bathtub drain in slab right is crucial—and tricky. One misstep can lead to leaks, drainage issues, or even the need to break up the slab later (a contractor’s nightmare and your wallet’s worst enemy). Whether you’re a homeowner tackling a DIY project or a new plumber sharpening your skills, this guide walks you through every critical step with clarity, precision, and expert-backed advice.
Why Is Rough-In Plumbing for a Bathtub Drain in Slab So Challenging?
Installing plumbing beneath a concrete slab means you only get one shot—once the concrete cures, accessing pipes becomes extremely costly and disruptive. According to the National Association of Home Builders (NAHB), over 60% of slab foundation rework stems from incorrect drain rough-ins during initial construction.
Unlike wooden subfloors where you can adjust pipes between joists, a slab locks everything in place. That’s why precision in slope, venting, trap placement, and code compliance matters more than ever.
“In slab foundations, the rough-in phase isn’t just preparation—it’s your final opportunity to get drainage right.”
— Michael Reynolds, Master Plumber & Founder of FlowRight Plumbing Solutions
Key Requirements Before You Start
Before cutting a single pipe, confirm these essentials:
- Local Plumbing Codes: These vary by city and state. Most follow the International Plumbing Code (IPC), but check with your municipality.
- Bathtub Model Dimensions: Drain location differs between drop-in, alcove, and freestanding tubs.
- Slab Thickness: Typically 4–6 inches—this affects how much vertical space you have for drain assembly.
- Drain Type: Most tubs use a 1.5-inch or 2-inch ABS or PVC drain. Verify with your tub’s spec sheet.
- Venting Plan: Every drain needs a vent within a certain distance (usually 5 feet for 2-inch pipes per IPC §906.1).
Step-by-Step: How to Rough In a Bathtub Drain in a Slab
Follow these steps before concrete is poured:
Step 1: Locate the Tub Position Accurately
Use the tub manufacturer’s template or measure from two fixed walls. Mark the exact center of the drain outlet on the subgrade (usually compacted gravel or sand).
Pro Tip: Place the actual tub in position temporarily to verify alignment—don’t guess!
Step 2: Install the Drain Stub-Out
- Use Schedule 40 PVC or ABS pipe (2-inch diameter recommended for future-proofing).
- The top of the stub-out should be 1–1.5 inches below the finished floor level to accommodate the tub’s drain flange and plumber’s putty or silicone seal.
- Slope the horizontal drain pipe at ¼ inch per foot toward the main stack (e.g., over 4 feet = 1 inch of drop).
Step 3: Install the P-Trap (Below Slab)
Yes—you must install the P-trap below the slab, not above. This is a common misconception.
- The trap must be within 24 inches of the tub drain outlet (IPC §1002.1).
- Use a glued, permanent trap—no slip joints under slab.
- Ensure the trap arm connects to a properly vented drain line.
Step 4: Protect the Pipes During Pour
- Cap all open ends with test plugs to prevent concrete from entering.
- Wrap stub-outs with foam pipe insulation or use removable cardboard sleeves to allow for minor adjustment during tub install.
Step 5: Pressure Test Before Pouring Concrete
Fill the system with water or air and hold for 15 minutes. Any drop = leak. Fix it now—not after the slab is poured.
Common Mistakes (And How to Avoid Them)
| Mistake | Consequence | Prevention |
|---|---|---|
| Installing trap above slab | Code violation, sewer gas entry | Always place P-trap below slab |
| Incorrect slope | Slow drainage or clogs | Use a laser level; verify ¼” per foot |
| Wrong stub-out height | Tub won’t seal properly | Measure from finished floor—not subgrade |
| Missing cleanout | Hard to unclog later | Add a cleanout access near the tub drain line |
Material Comparison: PVC vs. ABS for Slab Drain Lines
Both are code-approved, but here’s how they stack up:
| Feature | PVC | ABS |
|---|---|---|
| Color | White | Black |
| Temperature Tolerance | Better for hot water | Less heat-resistant |
| Impact Resistance | Brittle in cold | More flexible in freezing temps |
| Glue Type | PVC primer + cement | ABS cement only |
| Common Use | Most U.S. regions | Popular in colder climates |
Note: Never glue PVC to ABS—use a transition coupling if connecting both.
For more on plastic piping systems, see Plastic Piping on Wikipedia.
What If You’re Remodeling an Existing Slab?
Retrofitting a tub drain in an existing slab is significantly harder but possible:
- Core drilling: Use a diamond-tipped saw to cut a 6–8″ hole for the drain line.
- Tunneling: Dig a narrow trench from the nearest existing drain (disruptive but effective).
- Above-slab solutions: Consider a sump pump system or macerating pump (e.g., Saniflo) if traditional plumbing isn’t feasible—though these cost $800–$1,500+.
According to HomeAdvisor, slab drain retrofits average $2,500–$5,000, compared to $300–$600 during new construction.
FAQ Section
Q1: How deep should the bathtub drain stub-out be in a slab?
The top of the stub-out pipe should sit 1 to 1.5 inches below the finished floor level. This allows room for the tub’s drain shoe, gasket, and final sealant. Measure from your planned tile or flooring height—not the raw slab surface.
Q2: Can I install the P-trap above the slab?
No. Plumbing codes (IPC and UPC) require the trap to be installed below the fixture flood level and permanently connected. In slab construction, that means under the concrete. Installing it above violates code and risks sewer gas leaks.
Q3: What size pipe is used for a bathtub drain rough-in?
Most bathtubs use a 1.5-inch or 2-inch drain line. While 1.5″ meets minimum code, 2-inch is strongly recommended—it reduces clog risk and improves flow, especially for whirlpool or soaking tubs.
Q4: Do I need a vent for a bathtub drain in a slab?
Yes. Every fixture must be vented to prevent siphoning of the trap. The vent should tie into the main vent stack within 5 feet of the trap (for 2-inch pipes). Use an air admittance valve (AAV) only if local codes allow it—and never bury it in the slab.
Q5: Can I adjust the drain location after the slab is poured?
Only with significant effort. Options include core drilling, jackhammering a trench, or using a macerating pump. Always rough-in with future flexibility in mind—even slight misalignment can block installation.
Q6: How do I test the rough-in before pouring concrete?
Perform a water or air pressure test:
- Cap all ends.
- Fill the system with water to the flood level of the tub (about 12–14 inches).
- Hold for 15 minutes. No drop = pass.
- Or use 5 psi air pressure for 15 minutes (per IPC §312).
Conclusion
Getting the rough in plumbing for bathtub drain in slab right saves you time, money, and stress down the line. With precise measurements, correct slope, proper venting, and code-compliant materials, your bathtub will drain flawlessly for decades. Remember: in slab construction, prevention is infinitely cheaper than repair.
If this guide helped you avoid a plumbing pitfall, share it with a fellow DIYer or contractor on Facebook, Pinterest, or Reddit! Your share could save someone thousands in slab repairs.
Got questions? Drop them in the comments—we’re here to help you build it right, the first time.
