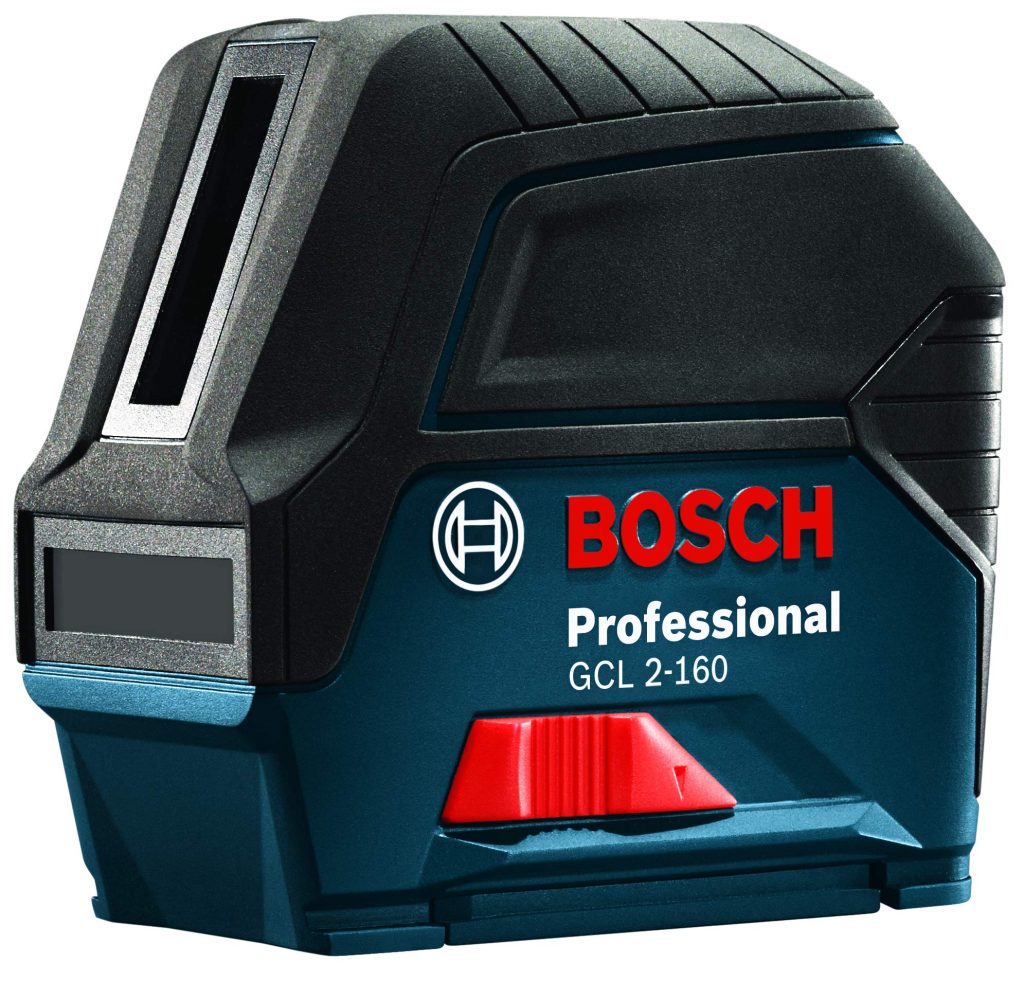

Have you ever spent hours trying to hang a row of cabinets or install tile, only to find that your lines are slightly off, ruining the entire aesthetic? It is a frustrating experience that every DIY enthusiast and professional contractor knows all too well. Traditional spirit levels are often limited by their length and human error, leading to costly mistakes. This is where the self-leveling cross line combo laser with plumb points Bosch changes the game. By projecting crisp, perfectly horizontal and vertical lines along with precise overhead and floor plumb points, this tool eliminates guesswork, ensuring your projects are straight, level, and square from the very first mark.
Why Choose a Bosch Self-Leveling Cross Line Combo Laser?
When it comes to layout tools, not all lasers are created equal. Bosch has established itself as a market leader in precision engineering, and their laser levels are no exception. But what exactly makes the self-leveling cross line combo laser with plumb points Bosch stand out in a crowded marketplace?
The primary advantage lies in its versatility and accuracy. Unlike basic single-line lasers, the “combo” feature provides a complete 3D layout solution. You get two intersecting cross lines (horizontal and vertical) for wall work, plus two plumb points (one pointing up to the ceiling and one down to the floor). This specific configuration is essential for tasks like transferring points from floor to ceiling, installing drop ceilings, or framing walls where vertical alignment is critical.
According to industry standards, a high-quality construction laser should maintain accuracy within ±1/8 inch at 30 feet. Bosch models typically exceed this, offering accuracy ratings of ±3/32 inch at 30 feet. This level of precision is not just a number; it translates to seamless tile grout lines and cabinetry that fits perfectly without shimming.
Key Features at a Glance
To help you understand the value proposition, here is a breakdown of the core features found in top-tier Bosch combo lasers:
- Self-Leveling Technology: The internal pendulum mechanism automatically levels the laser within a range of ±4 degrees. If the unit is placed on a surface outside this range, the beams will flash to warn you, preventing inaccurate markings.
- Plumb Points: Dedicated upward and downward lasers allow for precise point transfer between floors and ceilings, a feature often missing in standard cross-line units.
- Pulse Mode for Detectors: Many Bosch models include a pulse mode that allows the laser to be used with a line receiver (sold separately). This extends the working range outdoors up to 165 feet or more, making it viable for exterior grading and fencing.
- Overmolded Housing: Durability is key on job sites. Bosch utilizes heavy-duty overmolding to protect the internal optics from dust, debris, and accidental drops.
How Does the Self-Leveling Mechanism Work?
One of the most common questions users have is about the magic behind the “self-leveling” claim. Understanding this mechanism helps you trust the tool and use it correctly.
Inside the housing of the self-leveling cross line combo laser with plumb points Bosch, there is a pendulum system suspended on fine wires or springs. Gravity acts on this weighted pendulum, naturally pulling it to a true vertical position. When you turn the device on, locks disengage, allowing the pendulum to swing freely. Within seconds, it settles into a perfectly level position, and the laser diodes project the beams based on this stabilized reference.
It is crucial to note the leveling range. Most Bosch units can self-correct if the base is tilted up to 4 degrees. If you place the laser on a surface that is too uneven (beyond 4 degrees), the pendulum cannot compensate. In this scenario, the laser lines will begin to flash rapidly. This is a built-in safety feature designed to alert you that the current setup is unreliable. Never attempt to take measurements while the lines are flashing.
For a deeper understanding of the physics behind gravity-based leveling systems, you can refer to general principles of mechanics documented on Wikipedia.
Step-by-Step: How to Set Up Your Bosch Laser for Perfect Alignment
Using a laser level is intuitive, but following a precise routine ensures maximum accuracy. Here is a step-by-step guide to setting up your Bosch combo laser for a typical indoor project, such as installing wainscoting or chair rails.
Step 1: Site Preparation
Clear the area where you intend to place the laser. Remove any debris, tools, or tripping hazards. Ensure the surface (tripod, table, or floor) is stable. Vibrations from heavy machinery or foot traffic can disturb the pendulum, causing the lines to wander.
Step 2: Mounting the Unit
Place the laser on a sturdy tripod or a flat surface. If using the universal mount included with many Bosch kits, attach it securely to the tripod thread.
- Tip: For floor-to-ceiling transfers, place the laser directly on the floor mark you wish to transfer. Ensure the base is clean.
Step 3: Power On and Unlock
Locate the power switch. Slide it to the “On” position. You will hear a slight click as the pendulum unlocks. Watch the laser lines; they may swing briefly before settling.
- Check: Verify that the lines are solid and not flashing. Flashing indicates the unit is out of its self-leveling range.
Step 4: Positioning the Cross Lines
Rotate the entire unit on its base to align the vertical line with your reference mark (e.g., the corner of a room or a specific stud). Align the horizontal line to your desired height.
- Precision Tip: Use the fine-adjustment knob if your model has one, or gently nudge the tripod legs for micro-adjustments.
Step 5: Utilizing Plumb Points
Look up to the ceiling and down to the floor. You should see bright red dots directly above and below the intersection of your cross lines. Mark these points immediately with a pencil or marker. These points are mathematically perpendicular to the horizontal plane, guaranteeing a true 90-degree transfer.
Step 6: Verification (Optional but Recommended)
For critical structural work, perform a quick calibration check. Mark a line on a wall 20 feet away. Rotate the laser 180 degrees and mark the line again. The two marks should overlap within 1/16th of an inch. If they do not, consult the user manual for recalibration procedures.
Bosch vs. Competitors: A Quick Comparison
When investing in a professional tool, it is wise to compare options. How does the self-leveling cross line combo laser with plumb points Bosch stack up against other leading brands like DeWalt or Milwaukee?
| Feature | Bosch Professional | Generic/Entry Level | Premium Competitors |
|---|---|---|---|
| Accuracy | ±3/32″ @ 30ft | ±1/4″ @ 30ft | ±1/16″ @ 30ft |
| Self-Leveling Range | ±4 Degrees | ±3 Degrees | ±5 Degrees |
| Durability | High (IP54 Rated) | Low (Plastic Housing) | High (Metal/Rubber) |
| Plumb Points | Standard on Combo | Often Missing | Standard |
| Battery Life | 10–20 Hours | 4–6 Hours | 15–25 Hours |
| Warranty | 1–3 Years | 90 Days | 3 Years |
As shown in the table, Bosch strikes an excellent balance between high-end accuracy and rugged durability without the exorbitant price tag of some niche premium brands. The inclusion of IP54 rating (protection against dust and water splashes) makes it suitable for both indoor renovations and sheltered outdoor work.
Real-World Applications: Where This Tool Shines
The versatility of the self-leveling cross line combo laser with plumb points Bosch makes it indispensable for various trades.
- Tile Installation: Tilers use the cross lines to ensure grout lines are perfectly straight across large rooms. The plumb points help align wall tiles with floor tiles seamlessly.
- Electrical and Plumbing: Electricians use the vertical line to run conduit straight up walls, while plumbers use plumb points to align pipe penetrations through multiple floors.
- Drywall and Framing: Framers rely on the plumb points to transfer wall layouts from the slab to the top plate, ensuring walls are perfectly vertical before raising them.
- Interior Design: Hanging wallpaper, installing chair rails, or aligning artwork becomes a one-person job with the continuous horizontal line provided by the laser.
Frequently Asked Questions (FAQ)
1. Can I use the Bosch self-leveling laser outdoors in bright sunlight?
Yes, but with a caveat. In direct bright sunlight, the naked eye may struggle to see the laser lines beyond 15–20 feet. To work effectively outdoors, you must use the “Pulse Mode” feature available on most Bosch combo lasers in conjunction with a compatible laser line receiver (detector). This setup can extend visibility up to 165 feet or more, even in daylight.
2. How long do the batteries last in a Bosch laser level?
Battery life varies by model and usage, but generally, Bosch lithium-ion or alkaline-powered lasers last between 10 to 20 hours of continuous use. Models with “Eco Mode” can extend this further by dimming the beam when full brightness isn’t necessary. Always carry spare batteries for long job sites.
3. What does it mean if my laser lines are flashing?
Flashing lines are a warning indicator. It means the laser is placed on a surface that is tilted beyond its self-leveling compensation range (usually greater than 4 degrees). The tool is telling you it cannot guarantee accuracy. You must reposition the laser on a flatter surface or adjust the tripod legs until the lines become solid.
4. Are Bosch laser levels waterproof?
Most professional Bosch laser levels carry an IP54 rating. This means they are protected against limited dust ingress and water splashes from any direction. However, they are not submersible. Avoid using them in heavy rain or leaving them in puddles.
5. How often does the laser need to be recalibrated?
Under normal use, Bosch lasers hold their calibration for a long time. However, if the unit is dropped hard or subjected to extreme temperature shocks, accuracy may drift. It is recommended to check calibration every 6 months for professional use or before starting a critical project. If you notice discrepancies, send it to an authorized Bosch service center.
Conclusion
Investing in the right tools is the first step toward professional-grade results. The self-leveling cross line combo laser with plumb points Bosch offers an unmatched combination of precision, durability, and ease of use. Whether you are a seasoned contractor framing a new building or a homeowner tackling a weekend bathroom remodel, this tool eliminates the frustration of crooked lines and inaccurate measurements.
By leveraging its self-leveling technology and versatile plumb points, you can save time, reduce material waste, and achieve a finish that looks professionally done. Don’t let outdated tools hold your projects back. Upgrade your toolkit with Bosch and experience the difference that true precision makes.
