Show Me a Picture of a Check Valve in Plumbing: Visual Guide & Types

Have you ever heard a loud “bang” in your pipes or worried about dirty water flowing back into your clean supply? These are common signs that your plumbing system might be missing a crucial component: the check valve. Whether you are a DIY enthusiast trying to fix a noisy pipe or a homeowner ensuring your water stays safe, knowing exactly what this device looks like is the first step to solving the problem. In this guide, we will show you a picture of a check valve in plumbing, break down its different forms, and explain why this small device plays such a massive role in protecting your home’s water integrity.

What Does a Check Valve Look Like? (Visual Identification)

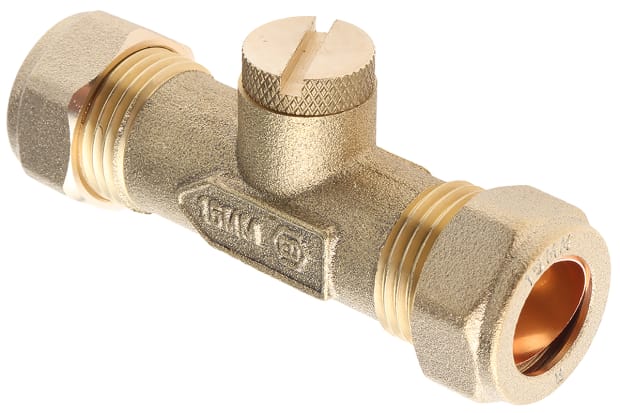

When users search to “show me a picture of a check valve in plumbing,” they are often looking for a way to identify the part sitting in their basement or under their sink. Physically, a check valve is usually a compact, cylindrical, or spherical device installed inline with a pipe.

While designs vary, most share these visual characteristics:

• Body Shape: Typically round or hexagonal (to allow for wrench tightening), made from brass, PVC, stainless steel, or cast iron.
• Flow Arrow: Almost every modern check valve has an arrow cast or stamped on the exterior body. This indicates the direction water should flow. If the arrow points against the water flow, the valve is installed backward.
• Size: They range from small ½-inch units for residential sinks to massive 12-inch industrial flanges.
• Internal Mechanism (Visible in cutaways): Inside, you will see a disc, ball, or flap that moves freely. When water pushes forward, it opens; when water tries to reverse, it slams shut.

Pro Tip: If you cannot see inside the valve, look for the manufacturer’s label or the directional arrow. This is the quickest way to confirm you are looking at a check valve and not a gate or ball valve.

Common Visual Variations by Material

How Does a Check Valve Work? The Mechanics Behind the Image

Understanding the image of a check valve is only half the battle; understanding its function explains why it looks the way it does. Unlike a manual valve that you turn with a handle, a check valve is automatic. It relies entirely on fluid dynamics.

1. Forward Flow: When water pressure builds up on the inlet side, it pushes the internal mechanism (the disc, ball, or flap) open. Water flows through freely with minimal resistance.
2. Reverse Flow Attempt: If the pressure drops or reverses (backflow), the water pushes the internal mechanism back against its seat.
3. Sealing: Gravity, spring tension, or back-pressure forces the mechanism to seal tightly, preventing any water from moving backward.

This simple yet brilliant mechanism is why check valves are often called “one-way valves” or “non-return valves.” They require no electricity, no human intervention, and very little maintenance.

According to engineering principles detailed by Wikipedia, the design of the internal closing mechanism is critical to preventing “water hammer”—that loud banging noise caused by a valve slamming shut too quickly. Modern designs often include dampening springs to close the valve gently before the flow fully reverses.

Types of Check Valves: Which One Do You See in Your Pipes?

Not all check valves look the same. The specific application dictates the design. Here are the most common types you might encounter when inspecting your plumbing:

1. Swing Check Valve

• Visual Cue: Often larger and used in horizontal pipes. Inside, a disc hangs from a hinge at the top.
• How it Works: The disc swings open like a door when water flows forward. When flow stops, gravity pulls the disc down to close it.
• Best For: Low-velocity water systems and large diameter pipes where minimal pressure drop is needed.

2. Spring-Loaded (Silent) Check Valve

• Visual Cue: Compact, often found in tight spaces like behind water heaters. Contains an internal spring.
• How it Works: The spring keeps the disc closed until sufficient forward pressure opens it. When pressure drops, the spring instantly pushes the disc shut.
• Best For: Preventing water hammer. These are the “silent” heroes of residential plumbing.

3. Ball Check Valve

• Visual Cue: Simple design, often seen in sump pumps or sewage ejector pumps. Contains a free-floating ball.
• How it Works: Water pushes the ball up and out of the way. When flow reverses, the ball falls back onto the seat, blocking the hole.
• Best For: Wastewater and sewage applications where debris might clog a hinged disc.

4. Wafer Check Valve

• Visual Cue: Very thin, sandwiched between two pipe flanges. Looks like a metal disc with a hinge.
• How it Works: Similar to a swing check but much lighter and thinner.
• Best For: Commercial buildings where space between pipe flanges is limited.

Where Are Check Valves Installed in a Home?

If you are walking through your house trying to locate these devices, here are the most common installation points:

• Sump Pumps: Crucial here. Without a check valve, pumped water would flow right back into the basement pit when the pump turns off.
• Water Heater Outlets: Often installed on the cold water inlet line to prevent hot water from expanding back into the cold water supply (thermal expansion).
• Boiler Systems: To ensure heated water circulates in the correct loop and doesn’t drain back when the pump stops.
• Irrigation Systems: Installed after the backflow preventer to ensure fertilizer or dirty garden water never siphons back into the drinking water.
• Main Sewer Line: In areas prone to flooding, a main line check valve prevents city sewage from backing up into the home during heavy storms.

Troubleshooting: Signs Your Check Valve Has Failed

Even though they are durable, check valves can fail. If you suspect an issue, look for these symptoms:

• Water Hammer Noise: A loud “thud” or “bang” every time a faucet is turned off quickly. This suggests the valve is slamming shut too hard or is stuck.
• Continuous Running Sound: If you hear water flowing when no fixtures are on, the valve might be stuck open, allowing backflow.
• Contaminated Water: If your clean water tastes odd or looks cloudy after a pressure drop in the city mains, your backflow prevention check valve may have failed.
• Sump Pump Cycling: If your sump pump turns on and off rapidly without rain, the check valve might be leaking, letting water slide back into the pit.

Replacement Tip: When replacing a valve, always match the flow direction arrow to the direction of the water. Installing it backward will block all water flow completely!

FAQ: Common Questions About Plumbing Check Valves

1. Can I install a check valve vertically?

It depends on the type. Swing check valves generally must be installed horizontally because they rely on gravity to close the disc. However, spring-loaded check valves and ball check valves can typically be installed in vertical pipes (with flow moving upward) because the spring or ball mechanism does not rely solely on gravity. Always check the manufacturer’s instructions on the packaging.

2. What is the difference between a check valve and a backflow preventer?

While both stop reverse flow, a check valve is a single mechanical device. A backflow preventer is a more complex assembly that often includes two check valves, test cocks, and shut-off valves. Backflow preventers are required by code for high-hazard situations (like connecting a garden hose to a chemical sprayer) and must be tested annually by a professional.

3. How often should I replace a check valve?

Check valves do not have a specific expiration date. High-quality brass or stainless steel valves can last 20–30 years. However, if you notice noise, leakage, or reduced water pressure, it should be inspected immediately. In critical applications like sewage ejectors, inspection every 2–3 years is recommended.

4. Why is my check valve making noise?

Noise is usually caused by “water hammer,” which happens when the valve closes too quickly against a fast-moving column of water. This is common with older swing check valves. Replacing it with a silent spring-loaded check valve usually solves the problem instantly.

5. Do I need a permit to install a check valve?

For simple replacements inside your home (like under a sink or on a water heater), a permit is rarely needed. However, if you are installing a check valve on the main sewer line or the main water entry point of your house, many municipalities require a permit and an inspection to ensure it meets local plumbing codes.

6. Can a check valve get stuck open?

Yes. Debris, mineral buildup (scale), or a broken spring can prevent the valve from closing. If a valve gets stuck open, it loses its ability to prevent backflow, which can lead to contamination or flooding issues. Regular flushing of the system can help prevent debris accumulation.

Conclusion

Now that we have helped show you a picture of a check valve in plumbing and explained its various forms, you are better equipped to identify and maintain this essential component. Whether it’s the silent spring-loaded type behind your water heater or the robust ball valve in your sump pump, these devices are the unsung guardians of your home’s plumbing health. They prevent costly damage, ensure water safety, and keep your pipes quiet.

Don’t wait for a backup or a loud bang to check your system. Take a moment to locate your check valves today and ensure the flow arrows are pointing the right way.
