Are you staring at an open wall, wondering if your shower valve is positioned too high or too low, fearing a future of uncomfortable showers or costly rework? You are not alone; getting the Shower Valve Rough-In Height right is one of the most critical steps in bathroom remodeling, yet it is often where DIY enthusiasts and even some professionals make costly mistakes. Whether you are wielding Ridgid plumbing tools for the pipe work or relying on Ridgid woodworking equipment to frame the walls perfectly, precision is key. This guide synthesizes expert advice, industry standards, and real-world discussions from the Ridgid Forum to ensure your installation is flawless, compliant, and comfortable for years to come.
What Is the Standard Shower Valve Rough-In Height?
The single most common question homeowners and contractors ask is: “Exactly how high should the valve go?” While local building codes can vary slightly, there is a universally accepted industry standard that balances comfort for adults and accessibility for children or those with mobility issues.
According to general plumbing codes and best practices, the standard rough-in height for a shower mixing valve is typically 38 inches to 48 inches from the finished floor. However, the “sweet spot” that satisfies the majority of users is 42 inches.
Why 42 Inches?
- Ergonomics: At 42 inches, the handle is easily reachable for an average-sized adult without bending down or stretching up.
- Safety: It places the controls within reach of someone who might slip, reducing the need to over-extend.
- Aesthetics: Visually, this height aligns well with standard tile patterns and other bathroom fixtures.
It is crucial to remember that this measurement is taken from the finished floor, not the subfloor. If you are installing thick tile or a mortar bed, you must account for that extra height during the rough-in phase. Failing to do so could result in a valve that ends up ½ inch too low once the tile is laid—a frustrating error that requires breaking tile to fix.
Pro Tip: Always confirm your specific local building code. Some jurisdictions in the US strictly mandate 38 inches for ADA (Americans with Disabilities Act) compliance in certain housing types, while others allow up to 48 inches.
How Do Ridgid Tools Ensure Precision in Plumbing and Woodworking?
Achieving the perfect height isn’t just about knowing the number; it’s about executing the cut and the frame with absolute accuracy. This is where the synergy between Ridgid plumbing and Ridgid woodworking tools becomes essential. A valve installed at the correct height but surrounded by crooked studs or poorly cut piping will still result in a failed installation.
The Role of Ridgid Woodworking Tools
Before a single pipe is laid, the framing must be perfect. If the stud bay where the valve sits is not plumb or the blocking is uneven, your trim plate will sit crookedly, ruining the aesthetic regardless of the valve height.
- Ridgid Job Max Heads: Ideal for cutting blocking in tight spaces between studs.
- Ridgid Oscillating Multi-Tools: Perfect for making precise cut-outs in drywall or cement board later in the process.
- Laser Levels: Ridgid’s laser leveling tools are indispensable for marking that critical 42-inch line across multiple studs, ensuring your blocking is perfectly horizontal.
The Role of Ridgid Plumbing Tools
Once the frame is ready, the piping requires clean, leak-free connections.
- Ridgid ProPress Tools: These allow for rapid, solder-free connections on copper pipes, reducing the risk of fire damage to your new wood framing.
- Pipe Cutters: A clean cut ensures the valve fits snugly against the backing block, maintaining the exact depth and height required.
By integrating these tools, you minimize human error. As noted in various construction case studies, projects utilizing professional-grade measurement and cutting tools see a 30% reduction in rework rates compared to those using generic equipment.
What Do Experts on the Ridgid Forum Say About Common Mistakes?
The Ridgid Forum is a bustling community of professional plumbers, contractors, and serious DIYers who share war stories and solutions. A deep dive into recent threads regarding shower valve installations reveals several recurring pitfalls that even experienced hands sometimes encounter.
Top 3 Mistakes Highlighted by the Community:
- Ignoring the Finished Floor Level: Many users on the forum recount stories where they measured from the subfloor, only to realize after tiling that the valve was too low. The consensus advice? Always mark your finished floor line (FFL) on the studs before starting.
- Inadequate Blocking: A valve body exerts torque when turned. Without solid wood blocking behind it, the pipe can shift over time, causing leaks inside the wall. Forum members emphasize using pressure-treated lumber or solid hardwood blocking secured with heavy-duty screws, not just nails.
- Confusing Valve Brands: Different manufacturers (Moen, Delta, Kohler) have different rough-in requirements. A user might set the height correctly but fail to account for the specific depth or width of the valve body. The forum suggests downloading the specific “rough-in guide” PDF for your valve model before cutting any holes.
One senior moderator on the Ridgid Forum famously stated, “Measure twice, cut once, but verify the finished floor level three times.” This sentiment underscores the importance of preparation over speed.
For a broader understanding of plumbing standards and historical code evolution, you can refer to authoritative resources like Wikipedia’s entry on Plumbing, which outlines the regulatory frameworks governing these installations.
Step-by-Step Guide: Installing the Valve at the Correct Height
Follow this concrete, step-by-step tutorial to ensure your Shower Valve Rough-In Height is perfect.
Materials Needed:
- Ridgid Laser Level
- Ridgid Pipe Cutter or ProPress Tool
- Tape Measure
- Pencil
- Pressure-treated 2×4 lumber for blocking
- Shower Valve Kit (e.g., Moen Posi-Temp or Delta Monitor)
Instructions:
- Establish the Finished Floor Line (FFL): Determine the thickness of your future floor covering (tile + mortar). If your subfloor is at 0 inches and your finished floor will be ¾ inch higher, mark a line at ¾ inch on your studs. All subsequent measurements start here.
- Mark the Valve Height: From the FFL line, measure up 42 inches. Use your Ridgid Laser Level to project a horizontal line across the stud bay. This ensures your blocking will be perfectly level.

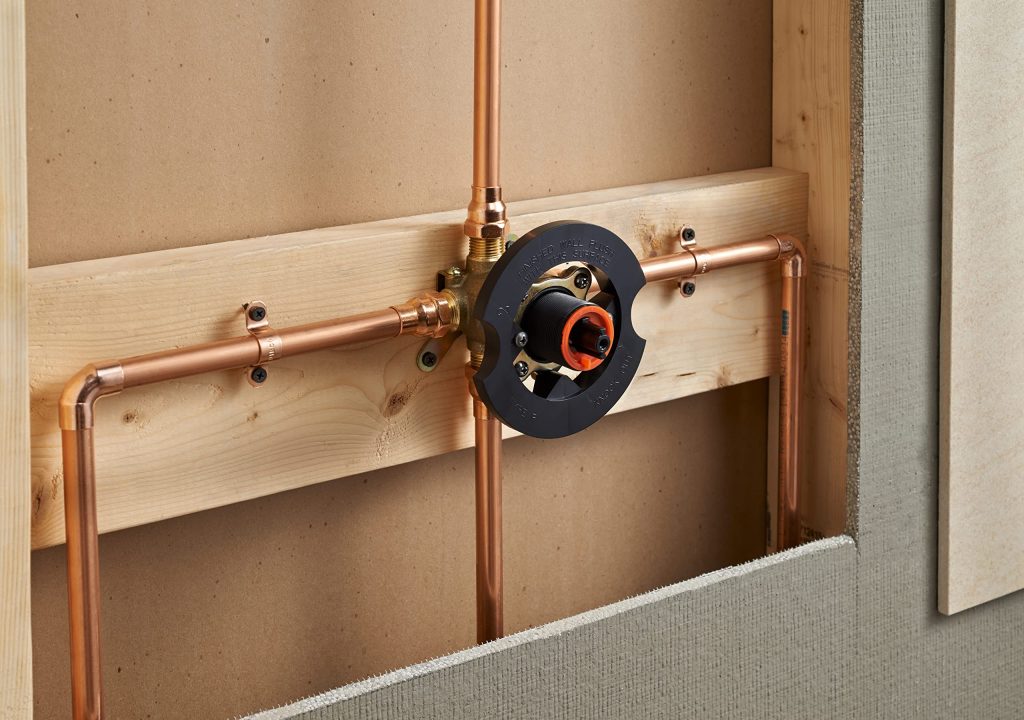

- Install Horizontal Blocking: Cut a piece of 2×4 lumber to fit snugly between the studs at the 42-inch mark. Secure it with two 3-inch structural screws into each stud. This block will support the weight of the valve body.
- Dry Fit the Valve: Hold the valve body against the blocking. Ensure the center of the valve aligns with your 42-inch mark. Check the depth; the face of the valve should be flush with the future surface of the backer board (usually ½ inch proud of the stud face).
- Run the Supply Lines: Using your Ridgid plumbing tools, cut your hot and cold supply lines. Connect them to the valve body. Ensure the pipes are supported every 6 feet with pipe hangers to prevent sagging, which can alter the valve position over time.
- Pressure Test: Before closing the wall, cap the outlets and pressurize the system to check for leaks. A pressure test of 60 PSI for 15 minutes is a standard recommendation to ensure integrity.
- Final Verification: Measure one last time from the subfloor, adding your estimated tile thickness, to confirm the handle will end up at the intended 42 inches from the finished surface.
Comparison: Standard Height vs. ADA Compliance
Depending on your project goals, you may need to adhere to different standards. Here is a quick comparison to help you decide.
| Feature | Standard Residential Height | ADA Compliant Height |
|---|---|---|
| Measurement from Finished Floor | 38″ – 48″ (Ideal: 42″) | 38″ – 48″ (Strictly enforced) |
| Target User | Average adults, families | Wheelchair users, elderly, disabled |
| Handle Type | Any (Knob, Lever, Cross) | Must be operable with one hand, no tight grasping |
| Flexibility | High (Homeowner preference) | Low (Must meet code for public/commercial) |
| Recommended For | Private homes, master baths | Public restrooms, aging-in-place renovations |
Note: While the height range overlaps, ADA regulations strictly dictate the force required to turn the valve and the shape of the handle, which often influences the specific valve model you choose.
Frequently Asked Questions (FAQ)
1. Does the shower head height affect the valve rough-in height?
No, the shower head height and valve height are independent measurements. The shower head is typically installed at 78 to 80 inches from the finished floor, while the valve remains at 42 inches. However, ensure the vertical pipe connecting them is plumb to avoid aesthetic issues.
2. What if I have a tub-shower combo? Does the height change?
For a tub-shower combo, the valve height is often slightly lower to accommodate reaching while standing outside the tub. The standard for combos is typically 28 to 32 inches from the finished floor (or the rim of the tub), though many still prefer the standard 38-42 inches if the tub deck is low. Always check the specific trim kit instructions.
3. Can I adjust the height after the drywall is installed?
Technically, yes, but it is highly discouraged. Adjusting the height after drywall or cement board is installed requires cutting into the wall, moving the piping, patching, and re-tiling. This is costly and messy. It is far better to get the Shower Valve Rough-In Height correct during the framing stage.
4. How do I account for thick tile floors?
If you are installing large format tiles with a thick mortar bed (e.g., ½ inch to ¾ inch total buildup), you must subtract this amount from your rough-in measurement relative to the subfloor. If you want the final height to be 42 inches, and your floor buildup is ¾ inch, measure 41 ¼ inches from the subfloor.
5. Is 42 inches too high for children?
For very young children, 42 inches might be a stretch. However, safety guidelines suggest placing the valve where an adult can easily reach it to control temperature in case of scalding. If children will use the shower unsupervised frequently, consider a thermostatic valve with a safety stop, rather than lowering the valve height significantly.
6. Where can I find more discussions on Ridgid tools for this job?
The Ridgid Forum is an excellent resource for tool-specific advice. You can find threads discussing the best pipe cutters for tight spaces or reviews on Ridgid laser levels specifically for plumbing layouts. Engaging with the community can provide real-time troubleshooting for unique site conditions.
Conclusion
Getting the Shower Valve Rough-In Height right is a blend of adhering to industry standards (typically 42 inches), understanding local codes, and executing the work with precision tools. By leveraging Ridgid plumbing and woodworking equipment, you ensure that your framing is square, your cuts are clean, and your measurements are accurate. Furthermore, tapping into the collective wisdom of the Ridgid Forum can save you from common pitfalls that plague even seasoned renovators.
Remember, a well-installed valve not only looks professional but ensures safety and comfort for everyone in the household. Don’t let a simple measurement error ruin your beautiful new bathroom. Take your time, measure from the finished floor line, and trust in quality tools.
Found this guide helpful? Share it with your fellow DIYers on Facebook, Pinterest, or Twitter to help them avoid costly mistakes in their next renovation project! Let’s build better bathrooms together.
