Simple 2 Bedroom House Plans: Plumbing on the Left Side Explained

Are you dreaming of building a cozy home but worried about skyrocketing construction costs? Many first-time homebuilders struggle with complex layouts that waste money on excessive piping and inefficient space usage. Finding a simple 2 bedroom with plumbing on left side of house configuration is often the secret weapon for creating an affordable, functional, and easy-to-maintain living space. By consolidating your wet areas, you not only streamline the building process but also ensure long-term efficiency for your future household.

Why Choose a Left-Side Plumbing Layout for Small Homes?

When designing a compact residence, every square foot counts. Placing all major plumbing fixtures—such as the kitchen, bathroom, and laundry area—along one specific wall (in this case, the left side) is a strategy known as “stacking” or “clustering.”

The Cost Efficiency Factor

According to general construction data, plumbing can account for a significant portion of a home’s rough-in costs. By keeping the water supply lines and drainage pipes concentrated on the left side, you drastically reduce the length of piping required.

• Reduced Material Costs: Less PVC, copper, and PEX tubing needed.
• Lower Labor Hours: Contractors spend less time running lines through walls and floors.
• Faster Inspection: Simplified systems are easier for city inspectors to approve.

Maintenance Made Simple

Imagine a leak occurs. In a scattered layout, you might need to tear up floors in three different rooms to find the source. In a simple 2 bedroom with plumbing on left side of house design, all critical access points are localized. This makes repairs faster, cheaper, and less invasive to your daily life.

Expert Insight: “In small footprint homes, the ‘wet wall’ concept is non-negotiable for budget-conscious builders. Grouping utilities reduces the thermal envelope breaches and simplifies insulation,” says typical architectural guidance found in residential planning resources. For more on the history of residential plumbing standards, you can reference Wikipedia’s overview on plumbing.

Key Design Features of a Left-Side Plumbing Plan

To successfully execute this layout, you need to understand how the rooms interact. A standard 2-bedroom plan with this configuration usually follows a specific flow.

The “Wet Wall” Strategy

The core of this design is a single wall (the left exterior or interior partition) that houses:

1. The Kitchen Sink: Positioned near the entry or center-left.
2. The Bathroom: Located directly adjacent to or above/below the kitchen.
3. Laundry Hookups: Often tucked into a closet sharing the same wall.

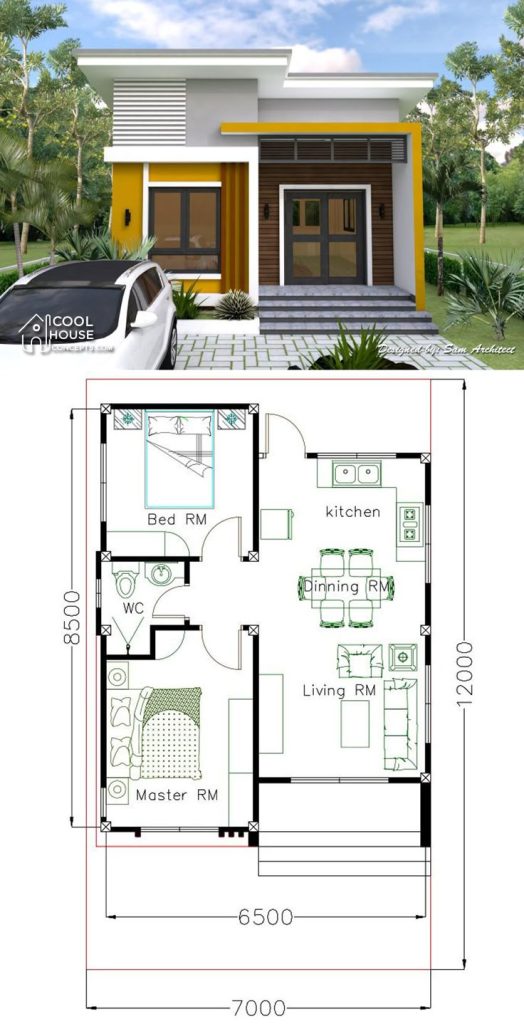

Sample Layout Breakdown

Here is how a typical 800–1,000 sq. ft. home looks with this setup:

This arrangement leaves the right side of the house completely free of noisy pipes and water heaters, making it the perfect zone for sleeping quarters.

Step-by-Step Guide to Planning Your Layout

If you are working with an architect or drafting your own plans, follow these concrete steps to ensure your simple 2 bedroom with plumbing on left side of house design is structurally sound and code-compliant.

Step 1: Define the “Wet Zone” Boundary

Draw a vertical line on your blueprint representing the left side of the house. Allocate a width of 3 to 4 feet for this zone. This corridor will contain all vertical chases for water supply and waste drainage.

• Tip: Ensure this wall is not an exterior load-bearing wall unless you plan for heavy insulation to prevent freezing pipes in winter.

Step 2: Position the Main Stack

The main soil stack (the large pipe carrying waste to the sewer/septic) should be located centrally within this left-side zone.

• Measurement: Place the stack approximately 6–8 feet from the front foundation corner.
• Reasoning: This allows the kitchen sink (usually 2 feet deep) and the bathroom vanity/toilet to connect with short horizontal runs, maintaining the necessary slope of 1/4 inch per foot for proper drainage.

Step 3: Align Fixtures Vertically

If you are building a two-story home, the second-floor bathroom must sit directly above the first-floor kitchen or laundry room.

• Action: Mark the exact coordinates of the toilet flange on both floors.
• Constraint: Do not shift the toilet more than 6 inches laterally between floors without using offset fittings, which increase clog risks.

Step 4: Insulate and Soundproof

Since bedrooms are likely on the right side, noise transmission through the floor joists is a concern.

• Material: Use rock wool insulation (density approx. 60 kg/m³) inside the plumbing chase.
• Technique: Wrap all cast iron or PVC drain pipes with acoustic mass-loaded vinyl before closing up the drywall.

Step 5: Verify Venting Requirements

Every trap needs a vent. In a left-side cluster, you can often use a single vent stack that exits through the roof on the left elevation.

• Code Check: Ensure the vent pipe diameter is at least 1.5 inches for sinks and 3 inches for the main toilet stack, adhering to local IPC (International Plumbing Code) variations.

Pros and Cons: Is This Layout Right for You?

Before finalizing your blueprints, weigh the advantages against potential limitations.

Advantages

• Budget Friendly: Can save up to 15–20% on total plumbing rough-in costs compared to split-bath designs.
• Energy Efficient: Hot water travels shorter distances, meaning less water wasted while waiting for it to heat up.
• Design Flexibility: The dry side (right side) offers open floor plan possibilities without structural interruptions from pipes.
• Resale Appeal: Practical layouts attract investors and first-time buyers looking for low-maintenance properties.

Disadvantages

• Limited Expansion: Adding a bathroom on the right side later would be very expensive and disruptive.
• Noise Concentration: If not properly insulated, the left side of the house may carry more sound from flushing toilets and running dishwashers.
• Wall Thickness: The plumbing wall may need to be thicker (e.g., 2×6 studs instead of 2×4) to accommodate large drain pipes, slightly reducing interior square footage.

Optimizing for Modern Living: Tips for Functionality

A simple layout doesn’t mean a boring one. Here is how to make your left-side plumbing plan feel luxurious.

1. Use Pocket Doors

To save space in the bathroom and laundry area located on the left, install pocket doors. This eliminates the swing radius, making narrow hallways feel wider.

2. Tankless Water Heater Placement

Install a tankless water heater directly on the left exterior wall or inside the plumbing closet. This ensures instant hot water delivery to the kitchen and bath, maximizing the efficiency of your short pipe runs.

3. Smart Storage Solutions

Utilize the space above the plumbing lines. Since pipes run along the left wall, consider building shallow cabinetry (12 inches deep) in the hallway or kitchen to hide unsightly pipes while gaining storage.

4. Natural Light Balance

Since the left side is heavy with utilities, ensure the right-side bedrooms have larger windows. This draws the eye away from the service zone and creates a balanced aesthetic. Aim for window-to-floor ratios of at least 10% in sleeping areas for optimal natural light.

Frequently Asked Questions (FAQ)

Q1: Can I add a half-bath on the right side later if I choose this plan?

A: While possible, it is not recommended for a “simple” budget build. Adding a bathroom to the dry side later requires tearing up floors to run new drain lines back to the main stack on the left, which can be costly and invasive. It is better to plan for all potential bathrooms during the initial construction phase.

Q2: Does placing all plumbing on one side affect the home’s resale value?

A: Generally, no. In fact, many appraisers view consolidated plumbing as a positive feature because it indicates lower future maintenance costs. As long as the flow of the house feels natural, buyers appreciate the efficiency of a simple 2 bedroom with plumbing on left side of house.

Q3: What if my lot requires the garage or entry on the left side?

A: This layout is highly adaptable. If the left side is the garage, you can place the kitchen and laundry in the space above or adjacent to the garage, keeping the “wet wall” concept intact. The key is keeping the water sources clustered, regardless of which compass direction they face.

Q4: How do I prevent frozen pipes in a left-side exterior wall design?

A: Never run water supply lines in exterior walls if you live in a cold climate. Always route pipes through the interior side of the stud cavity or use an interior partition wall for your plumbing chase. If an exterior wall is unavoidable, use heated trace cables and increase insulation to R-20 or higher.

Q5: Is this layout suitable for slab-on-grade foundations?

A: Yes, it is actually ideal for slab foundations. By clustering plumbing, you minimize the number of pipes embedded in the concrete, reducing the risk of slab leaks and making future access (via cut-outs) much more manageable.

Q6: Can I fit a washer and dryer in this layout without a dedicated laundry room?

A: Absolutely. In a 2-bedroom simple plan, laundry hookups are often placed in a closet in the hallway adjacent to the bathroom or even within the kitchen cabinetry. Stacking units (washer on top of dryer) can fit in a space as small as 24 inches wide by 30 inches deep.

Conclusion

Designing a home is a balancing act between aesthetics, functionality, and budget. Opting for a simple 2 bedroom with plumbing on left side of house is a strategic move that pays dividends immediately during construction and for years to come through reduced utility bills and maintenance headaches. By clustering your wet areas, you unlock the potential for a spacious, quiet living zone on the opposite side of the home, perfect for rest and relaxation.

Whether you are a first-time builder or an investor looking to maximize ROI, this layout offers a proven formula for success. Remember, the smartest homes aren’t always the biggest; they are the ones designed with intention and efficiency.
