If you’re upgrading your kitchen or troubleshooting a clog, understanding the single bowl kitchen sink plumbing diagram with garbage disposal is essential. Many homeowners feel overwhelmed by the maze of pipes under the sink—but you don’t need to be one of them. With the right diagram and clear instructions, you can confidently tackle installation or repair. This guide breaks it all down in plain English, whether you’re a DIY newbie or just refreshing your knowledge.
Why You Need a Plumbing Diagram for a Single Bowl Sink With Garbage Disposal
Before turning any wrench, a plumbing diagram acts like a roadmap. It shows how water flows from your faucet, through the disposal, and into your home’s drainage system. Without it, you risk leaks, poor drainage, or even violating local plumbing codes.
According to the International Association of Certified Home Inspectors (InterNACHI), improper sink drainage is among the top 5 causes of kitchen water damage—often due to incorrect P-trap or disposal connections. A correct diagram prevents these costly mistakes.
Key Components of a Single Bowl Sink Plumbing System With Garbage Disposal

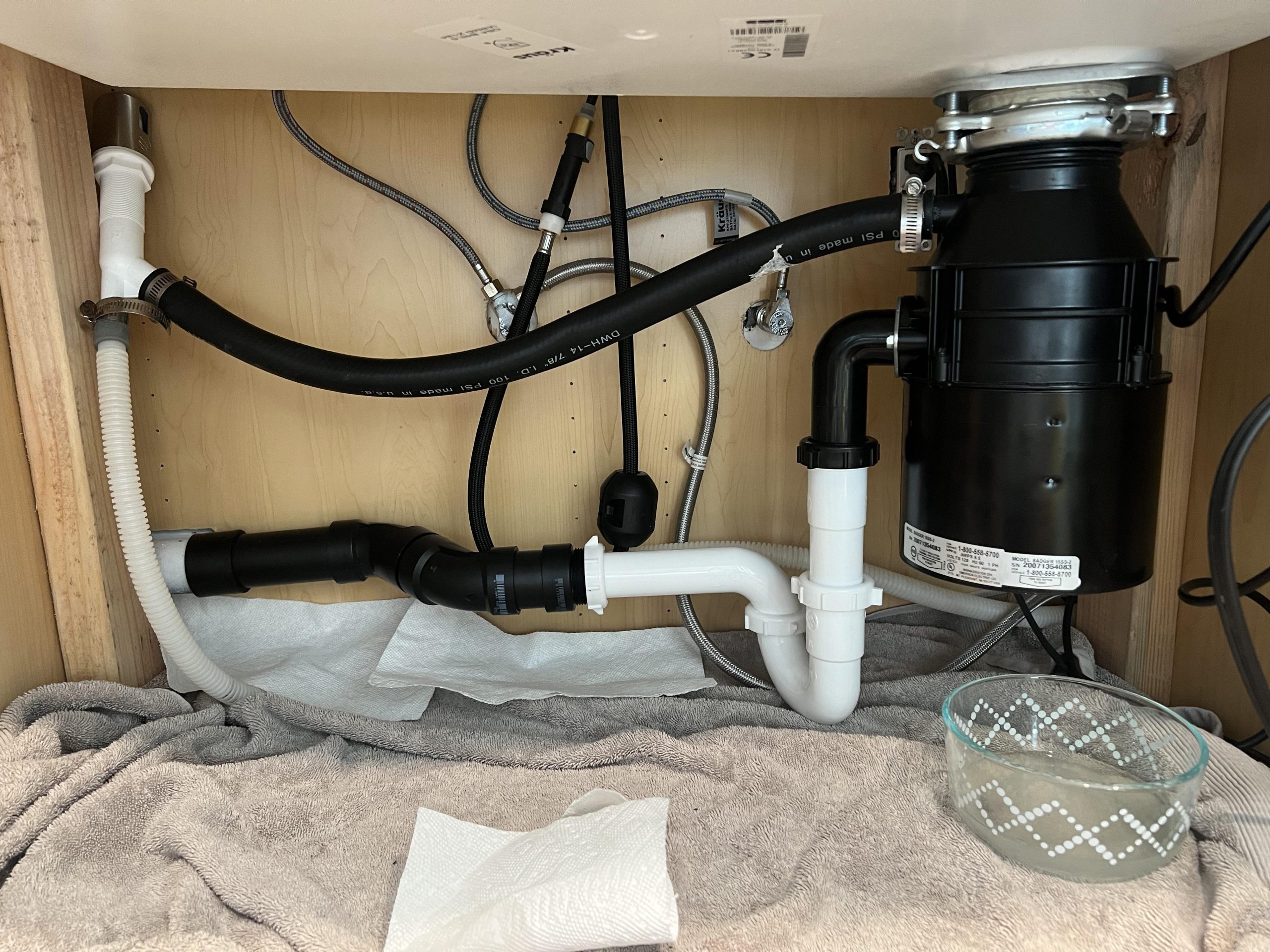

Here’s what you’ll typically find under a single bowl sink with a garbage disposal:
Faucet & Supply Lines: Hot and cold water lines feeding the faucet.
Garbage Disposal Unit: Mounted directly under the sink drain.
Drain Flange & Mounting Assembly: Secures the disposal to the sink.
Disposal Discharge Tube: Connects the disposal outlet to the drainpipe.
P-Trap: The U-shaped pipe that prevents sewer gases from entering your kitchen.
Tailpiece: Vertical pipe extending from the sink drain (or disposal) into the P-trap.
Waste Arm: Horizontal pipe connecting the P-trap to the main drain line in the wall.
💡 Pro Tip: Always check local plumbing codes. In some U.S. municipalities (like parts of California), air gaps or specific trap configurations are required for disposals.
Step-by-Step: Installing Plumbing for a Single Bowl Sink With Garbage Disposal
Follow these precise steps to ensure a leak-free, code-compliant setup:
Turn Off Water Supply Shut off hot and cold valves under the sink. Open the faucet to drain residual water.
Mount the Garbage Disposal
Attach the mounting ring to the sink flange using the provided snap ring.
Align the disposal unit and twist it into place until it locks.
Secure with the mounting screws (usually 3).
Connect the Discharge Tube
Attach the disposal’s discharge outlet to a 1.5-inch dishwasher connector (if applicable) or directly to the drain arm.
Use a slip nut and washer—hand-tighten first, then give a quarter-turn with pliers.
Install the P-Trap Assembly
Connect the tailpiece (from disposal outlet) to the P-trap inlet.
Link the P-trap outlet to the waste arm leading into the wall.
Ensure all connections are snug but not over-tightened—this can crack plastic fittings.
Test for Leaks
Turn water back on.
Run the faucet and disposal for 30 seconds.
Check all joints with a dry paper towel—any dampness indicates a leak.
📏 Measurement Note: The vertical distance from the sink drain to the P-trap should be no more than 24 inches, per the Uniform Plumbing Code (UPC). Too much drop reduces drainage efficiency.
For a visual reference, see this simplified text-based diagram:
Most disposals (like InSinkErator or Waste King) come with all necessary mounting hardware—double-check before buying extras.
Single Bowl vs. Double Bowl: Plumbing Differences
While this guide focuses on single bowl kitchen sink plumbing with garbage disposal, it’s worth noting how it differs from double-bowl setups:
Single Bowl: One drain → one disposal → one P-trap. Simpler, fewer parts, easier to install.
Double Bowl: Two drains → often one disposal on one side → requires a dual-outlet waste tee and shared P-trap.
A 2022 HomeAdvisor survey found that 68% of U.S. homeowners prefer single-bowl sinks in modern kitchens due to larger usable space and simpler plumbing.
FAQ Section
Q1: Can I install a garbage disposal on any single bowl sink?
A: Yes—most standard single bowl sinks (with a 3.5-inch drain opening) support garbage disposals. Verify your sink’s flange compatibility. Stainless steel, composite, and fireclay sinks all work, but cast iron may require reinforcement.
Q2: Do I need a separate P-trap for the garbage disposal?
A: No. The disposal connects directly to the existing P-trap system. You’ll replace the standard tailpiece with the disposal’s discharge tube, which then feeds into the same P-trap.
Q3: Why does my sink gurgle when the disposal runs?
A: Gurgling usually means improper venting. Your drain system needs a vent pipe (often hidden in the wall) to equalize air pressure. Without it, suction from the disposal pulls air through the P-trap, causing noise and potential odor.
Q4: Can I connect a dishwasher to the same disposal?
A: Absolutely—and it’s recommended. Most disposals have a knockout plug on the side for dishwasher hoses. After removing the plug, attach the hose with a clamp. This lets the dishwasher drain through the disposal, reducing clogs.
Q5: How high should the garbage disposal be mounted?
A: The disposal outlet should sit at least 1–2 inches above the P-trap inlet to ensure proper drainage by gravity. Measure before final mounting.
Q6: What if my pipes don’t align after installing the disposal?
A: Use flexible discharge tubes or adjustable P-trap kits (available at hardware stores). Avoid excessive bends—keep the path as straight as possible to prevent debris buildup.
Conclusion
Understanding a single bowl kitchen sink plumbing diagram with garbage disposal empowers you to install, maintain, or troubleshoot your system like a pro. With the right layout, tools, and attention to code details, you’ll avoid leaks, odors, and costly plumber visits. Plus, a properly installed disposal boosts your kitchen’s functionality and home value.
Found this guide helpful? Share it on Pinterest, Facebook, or Twitter to help fellow DIYers! Got questions? Drop them in the comments—we’re happy to help.
Remember: When in doubt, consult a licensed plumber. Safety and code compliance always come first.
