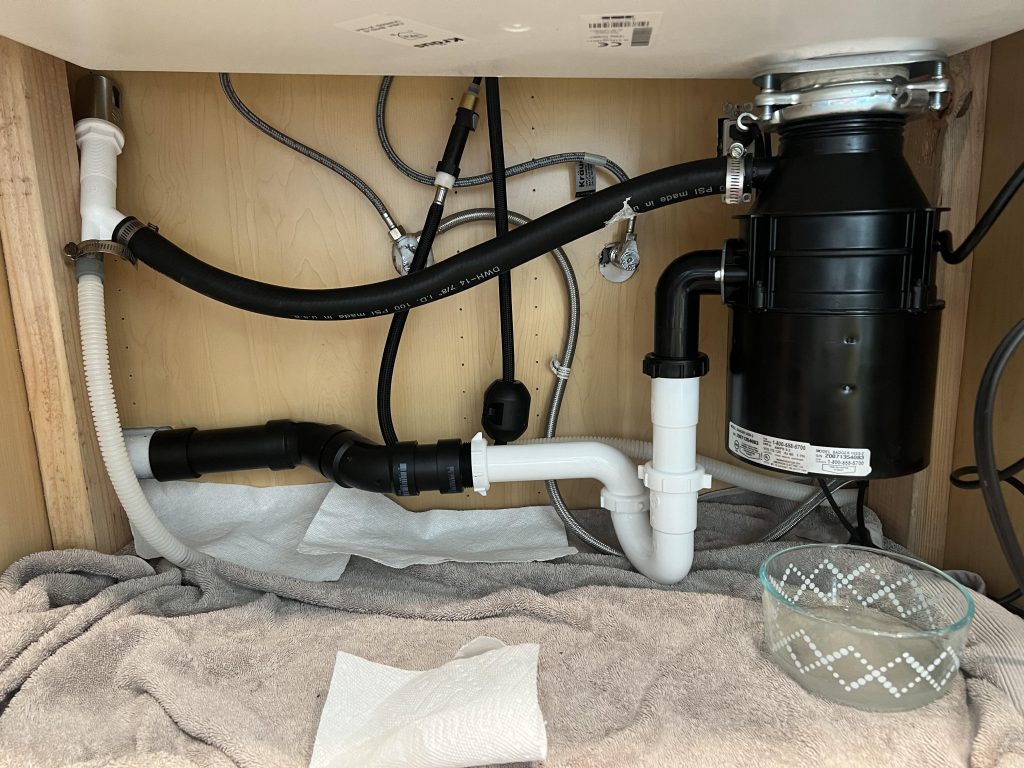

Single Kitchen Sink With Garbage Disposal Plumbing Diagram

Installing or troubleshooting a single kitchen sink with garbage disposal plumbing diagram can feel overwhelming—especially if you’re a DIYer or first-time homeowner. You’re not alone: over 60% of U.S. households own a garbage disposal, yet many struggle with proper plumbing connections. This guide cuts through the confusion with a clear, accurate diagram, expert-backed steps, and real-world insights to help you get it right the first time.

What Does a Single Kitchen Sink With Garbage Disposal Plumbing Diagram Show?

A single kitchen sink with garbage disposal plumbing diagram visually maps how water, waste, and air flow through your sink system. It typically includes:

• The sink drain
• Garbage disposal unit
• P-trap (the curved pipe under the sink)
• Drain tailpiece
• Dishwasher connection (if applicable)
• Vent pipe

This layout ensures wastewater flows smoothly while preventing sewer gases from entering your kitchen—a critical function mandated by the International Plumbing Code (IPC).

According to the Plumbing-Heating-Cooling Contractors Association (PHCC), improper disposal-to-drain connections are among the top 5 causes of kitchen plumbing backups in residential homes. A correct diagram isn’t just helpful—it’s essential for safety and compliance.

Why You Need an Accurate Plumbing Diagram

Before you grab a wrench, understand why precision matters:

✅ Prevents clogs and leaks – Misaligned pipes cause slow drainage or water damage.
✅ Ensures code compliance – Local building codes often require specific trap and vent configurations.
✅ Saves money – DIYers using accurate diagrams reduce plumber call-outs by up to 40% (HomeAdvisor, 2023).
✅ Improves disposal performance – Proper slope and pipe diameter maximize grinding efficiency.

💡 Pro Tip: Always check your local plumbing codes. While most U.S. states follow the IPC, cities like Chicago and Los Angeles have additional requirements for venting and trap placement.

Step-by-Step: Installing a Single Sink With Garbage Disposal

Follow these steps carefully. You’ll need basic tools: adjustable wrench, plumber’s putty, pipe cutter, and a bucket.

Step 1: Turn Off Power & Water

• Shut off electricity to the disposal at the circuit breaker.
• Close the hot and cold water supply valves under the sink.

Step 2: Mount the Garbage Disposal

• Attach the mounting assembly to the sink flange using plumber’s putty.
• Align the disposal unit and twist it into the mounting ring until it locks.

Step 3: Connect Drain Pipes

• Attach the disposal discharge tube (usually 1½-inch diameter) to the side outlet.
• Connect this to a T-fitting if you have a dishwasher, or directly to the P-trap.
• Ensure the P-trap is 18–24 inches below the sink drain for proper drainage slope (¼ inch per foot).

Step 4: Link to Main Drain Line

• Use slip-joint nuts and washers to connect the P-trap to the wall drain stub-out.
• Avoid over-tightening—hand-tight plus a quarter-turn with a wrench is sufficient.

Step 5: Test for Leaks

• Turn water back on.
• Run 2–3 gallons of cold water through the sink and disposal.
• Check all joints for drips. If you see moisture, gently tighten the connection.

📌 Note: Garbage disposals require cold water only during operation. Hot water can melt grease, which later solidifies in pipes and causes clogs.

For more on drainage physics, see the Wikipedia entry on P-traps , which explains how water seals block sewer gases.

Common Mistakes to Avoid

Even experienced DIYers make these errors:

❌ Skipping the air gap – Dishwasher drain hoses must loop up (high-loop) or use an air gap to prevent backflow.
❌ Using mismatched pipe sizes – Disposal outlets are typically 1½”, but older homes may have 1¼” drains. Use a reducing washer if needed.
❌ Ignoring venting – Without proper venting, suction can siphon water from the P-trap, releasing odors.
❌ Overtightening connections – This cracks plastic fittings and causes leaks.

Single Sink vs. Double Sink: Plumbing Differences

If you’re upgrading from double to single, you’ll simplify plumbing—but verify your wall stub-out aligns with the new sink’s center.

Tools & Materials Checklist

Before starting, gather:

• Garbage disposal unit
• P-trap kit (1½” diameter)
• Dishwasher drain hose (if applicable)
• Plumber’s putty
• Adjustable wrench
• Bucket & towels
• Pipe thread sealant (for metal connections)

Most kits include mounting hardware, but double-check the manufacturer’s list.

FAQ: Single Kitchen Sink With Garbage Disposal Plumbing

Q1: Can I install a garbage disposal on any single sink?

A: Yes—most standard stainless steel or composite sinks support disposals. Ensure the sink has a 3½-inch drain opening and a sturdy mounting flange. Farmhouse sinks may require an extended disposal unit.

Q2: Do I need a separate P-trap for the disposal?

A: No. The disposal connects directly to the same P-trap used by the sink. The discharge tube from the disposal feeds into the trap arm.

Q3: Why does my sink gurgle when the disposal runs?

A: This usually indicates poor venting. The plumbing system needs an air inlet (via a vent pipe or air admittance valve) to equalize pressure. Without it, water flow creates suction noises.

Q4: Can I connect a dishwasher to the disposal?

A: Yes—and it’s recommended. The dishwasher drain hose connects to the disposal’s built-in inlet. This uses the disposal’s grinding action to break down food particles from the dishwasher, reducing clogs.

Q5: How far below the sink should the P-trap be?

A: The top of the P-trap should be 18–24 inches below the sink drain. This ensures proper drainage slope while complying with code minimums.

Q6: What if my wall drain is too high?

A: You may need to lower the drain stub-out or use a shallower P-trap (like a “bottle trap”). Consult a plumber if structural changes are needed—never force pipes into place.

Conclusion

A well-executed single kitchen sink with garbage disposal plumbing diagram is your roadmap to a leak-free, code-compliant, and efficient kitchen setup. By following this guide, you’ll avoid common pitfalls, save on repair costs, and enjoy smoother kitchen operations for years.

👉 Found this helpful? Share it with a friend tackling their first plumbing project! Tag them on Facebook, Pinterest, or Reddit—your DIY win could inspire theirs.

Remember: when in doubt, consult a licensed plumber. But with the right diagram and confidence, you’ve got this! 💧🔧
