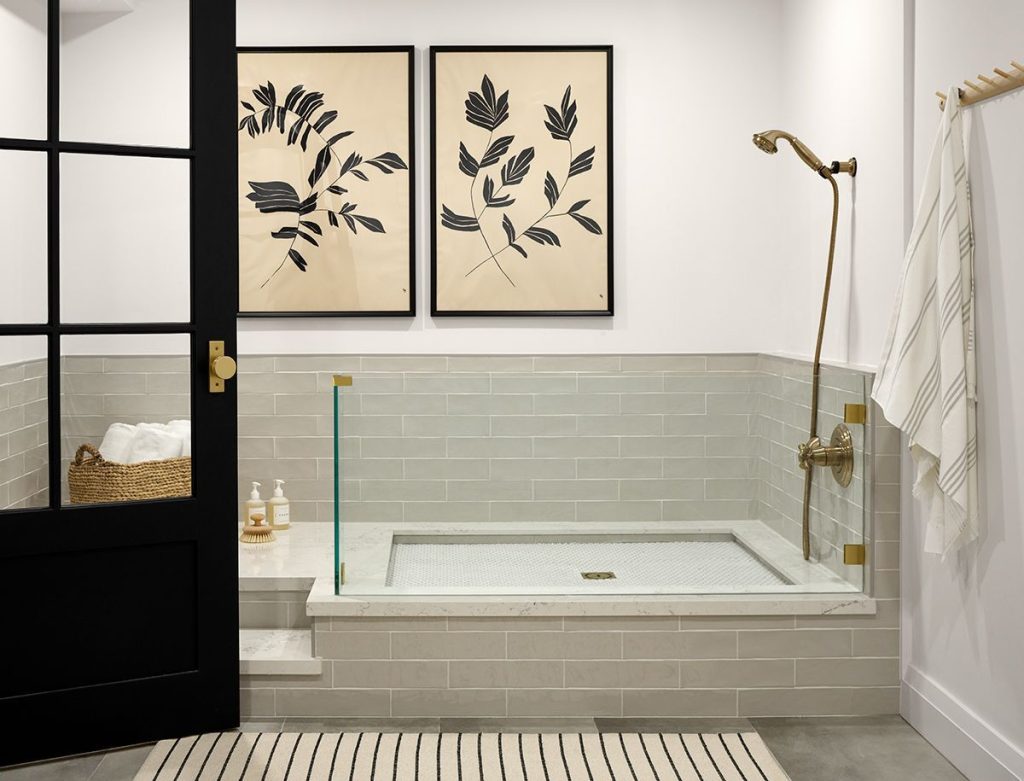

Small Bathroom With Elevated Shower And Toilet: The Basement Solution

Renovating a basement often hits a major roadblock: the plumbing. If you are dreaming of adding a convenient half-bath or a full ensuite to your lower level, you likely face the frustrating reality that your main sewer line sits higher than your new floor. This is where the concept of a small bathroom with an elevated shower and toilet for basement plumbing becomes not just an option, but a brilliant necessity. Instead of breaking up your concrete foundation to dig deep trenches—a process that is messy, expensive, and time-consuming—you can elevate your fixtures to meet the existing gravity lines or utilize modern pump systems. This guide will walk you through exactly how to achieve a functional, stylish, and code-compliant bathroom in your basement without the nightmare of major excavation.

Why Choose an Elevated Fixture Design for Basements?

The primary reason homeowners opt for a small bathroom with an elevated shower and toilet for basement plumbing is simple physics: water flows downhill. In most homes constructed after the 1950s, the main sewer stack exits the house above the basement floor level. To install a traditional gravity-fed toilet or shower drain, you would need to dig a hole deep enough to drop your waste pipes below this main line.

However, digging into a basement slab is often prohibitive. It can cost between $3,000 to $10,000 depending on the depth and whether you hit bedrock or utility lines. By choosing to elevate your shower base and toilet platform, you create the necessary “drop” for the pipes to slope correctly (typically 1/4 inch per foot) toward the main stack without destroying your foundation.

According to general construction data, raising a bathroom platform by just 6 to 8 inches can provide sufficient gradient for a short run of piping, saving thousands in labor and material costs. This approach turns a potential construction disaster into a manageable DIY-friendly or light-contractor project.

How High Should You Elevate the Shower and Toilet?

One of the most common questions we receive is about the specific dimensions required for this setup. The height depends entirely on the distance from your new bathroom to the main soil stack and the diameter of your drain pipes.

The Gravity Rule

For standard 2-inch shower drain lines and 3-inch toilet waste lines, plumbing codes generally require a slope of 1/4 inch per foot.

• Scenario A (Close Proximity): If your bathroom is only 4 feet away from the main stack, you need a total drop of 1 inch. A platform raised 4 to 5 inches is usually sufficient to accommodate the pipe, the slope, and the subflooring.
• Scenario B (Longer Run): If the bathroom is 10 feet away, you need a 2.5-inch drop. In this case, a platform raised 7 to 9 inches is ideal.

Step-by-Step Calculation

To determine your exact height, follow this concrete formula:

1. Measure the distance (in feet) from the center of your new toilet/shower drain to the connection point on the main stack.
2. Multiply that number by 0.25 (the slope requirement).
3. Add 1.5 inches for the pipe diameter and clearance.
4. Add 0.75 inches for your subfloor plywood.
5. Result: This is your minimum platform height.

Pro Tip: Most builders recommend building a standard 6-inch or 8-inch curb. This is high enough for almost all residential basement scenarios and low enough that it doesn’t feel like climbing stairs to use the restroom.

Platform Construction: Building the Base Correctly

Constructing the platform is the heart of creating a small bathroom with an elevated shower and toilet for basement plumbing. This structure must be watertight, sturdy, and capable of supporting significant weight (a filled bathtub or a standing adult).

Materials Needed

• 2×4 or 2×6 lumber (pressure treated for the bottom plate).
• 3/4-inch exterior-grade plywood for subflooring.
• Waterproof membrane (e.g., Schluter-KERDI or liquid rubber).
• Construction adhesive and galvanized screws.

Construction Steps

1. Frame the Perimeter: Build a rectangular frame using 2×6 lumber to match the footprint of your shower and toilet area. Secure it to the concrete floor using concrete anchors.
2. Install Joists: Place joists every 16 inches on center. Ensure they are level.
3. Create the Slope (Crucial Step): Unlike a regular floor, the top of this platform needs a slight slope toward the drain location if you are pouring a mortar bed later, OR you can build the slope into the framing using tapered shims. For simplicity, many pros build the frame flat and create the slope using a pre-sloped shower pan liner or a foam shower base kit.
4. Sheathing: Screw down the 3/4-inch plywood. Stagger the seams for strength.
5. Waterproofing: This is non-negotiable. Apply a liquid waterproofing membrane over the entire platform, extending at least 6 inches up the surrounding walls. Pay extra attention to the corners and the drain penetration point.

Expert Insight: Never skip the waterproofing step. In a basement, a leak doesn’t just ruin the room; it can seep into the foundation and cause structural mold issues. As noted in general building science principles found on resources like Wikipedia’s entry on Waterproofing, proper membrane installation is critical for below-grade or semi-below-grade structures.

Alternative Solution: When Elevation Isn’t Enough (Upflush Systems)

Sometimes, even an elevated platform isn’t feasible due to ceiling height constraints. If your basement has low ceilings (common in older homes), raising the floor by 8 inches might make the room feel claustrophobic.

In these cases, the alternative to a small bathroom with an elevated shower and toilet for basement plumbing is an upflush toilet system (often known by brand names like Saniflo).

How It Works

These systems use a macerating pump located behind the toilet or under the sink. The pump grinds waste into a slurry and pumps it vertically (up to 15 feet) and horizontally (up to 150 feet) to reach the main sewer line.

If you have the ceiling height, the elevated gravity method is almost always superior due to its silence and lack of mechanical failure points. However, if every inch of vertical space counts, the upflush system is a viable backup plan.

Design Tips for Small Elevated Basement Bathrooms

Just because the bathroom is small and elevated doesn’t mean it has to look utilitarian. With smart design, you can make the space feel open and luxurious.

• Use Large Format Tiles: Install large tiles (12×24 inches or larger) on the elevated platform and the floor. Fewer grout lines create an illusion of more space.
• Glass Enclosures: Instead of a shower curtain, use a frameless glass door. This allows the eye to travel across the whole room, making the small square footage feel expansive.
• Lighting is Key: Basements are naturally dark. Install recessed LED lighting with a high CRI (Color Rendering Index) to mimic natural daylight. Consider adding a skylight tube if cutting into the floor above is an option.
• Wall-Mounted Fixtures: Since you are already building a platform, consider wall-mounting the toilet tank (carrier system). This frees up floor space on the platform, making cleaning easier and the room look less cluttered.
• Step Integration: If your platform is 8 inches high, consider making the step wide and deep enough to double as a bench for putting on shoes or storing towels. This turns a necessary obstacle into a functional feature.

Common Mistakes to Avoid

When executing a small bathroom with an elevated shower and toilet for basement plumbing, avoid these pitfalls:

1. Insufficient Slope: Do not guess the slope. Use a level and calculate strictly. If the slope is too flat, water will pool; too steep, and the toilet trap might siphon dry.
2. Ignoring Access Panels: If you use any valves or cleanouts within the platform, you must install an access panel. You do not want to cut open your beautiful tile work if a valve leaks five years from now.
3. Poor Ventilation: Basements are prone to humidity. Ensure your new bathroom has a dedicated exhaust fan vented to the outside, not just into the crawlspace or attic.
4. Skipping the Permit: Even for small projects, plumbing changes usually require a permit. Failing to get one can cause issues when selling your home.

FAQ Section

1. Is it legal to build an elevated platform for a basement toilet?

Yes, it is completely legal in almost all jurisdictions, provided you obtain the necessary building permits and adhere to local plumbing codes regarding pipe slope, venting, and waterproofing. The International Residential Code (IRC) allows for fixture placement as long as drainage requirements are met.

2. Can I install a standard shower pan on an elevated platform?

Absolutely. In fact, it is recommended. You can purchase acrylic or fiberglass shower bases in various sizes. You simply place the pre-fabricated base on top of your framed and waterproofed platform. This is often easier than building a custom tiled shower floor.

3. What if my basement ceiling is too low for an elevated floor?

If raising the floor compromises your headroom (generally, codes require a minimum ceiling height of 6’8″), you should consider an upflush (macerating) toilet system instead. These allow you to keep the floor level with the rest of the basement.

4. How much does it cost to build an elevated bathroom platform?

The material cost for a DIY platform is relatively low, typically between $200 and $600 for lumber, plywood, and waterproofing. If you hire a contractor, labor costs can raise the total to $1,500–$3,000, which is still significantly cheaper than jackhammering concrete and re-pouring a foundation trench.

5. Do I need a special toilet for an elevated platform?

No, you can use any standard gravity-fed toilet. The elevation of the platform actually helps the flush performance slightly by increasing the hydrostatic pressure head, though the difference is negligible. Just ensure the wax ring is appropriate for the flange height (you may need an extra-thick wax ring or a flange extender).

6. Will the step be a tripping hazard?

It can be if not designed well. To mitigate this, use a contrasting color on the nosing (edge) of the step so it is clearly visible. Alternatively, build the step with a deep tread (at least 11 inches) so it feels more like a transition zone than a stair.

Conclusion

Creating a small bathroom with an elevated shower and toilet for basement plumbing is a smart, cost-effective strategy that bypasses the need for destructive concrete work. By understanding the physics of gravity drainage and constructing a sturdy, waterproof platform, you can add valuable living space and convenience to your home for a fraction of the cost of traditional methods. Whether you choose the silent reliability of a gravity-fed elevated system or the flexibility of a pump-assisted setup, the result is the same: a functional, comfortable bathroom that increases your home’s value.

Don’t let plumbing constraints stop your renovation dreams. With the right plan, your basement can become the versatile space you’ve always wanted. Found this guide helpful? Share it with your fellow DIY enthusiasts on social media or send it to a friend planning their basement remodel!
