Why Your Projects Need Precision Today

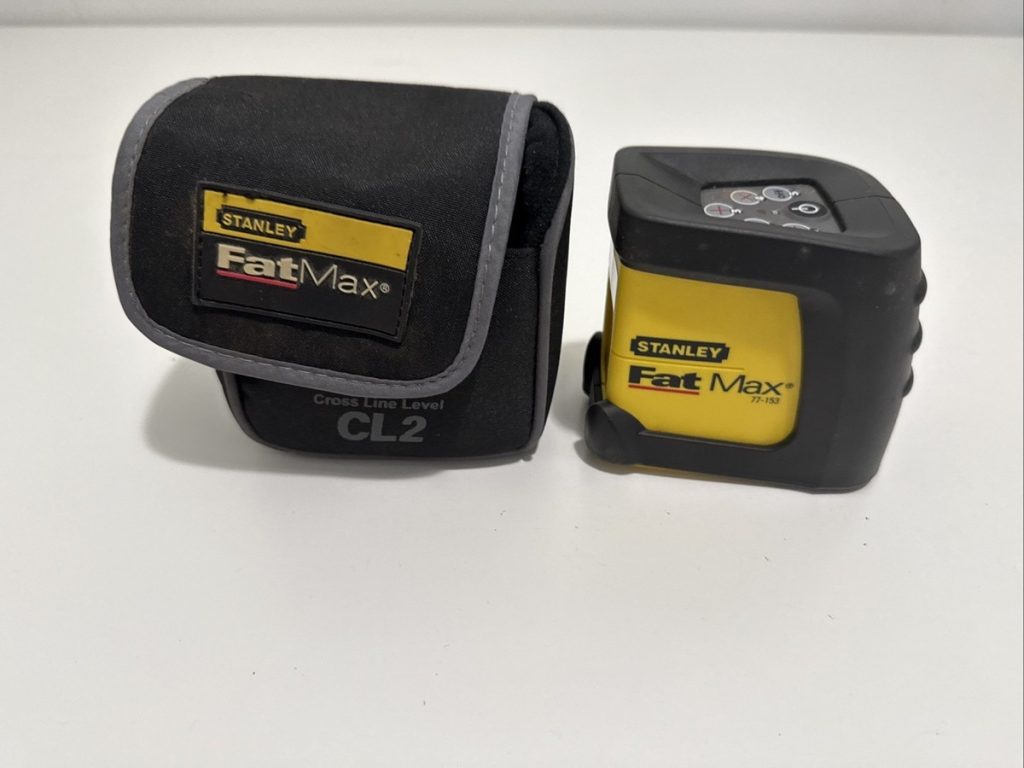

Have you ever finished hanging a row of cabinets only to realize they are slightly tilted, or spent hours trying to align drywall tracks by eye? It is frustrating, wastes valuable time, and often leads to costly rework. In the modern construction and DIY landscape, guessing is no longer an option; precision is the standard. This is exactly where the Stanley Fatmax Self Leveling Cross Line Laser Level with Plumb changes the game. Whether you are a seasoned contractor or a passionate home renovator, this tool eliminates human error, ensuring your lines are perfectly horizontal, vertical, and plumb every single time.
What Makes the Stanley Fatmax Cross Line Laser Unique?
When you pick up a laser level, you aren’t just buying a pointer; you are investing in accuracy and efficiency. The Stanley Fatmax series has built a reputation for durability, but the self-leveling cross-line model with plumb dots takes it a step further. Unlike traditional bubble levels that rely on your eyesight and steady hands, this device uses an internal pendulum mechanism to automatically find true level within a specific range (usually ±4 degrees).
Once activated, it projects crisp, bright red cross lines onto walls and floors. But the standout feature here is the plumb function. While many basic lasers only give you horizontal and vertical lines on a flat surface, the “Plumb” designation means this unit projects dots directly up and down from the device. This is critical for transferring points from floor to ceiling—a common necessity when installing electrical conduits, plumbing stacks, or partition walls.
According to industry standards, accuracy in construction can deviate by as much as 1/8 inch over 10 feet with manual tools. High-quality laser levels like the Fatmax reduce this tolerance significantly, often guaranteeing accuracy within ±1/8 inch at 30 feet. This level of precision ensures that your structural elements are not just “close,” but mathematically perfect.
Key Features at a Glance
To help you understand why this tool is a staple on job sites, let’s break down its core capabilities:
- Self-Leveling Technology: Automatically corrects minor setup errors, saving you time on manual adjustments.
- Cross-Line Projection: Creates a perfect 90-degree intersection for tiling, framing, and shelving.
- Up/Down Plumb Dots: Essential for vertical alignment between different floor levels.
- Fatmax Durability: Built with rugged over-molding to withstand drops and harsh job site conditions.
- Magnetic Mounting Bracket: Allows for quick attachment to metal studs, tracks, or ladders.
How Does the Self-Leveling Mechanism Actually Work?
You might wonder how a small handheld device can defy gravity to find a perfect line. Inside the housing of the Stanley Fatmax Self Leveling Cross Line Laser Level with Plumb, there is a suspended pendulum system. When you turn the device on, if it is placed on a surface that is relatively flat (within the self-leveling range), gravity pulls the pendulum into a neutral position.
Once the pendulum settles, the laser diodes activate, projecting the beams. If the device is bumped or moved outside of its leveling range, the beams will typically flash or shut off entirely. This is a crucial safety feature; it warns you immediately that your reference line is no longer accurate. This automatic correction happens in seconds, allowing you to move from one spot to another without recalibrating manually.
For those interested in the physics behind leveling instruments, the concept of using a pendulum for gravity-based alignment has been refined over centuries. You can read more about the historical evolution of leveling tools on Wikipedia.
Step-by-Step: How to Set Up Your Laser for Perfect Results
Using a laser level seems intuitive, but following a precise routine ensures you get the most out of the tool’s accuracy. Here is a concrete guide to setting up your Stanley Fatmax for a typical wall tiling or framing job.
Step 1: Inspection and Battery Check
Before heading to the site, ensure your batteries are fresh. Weak batteries can cause the laser diode to dim or the self-leveling mechanism to behave erratically. The Fatmax typically uses standard AA batteries. Insert them correctly, observing the polarity markings.
Step 2: Positioning the Device
Place the laser on a stable surface. This could be a tripod, a dedicated mounting bracket, or a flat shelf.
- Constraint: Ensure the surface is within ±4 degrees of level. While the tool self-levels, it cannot compensate for extreme angles.
- Height: Position the device at the desired height for your horizontal line. For example, if you are installing a chair rail at 36 inches, set the laser center point to 36 inches.
Step 3: Unlocking the Pendulum
Most Stanley Fatmax models have a lock switch on the side or front to protect the internal mechanism during transport.
- Slide the switch to the “Unlocked” or “On” position.
- You will hear a slight click, and the pendulum will begin to swing freely.
Step 4: Activation and Verification
Press the power button. Watch the laser lines appear.
- Visual Check: Ensure the lines are solid, not flashing. Flashing indicates the unit is out of its self-leveling range.
- Plumb Check: Look at the floor and ceiling. You should see distinct red dots directly above and below the main unit. These are your plumb points.
Step 5: Marking Your Lines
Once the lines are stable:
- Use a pencil to mark the wall at intervals along the horizontal laser line.
- Mark the floor and ceiling where the plumb dots appear.
- Use a chalk line or straight edge to connect your pencil marks if a continuous physical line is needed for cutting.
Pro Tip: If working in bright sunlight, the laser lines may be hard to see. In these cases, wearing laser-enhancing glasses or working during lower-light conditions can improve visibility significantly.
Stanley Fatmax vs. The Competition: A Quick Comparison
Not all laser levels are created equal. When deciding between the Stanley Fatmax and other entry-to-mid-level tools, consider these factors:
| Feature | Stanley Fatmax Cross Line + Plumb | Generic Entry-Level Laser | Professional Rotary Laser | | :— | :— | :— | : | | Self-Leveling | Yes (Automatic) | Sometimes (Manual vials) | Yes (High precision) | | Plumb Dots | Included | Rarely Included | Often Requires Attachment | | Durability | High (Over-molded rubber) | Low (Hard plastic) | Very High (Metal casing) | | Best Use Case | Interior framing, tiling, DIY | Picture hanging, small crafts | Large site grading, exterior | | Price Point | Mid-Range | Low | High |
The Stanley Fatmax hits the “sweet spot” for interior contractors. It offers the plumb functionality of expensive rotary lasers but in a compact, affordable package suitable for room-sized projects.
Common Mistakes to Avoid
Even with advanced technology, user error can compromise your results. Here are pitfalls to watch out for:
- Ignoring the Flash: If the laser flashes, do not proceed. It means the tool is tilted too far to self-correct. Reposition the base.
- Temperature Shock: Moving the laser from a freezing truck to a warm room can cause condensation inside the lens or affect the pendulum fluid. Let it acclimate for 15–20 minutes before use.
- Dirty Lenses: Dust on the exit window can scatter the beam, making lines fuzzy. Clean the lens with a microfiber cloth regularly.
- Unstable Tripods: Using a flimsy camera tripod instead of a construction-grade one can lead to vibrations that make the laser line dance, ruining your accuracy.
Frequently Asked Questions (FAQ)
1. Can the Stanley Fatmax laser be used outdoors?
While the Stanley Fatmax Self Leveling Cross Line Laser Level with Plumb works technically outdoors, red laser lines are difficult to see in direct sunlight. It is best suited for indoor use or shaded outdoor areas. For bright exterior work, a green laser or a rotary laser with a detector is recommended.
2. How accurate is the plumb dot feature?
The plumb dots are generally as accurate as the horizontal and vertical lines, typically within ±1/8 inch at 30 feet. This makes them highly reliable for transferring points from floor to ceiling in standard residential rooms (8–10 foot ceilings).
3. What happens if I bump the laser while it is running?
If the device is bumped significantly, the pendulum will swing out of balance. The laser will either flash to warn you or shut off, depending on the specific model settings. You must wait for it to re-level (usually a few seconds) and ensure the lines are solid before continuing your work.
4. Does this laser require calibration?
Out of the box, the Stanley Fatmax is factory-calibrated. However, like all precision instruments, it can drift over time due to heavy drops or extreme temperatures. If you suspect inaccuracy, compare it against a known true level or send it to an authorized service center for recalibration.
5. Can I mount this on a magnetic track?
Yes! One of the signature features of the Fatmax line is the integrated magnetic bracket. It allows you to snap the laser directly onto metal studs, steel door frames, or HVAC tracks, freeing up your hands for other tasks.
6. What type of batteries does it use?
Most models in this series operate on standard AA alkaline batteries. It is advisable to use high-quality brand-name batteries to ensure consistent voltage, which keeps the laser brightness stable throughout the job.
Final Thoughts: Elevate Your Craft
Investing in the Stanley Fatmax Self Leveling Cross Line Laser Level with Plumb is more than just buying a tool; it is an investment in the quality of your workmanship. By eliminating the guesswork of manual leveling and providing instant, accurate plumb references, you save time, reduce material waste, and deliver a finished product that stands the test of time.
Whether you are framing a new wall, tiling a bathroom, or installing kitchen cabinetry, this laser ensures every line is true. Don’t let outdated tools hold your projects back. Embrace the precision of modern technology and see the difference it makes in your daily workflow.
