Testing Out Copper Plumbing: Need to Re-Ground Breaker Box?

Have you recently replaced your old galvanized pipes with shiny new copper plumbing, only to wonder if your home’s electrical system is still safe? You are not alone; many US homeowners face this exact dilemma when upgrading their water lines. Testing out copper plumbing often reveals a critical safety gap: the potential need to re-ground your breaker box to prevent electrical shock hazards. In this guide, we will walk you through exactly why this happens, how to test it, and the steps to ensure your home meets the latest National Electrical Code (NEC) standards.

Why Does Replacing Pipes Affect Your Electrical Ground?

To understand why new copper pipes might require electrical work, we first need to look at how older homes were wired. In houses built before the 1970s, electricians frequently used the home’s metal water piping system as the primary path to “ground” the electrical panel. This means the metal pipes acted as a safety valve, directing stray electricity safely into the earth rather than through your body or appliances.

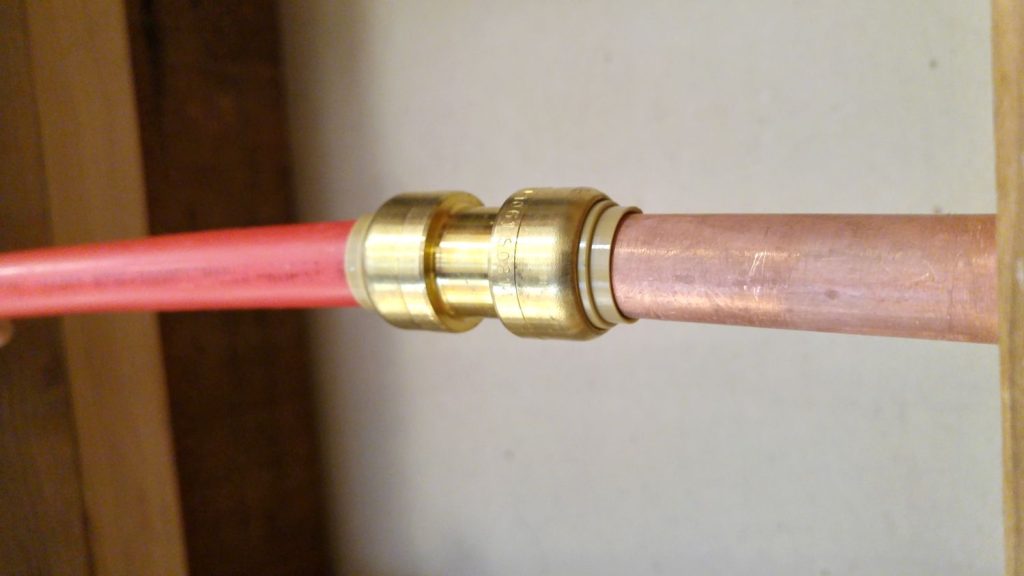

When you replace old iron or galvanized steel pipes with new copper plumbing, you are inadvertently cutting that safety link. While copper is an excellent conductor, the act of replacement often involves inserting sections of PEX (plastic) or using dielectric unions that break the continuous metal path to the earth. If this continuity is broken, your breaker box loses its primary ground.

According to the National Electrical Code (NEC), specifically Article 250, a home must have a reliable grounding electrode system. If your water pipe was your only ground and it has been interrupted, your system is now “floating.” This creates a dangerous situation where a short circuit could energize your faucets, showerheads, or appliance casings.

The Risk of a Lost Ground

Without a proper ground:

• Shock Hazard: Touching a metal faucet while standing on a wet floor could result in severe electrocution.
• Equipment Damage: Sensitive electronics (TVs, computers, smart fridges) lack protection from power surges.
• Breaker Failure: Circuit breakers may not trip during a fault because the electricity has no clear path to complete the circuit and trigger the mechanism.

How to Test If Your Copper Plumbing Is Properly Grounded

Before you start tearing into walls or calling an electrician, you can perform some preliminary checks. However, please note: electricity is dangerous. If you are uncomfortable working near your breaker panel, stop immediately and hire a licensed professional.

Step 1: Visual Inspection of the Grounding Clamp

Go to your main breaker box (usually located in the garage, basement, or utility closet). Look for a thick copper wire (usually #6 or #4 gauge) connected to a metal clamp.

• Old Setup: This clamp should be attached to the cold water pipe within 5 feet of where the pipe enters the home.
• New Setup Check: If you recently replaced pipes, check if this clamp is still attached to a continuous metal section. If the pipe right after the clamp is now plastic (PEX/CPVC), or if the clamp is hanging loose on a disconnected piece of pipe, your ground is compromised.

Step 2: Continuity Test with a Multimeter

If you have a digital multimeter, you can test the continuity between your electrical ground and the earth.

1. Set your multimeter to the lowest Ohms (Ω) setting.
2. Turn off the main breaker for safety.
3. Place one probe on the grounded metal box of the panel (scrape a little paint off for good contact).
4. Place the other probe on a known ground rod outside (if accessible) or a long metal stake driven deep into moist soil.
5. Reading: A reading close to 0–5 ohms indicates a good connection. A reading of “OL” (Open Loop) or very high resistance means the ground path is broken.

Step 3: The Voltage Drop Test (Advanced)

Note: This involves live electricity. With the main breaker ON, set your multimeter to AC Voltage. Measure between the “Hot” bus bar in the panel and a known good earth ground (like a dedicated ground rod). You should read roughly 120V. Then measure between the Neutral bar and the ground. It should be very low (under 2V). High voltage here suggests grounding issues.

Step-by-Step Guide: Re-Grounding Your Breaker Box

If your testing confirms that the new copper plumbing has interrupted your ground, you must install a supplemental grounding electrode system. In most US jurisdictions, relying solely on water pipes is no longer sufficient even if they are continuous; you typically need two forms of grounding.

Tools and Materials Needed

• Copper grounding wire (#6 AWG for residential, check local code).
• Two 8-foot copper-clad ground rods.
• Ground rod clamps (acorn clamps).
• Sledgehammer or ground rod driver.
• Wire strippers and lineman’s pliers.
• Anti-corrosion compound (glossy green grease).
• Shovel.

Installation Procedure

Step 1: Locate the Installation Site Find a spot outside your home, near the main breaker panel, where you can drive a rod vertically into the earth. The location should be free of underground utilities (call 811 before digging).

Step 2: Drive the First Ground Rod Using the sledgehammer, drive the first 8-foot copper rod into the ground until only about 2–4 inches are visible.

• Tip: If you hit rock, you may angle the rod up to 45 degrees or dig a trench and bury it horizontally, but vertical is preferred.
• Requirement: The NEC requires the rod to have at least 8 feet of contact with the soil.

Step 3: Install the Second Ground Rod (If Required) Most residential codes require two ground rods unless the first one tests at 25 ohms or less (which is rare without specialized testing equipment). Space the second rod at least 6 feet away from the first one to ensure independent contact with the soil.

Step 4: Connect the Grounding Wire Run a continuous piece of #6 copper wire from the ground bar inside your breaker panel to the ground rods.

• Drill a hole through the wall rim joist directly behind the panel to minimize wire length.
• Seal the hole with fire-rated caulk.
• Attach the wire to each rod using an approved acorn clamp. Tighten securely.
• Apply anti-corrosion compound to all connections to prevent rust.

Step 5: Bond the Water Pipe Even with ground rods, you must bond your new copper plumbing. Attach a bonding jumper (a short piece of copper wire) around any section of the water pipe that might be interrupted by non-conductive materials (like a water meter or plastic valves). This ensures the entire plumbing system remains at the same electrical potential.

Step 6: Final Inspection Turn the main breaker back on. It is highly recommended to have a local building inspector or a master electrician verify the installation. They will ensure the resistance levels meet the National Electrical Code requirements for your specific region.

Comparison: Old Grounding vs. Modern Standards

Frequently Asked Questions (FAQ)

1. Can I use my new copper pipes as the only ground for my house?

No. While copper is conductive, the NEC no longer allows metal water piping to serve as the sole grounding electrode. Plastic sections, water meters, and future repairs can break the connection. You must supplement it with ground rods or a concrete-encased electrode (Ufer ground).

2. Do I need an electrician to re-ground my breaker box, or can I do it myself?

This depends on your local building codes. In many US states, homeowners are allowed to perform electrical work on their own primary residence, but it must be permitted and inspected. Given the life-safety nature of grounding, hiring a licensed electrician is strongly recommended to ensure the resistance levels are low enough to trip a breaker during a fault.

3. Will re-grounding fix my flickering lights or tripping breakers?

Not necessarily. Flickering lights usually indicate a loose neutral connection or an overloaded circuit, not a grounding issue. However, a bad ground can cause erratic behavior in sensitive electronics. If your breakers are tripping frequently, you likely have an overload or a short circuit that needs diagnosis beyond just grounding.

4. How much does it cost to install new ground rods?

If you hire a professional, the cost typically ranges from $150 to $300 per rod, including labor and materials. Doing it yourself will cost significantly less (approx. $50–$80 for rods, wire, and clamps), but remember to factor in permit fees if required in your area.

5. What happens if I don’t re-ground after replacing my plumbing?

You risk creating a “hot” plumbing system. If a hot wire touches a pipe somewhere in your home (e.g., a water heater element failing), the electricity will travel through the water and out of every faucet. Without a ground path to trip the breaker, the first person to touch the faucet and a grounded surface (like a drain or concrete floor) could be fatally electrocuted.

6. Does the size of the copper wire matter for grounding?

Yes. The wire gauge is determined by the size of your main service entrance cables. For most standard US homes (100A to 200A service), #6 AWG copper is the standard requirement for grounding electrodes. Using a wire that is too thin could melt during a surge, rendering the ground useless.

Conclusion

Upgrading to copper plumbing is a fantastic investment for your home’s water quality and longevity, but it comes with a critical electrical responsibility. Testing out copper plumbing isn’t just about checking for leaks; it is about verifying that your home’s safety net—the electrical ground—is intact. If your water pipe was your primary ground, replacing it almost certainly means you need to re-ground your breaker box with supplemental ground rods.

Ignoring this step puts your family at risk of electrocution and leaves your expensive electronics vulnerable to surges. By following the steps outlined above or hiring a qualified electrician, you ensure your home is safe, compliant, and ready for the future.
