Ever tried connecting a small water line to a larger pipe—only to realize the threads don’t match? You’re not alone. Many DIYers and even seasoned plumbers face this exact issue when working with fixtures like ice makers, reverse osmosis systems, or humidifiers that use 1/4 inch to 1/2 inch adapter plumbing components. The good news? With the right adapter and a few minutes of your time, you can create a secure, leak-free connection—no plumbing degree required.

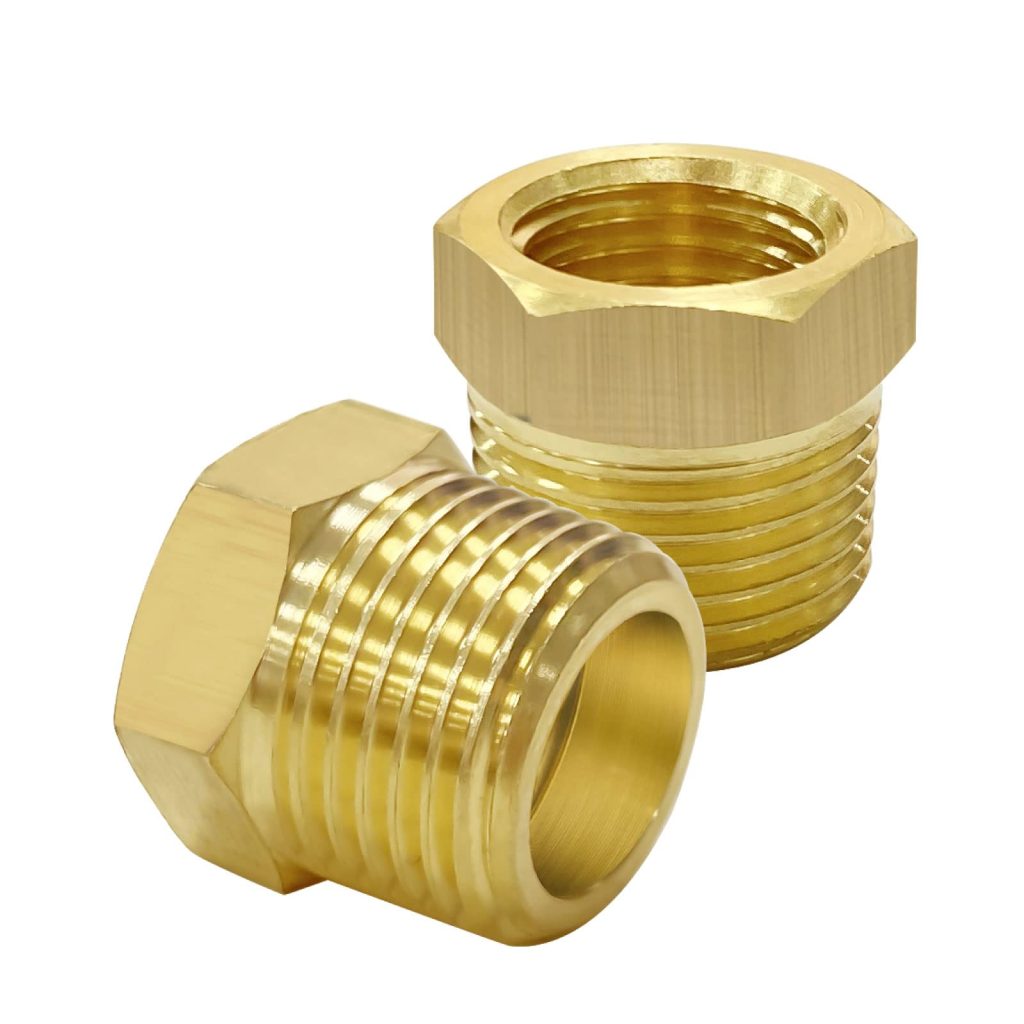

What Is a 1/4 Inch to 1/2 Inch Plumbing Adapter?
A 1/4 inch to 1/2 inch adapter plumbing fitting is a small but essential connector that bridges two different pipe or tubing sizes commonly found in residential water systems. These adapters typically convert between:
- 1/4-inch compression or push-fit tubing (often used for appliances)
- 1/2-inch NPT (National Pipe Thread) or sweat (soldered) connections (standard for household water lines)
They come in various materials—brass, stainless steel, or plastic—and configurations like male-to-female, compression-to-threaded, or push-to-thread.
💡 Fun Fact: According to the Plumbing-Heating-Cooling Contractors Association (PHCC), over 68% of under-sink plumbing issues in U.S. homes involve mismatched tubing sizes—making adapters like this one of the most commonly used fittings in modern plumbing.*
Why Do You Need This Adapter?
Most U.S. homes use 1/2-inch copper or PEX supply lines for cold and hot water. However, many modern appliances—such as refrigerator ice makers, under-sink water filters, and tankless reverse osmosis systems—use 1/4-inch flexible tubing for efficiency and space savings.
Without a proper adapter, you’d either:
- Risk leaks from forced connections
- Waste water and damage cabinetry
- Void appliance warranties
This tiny adapter solves all three problems in one go.
Types of 1/4″ to 1/2″ Plumbing Adapters
Not all adapters are created equal. Choosing the right type depends on your existing plumbing setup. Here’s a quick comparison:
| Compression-to-NPT | Copper or rigid tubing | Moderate (needs wrench) | High (brass) |
| Push-to-Thread (Quick Connect) | PEX or flexible plastic tubing | Easy (no tools) | Medium-High |
| Sweat-to-Compression | Soldered copper lines | Advanced (soldering) | Very High |
| Barb-to-NPT | Vinyl or polyethylene tubing | Easy (use hose clamp) | Medium |
🔍 Pro Tip: For most DIYers, a push-to-thread brass adapter offers the best balance of ease, reliability, and corrosion resistance. Brands like SharkBite and John Guest dominate this space with NSF-certified, lead-free options.
For more on pipe thread standards, see the Wikipedia entry on National Pipe Thread .
How to Install a 1/4″ to 1/2″ Plumbing Adapter (Step-by-Step)
Follow these steps for a leak-free, code-compliant connection—no professional needed.
Tools & Materials Needed:
- 1/4″ to 1/2″ adapter (brass, push-fit recommended)
- Adjustable wrench or slip-joint pliers
- Pipe cutter or tubing cutter (if trimming)
- Teflon tape (for threaded connections)
- Towel (to catch drips)
Step-by-Step Instructions:
- Turn Off Water Supply
Locate the shut-off valve under the sink or near the main line. Turn it clockwise until tight. Open the nearest faucet to relieve pressure. - Prepare the 1/2-Inch Line
If connecting to a threaded 1/2″ pipe, wrap 3–4 layers of Teflon tape clockwise around the male threads. This prevents leaks and eases installation. - Attach the Adapter
- For push-fit adapters: Simply push the 1/4″ tubing into the adapter until it clicks (you’ll hear a soft snap).
- For threaded adapters: Hand-tighten the adapter onto the 1/2″ line, then give it 1/4 to 1/2 turn with a wrench—do not overtighten, as this can crack fittings.
- Connect the 1/4-Inch Tubing
Slide the 1/4″ line (usually polyethylene or nylon) into the adapter’s compression or push-fit end. If using compression, tighten the nut finger-tight plus 1/2 turn with pliers.
- Test for Leaks
Turn the water back on slowly. Check all connections for 60 seconds. If you see drips, gently tighten—never force it.
⚠️ Warning: Overtightening is the #1 cause of adapter failure. Brass fittings can crack under excessive torque. When in doubt, less is more.
Common Mistakes to Avoid
Even experienced DIYers slip up. Here’s what not to do:
- Using plastic adapters for hot water lines → They degrade faster. Stick to brass or stainless steel.
- Ignoring local plumbing codes → Some municipalities require specific materials (e.g., lead-free brass). Check your local code via IPC guidelines .
- Mixing metric and imperial fittings → 1/4″ ≠ 6mm. Always verify thread type (NPT vs. BSP).
- Skipping the shut-off valve → Always isolate the line before working.
FAQ: Your Top Questions Answered
Q1: Can I use a 1/4″ to 1/2″ adapter for hot water lines?
Yes—but only if it’s rated for hot water (most brass adapters are). Avoid plastic or nylon fittings above 140°F (60°C).
Q2: Are push-fit adapters reliable long-term?
Absolutely. Brands like SharkBite offer 25-year warranties. They’re used in commercial buildings and meet ASTM F876/F877 standards for PEX systems.
Q3: What’s the difference between NPT and compression fittings?
NPT uses tapered threads sealed with tape or paste. Compression uses a ferrule and nut to create a mechanical seal—ideal for rigid tubing like copper.
Q4: Do I need a special tool to remove a push-fit adapter?
Yes. Most require a release clip or disconnect tool (often included with the adapter). Never yank the tubing—it can damage the O-ring.
Q5: Can I connect this adapter directly to a shutoff valve?
Only if the valve has a 1/2″ NPT outlet. Many modern valves come with 3/8″ or 1/4″ outlets—double-check before buying.
Q6: Where can I buy a quality 1/4″ to 1/2″ plumbing adapter?
Home Depot, Lowe’s, Amazon, and plumbing supply stores carry trusted brands. Look for NSF/ANSI 61 certification for potable water safety.
Conclusion
A 1/4 inch to 1/2 inch adapter plumbing fitting might be small, but it plays a huge role in keeping your home’s water systems running smoothly. Whether you’re installing a new fridge, upgrading your water filter, or fixing a leaky connection, the right adapter ensures a secure, code-compliant, and long-lasting solution.
Don’t let mismatched pipes slow you down—grab the correct adapter, follow our step-by-step guide, and enjoy peace of mind (and dry cabinets!).
