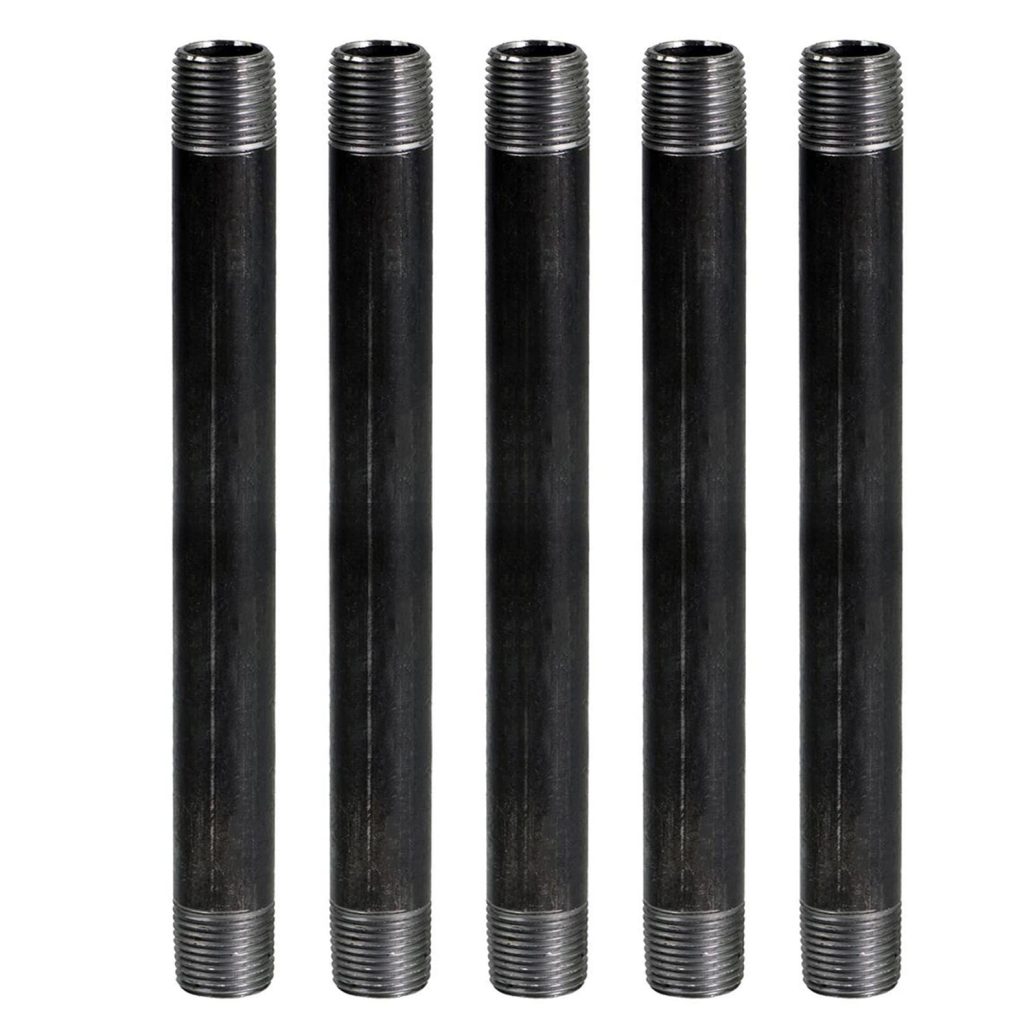

1 Inch X 1 Inch Threaded Plumbing Pipe: Complete Guide

Finding the right 1 inch x 1 inch threaded plumbing pipe can feel overwhelming when you are staring at aisles of confusing metal fittings and varying thread standards. Whether you are repairing an old galvanized water line or installing a new heavy-duty drainage system, using the incorrect size or thread type often leads to frustrating leaks and costly rework. This guide breaks down everything you need to know about selecting, installing, and maintaining this specific pipe size so your next project is secure, code-compliant, and leak-free.

What Exactly Is a 1 Inch X 1 Inch Threaded Plumbing Pipe?

When homeowners and contractors search for a 1 inch x 1 inch threaded plumbing pipe, they are typically referring to a pipe with a 1-inch nominal diameter featuring National Pipe Taper (NPT) threads on both ends. It is crucial to understand that “1 inch” in plumbing does not refer to the physical outer measurement of the pipe. According to Wikipedia, NPT is the U.S. national technical standard for screw threads used on pipes and fittings, where the taper creates a mechanical seal rather than relying solely on the thread crest.

A true 1-inch NPT pipe actually has an outside diameter (OD) of approximately 1.315 inches. The “1 inch x 1 inch” designation usually implies two things:

1. Nominal Size: The internal flow capacity rating.
2. Thread Compatibility: Both male and female ends match the 1-inch NPT standard (11.5 threads per inch).

Quick Specs Table: 1-Inch NPT vs. Actual Measurements

Understanding these dimensions prevents the common mistake of buying a pipe that physically measures one inch wide but fails to mate with standard 1-inch plumbing fixtures.

Which Material Should You Choose for Your Project?

Not every 1 inch x 1 inch threaded plumbing pipe is created equal. Material selection dictates longevity, pressure tolerance, and application suitability. Here is how the most common options compare:

Galvanized Steel

• Best For: Outdoor irrigation, structural supports, and vintage home repairs.
• Pros: Extremely durable; handles high pressure; resistant to physical impact.
• Cons: Prone to internal rust over decades; heavier; difficult to cut/thread on-site.
• Lifespan: 40–50 years (depending on water chemistry).

Stainless Steel (304/316)

• Best For: Potable water, food-grade applications, and coastal environments.
• Pros: Corrosion-resistant; maintains water purity; sleek appearance.
• Cons: Higher upfront cost; requires anti-seize compound to prevent galling during threading.
• Expert Insight: Industry data suggests stainless steel reduces long-term maintenance costs by up to 30% in corrosive environments compared to carbon steel alternatives.

PVC and CPVC (Schedule 80)

• Best For: Drainage, low-pressure cold water, and chemical transport.
• Pros: Lightweight; corrosion-proof; easy to install; budget-friendly.
• Cons: Cannot handle extreme heat (PVC max 140°F); brittle in freezing temps; UV degradation outdoors.

Pro Tip: Always verify local building codes before selecting materials. Some municipalities prohibit galvanized steel for new potable water lines due to lead concerns in older manufacturing batches.

How Do You Properly Install a 1 Inch Threaded Pipe Without Leaks?

Improper sealing is the number one cause of failure with threaded plumbing. Follow this step-by-step tutorial to ensure a watertight connection every time.

Step-by-Step Installation Guide

1. Inspect the Threads: Before assembly, run your finger along the male threads of your 1 inch x 1 inch threaded plumbing pipe. Feel for burrs, cross-threading, or debris. Use a wire brush or file to clean any imperfections. Damaged threads will never seal properly, regardless of tape usage.
2. Apply Thread Sealant Correctly: Wrap PTFE (Teflon) tape clockwise around the male threads 3–4 times. Keep tension tight and avoid covering the first thread to prevent tape shreds from entering the waterway. Alternatively, apply a generous bead of liquid pipe dope rated for your specific material and pressure.
3. Hand-Tighten First: Screw the fitting onto the pipe by hand until resistance increases significantly. You should achieve 3–4 full turns of hand-tight engagement. If it spins freely past this point, the threads may be worn or mismatched.
4. Wrench Tighten Precisely: Using two pipe wrenches (one to hold the fitting, one to turn the pipe), tighten an additional 1.5 to 2 full turns beyond hand-tight. Do not overtighten. Excessive torque can crack cast iron fittings or distort plastic threads, creating the very leak you tried to prevent.
5. Pressure Test Immediately: Never assume success. Pressurize the system and inspect joints with a dry paper towel. Even micro-leaks invisible to the eye will show as damp spots on the towel within seconds.

Common Sealing Mistakes to Avoid

• Using tape and dope excessively, causing hydraulic lock.
• Applying tape counter-clockwise (it unravels during tightening).
• Reusing old sealant on previously tightened joints.

Pros and Cons of Using 1-Inch Threaded Connections

Before committing to this specification, weigh these factors against your project needs:

Advantages:

• Universal Compatibility: NPT is the most widely available thread standard in North America.
• High Pressure Rating: Metal 1-inch threaded systems routinely handle 150+ PSI.
• Disassembly Friendly: Unlike soldered or glued joints, threaded connections allow future modifications without cutting.
• Structural Rigidity: Provides mechanical support in addition to fluid transport.

Disadvantages:

• Labor Intensive: Threading requires specialized tools and skill.
• Leak Points: Every joint is a potential failure site versus continuous welded systems.
• Flow Restriction: Internal thread ridges create turbulence, reducing effective flow rate by 5–10% compared to smooth-bore pipe.
• Corrosion Risk: Thread crevices trap moisture, accelerating galvanic corrosion in dissimilar metal connections.

Frequently Asked Questions (FAQ)

Can I connect a 1-inch NPT pipe to a BSP fitting?

No, they are incompatible. While both may appear similar, NPT uses a 60° thread angle with tapered sealing, while BSP (British Standard Pipe) uses a 55° angle. Forcing them together damages both components. Use a certified NPT-to-BSP adapter if international compatibility is required.

How much weight can a 1-inch threaded steel pipe support?

Load capacity depends on schedule, span, and mounting. A Schedule 40 1-inch steel pipe spanning 3 feet can typically support 200–300 lbs of static vertical load. However, always consult engineering tables for structural applications, as dynamic loads and vibration significantly reduce safe limits.

Why does my newly installed threaded joint still leak?

Three common culprits exist: insufficient sealant coverage, under-tightening (less than 1.5 turns past hand-tight), or damaged threads. Disassemble, clean thoroughly, inspect for cracks or stripping, and reinstall with fresh sealant. If leakage persists after two attempts, replace the fitting entirely.

Is Teflon tape or liquid pipe dope better for 1-inch pipes?

For 1-inch diameters, many professionals prefer liquid pipe dope because it fills larger thread gaps more effectively than tape alone. However, combining both (tape wrapped first, then dope applied over) provides the most reliable seal for high-pressure or critical applications. Avoid tape-only seals on gas lines unless specifically rated for fuel gas.

Can I use a 1-inch threaded pipe for natural gas?

Yes, but only if the pipe and sealant are explicitly rated for fuel gas. Black iron or CSST (Corrugated Stainless Steel Tubing) are standard choices. Never use PVC, galvanized steel (zinc flakes can clog valves), or standard PTFE tape. Use yellow gas-rated tape or approved anaerobic sealant, and always pressure-test with manometer equipment per local code.

What tool do I need to thread a 1-inch pipe myself?

You need a 1-inch NPT die head compatible with your ratchet or electric threader, plus cutting oil. Manual threading of 1-inch steel requires significant force; consider renting a powered threader for multiple cuts. Always deburr and chamfer the pipe end before threading to ensure clean, full-depth threads.

Conclusion

Selecting and installing the correct 1 inch x 1 inch threaded plumbing pipe doesn’t have to be intimidating once you understand nominal sizing, material properties, and proper sealing techniques. By matching your material to the application, following precise installation steps, and avoiding common pitfalls like overtightening or incompatible thread standards, you ensure a durable, leak-free system that stands the test of time. Remember, taking an extra five minutes to inspect threads and test pressure saves hours of remediation later.
