1 X 17 Black Steel Plumbing Pipe Nipple: Complete Buyer’s Guide

Finding the exact 1 X 17 black steel plumbing pipe nipple for your project can be frustrating when local hardware stores only carry standard lengths. Whether you are extending a gas line, repairing a vintage steam system, or fabricating custom industrial racking, using the wrong size or material can lead to dangerous leaks or failed inspections. This comprehensive guide breaks down everything you need to know about this specific fitting, from technical specifications to safe installation practices, ensuring your next plumbing job is done right the first time.

What Exactly Is a 1 X 17 Black Steel Plumbing Pipe Nipple?

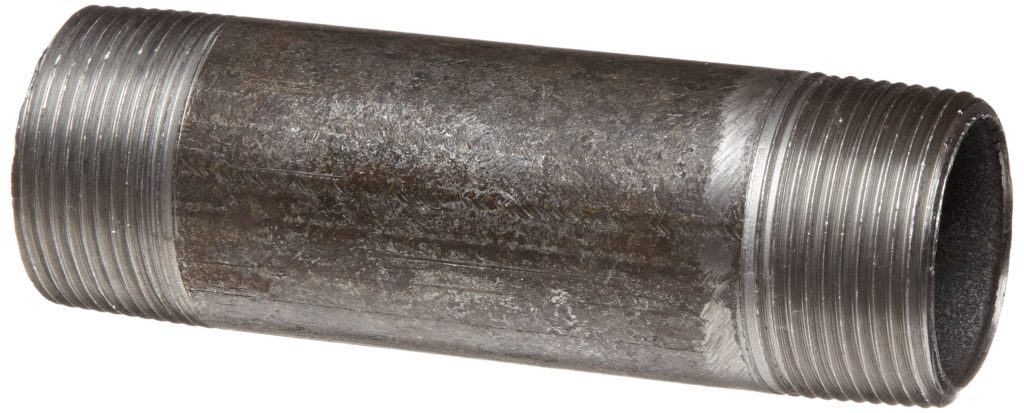

Before purchasing, it is vital to understand precisely what this component is and why its specific dimensions matter. A 1 X 17 black steel plumbing pipe nipple is a short length of pipe with male threads on both ends, designed to connect two female fittings exactly 17 inches apart (center-to-center or overall length, depending on manufacturer standards).

The “1” refers to the nominal pipe size (NPS), which corresponds to an outside diameter (OD) of approximately 1.315 inches for Schedule 40 steel. The “black steel” designation indicates uncoated carbon steel, typically ASTM A53 or A106, which is distinct from galvanized steel due to its dark iron oxide scale. This material is preferred in high-temperature applications like steam, hot water, and natural gas because the zinc coating on galvanized pipe can flake off or degrade under extreme heat.

According to Wikipedia, nominal pipe sizes do not correspond directly to physical measurements; a 1-inch pipe does not measure one inch internally or externally. Understanding this discrepancy prevents costly ordering errors when sourcing specialized lengths like a 17-inch nipple.

Common Applications for 17-Inch Black Steel Nipples

Why would a plumber or fabricator specifically need a 17-inch length rather than cutting their own? Precision and safety are the primary drivers.

Gas Line Extensions and Repairs

Black steel is the industry standard for natural gas and propane distribution inside buildings. A pre-threaded 1 X 17 black steel plumbing pipe nipple eliminates the risk of improper field threading, which can create weak points prone to leaking combustible gases. Factory-cut nipples have consistent thread depth and taper (NPT), ensuring reliable seals with pipe dope or Teflon tape.

Steam and Hydronic Heating Systems

In older homes and commercial buildings, steam radiators often require precise spacing between supply valves and radiator taps. Custom-length nipples prevent stress on cast iron fittings that could crack if forced. Black steel withstands temperatures exceeding 400°F without degradation, making it ideal for these high-energy systems.

Industrial Racking and Structural Fabrication

Beyond fluid conveyance, black steel nipples serve as spacers, standoffs, and structural connectors in DIY furniture, shelving units, and machine guards. The 17-inch length provides substantial reach for bridging gaps in modular framing systems where welded joints are impractical.

Technical Specifications and Material Standards

Understanding the engineering data behind your 1 X 17 black steel plumbing pipe nipple ensures compatibility and safety compliance. Below is a detailed specification table based on industry standards:

Always verify whether the listed length is “overall” (including threads) or “close” (between shoulders). Most suppliers list overall length for long nipples.

How to Install a Black Steel Pipe Nipple Safely: Step-by-Step

Proper installation prevents leaks and extends system life. Follow these concrete steps when installing your 1 X 17 black steel plumbing pipe nipple:

Step 1: Inspect and Clean Threads

Examine both threaded ends for burrs, debris, or damaged crests. Use a wire brush to clean threads thoroughly. Even new factory nipples can have machining oil or metal shavings that compromise sealant adhesion. Wipe with a lint-free cloth dampened with mineral spirits if necessary.

Step 2: Apply Appropriate Sealant

For gas lines, use only PTFE tape rated for fuel gas (yellow color) combined with pipe joint compound approved for hydrocarbons. For water or steam, white PTFE tape plus standard pipe dope works well. Wrap tape clockwise (viewing from end) 3–4 times, covering all threads but leaving the first thread exposed to prevent tape shredding into the system.

Step 3: Hand-Tighten First

Thread the nipple into the female fitting by hand until resistance is felt. This ensures proper alignment and prevents cross-threading. If hand-tightening stops prematurely, stop immediately—do not force it. Back out and inspect for obstructions or mismatched thread types.

Step 4: Final Tightening with Proper Tools

Use two pipe wrenches: one to hold the receiving fitting stationary, another to turn the nipple. Tighten 2–3 full turns past hand-tight for NPT connections. Do not overtighten; excessive torque can crack cast iron fittings or strip steel threads. Target 1–2 visible threads remaining outside the fitting after tightening.

Step 5: Pressure Test Before Concealing

Never assume a connection is leak-free. Pressurize the system and test with soapy water solution (for gas) or visual inspection (for water/steam). Bubbles indicate leaks requiring disassembly and resealing. Document test results for code compliance.

Advantages vs. Disadvantages of Black Steel Nipples

Making informed material choices requires weighing trade-offs objectively:

Advantages:

• High Temperature Resistance: Safe for steam and hot water above 200°F where plastic fails
• Structural Strength: Withstands mechanical stress and vibration better than copper or PVC
• Fire Safety: Non-combustible material maintains integrity during building fires
• Cost Effective: Generally cheaper than stainless steel or brass equivalents
• Code Compliance: Universally accepted for gas and steam per IPC and NFPA standards

Disadvantages:

• Corrosion Susceptibility: Will rust in wet environments unless properly maintained or coated
• Weight Significantly Heavier: Requires additional support bracing in overhead installations
• Installation Labor Intensive: Threading and sealing require more skill than push-fit alternatives
• Not Potable Water Approved: Iron oxide discoloration makes unsuitable for drinking water lines

Frequently Asked Questions (FAQ)

Can I use a black steel nipple for potable water lines?

Generally, no. Black steel corrodes internally when exposed to oxygenated drinking water, causing rust-colored water and eventual pinhole leaks. Most plumbing codes prohibit black steel for potable water; use copper, PEX, or CPVC instead. Some jurisdictions allow black steel for fire suppression sprinkler systems filled with treated water, but always verify local amendments.

What is the difference between black steel and galvanized nipples?

Galvanized nipples have a zinc coating applied via hot-dip galvanizing to resist corrosion in wet environments. Black steel lacks this coating and relies on mill scale or lacquer for temporary protection. Never mix black and galvanized fittings in the same system—the dissimilar metals accelerate galvanic corrosion at connection points. Galvanized is also unsafe for gas due to zinc flaking that clogs regulators.

How do I measure accurately for a replacement nipple?

Measure the distance between the shoulders of adjacent female fittings (the flat surface where the nipple seats), not the open space between them. Add approximately ¾ inch to account for thread engagement depth on each side. When replacing an existing nipple, measure its overall length including threads and match exactly. When in doubt, bring the old part to a supplier for direct comparison.

Can I cut a longer nipple down to 17 inches myself?

Technically yes, but it is discouraged for critical applications. Field-cutting removes protective coatings, exposes fresh steel to immediate corrosion, and creates uneven thread starts that leak. Factory-produced 1 X 17 black steel plumbing pipe nipples have precision-machined threads and consistent wall thickness throughout. If you must cut, rethread professionally and apply cold galvanizing compound to exposed metal.

What pressure rating should I expect at elevated temperatures?

Pressure ratings decrease as temperature increases. At room temperature, Schedule 40 black steel handles ~300 PSI for steam. At 400°F, derate to approximately 200 PSI. Always consult ASME B31.1 tables or manufacturer data sheets for exact ratings at your operating temperature. Never exceed rated limits—catastrophic failure risks injury and property damage.

Are there alternatives if I cannot find a 17-inch nipple locally?

Yes. Consider coupling two shorter nipples with a union fitting, though this adds potential leak points. Alternatively, purchase a 24-inch nipple and have a professional machine shop cut and rethread it to spec. Online industrial suppliers often stock non-standard lengths unavailable at retail outlets. For non-pressure structural uses, EMT conduit or DOM tubing may substitute at lower cost.

Conclusion

Selecting and installing the correct 1 X 17 black steel plumbing pipe nipple demands attention to material science, dimensional accuracy, and safety protocols. By understanding NPS sizing, respecting temperature limitations, and following proper sealing techniques, you ensure durable, code-compliant connections that protect people and property. Remember: when working with gas or steam systems, precision isn’t optional—it’s essential.
