1999 Ford F350 Diesel Fuel System Plumbing Diagram Guide

Troubleshooting fuel issues on a classic truck can be incredibly frustrating, especially when you are staring at a tangle of hoses without a clear map. If you have been searching for a 1999 Ford F350 diesel fuel system plumbing diagram, you are likely dealing with hard starting, air intrusion, or mysterious leaks that standard manuals fail to explain clearly. We understand how vital this truck is to your daily work or weekend passion project, and getting the fuel delivery right is the first step toward restoring its legendary reliability. This guide breaks down the complex plumbing into manageable steps so you can diagnose and fix your 7.3L Powerstroke with confidence.

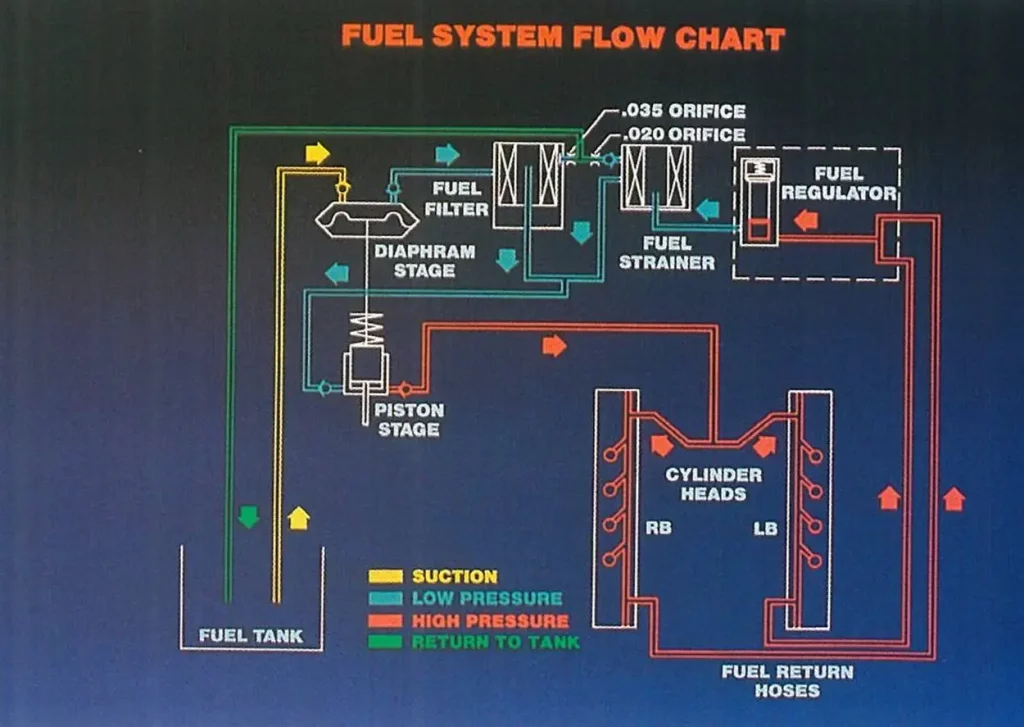

Understanding the 1999 Ford F350 Diesel Fuel Flow Path

Before grabbing wrenches, it is essential to visualize how fuel travels through the 1999 Ford F350 diesel fuel system plumbing diagram. The 7.3L Powerstroke uses a high-pressure hydraulic electronic unit injector (HEUI) system, which differs significantly from modern common-rail diesels. Understanding this architecture prevents costly misdiagnoses.

According to technical documentation referenced in Wikipedia’s entry on the Ford Powerstroke engine, the HEUI system relies on high-pressure engine oil to actuate the injectors, while the fuel system operates at relatively low pressure solely for delivery and cooling. This distinction is critical because many “fuel” problems in a 1999 F350 are actually oil-related, but verifying the fuel plumbing integrity remains the mandatory first diagnostic step.

Key Components in the Plumbing Loop

• Fuel Tank Selector Valve: Routes fuel from front or rear tanks.
• Mechanical Lift Pump: Frame-mounted pump providing low-pressure supply.
• Fuel Bowl/Filter Housing: Contains the filter, water separator, and heater.
• Regulated Return System: Maintains consistent pressure at the cylinder heads.
• Cylinder Head Fuel Rails: Internal passages feeding the injectors.

Where to Find an Accurate 1999 F350 Fuel System Diagram

Many owners struggle because generic repair sites often display incorrect diagrams for the transitional 1999 model year. Early 1999 (E99) and Late 1999 (L99) trucks have subtle but important differences in fuel line routing and connector types.

Recommended Sources for Verified Diagrams

1. Factory Service Manuals (FSM): The gold standard. These contain fold-out electrical and hydraulic schematics specific to your VIN build date.
2. OEM Parts Catalogs: Sites like Ford Motorcraft’s official parts portal provide exploded views that function as excellent plumbing references.
3. Specialized Diesel Forums: Communities like Oilburners.net or PowerstrokeNation often host user-verified scans of factory diagrams that are more accurate than aftermarket manuals.
4. Diesel Repair Software: Professional platforms like AllData or Mitchell1 offer interactive diagrams where you can toggle layers for fuel, oil, and electrical systems.

Expert Tip: Always cross-reference any online 1999 Ford F350 diesel fuel system plumbing diagram with your actual engine bay. Previous owners frequently modify return lines or install aftermarket filtration kits that deviate from stock configurations.

Step-by-Step: Tracing Your Fuel Lines Safely

Using your diagram effectively requires a systematic physical inspection. Follow these concrete steps to verify your plumbing matches the schematic and identify failures.

1. Prepare Your Workspace and Safety Gear

• Park on level ground and engage the parking brake.
• Disconnect both negative battery terminals to prevent accidental cranking.
• Wear nitrile gloves and safety glasses; diesel fuel is an irritant and carcinogen.
• Have a Class B fire extinguisher within arm’s reach.

2. Verify Tank-to-Pump Supply Line Integrity

• Locate the supply line exiting the tank selector valve.
• Inspect the entire length for dry rot, cracking, or wetness.
• Check quick-connect fittings for broken locking tabs—a common source of air intrusion causing hard hot starts.
• Measurement Note: Stock supply lines typically use 3/8-inch ID hose. If replacing, use SAE J1453-rated diesel fuel hose, not generic rubber tubing.

3. Inspect the Fuel Bowl Assembly Connections

• Remove the fuel filter cap and drain the bowl using the yellow petcock valve.
• Examine the O-rings on the filter cap and the housing gasket. Hardened O-rings allow air entry even without visible fuel leaks.
• Verify the fuel heater element wiring is intact; cracked insulation can cause shorts that blow fuse #30.
• Torque the filter cap to 60–70 inch-pounds only. Over-tightening cracks the plastic housing.

4. Trace High-Pressure Delivery Lines to Heads

• Follow the steel lines from the fuel bowl outlet to each cylinder head.
• Look for chafing where lines contact brackets or other components.
• At each head connection, verify the banjo bolt washers are copper (not aluminum) and properly seated.
• Critical Check: On late-1999 models, inspect the regulated return fitting on the driver’s side head. A clogged return orifice causes excessive fuel pressure and injector damage.

5. Validate Return Line Routing

• Confirm the return line flows back to the correct tank port via the selector valve.
• Ensure no kinks exist in soft return hose sections near frame crossmembers.
• Test flow by temporarily disconnecting the return line at the tank and collecting output during key-on prime cycle (expect steady stream, not spurts).

Common Fuel System Failures vs. Symptoms Table

Matching symptoms to plumbing faults saves hours of guesswork. Use this comparison table alongside your 1999 Ford F350 diesel fuel system plumbing diagram:

Frequently Asked Questions About 1999 F350 Fuel Plumbing

What is the difference between early and late 1999 F350 fuel systems?

Early 1999 (E99) trucks feature a smaller fuel filter housing, different turbo pedestal connections, and lack the regulated return system found on late-1999 (L99) models. L99 trucks also use metric-threaded fuel line fittings in some locations versus SAE threads on E99. Always verify your build date on the door jamb sticker before ordering parts or referencing a 1999 Ford F350 diesel fuel system plumbing diagram.

How do I properly prime the fuel system after changing the filter?

Fill the new filter completely with clean diesel before installation. Turn the key to RUN (do not crank) for 20 seconds, then OFF for 10 seconds. Repeat this cycle three times to activate the lift pump and purge air. Crank only if the engine fails to start after priming cycles. Never crank excessively without fuel present, as this damages the starter and floods cylinders.

Can I upgrade to an electric fuel pump instead of the mechanical one?

Yes, many owners replace the aging mechanical lift pump with aftermarket electric pumps like the FASS or AirDog systems. These provide consistent pressure regardless of engine RPM and improve filtration. However, ensure your chosen kit includes proper mounting brackets for the 1999 frame rail and retains compatibility with the factory fuel bowl unless converting to a complete sump-to-injector system.

Why does my truck run fine cold but loses power when hot?

This classic symptom usually indicates air intrusion rather than a fuel volume problem. As metal components expand with heat, microscopic gaps open at worn fittings or cracked hoses. Perform a clear return line test: install a transparent section of tubing in the return line and observe for bubbles during warm operation. Bubbles confirm an air leak upstream of the injection pump.

Is biodiesel safe for the 1999 F350 fuel system plumbing?

Biodiesel blends up to B20 are generally considered safe for 7.3L Powerstroke fuel systems. However, biodiesel acts as a solvent and may dislodge accumulated deposits, clogging filters initially. It can also degrade older natural rubber hoses. If running biodiesel regularly, inspect all soft lines annually and consider upgrading to Viton or Fluoroelastomer hose rated for biodiesel service.

How often should I replace fuel lines preventatively?

While there is no official mileage interval, most experts recommend inspecting fuel lines every 50,000 miles and planning replacement around 150,000–200,000 miles or 15 years of age, whichever comes first. UV exposure, heat cycling, and ethanol-blended diesel accelerate degradation. Proactive replacement prevents roadside failures and protects expensive injectors from contamination.

Conclusion and Next Steps

Mastering the 1999 Ford F350 diesel fuel system plumbing diagram empowers you to maintain one of America’s most beloved workhorses with precision and confidence. By understanding the unique HEUI fuel flow path, sourcing accurate documentation for your specific build date, and methodically tracing each connection, you transform confusing symptoms into solvable problems. Remember that preventive maintenance—regular filter changes, O-ring inspections, and proactive hose replacements—is far cheaper than emergency repairs or injector replacements caused by neglected fuel delivery.

Your 7.3L Powerstroke has already proven its durability over decades; with proper fuel system care, it will continue serving reliably for years to come. Found this guide helpful? Share it with fellow Ford diesel enthusiasts on Facebook groups, Reddit’s r/Powerstroke, or your local truck forum. Helping another owner avoid fuel system frustration keeps our community strong and our trucks running. Drop a comment below with your own fuel system tips or questions—we read every response and love hearing from fellow diesel advocates!
