2 Bilge Pumps To 1 Thru Hull Plumbing: Safe Setup Guide

There are few things more stressful for a boater than hearing water sloshing in the bilge while miles offshore. You want redundancy, but figuring out how to configure 2 bilge pumps to 1 thru hull plumbing without creating dangerous backflow issues can be confusing and risky if done incorrectly. This guide breaks down exactly how to plumb dual pumps safely into a single discharge fitting, ensuring your vessel stays dry and compliant with marine safety standards.

Can You Safely Plumb 2 Bilge Pumps to 1 Thru Hull?

The short answer is yes, but only if you use proper backflow prevention. Simply T-ing two pump hoses together without check valves is a recipe for disaster. If one pump activates while the other is idle, water can flow backward through the inactive pump’s impeller and re-enter the bilge, or worse, create an airlock that prevents the active pump from priming.

According to marine safety experts, the primary concern with shared discharge lines is “cross-flow.” When configuring 2 bilge pumps to 1 thru hull plumbing, you must treat each pump as an independent system until they reach a common point after their respective check valves. This ensures that high-pressure discharge from Pump A never forces water back through Pump B.

The Risks of Improper Shared Plumbing

What Are the Best Methods for Dual Pump Shared Discharge?

When researching 2 bilge pumps to 1 thru hull plumbing, you will generally encounter two accepted configurations. Understanding the difference is vital for E-E-A-T compliant decision-making.

Method 1: Individual Check Valves Before the Manifold (Recommended)

This is the gold standard for recreational vessels. Each pump has its own dedicated hose run up to a Y-valve or manifold located above the waterline. Crucially, a marine-grade check valve is installed on each individual line before they merge. This guarantees total isolation between pumps.

Method 2: Anti-Siphon Loop Only (Not Recommended for Shared Lines)

While anti-siphon loops are mandatory for preventing water from siphoning back into the boat when the pump is off, relying on them alone for shared plumbing is insufficient. Loops prevent gravity-fed backflow but do not stop pressure-driven cross-flow from the opposing pump. Always combine loops with mechanical check valves in a shared setup.

Expert Insight: For detailed regulatory context on marine electrical and plumbing systems, refer to the Wikipedia entry on Marine Engineering, which outlines foundational principles of shipboard fluid systems and safety redundancies.

Step-by-Step: Installing 2 Bilge Pumps to 1 Thru Hull

Follow this precise tutorial to ensure your 2 bilge pumps to 1 thru hull plumbing setup is leak-free and functional. Always disconnect battery power before beginning any marine electrical or plumbing work.

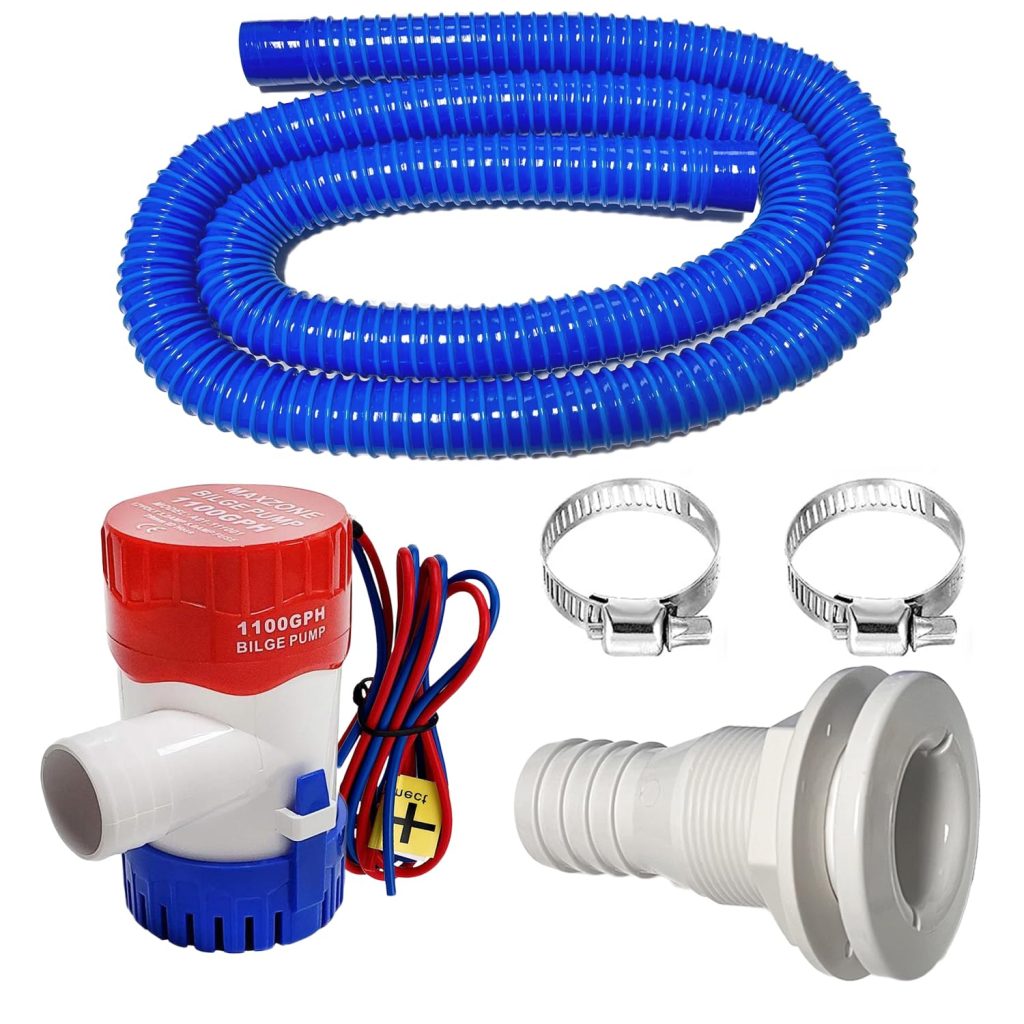

Step 1: Select Compatible Components

Ensure both pumps have similar voltage ratings. For the common discharge, use a hose diameter equal to or larger than the combined cross-sectional area of the two inlet hoses. Using undersized tubing creates friction loss that drastically reduces pumping capacity.

Step 2: Install Individual Check Valves

Install a high-quality, low-cracking-pressure check valve on the discharge side of each pump. Position these valves vertically if possible, as horizontal mounting can sometimes cause flapper sticking over time. Use double stainless-steel clamps on every connection below the waterline.

Step 3: Create the Anti-Siphon Loop

Route each individual hose upward to a point at least 6 inches above the maximum heeled waterline before descending to the manifold. Secure the apex of the loop with a padded strap to prevent chafing. This loop acts as your secondary safety barrier against flooding.

Step 4: Connect to the Common Manifold

Join the two protected lines using a bronze or reinforced nylon Y-fitting. From the Y-fitting, run a single hose down to the thru-hull discharge. Ensure this final downward run is smooth with no upward dips where air could collect.

Step 5: Test Under Load

Reconnect power and test each pump individually first. Listen for the distinct “thud” of the check valve closing when the pump cycles off. Then, run both pumps simultaneously to verify there is no vibration-induced noise or flow restriction at the manifold junction.

Pros and Cons of Shared Thru-Hull Plumbing

Before committing to 2 bilge pumps to 1 thru hull plumbing, weigh these factors carefully:

• Pros: Saves hull penetrations (reducing potential leak points); simplifies exterior hull aesthetics; reduces weight and drag from fewer fittings.
• Cons: Introduces complexity with check valves; requires more frequent maintenance inspections; if the single thru-hull clogs, total system failure occurs; slightly higher cost due to quality valves and manifolds.

FAQ: Common Questions About Dual Bilge Pump Plumbing

Is it legal to plumb two bilge pumps to one thru-hull?

Yes, it is legal under most maritime regulations, including ABYC H-22 standards, provided that proper backflow prevention devices are installed. However, some insurance providers may require separate discharges for vessels over a certain length. Always verify with your insurer and local Coast Guard auxiliary inspectors.

Do I need check valves if my pumps have built-in non-return features?

Even if your pumps advertise internal non-return mechanisms, adding external inline check valves is strongly recommended for shared plumbing. Internal flappers can fail silently or become fouled by debris. External valves provide visible, serviceable redundancy that is critical when 2 bilge pumps to 1 thru hull plumbing share a common path.

What size should the common discharge hose be?

A good rule of thumb is to increase the hose diameter by at least 25% compared to the individual pump outlets. For example, if merging two ¾-inch hoses, use a minimum 1-inch common discharge. This compensates for turbulence at the junction and maintains adequate flow velocity to carry solids out of the system.

How often should I inspect the check valves in a shared system?

Inspect check valves every six months or at the start of each boating season. Remove them from the line to manually test the flapper movement and check for mineral buildup or rubber degradation. In saltwater environments, quarterly inspection is advisable due to accelerated corrosion and biofouling.

Can I use PVC pipe instead of marine hose for the manifold?

No. Rigid PVC is prohibited for bilge pump discharge plumbing on recreational vessels because it cannot withstand vibration, hull flex, or impact loads. Marine-sanitation-rated corrugated hose with wire reinforcement is required to absorb engine vibration and prevent catastrophic cracking that could flood the bilge instantly.

What happens if the shared thru-hull gets blocked?

If the single discharge becomes obstructed, neither pump will function effectively, potentially leading to rapid flooding. This is why many surveyors recommend installing a secondary manual backup pump with its own dedicated thru-hull, even when using 2 bilge pumps to 1 thru hull plumbing as the primary electric system. Redundancy should exist at the system level, not just the pump level.

Conclusion

Configuring 2 bilge pumps to 1 thru hull plumbing is a smart space-saving solution that enhances redundancy—when executed correctly. By prioritizing individual check valves, proper anti-siphon loops, and appropriately sized manifolds, you protect your vessel from the hidden dangers of cross-flow and backpressure. Remember, the goal isn’t just moving water out; it’s ensuring the system works reliably when conditions are worst.

Don’t let improper plumbing turn your safety upgrade into a liability. Take the time to source marine-grade components and follow ABYC-aligned practices. Found this guide helpful? Share it on Facebook or Twitter to help fellow boaters stay safe and dry on the water! Your next post might save someone’s weekend—or their vessel.
