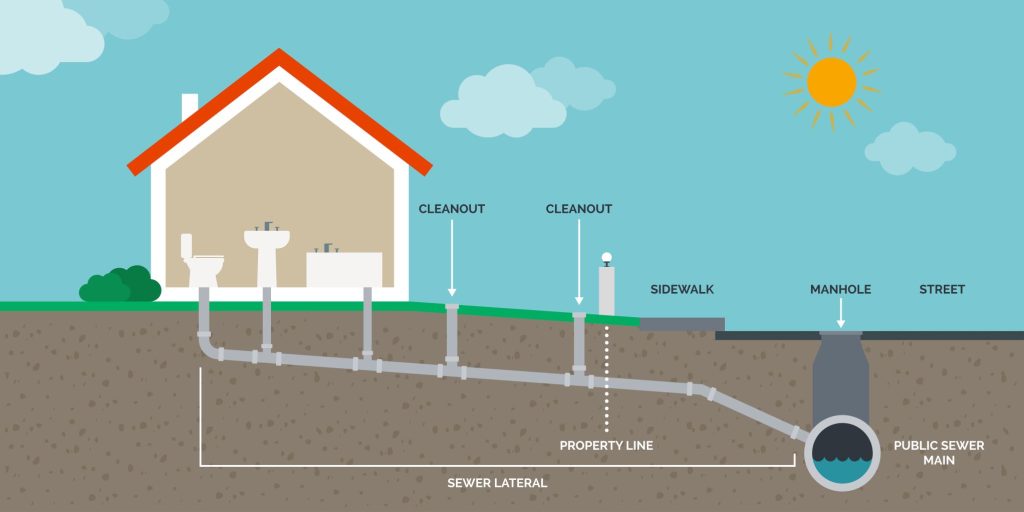

Are you struggling with persistent leaks, foul odors, or failing inspections because your home’s infrastructure lacks fundamental integrity? Understanding the 20 principles of sound plumbing and drainage system is essential for any homeowner, contractor, or DIY enthusiast who wants to ensure long-term safety and avoid costly repairs. This comprehensive guide breaks down these critical standards into actionable steps, helping you build or maintain a system that protects both your property and your health.
What Are the Core Foundations of Safe Plumbing?
Before diving into specific installations, one must understand the non-negotiable basics that govern all sanitary engineering. These foundational principles dictate how water moves safely through a structure without contaminating potable supplies or damaging the building envelope.
1. Separation of Potable and Non-Potable Water
The most critical rule in plumbing is preventing cross-contamination. There must be a physical air gap or approved backflow prevention device between drinking water lines and any source of contamination. According to Wikipedia, modern plumbing codes strictly regulate these separations to prevent waterborne diseases, which historically caused massive public health crises.
2. Proper Venting of Drain Lines
Drainage systems are not just about gravity; they rely on atmospheric pressure. Every trap must be vented to prevent siphonage and allow sewer gases to escape safely through the roof. Without proper venting, water drains slowly, and dangerous methane can enter living spaces.
3. Correct Pipe Sizing and Slope
Undersized pipes cause clogs, while oversized pipes fail to maintain self-cleansing velocity. For horizontal drainage piping, a minimum slope of 1/4 inch per foot (2% grade) is standard for pipes under 3 inches in diameter to ensure solids move efficiently without settling.
4. Trap Seal Protection
Every fixture connected to a drainage system must have a water seal (trap) to block sewer gas. The seal depth typically ranges from 2 to 4 inches. If a fixture is rarely used, the water can evaporate; periodic flushing or trap primers are necessary solutions.
5. Material Compatibility and Durability
Using the right material for the specific application prevents premature failure. For example, PVC is excellent for drain-waste-vent (DWV) but should never be used for hot water supply lines inside walls due to heat degradation risks. Always verify materials meet ASTM standards for US residential use.
How Do You Ensure Efficient Water Supply and Distribution?
A sound system delivers adequate pressure and volume while minimizing waste and noise. These principles focus on the “supply” side of the equation.
6. Adequate Water Pressure Regulation
Residential water pressure should ideally remain between 40 and 80 psi. Pressures above 80 psi require a pressure-reducing valve (PRV) to prevent pipe bursts and appliance damage, while pressures below 40 psi result in poor fixture performance.
7. Minimizing Friction Loss in Supply Lines
Long runs of small-diameter pipe create friction loss, reducing flow at the fixture. Use larger trunk lines with branch tees rather than long daisy-chains of 1/2-inch pipe to maintain consistent volume during simultaneous usage.
8. Thermal Expansion Control
When water heats up in a closed system, it expands. Without an expansion tank or thermal relief valve, this pressure can rupture water heaters or pipes. Installing a properly sized expansion tank is mandatory in most US jurisdictions with check valves or PRVs.
9. Insulation of Hot and Cold Lines
Insulating hot water pipes reduces heat loss by up to 15–20%, saving energy and delivering hot water faster. Insulating cold lines prevents condensation drip and freezing in unconditioned spaces like attics or crawlspaces.
10. Accessible Shut-Off Valves
Every fixture and appliance must have an individual shut-off valve. This allows maintenance without disabling the entire home’s water supply, reducing downtime and water damage risk during emergencies.
What Are the Critical Drainage and Waste Management Rules?
Removing waste safely is arguably more complex than supplying clean water. These principles address sanitation, environmental protection, and structural integrity.
11. Self-Cleansing Velocity in Drains
Drain pipes must be sized and sloped to achieve a minimum velocity of 2 feet per second when flowing half-full. This ensures grease and solids are carried away rather than accumulating on pipe walls.
12. Proper Cleanout Placement
Cleanouts provide access for snaking and inspection. Install them at every change of direction greater than 45 degrees, at the base of every stack, and at intervals no greater than 100 feet for horizontal runs. They must be accessible and extend to finished floor level.
13. Indirect Waste Connections
Commercial equipment like ice machines, steam tables, and sterilizers must discharge through an air gap into a floor sink or receptor. Direct connection to the sewer is prohibited to prevent back-siphonage of contaminated water into food preparation areas.
14. Grease Interception for Kitchens
In commercial or heavy-use residential kitchens, grease interceptors prevent FOG (fats, oils, grease) from solidifying in municipal sewers. Regular maintenance schedules are required to keep these devices effective and code-compliant.
15. Stormwater vs. Sanitary Sewer Separation
Never connect roof drains or foundation perimeter drains to the sanitary sewer system. Stormwater should be directed to storm sewers, dry wells, or graded landscaping to prevent overwhelming treatment plants and causing basement backups during heavy rain events.
How Can You Maintain Long-Term System Integrity and Safety?
Installation is only half the battle; longevity depends on adherence to operational and maintenance principles.
16. Prevention of Backflow and Cross-Connection
Install testable backflow preventers on irrigation systems, boilers, and hose bibbs. Annual testing by certified professionals is often legally required to protect the public water supply from private system contamination.
17. Structural Support and Hanger Spacing
Pipes sag without proper support, leading to low spots and eventual failure. Horizontal copper tubing requires supports every 6 feet, while PVC DWV needs support every 4 feet. Vertical stacks need support at each floor level to prevent stress on joints.
18. Noise Mitigation in Multi-Family Units
Water hammer arrestors and resilient pipe hangers reduce transmission of hydraulic shock and flow noise. In apartments or condos, wrapping drain stacks in acoustic insulation significantly improves tenant comfort and satisfaction.
19. Leak Detection and Monitoring Technology
Modern smart water sensors can detect micro-leaks behind walls or under slabs before catastrophic damage occurs. Integrating these into your system aligns with contemporary best practices for risk management and insurance compliance.
20. Compliance with Local Codes and Permits
National models like IPC or UPC are baselines, but local amendments always supersede them. Always pull permits and schedule inspections; unpermitted work can void insurance claims and complicate future real estate transactions.
Comparison: Common Plumbing Mistakes vs. Sound Principles
| Feature | Common Mistake ❌ | Sound Principle ✅ | Impact of Correction |
|---|---|---|---|
| Venting | S-traps installed under sinks | P-traps with proper venting | Eliminates sewer gas & slow draining |
| Slope | Level horizontal drain pipes | 1/4″ per foot minimum slope | Prevents chronic clogs & odors |
| Pressure | Ignoring high static pressure | PRV installed at 60-70 psi | Extends appliance life 2x+ |
| Materials | Flexible vinyl dryer vents | Rigid metal ductwork | Reduces fire risk significantly |
| Support | Pipes resting on joists | Proper hangers/clamps | Prevents joint failure & noise |
Frequently Asked Questions (FAQ)
Why is venting considered one of the most important of the 20 principles of sound plumbing and drainage system?
Venting equalizes pressure within the drainage system, allowing wastewater to flow smoothly by gravity. Without it, negative pressure can siphon water out of traps, releasing toxic and explosive sewer gases into the home. It also prevents positive pressure buildup that could force contaminants back through fixtures.
Can I apply these principles to an older home built before modern codes?
Yes, but retrofitting requires careful planning. While you may not need to bring the entire system to current code unless doing major renovations, addressing critical safety issues like missing vents, cross-connections, or deteriorated materials is highly recommended. Consult a licensed plumber to prioritize upgrades based on risk assessment.
How often should I inspect my plumbing system against these 20 principles?
Annual professional inspections are ideal for catching issues early. Homeowners should perform visual checks quarterly for signs of leaks, corrosion, or slow drainage. After extreme weather events or seismic activity, immediate inspection is warranted regardless of schedule.
Do these principles differ significantly between US states?
While the core physics remain constant, specific code requirements vary. Some states adopt the International Plumbing Code (IPC), others use Uniform Plumbing Code (UPC), and many have local amendments regarding materials, sizing, or green building standards. Always verify with your local building department before starting projects.
What is the biggest financial benefit of following these principles?
Prevention is exponentially cheaper than remediation. A single slab leak repair can cost $3,000–$7,000, while proper installation following principle #17 (support) and #6 (pressure regulation) might add only $200–$500 to initial costs. Insurance premiums may also decrease for homes with documented code-compliant systems and leak detection technology.
Are there eco-friendly adaptations to these traditional principles?
Absolutely. Principles like proper insulation (#9), efficient fixture selection, and greywater recycling align with sustainability goals. Low-flow fixtures reduce demand on supply systems, while rainwater harvesting integrates with stormwater management principles to conserve municipal resources.
Conclusion
Mastering the 20 principles of sound plumbing and drainage system transforms plumbing from a mysterious black box into a predictable, safe, and efficient infrastructure. Whether you’re designing new construction, renovating a historic property, or simply maintaining your current home, these guidelines serve as your roadmap to reliability and peace of mind. Remember, good plumbing is invisible when done right—but devastatingly obvious when ignored.
