Mastering 22 05 48 Seismic Control For Plumbing Systems

Living in earthquake-prone areas like California or the Pacific Northwest brings unique challenges for building infrastructure. One of the most critical yet often overlooked aspects of structural safety is ensuring that your water and gas lines don’t fail during a tremor. This is where 22 05 48 Seismic Control For Plumbing Systems becomes vital. It is not just a bureaucratic checkbox; it is a life-saving measure that prevents flooding, gas leaks, and structural damage when the ground shakes. In this guide, we will break down exactly what this specification entails, why it matters, and how to implement it correctly.

What Is Specification 22 05 48?

If you are reading construction documents or engineering plans, you might stumble upon the code “22 05 48.” But what does it actually mean?

In the context of mechanical, electrical, and plumbing (MEP) engineering, this number refers to a specific section of the project specifications dedicated to seismic restraint and bracing for plumbing piping systems. It outlines the requirements for designing, manufacturing, and installing supports that keep pipes secure during seismic events.

This specification is typically aligned with broader standards such as:

• IBC (International Building Code)
• ASCE 7 (Minimum Design Loads and Associated Criteria for Buildings and Other Structures)
• NFPA 13 (Standard for the Installation of Sprinkler Systems)

Understanding 22 05 48 Seismic Control For Plumbing Systems is crucial for contractors, engineers, and building owners because non-compliance can lead to failed inspections, costly retrofits, or worse, catastrophic system failure during an earthquake.

Why Is Seismic Bracing Critical for Plumbing?

You might wonder, “My pipes are heavy and fixed to the wall; why do they need extra bracing?” The answer lies in the physics of seismic activity.

The Risk of Unbraced Pipes

During an earthquake, buildings sway. While the structure is designed to flex, rigid plumbing systems are not. Without proper seismic control:

1. Joint Failure: Copper, PVC, or steel joints can snap under shear stress.
2. Pipe Rupture: High-pressure water or gas lines can burst, causing immediate flooding or fire hazards.
3. Collateral Damage: Falling pipes can damage electrical systems, drywall, and expensive equipment.

According to data from the Federal Emergency Management Agency (FEMA), water damage from broken pipes is one of the most common secondary effects of earthquakes in residential and commercial buildings. Implementing 22 05 48 Seismic Control For Plumbing Systems mitigates these risks significantly.

Key Components of Seismic Restraint Systems

To comply with specification 22 05 48, you cannot simply use standard pipe hangers. You need specialized components designed to absorb energy and restrict movement. Here are the primary elements:

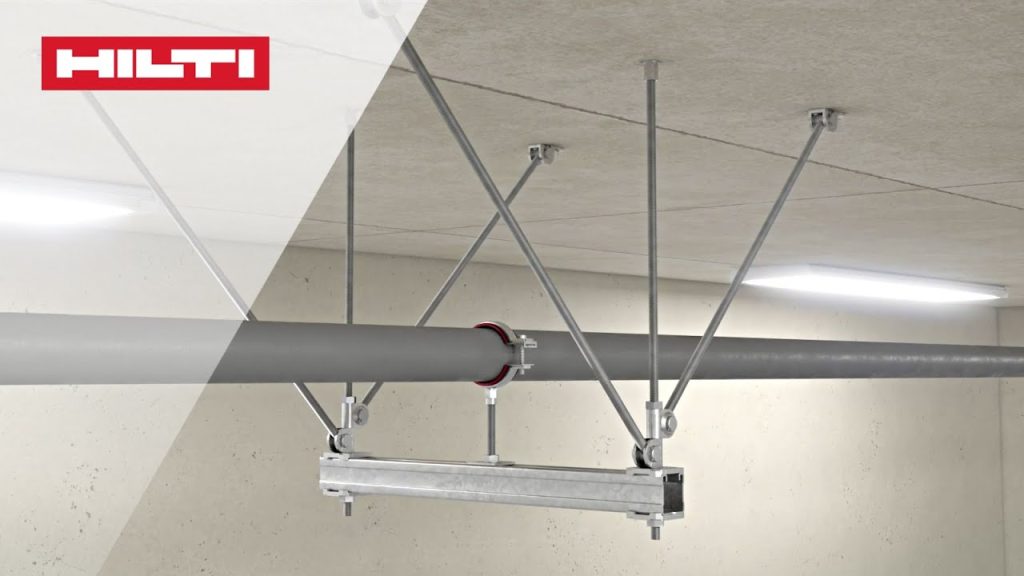

1. Seismic Braces

These are diagonal supports that connect the pipe to the building’s structural frame. They prevent lateral (side-to-side) movement.

• Material: Typically galvanized steel or stainless steel.
• Angle: Installed at a 45-degree angle for optimal force distribution.

2. Vibration Isolators

While primarily for noise reduction, certain isolators also provide seismic restraint by allowing limited movement without transferring stress to the pipe.

3. Anchor Bolts and Connectors

These secure the braces to the concrete slab or steel beams. They must be rated for seismic loads, meaning they can withstand pull-out forces during shaking.

4. Flexible Couplings

Installed at strategic points, these allow the pipe to bend slightly without breaking. They are essential where pipes penetrate walls or floors.

How to Install Seismic Controls: A Step-by-Step Guide

Installing systems according to 22 05 48 Seismic Control For Plumbing Systems requires precision. Here is a general workflow for professionals:

Step 1: Review Structural Drawings

Before drilling any holes, identify the building’s structural elements. You must anchor braces to load-bearing columns or beams, not just drywall or lightweight framing.

Step 2: Calculate Load Requirements

Determine the weight of the pipe plus the fluid inside (water is heavy!). Use ASCE 7 formulas to calculate the required seismic force. Note: Always consult a licensed structural engineer for these calculations.

Step 3: Position the Braces

Install braces at intervals specified by the code. Generally, braces are required:

• At every change in direction (elbows).
• At valves and heavy fixtures.
• Every 20–40 feet along straight runs, depending on pipe diameter.

Step 4: Secure the Anchors

Use torque wrenches to tighten anchor bolts to the manufacturer’s specified tension. Under-tightening leads to failure; over-tightening can strip the threads.

Step 5: Install Flexible Connections

Add flexible couplings near rigid connections to allow for thermal expansion and seismic sway. Ensure there is no tension on the coupling when installed.

Step 6: Inspection and Testing

Once installed, the system must be inspected by a certified authority. They will check for proper alignment, tightness, and compliance with 22 05 48 Seismic Control For Plumbing Systems.

Common Mistakes to Avoid

Even experienced contractors can make errors. Here are the top pitfalls:

• Using Standard Hangers: Regular pipe clamps are not designed for lateral seismic loads. They will snap.
• Ignoring Vertical Risers: Vertical pipes are often neglected, but they can whip violently during an earthquake. They require guides and restraints at each floor level.
• Poor Anchor Placement: Anchoring into brick veneer or non-structural concrete will fail. Always find the steel or reinforced concrete core.
• Lack of Documentation: Keep records of all materials used, including manufacturer specs and installation logs. This is crucial for liability and insurance purposes.

For more detailed information on building codes and safety standards, you can refer to Wikipedia’s page on Building Codes, which provides a global overview of regulatory frameworks.

FAQ Section

Q1: Does every building need seismic bracing for plumbing?

A: Not every building, but most commercial buildings and residential structures in high-seismic zones (like Zones 3 and 4 in the US) do. Local building codes based on the IBC will dictate the specific requirements. Always check with your local jurisdiction.

Q2: Can I retrofit existing plumbing with seismic controls?

A: Yes, retrofitting is possible and highly recommended for older buildings. However, it is more complex than new construction because you may need to cut into walls or ceilings to access structural members. Consult a professional plumber or engineer for a retrofit assessment.

Q3: What is the difference between seismic bracing and vibration isolation?

A: Vibration isolation reduces noise and wear from daily operations (like pump vibrations). Seismic bracing prevents catastrophic failure during earthquakes. Some devices combine both functions, but they serve different primary purposes.

Q4: How often should seismic braces be inspected?

A: After any significant earthquake, immediate inspection is required. For routine maintenance, inspect them annually during your general building safety checks. Look for signs of corrosion, loose bolts, or bent braces.

Q5: Who is responsible for ensuring compliance with 22 05 48?

A: Responsibility is shared. The design engineer specifies the requirements, the contractor installs them, and the building inspector verifies compliance. However, the building owner ultimately bears the liability for safety.

Q6: Are there specific brands recommended for seismic controls?

A: While specification 22 05 48 usually does not mandate a specific brand, it requires products that meet certain performance standards (such as ICC-ES evaluation reports). Reputable brands include Mason Industries, Kinetics Noise Control, and Unistrut. Always verify that the product has current certification.

Conclusion

Implementing 22 05 48 Seismic Control For Plumbing Systems is not just about following rules; it is about protecting your property, your tenants, and your peace of mind. By understanding the components, installation processes, and common pitfalls, you can ensure that your plumbing infrastructure remains intact when it matters most.

Remember, earthquake safety is a team effort involving engineers, contractors, and inspectors. Don’t cut corners on bracing—it is a small investment compared to the cost of water damage or system replacement.
