Ever driven a screw into your wall only to hear a horrifying hiss—followed by water gushing from behind the drywall? You’re not alone. Thousands of homeowners accidentally puncture plumbing pipes every year during simple DIY projects. That’s where 2×4 metal plates to prevent screwing walls into plumbing pipes come in. These small, affordable steel guards are your home’s unsung heroes—shielding hidden pipes from drill bits, nails, and careless screws. In this guide, you’ll learn exactly how they work, when to use them, and why skipping them could cost you thousands in water damage.
What Are 2×4 Metal Plates, and Why Do They Matter?

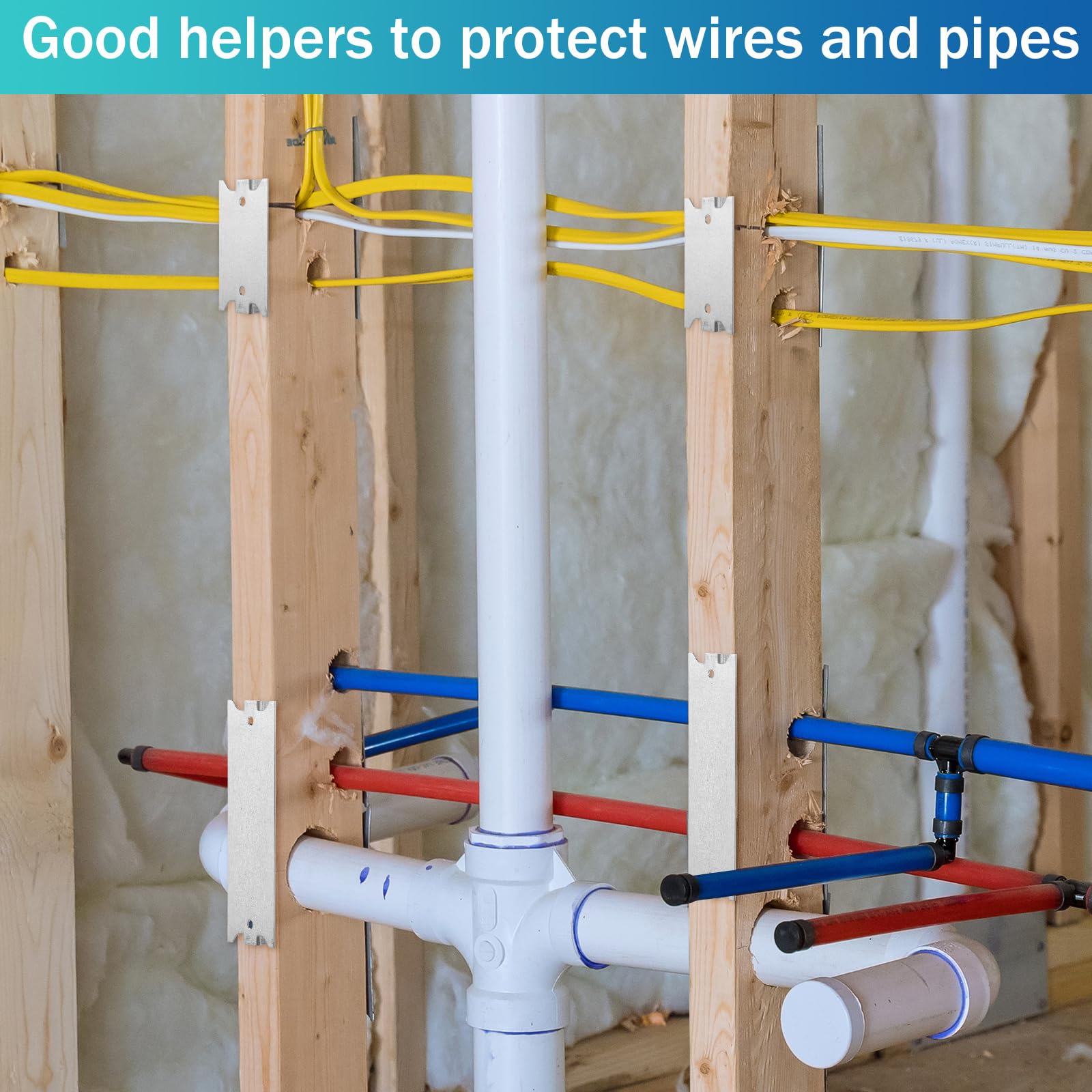

Often called metal nail plates or plumbing protection plates, these thin strips of galvanized steel are designed to shield pipes and electrical cables running through wall studs. They’re typically 1.5 inches wide and 16–20 inches long—just enough to cover the vulnerable section of a pipe where it passes through a 2×4 stud.
According to the International Residential Code (IRC), any pipe or cable located within 1.25 inches of the edge of a framing member must be protected by a steel plate at least 1/16 inch thick. This rule isn’t just bureaucratic red tape—it’s based on real-world data. The Insurance Institute for Business & Home Safety reports that nearly 14,000 U.S. homes suffer water damage from wall punctures annually, with average repair costs exceeding $5,000.
💡 Expert Insight: “Metal plates are the cheapest form of insurance you’ll ever buy. For less than $2 each, they prevent catastrophic leaks,” says Linda Thompson, licensed plumber and founder of SafeFlow Plumbing Solutions in Colorado.
When Are 2×4 Metal Plates Required by Code?
Not every pipe needs protection—but many do. Here’s when metal plates become mandatory under U.S. building codes:
- When pipes are drilled within 1.25″ of the front or back edge of a 2×4 stud
- When cables or pipes are notched into the stud (common in older homes or tight retrofits)
- During new construction or major renovations inspected by local authorities
Even if your local code doesn’t enforce it (some rural jurisdictions are lenient), best practice always includes protection. Think of it like wearing a seatbelt—you hope you never need it, but you’ll be glad it’s there.
For more on residential safety standards, the International Code Council outlines these requirements in detail—but the core principle is simple: if a fastener could hit it, shield it.
How to Install 2×4 Metal Plates Correctly (Step-by-Step)
Installing metal protection plates is quick and requires only basic tools. Follow these steps for foolproof results:
- Locate the Pipe or Cable
Use a quality stud finder with AC wire and metal detection (like the Bosch GMS120) to pinpoint pipe locations. Look for slight bulges in drywall or consult original blueprints if available. - Expose the Stud Cavity
Cut a small inspection hole (6″x6″) in the drywall directly over the pipe path. Wear safety goggles and a dust mask. - Measure and Position the Plate
Center the metal plate over the pipe where it passes through the stud. Ensure it covers at least 2 inches above and below the pipe’s centerline. - Secure with Nails or Screws
Use 2–3 galvanized nails or coarse-thread screws (not drywall screws!) to fasten the plate flush against the stud. The plate should sit tight against the wood, not bent or loose. - Patch and Paint
Cover the inspection hole with joint compound, sand smooth, and repaint. The plate is now permanently protecting your plumbing.
✅ Pro Tip: Always use 16-gauge steel plates (0.0625″ thick). Thinner plates may bend during installation; thicker ones are overkill and harder to nail.
Metal Plates vs. Other Pipe Protection Methods
Not all pipe protection is equal. Here’s how 2×4 metal plates stack up against alternatives:
| Method | Cost | Ease of Install | Effectiveness | Code-Compliant? |
|---|---|---|---|---|
| Metal Nail Plates | $1–$3 each | ★★★★☆ (Easy) | ★★★★★ (High) | ✅ Yes |
| Plastic Pipe Guards | $2–$5 each | ★★★☆☆ (Medium) | ★★☆☆☆ (Low) | ❌ No (in most areas) |
| Relocating Pipes | $200–$600 per pipe | ★☆☆☆☆ (Hard) | ★★★★★ (High) | ✅ Yes |
| Avoiding Drilling | Free | ★★★★★ (Easy) | ★☆☆☆☆ (Unreliable) | N/A |
Plastic guards may seem like a cheaper DIY fix, but they crack under pressure and aren’t recognized by U.S. building codes. Metal is the only approved material for this application.
Real-World Case: How One Plate Saved $8,000 in Damage
In 2023, a homeowner in Portland, Oregon, was hanging a heavy mirror in his bathroom. He “guessed” where the studs were and drove a 3-inch screw through drywall. Instead of hitting wood, the screw struck a copper water line—but thanks to a properly installed metal plate, the screw deflected harmlessly.
“A loud clang scared me, but no leak,” he told This Old House. “The plumber later confirmed the plate took the hit. Without it, I’d have had $8,000 in drywall, flooring, and mold remediation.”
Stories like this underscore why pros never skip protection plates—even in “low-risk” walls.
Common Mistakes Homeowners Make
Avoid these pitfalls when using metal plates:
- Using drywall screws to attach plates → They strip out easily. Use #8 or #10 wood screws or 8d nails.
- Installing plates on the wrong side of the stud → Plates must face the room side (where screws enter).
- Assuming all pipes are safe → PEX, copper, and CPVC pipes all need protection if near stud edges.
- Skipping plates in non-load-bearing walls → Plumbing runs through all walls—protection is universal.
H2: Frequently Asked Questions (FAQ)
Q1: Do I need metal plates for PEX tubing too?
Yes! Even though PEX is flexible, puncturing it causes leaks just like rigid pipes. The IRC treats all plumbing lines equally for protection requirements.
Q2: Can I reuse old metal plates during a remodel?
Only if they’re unbent, rust-free, and fully intact. Most experts recommend replacing them—new plates cost under $2 and ensure full protection.
Q3: Where can I buy 2×4 metal protection plates?
You’ll find them at Home Depot, Lowe’s, or online (Amazon, Fastenal). Search for “16-gauge nail protector plates” or “plumbing protection plates.”
Q4: Are these plates required for electrical wires too?
Absolutely. Any NM cable (Romex) within 1.25″ of a stud edge must be shielded. Many plates protect both pipes and wires simultaneously.
Q5: Will metal plates interfere with stud finders?
Temporarily, yes. Once drywall is up, the plate is hidden. During installation, mark plate locations with painter’s tape before closing walls.
Q6: What if my pipe is already damaged?
Shut off the main water valve immediately. Call a licensed plumber. Do not attempt to patch it yourself—improper repairs lead to mold, structural damage, or worse.
Conclusion: A Tiny Plate, Huge Peace of Mind
Installing 2×4 metal plates to prevent screwing walls into plumbing pipes is one of the simplest, smartest safety upgrades any homeowner or contractor can make. For less than the cost of a coffee, you gain long-term protection against floods, mold, and expensive repairs.
Whether you’re hanging shelves, mounting a TV, or renovating a kitchen—always assume pipes are hiding behind that wall. And when in doubt, shield it out.
👉 Found this guide helpful? Share it with a friend who’s tackling a home project! A quick share could save their walls—and their wallet—from disaster.
Stay safe, drill smart, and protect your pipes.
