3/8 Male to 1/2 Female Adapter: The Ultimate Plumbing Guide

Have you ever stood in the hardware aisle, holding two pipes that simply refuse to connect because their sizes don’t match? It is a frustratingly common scenario for homeowners and DIY enthusiasts alike when dealing with mismatched water lines. Whether you are fixing a leaky faucet or installing a new filtration system, finding the right 3 8 male to 1 2 female adapter plumbing component is the critical key to restoring your water flow safely and efficiently. In this guide, we will break down exactly what you need, how to install it, and how to avoid costly mistakes.

What Exactly Is a 3/8 Male to 1/2 Female Adapter?

Before diving into the installation, it is crucial to understand what this specific fitting does. In the world of US plumbing, standardization is key, but legacy systems and specific appliance requirements often create size discrepancies.

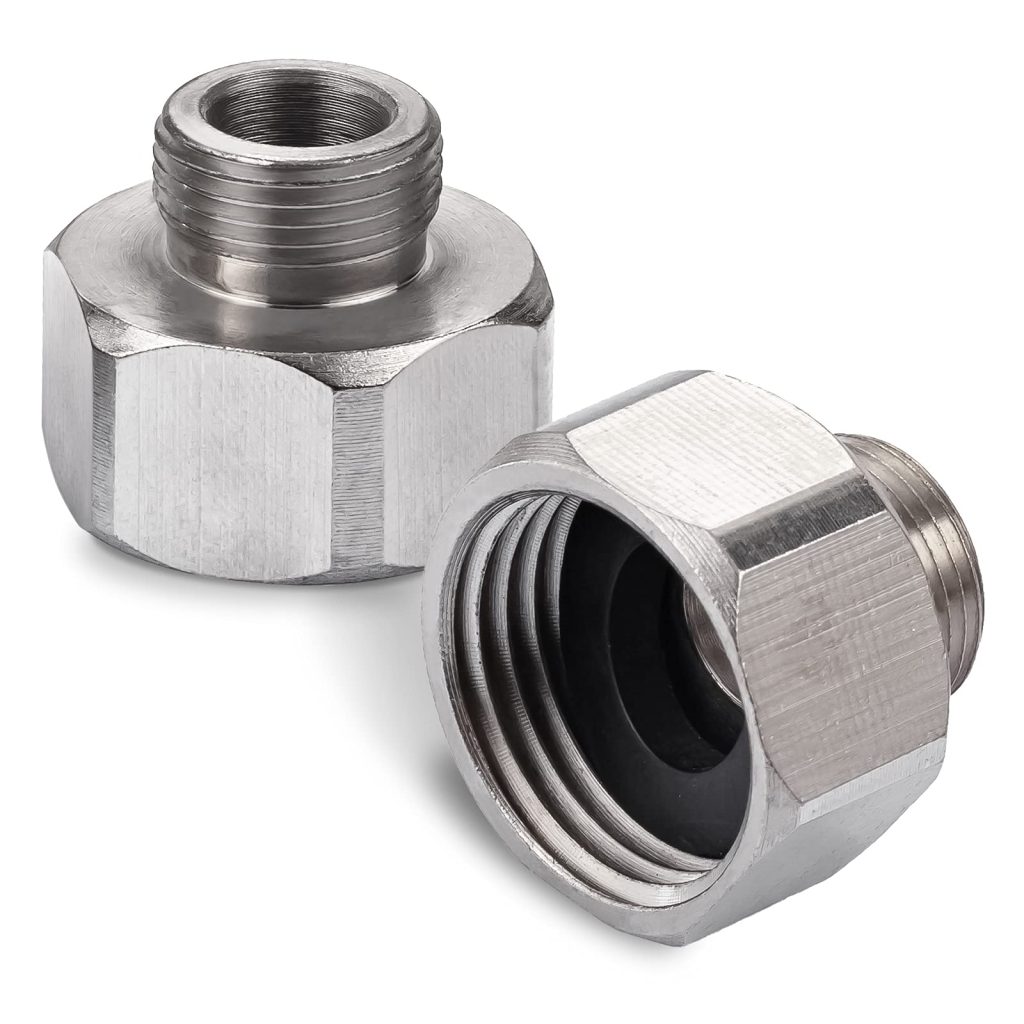

A 3/8 male to 1/2 female adapter is a transitional fitting designed to connect a pipe or tube with a 3/8-inch male thread to a port or pipe with a 1/2-inch female thread.

• The “3/8 Male” end: This side has external threads (screw-like) that are 3/8 of an inch in diameter. It screws into a corresponding female port.
• The “1/2 Female” end: This side has internal threads (hole-like) that are 1/2 of an inch in diameter. It accepts a 1/2-inch male pipe or fitting.

This adapter is most commonly found in bathroom sink installations, toilet supply lines, and reverse osmosis (RO) water filter systems where the main supply line is larger (1/2 inch) than the appliance inlet (3/8 inch).

Why Size Matters in Plumbing

Using the wrong adapter isn’t just an inconvenience; it is a safety hazard. A loose fit can lead to catastrophic water damage, while forcing a mismatched thread can strip the metal, ruining expensive fixtures. According to general plumbing standards, the National Sanitation Foundation (NSF) and local building codes strictly regulate pressure ratings for these fittings to ensure they can handle typical residential water pressure, which often ranges between 40 to 80 PSI.

Common Applications: Where Do You Need This Adapter?

You might be wondering if you actually need this specific part. Here are the most common scenarios in American homes where a 3 8 male to 1 2 female adapter plumbing solution is required:

1. Toilet Supply Lines

Many modern toilets have a 3/8-inch compression inlet, but the water shut-off valve on the wall often protrudes with a 1/2-inch male thread (or requires a 1/2-inch connection). While many supply lines come with built-in adapters, sometimes you need a solid brass adapter to bridge the gap if you are using rigid copper piping.

2. Reverse Osmosis (RO) Systems

Under-sink water filtration systems frequently use 3/8-inch tubing for cleaner water delivery. However, the saddle valve or the main cold water line tap is almost exclusively 1/2 inch. This adapter is the standard bridge for these installations.

3. Faucet Replacements

When upgrading an old kitchen or bathroom faucet, the new flexible supply lines might be 3/8 inch, while the existing angle stop valves are sized for 1/2 inch connections. Instead of replacing the entire valve behind the wall, a simple adapter solves the problem instantly.

4. Washing Machine Hookups

While less common than the standard hose thread, certain specialized washing machine installations or utility sinks may require stepping down from a 1/2-inch supply to a 3/8-inch fixture.

Material Matters: Brass vs. Stainless Steel vs. Plastic

Not all adapters are created equal. Choosing the right material is vital for longevity and leak prevention.

Expert Recommendation: For indoor potable water lines, always choose lead-free brass. It offers the best balance of malleability (so it seals well) and strength. Avoid plastic adapters for high-pressure applications like main supply lines, as they are prone to cracking under thermal expansion.

For more detailed information on plumbing material standards and safety, you can refer to the comprehensive overview on plumbing materials at Wikipedia.

Step-by-Step Installation Guide

Installing a 3 8 male to 1 2 female adapter plumbing fitting is a straightforward task if you follow the correct procedure. Rushing this process is the number one cause of leaks.

Tools Needed:

• Adjustable wrench (or channel locks)
• Pipe tape (PTFE/Teflon tape) or Pipe dope (thread sealant)
• Rag or towel
• Bucket (to catch residual water)

Step 1: Shut Off the Water

Locate the main water shut-off valve or the local angle stop valve for the fixture you are working on. Turn it clockwise until it stops completely. Open the faucet nearby to drain any remaining pressure and water in the lines.

Step 2: Clean the Threads

Inspect the existing 3/8-inch male pipe and the 1/2-inch female port. Use a rag to wipe away any old tape, debris, or mineral buildup. Clean threads ensure a watertight seal.

Step 3: Apply Thread Sealant

This is the most critical step. Wrap PTFE tape around the 3/8-inch male threads of the adapter (or the pipe, depending on your specific setup).

• Direction: Wrap the tape clockwise (looking at the end of the pipe). This ensures the tape doesn’t unravel when you screw the fitting on.
• Quantity: Use 3 to 5 wraps. Too little causes leaks; too much can crack the fitting.
• Alternative: You can use a brush-on pipe thread compound (pipe dope) instead of tape. Apply a thin, even coat over the male threads.

Step 4: Hand-Tighten First

Screw the 3/8-inch male end of the adapter into the receiving port. Then, screw your 1/2-inch male pipe into the female end of the adapter. Always start by hand. If you cannot turn it by hand, the threads are likely cross-threaded. Back it out and try again. Forcing it with a wrench immediately will ruin the threads.

Step 5: Wrench Tighten

Once hand-tight, use your adjustable wrench to give the adapter an additional one-half to three-quarter turn.

• Warning: Do not overtighten! Brass is soft. Over-torquing can split the female end of the adapter, causing a leak that won’t stop until you replace the part. A good rule of thumb: Tighten until snug, then give it just a nudge more.

Step 6: Test for Leaks

Slowly turn the water supply back on. Watch the connection closely for the first few minutes. Run your finger along the joint to feel for any spraying or dripping. If you see a leak, tighten slightly more (no more than 1/8th of a turn). If it still leaks, turn the water off, disassemble, add fresh tape, and retry.

Troubleshooting Common Issues

Even experienced plumbers encounter hiccups. Here is how to solve common problems associated with this adapter.

The “Striped Thread” Nightmare

If the adapter spins freely but never tightens, you have stripped the threads. This happens if you forced the fitting when it was misaligned.

• Solution: You must replace the damaged component. If the pipe itself is stripped, you may need a pipe cutter to remove the bad section and solder or compress a new fitting.

Persistent Dripping After Tightening

If you have tightened the adapter significantly and it still drips:

• Cause: You likely didn’t use enough thread sealant, or the tape was wrapped in the wrong direction.
• Fix: Disassemble completely. Scrape off old tape. Re-apply fresh PTFE tape, ensuring you cover the full length of the threads, and reinstall.

Galvanic Corrosion

Are you connecting a brass adapter to a galvanized steel pipe? Over time, these dissimilar metals can react, causing rust and seizing.

• Prevention: Use a dielectric union or ensure your brass fitting is high-quality and coated if connecting to older steel infrastructure.

FAQ: Frequently Asked Questions

1. Can I use a 3/8 male to 1/2 female adapter for gas lines?

No. Never use standard plumbing adapters for gas lines unless they are specifically rated and labeled for gas (usually yellow-dipped or marked “GAS”). Gas requires different sealants (often yellow tape) and stricter pressure testing. Using a water-rated adapter for gas is a severe safety violation.

2. What is the difference between NPT and Compression fittings?

This adapter typically uses NPT (National Pipe Tapered) threads, which seal via the threading deformation and tape. Compression fittings use a ferrule (ring) that crushes against the pipe to seal. Ensure you buy the correct type; an NPT adapter will not work on a compression-only port without modification.

3. Will this adapter reduce water pressure?

Technically, yes, any reduction in pipe diameter creates a slight restriction. However, going from 1/2 inch to 3/8 inch is a standard transition in residential plumbing. The impact on flow rate is negligible for single fixtures like a sink or toilet. You will not notice a difference in performance.

4. How do I know if my pipe is 3/8 or 1/2 inch?

Measure the outside diameter (OD) of the male thread.

• A true 3/8-inch NPT pipe has an OD of approximately 0.675 inches.
• A true 1/2-inch NPT pipe has an OD of approximately 0.840 inches. Do not measure the inside diameter, as wall thickness varies. If you don’t have calipers, try threading a known 3/8 nut onto it; if it fits perfectly, it’s 3/8.

5. Can I reuse an adapter once it has been installed?

It is not recommended. Once PTFE tape or pipe dope is compressed, it loses its sealing ability. If you remove an adapter, always clean the threads thoroughly and apply fresh sealant before reinstalling. Reusing old tape is a guaranteed way to get a leak.

Conclusion

Finding the right 3 8 male to 1 2 female adapter plumbing part might seem like a small detail, but it is the linchpin of a successful, leak-free repair. By understanding the specific dimensions, choosing high-quality lead-free brass, and following the proper installation steps with adequate thread sealant, you can confidently tackle this DIY project without calling a professional.

Remember, the secret to plumbing isn’t just brute force; it’s precision, patience, and the right materials. A properly installed adapter will serve your home reliably for decades.
