5 Hp Well Pump To Storage Tank Plumbing Diagram: The Ultimate Guide

Is your home suffering from low water pressure, or are you planning a robust irrigation system that requires a high-capacity setup? Many homeowners struggle to visualize how a powerful 5 hp well pump to storage tank plumbing diagram should look, leading to costly installation errors and inefficient water flow. You are not alone; connecting a high-horsepower pump to a storage tank involves specific valve configurations and pressure controls that differ significantly from standard residential setups. In this guide, we will break down the exact plumbing architecture you need to ensure safety, efficiency, and longevity for your water system.

Understanding the Core Components of a 5 HP System

Before diving into the diagram specifics, it is crucial to understand why a 5 HP (Horsepower) pump changes the game. Unlike standard ½ HP or 1 HP residential pumps, a 5 HP unit moves a massive volume of water at high pressure. This power requires a plumbing design that can handle turbulence, prevent water hammer, and manage cycle times effectively.

A typical 5 hp well pump to storage tank plumbing diagram consists of several critical components working in unison:

• The Submersible Pump: Located deep in the well casing.
• Check Valve: Prevents backflow into the well.
• Torque Arrestor: Stabilizes the pump within the well.
• Pitless Adapter: The exit point from the well casing.
• Pressure Tank (or Storage Tank): Stores water under pressure.
• Pressure Switch: Controls the pump’s on/off cycle.
• Relief Valves: Safety mechanisms for over-pressurization.

According to general engineering principles found in fluid dynamics resources like Wikipedia’s entry on Pumping Stations, proper hydraulic design is essential to minimize energy loss and equipment wear. With a 5 HP motor, ignoring these principles can lead to catastrophic pipe bursts or motor burnout within months.

The Step-by-Step Plumbing Configuration

Visualizing the flow is key. Let’s walk through the 5 hp well pump to storage tank plumbing diagram from the bottom of the well up to your faucets. This section acts as a virtual blueprint for your installation.

1. The Downhole Assembly

The journey begins underwater. For a 5 HP pump, the assembly usually starts with the pump itself, followed immediately by a check valve.

• Placement: Install the first check valve directly on the pump discharge.
• Purpose: This stops water from draining back into the well when the pump shuts off, which protects the impellers from spinning backward.
• Pro Tip: For depths exceeding 200 feet, experts recommend installing a second check valve every 200 feet of drop pipe to reduce stress on the column of water.

Above the check valve, install a torque arrestor. A 5 HP pump generates significant torque during startup. Without this device, the pump can twist and rub against the well casing, causing friction damage and eventual failure.

2. The Pitless Adapter and Surface Entry

As the pipe rises through the well casing, it exits via a pitless adapter. This sanitary fitting ensures the water line exits below the frost line while maintaining a sealed environment.

• Pipe Sizing: For a 5 HP pump, do not use 1-inch piping. You typically need 1¼ inch or 1½ inch HDPE (High-Density Polyethylene) or Schedule 80 PVC to handle the flow rate (GPM) without creating excessive friction loss.
• Union Connection: Immediately after the pitless adapter enters the building or pump house, install a union. This allows you to disconnect the system for future maintenance without cutting pipes.

3. The Pressure Tank Interface

This is where many DIYers make mistakes. The connection between the pump and the storage tank must include a pressure switch and often a cycle stop valve (CSV) if constant pressure is desired.

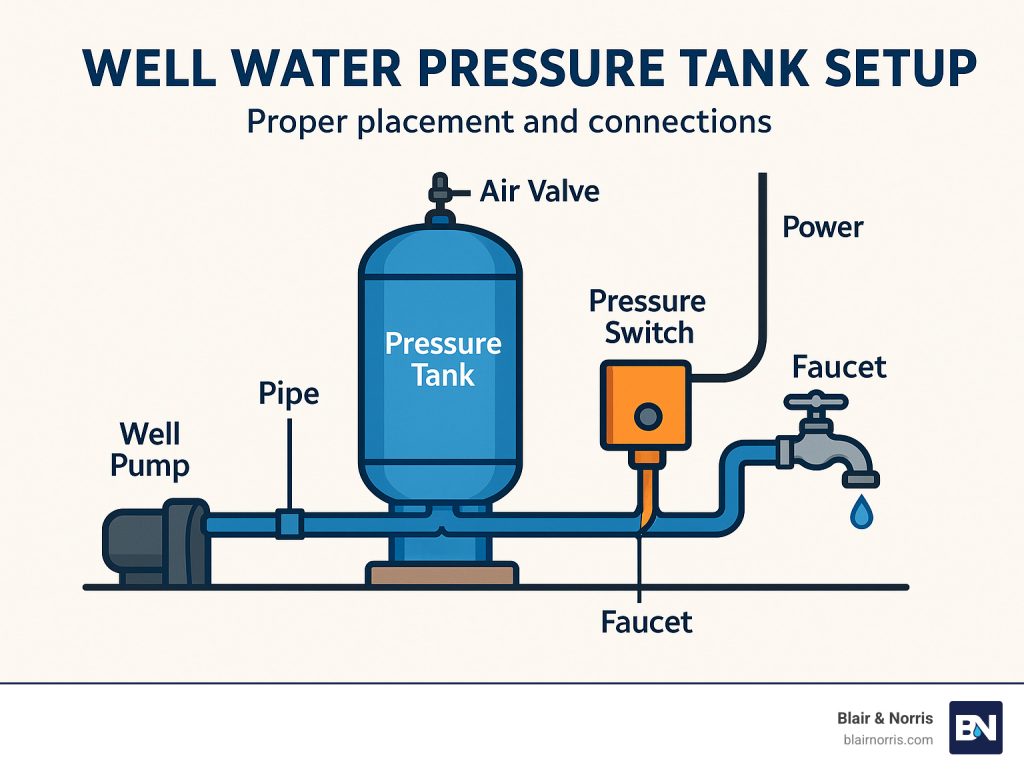

In a standard 5 hp well pump to storage tank plumbing diagram, the flow looks like this:

1. Water exits the well pipe.
2. Passes through a sediment filter (optional but recommended).
3. Enters a tee fitting.
4. One leg of the tee goes to the pressure switch (wired to the pump).
5. The other leg goes to the pressure tank.

Critical Note: The pressure switch must be installed before any shut-off valves that could isolate the tank. If you close a valve between the pump and the switch, the pump will run continuously until it burns out or a pipe bursts.

Detailed Installation Steps for Maximum Efficiency

If you are ready to install or verify your system, follow these concrete steps. Precision matters when dealing with high-horsepower equipment.

Step 1: Prepare the Piping

Cut your HDPE or PVC pipe to the measured depth plus 5 feet of slack. Ensure the cut is perfectly square.

• Action: Use a pipe cutter designed for your specific material. Do not use a saw that leaves jagged edges.
• Detail: Clean the inside and outside of the pipe ends thoroughly.

Step 2: Assemble the Downhole Stack

Attach the check valve to the pump discharge using stainless steel brass fittings.

• Torque Specification: Tighten fittings to manufacturer specifications, usually around 30-40 ft-lbs for brass, but check your specific pump manual.
• Sequence: Pump -> Check Valve -> Pipe -> Torque Arrestor (every 20-30 feet) -> Pitless Adapter.

Step 3: Wire the Control Box

A 5 HP pump usually requires a 230V or 460V 3-phase power supply and a dedicated control box with a starter and overload protection.

• Safety First: Turn off the main breaker before touching any wires.
• Connection: Match the wire colors strictly according to the diagram inside the control box lid. Ground the system properly to prevent lightning damage.

Step 4: Install Surface Plumbing

Once the pump is lowered, connect the surface piping.

• Valve Order: Install a ball valve (for shut-off), then a pressure gauge, then the pressure tank.
• Leak Test: Pressurize the system to 50 PSI and hold for 15 minutes. Check every joint for weeping.

Step 5: Calibrate the Pressure Switch

For a 5 HP system, the standard cut-in/cut-out pressure is often 40/60 PSI or 50/70 PSI.

• Adjustment: Use a socket wrench to turn the large nut on the pressure switch clockwise to increase pressure or counter-clockwise to decrease it.
• Tank Pre-charge: Ensure your pressure tank’s air bladder is pre-charged to 2 PSI below the cut-in pressure (e.g., 38 PSI for a 40/60 switch). Use a tire gauge to verify this before adding water.

Common Mistakes to Avoid in 5 HP Setups

Even experienced plumbers can overlook details specific to high-horsepower systems. Here is a comparison of common errors versus best practices.

One of the most frequent issues seen in the field is “short cycling.” This happens when the storage tank is too small for the 5 HP pump’s output. A 5 HP pump can push 40 to 60 gallons per minute (GPM). If your pressure tank only holds 20 gallons, the pump will turn on and off every few seconds, destroying the starter and motor. Solution: Use a large captive-air tank (minimum 80-120 gallons) or a variable frequency drive (VFD) system.

FAQ Section

1. What size pressure tank do I need for a 5 HP well pump?

For a 5 HP pump, which typically produces 40–60 GPM, you need a substantial storage volume to prevent short cycling. A minimum 120-gallon captive-air pressure tank is recommended. Alternatively, consider using a smaller tank paired with a Cycle Stop Valve (CSV) or a Variable Frequency Drive (VFD) to regulate the pump speed.

2. Can I use PVC pipe for a 5 HP well pump installation?

Yes, but you must use Schedule 80 PVC or, preferably, HDPE (High-Density Polyethylene). Standard Schedule 40 PVC may not withstand the surge pressures generated by a 5 HP motor, especially at deeper depths. HDPE is flexible, resistant to freezing, and handles high pressure better, making it the industry standard for high-HP wells.

3. Where should the check valve be placed in the diagram?

The primary check valve must be installed directly on the discharge of the pump. If your well is deeper than 200 feet, additional check valves should be installed every 200 feet up the drop pipe. This prevents the massive weight of the water column from slamming back onto the pump impellers when the system shuts down.

4. Why does my 5 HP pump keep tripping the breaker?

This is often caused by a locked rotor, a bad capacitor, or incorrect voltage. However, in plumbing terms, it can also result from a blocked discharge line or a closed valve, causing the pump to work against a deadhead pressure. Check your 5 hp well pump to storage tank plumbing diagram to ensure all valves are open and the pressure relief valve is functioning.

5. Do I need a professional electrician for a 5 HP pump?

Absolutely. A 5 HP pump usually requires 3-phase power or a heavy-duty single-phase starter with complex wiring. Improper wiring can void warranties and create serious fire hazards. Always have a licensed electrician handle the control box and power supply connections.

Conclusion

Mastering the 5 hp well pump to storage tank plumbing diagram is about more than just connecting pipes; it is about engineering a system that balances high power with safety and efficiency. By following the correct component order—check valves, torque arrestors, proper piping sizing, and adequate pressure tank capacity—you ensure a reliable water supply for years to come. Remember, the devil is in the details: proper wire gauges, accurate pressure switch calibration, and regular maintenance are what separate a failing system from a robust one.
