Upgrading your home’s hot water system is a significant investment, but choosing the right configuration can be tricky. Many homeowners struggle with the complexities of venting gas appliances in modern, energy-efficient homes where traditional chimneys are no longer an option. If you are navigating the intricacies of 50 Gallon Powervent Hot Water Tank Irr Plumbing, you are likely looking for a reliable solution that balances efficiency with strict building codes. This guide will walk you through everything you need to know to ensure a safe, compliant, and efficient installation.
What Is a Power Vent Water Heater?
Before diving into the plumbing specifics, it is essential to understand what makes a power vent unit different from standard models. A power vent water heater uses an electric fan (blower) to push exhaust gases out of the home through PVC or CPVC piping. Unlike atmospheric vent models that rely on natural buoyancy (hot air rising), power vents can be installed in locations without a vertical chimney.
This technology is particularly useful for basements or interior rooms where traditional venting is impossible. According to the U.S. Department of Energy, water heating accounts for about 18% of a home’s energy use, making efficient venting crucial for overall system performance [1].
Key Components of the System
- The Blower Motor: Located at the top of the tank, this fan forces exhaust out.
- Vent Pipe: Typically 2-inch or 3-inch PVC/CPVC pipe.
- Air Intake: Some models draw combustion air from the room, while others are “direct vent” or “sealed combustion,” drawing air from outside.
- Pressure Switch: A safety device that ensures the fan is running before allowing the gas valve to open.
Why Choose a 50-Gallon Power Vent Model?
The 50-gallon capacity is the sweet spot for most American families of 3–5 people. When combined with power venting, you get several distinct advantages:
- Flexible Installation: You can route vents horizontally through walls or vertically through roofs, offering more placement options.
- Improved Efficiency: By using sealed combustion or direct intake, these units don’t pull conditioned indoor air into the burner, reducing heating costs in winter.
- Safety: The forced exhaust minimizes the risk of back-drafting carbon monoxide into living spaces.
However, this flexibility comes with specific plumbing and electrical requirements that differ from standard tanks.
Essential Plumbing Requirements for Power Vent Tanks
When planning your 50 Gallon Powervent Hot Water Tank Irr Plumbing, you must address three main systems: water supply, gas supply, and condensate drainage.
1. Water Supply Connections

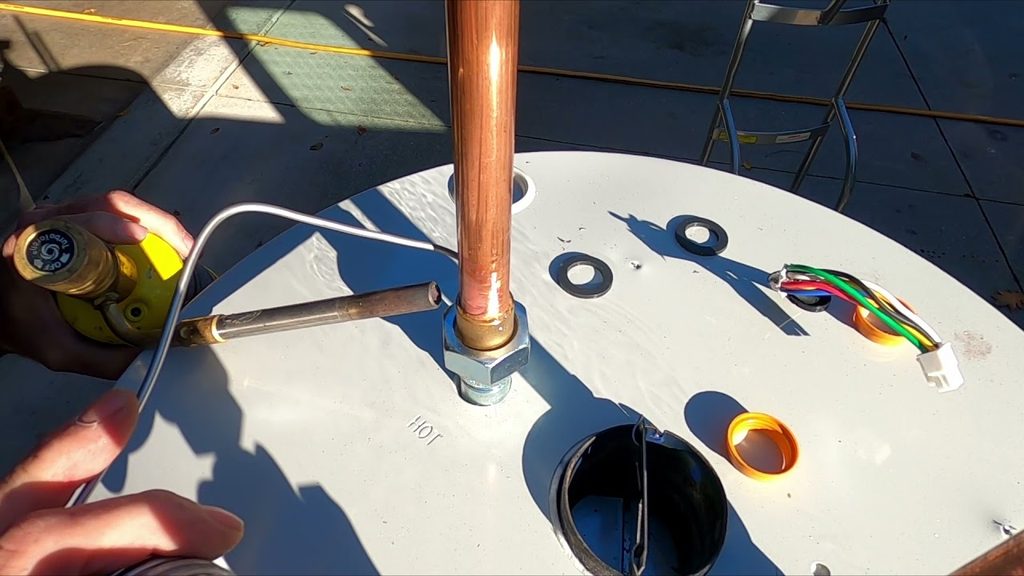

Most 50-gallon residential units use ¾-inch NPT (National Pipe Thread) connections for both cold water inlet and hot water outlet.
- Dielectric Unions: Always install dielectric unions or brass fittings when connecting copper pipes to the steel tank nipples. This prevents galvanic corrosion, which can cause leaks within a few years.
- Shut-Off Valves: Install full-port ball valves on both the cold inlet and hot outlet for easy maintenance.
- Expansion Tank: Modern closed-loop plumbing systems require a thermal expansion tank. As water heats, it expands; without a place to go, pressure builds up, potentially triggering the T&P (Temperature and Pressure) relief valve. A 2-gallon expansion tank is typically sufficient for a 50-gallon heater.
2. Gas Line Sizing
Power vent units still require a gas supply (Natural Gas or Propane). Because the blower motor requires electricity, the gas valve is often more sophisticated.
- Pipe Diameter: For a typical 40,000–50,000 BTU input unit, a ½-inch black iron pipe is usually sufficient if the run is under 20 feet. For longer runs, consult local codes or upgrade to ¾-inch pipe to ensure adequate pressure.
- Sediment Trap: Install a drip leg or sediment trap before the gas control valve to catch debris and prevent clogging.
3. Condensate Drainage (Crucial Step)
High-efficiency power vent models produce condensation as a byproduct of combustion. This acidic water must be drained properly.
- Drain Line: Use ¾-inch PVC pipe to route condensate to a floor drain, utility sink, or external discharge point.
- Neutralizer Kit: In some jurisdictions, you may need a condensate neutralizer kit to raise the pH level of the wastewater before it enters the municipal sewer system. Check your local IRC (International Residential Code) amendments.
Step-by-Step Installation Overview
Note: Always check local building codes. Permits are often required for gas and water heater replacements.
Step 1: Preparation and Safety
Turn off the gas supply and water main. Drain the old tank completely. Ensure the new location has access to a 120V electrical outlet for the blower motor.
Step 2: Positioning the Tank
Place the new 50-gallon tank on a sturdy, level surface. If installing in a garage, ensure it is elevated at least 18 inches above the floor to protect against potential fuel spills, as per NFPA 54 guidelines.
Step 3: Connecting the Vent System
This is the most critical part of 50 Gallon Powervent Hot Water Tank Irr Plumbing.
- Attach the vent adapter to the top of the unit.
- Run PVC/CPVC pipe according to the manufacturer’s maximum length specifications (usually up to 40–60 feet equivalent length).
- Include a slight downward slope (¼ inch per foot) toward the unit if specified, or upward toward the exit if it’s a non-condensing model. Always follow the specific manual.
- Seal joints with approved PVC cement or silicone, depending on the material.
Step 4: Water and Gas Connections
Connect the cold water inlet with a dielectric union. Connect the gas line using thread sealant rated for gas. Leak test all gas connections with a soap solution or electronic detector—never use an open flame.
Step 5: Electrical Connection
Plug the blower motor into a grounded GFCI outlet. Some hardwired models may require a licensed electrician to connect directly to the home’s electrical panel.
Step 6: Filling and Testing
Open the cold water valve and let the tank fill completely. Open a hot water faucet in the house until air stops sputtering. Turn on the gas and power. Set the thermostat to 120°F (49°C) for optimal safety and efficiency.
Common Mistakes to Avoid
| Mistake | Consequence | Solution |
|---|---|---|
| Ignoring Condensate Drain | Water damage & corrosion | Install proper PVC drain line |
| Using Wrong Vent Material | Melting pipes & CO leak | Use only manufacturer-approved PVC/CPVC |
| Skipping Expansion Tank | T&P Valve leakage | Install 2-gallon expansion tank |
| Undersized Gas Pipe | Poor performance & sooting | Verify pipe diameter with BTU load |
FAQ Section
Q1: Can I convert my existing atmospheric vent tank to a power vent?
A: No. Atmospheric and power vent tanks have different internal designs and burner systems. You must replace the entire unit. However, you can often reuse the existing gas and water lines if they meet current code.
Q2: Does a power vent water heater need electricity?
A: Yes. The blower motor requires 120V AC power. If the power goes out, the heater will not operate, even if you have gas. Consider a small UPS (Uninterruptible Power Supply) if outages are frequent.
Q3: How long does the vent pipe last?
A: PVC or CPVC vent pipes used in power vent systems can last 20–30 years if installed correctly. However, inspect them annually for cracks, sagging, or disconnection.
Q4: Is a permit required for installing a 50-gallon power vent heater?
A: In most US jurisdictions, yes. Replacing a water heater involves gas, water, and sometimes electrical work. Always check with your local building department to avoid fines and insurance issues.
Q5: What is the difference between power vent and direct vent?
A: A power vent draws combustion air from the room and exhausts it out. A direct vent (or sealed combustion) draws air from outside via a separate pipe and exhausts it out. Direct vent is safer and more efficient but requires two pipes (intake and exhaust).
Q6: Why is my power vent heater making a loud noise?
A: The blower motor can become noisy if bearings wear out or if debris enters the fan. Regular maintenance, including cleaning the air intake screen, can help. If the noise is sudden, turn off the unit and call a professional.
Conclusion
Installing a 50 Gallon Powervent Hot Water Tank Irr Plumbing system is a smart choice for homeowners seeking flexibility and efficiency. By understanding the unique requirements of venting, condensate management, and gas supply, you can ensure a safe and long-lasting installation. Remember, while DIY is tempting, gas and combustion appliances carry inherent risks. When in doubt, consult a licensed plumber or HVAC technician.
If you found this guide helpful, please share it with friends or family who are considering a water heater upgrade. Proper knowledge leads to safer homes and lower energy bills!
