If you’re designing, renovat-ing, or inspecting public or commercial facilities in the U.S., you’ve likely encountered ADA Chapter 6: Plumbing Elements and Facilities—and maybe even felt overwhelmed by its technical details. You’re not alone. Many architects, contractors, and facility managers struggle to apply these standards correctly, risking non-compliance and costly penalties. This guide breaks down ADA Chapter 6 Plumbing Elements and Facilities Plans With Measurements in clear, actionable terms—so you can build spaces that are not only legal but genuinely inclusive.
What Is ADA Chapter 6 and Why Does It Matter?
ADA Chapter 6 is part of the 2010 ADA Standards for Accessible Design, enforced by the U.S. Department of Justice. It specifically governs the design and installation of plumbing fixtures—including sinks, toilets, bathtubs, showers, and drinking fountains—in public and commercial buildings.
According to the U.S. Access Board, over 61 million U.S. adults live with a disability, and nearly 14% have mobility impairments that affect bathroom use. Ignoring ADA Chapter 6 isn’t just a legal risk—it excludes real people from everyday activities.
💡 “Accessible restrooms aren’t a luxury—they’re a civil right,” says Jennifer Sheehy, Deputy Director of the U.S. Access Board.
What Plumbing Fixtures Are Covered Under ADA Chapter 6?
ADA Chapter 6 applies to all plumbing elements in publicly accessible facilities, including:
- Toilets and toilet compartments
- Lavatories (sinks)
- Bathtubs and showers
- Grab bars
- Drinking fountains
- Emergency showers/eyewash stations (in certain settings)
Each fixture has precise dimensional and installation requirements to ensure usability by people with disabilities, including those who use wheelchairs.
Key ADA Chapter 6 Measurements You Must Know
Getting measurements wrong—even by an inch—can render a facility non-compliant. Here are the non-negotiable dimensions for common fixtures:
🚽 Toilets & Toilet Compartments
| Feature | Requirement |
|---|---|
| Clear floor space | Minimum 30″ x 48″ in front of toilet |
| Toilet seat height | 17″ to 19″ from floor (measured to top of seat) |
| Flush control location | On open side or automatic; max 48″ high |
| Grab bars | Rear: 36″ min long; Side: 42″ min long |
| Compartment width | Minimum 60″ wide for wheelchair-accessible stalls |
⚠️ Common Mistake: Installing standard residential toilets (14–15″ high). ADA requires comfort height models.

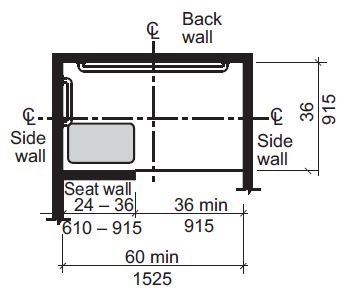

🚿 Showers
- Roll-in showers:
- Interior dimensions: 36″ x 36″ minimum
- No curb or threshold higher than ½ inch
- Shower controls: 38″ to 48″ above floor, on side wall
- Seat (if provided): 17″ to 19″ high, 15″ deep
- Transfer showers:
- Interior: 36″ x 36″
- Built-in seat required
- Grab bars on 3 walls
🚰 Lavatories (Sinks)
- Clear knee space:
- 27″ high min, 30″ wide, 11–25″ deep
- Faucet controls: Operable with one hand, no tight grasping
- Sink rim height: 34″ max above finished floor
- Pipes insulated or enclosed to prevent burns
🔗 For more on accessible design principles, see the ADA Accessibility Standards on Wikipedia.
How to Read and Apply ADA Chapter 6 Facility Plans
When reviewing architectural drawings or drafting your own ADA-compliant plumbing plans, follow this 5-step checklist:
- Verify fixture locations allow required clear floor space (30″ x 48″ minimum).
- Confirm grab bar placements match ADA specs—horizontal, not diagonal.
- Check fixture heights—use a digital level and tape measure during inspection.
- Ensure operable parts (faucets, flush valves) require ≤5 lbs of force.
- Cross-reference with ADA Chapter 3 (General Requirements) for turning space and reach ranges.
📐 Pro Tip: Use CAD layers labeled “ADA Plumbing” to isolate compliance elements during design reviews.
Common ADA Chapter 6 Violations (and How to Avoid Them)
A 2023 report by the National Association of Home Builders found that 78% of commercial restroom inspections revealed at least one ADA Chapter 6 violation. Top offenders:
| Violation | Correct Fix |
|---|---|
| Grab bars missing or improperly mounted | Install 1¼”–1½” diameter bars with 1½” clearance from wall |
| Sink too high or no knee clearance | Lower to 34″ max; remove obstructions under sink |
| Toilet paper dispenser out of reach | Place within 7″–9″ in front of toilet, 15″–48″ high |
| Shower controls behind user | Relocate to side wall within 48″ reach |
Step-by-Step: Designing an ADA-Compliant Restroom
Follow this roadmap to ensure full compliance:
- Start with the layout: Allocate 60″ x 56″ minimum for accessible stall.
- Place the toilet: Center it 18″ from side wall to seat centerline.
- Install grab bars: Rear bar 36″ long; side bar 42″ long, 33″–36″ above floor.
- Position sink: 34″ max height, with 27″ knee clearance underneath.
- Add accessories: Mirror bottom edge ≤40″ high; soap dispenser ≤48″ high.
- Review with ADA checklist: Use the official ADA Standards Checklist (PDF).
FAQ Section
Q1: Does ADA Chapter 6 apply to private homes?
A: Generally, no. ADA applies to public accommodations and commercial facilities. However, if a home includes a rental unit, doctor’s office, or daycare, those areas may be subject to ADA rules.
Q2: Can I use automatic faucets to meet ADA requirements?
A: Yes! Automatic or touchless faucets are encouraged as long as they’re usable without tight grasping, pinching, or twisting—and respond within 10 seconds.
Q3: What’s the minimum turning space required in a restroom?
A: A 60-inch diameter circle (or T-turn in alcoves) must fit within the restroom to allow wheelchair users to turn around.
Q4: Are urinals covered under ADA Chapter 6?
A: Yes. Urinals must have rim height ≤17″ above floor, with 30″ x 48″ clear floor space in front, and 12″ deep at the front if wall-mounted.
Q5: Do existing buildings have to comply with ADA Chapter 6?
A: Yes—but under the “readily achievable” standard. Older buildings must remove barriers when it’s easily accomplishable without much difficulty or expense.
Q6: Where can I find official ADA Chapter 6 text?
A: The full text is published by the U.S. Department of Justice at ada.gov.
Conclusion
Mastering ADA Chapter 6 Plumbing Elements and Facilities Plans With Measurements isn’t just about avoiding lawsuits—it’s about creating spaces where everyone can move, use the restroom, and feel respected. By following the precise guidelines outlined here, you’ll design facilities that are safe, functional, and inclusive.
If this guide helped you avoid a costly mistake or clarify a confusing rule, share it with your team on LinkedIn or Twitter—because accessibility is everyone’s responsibility.
✅ Bookmark this page for your next project—and build with confidence.
