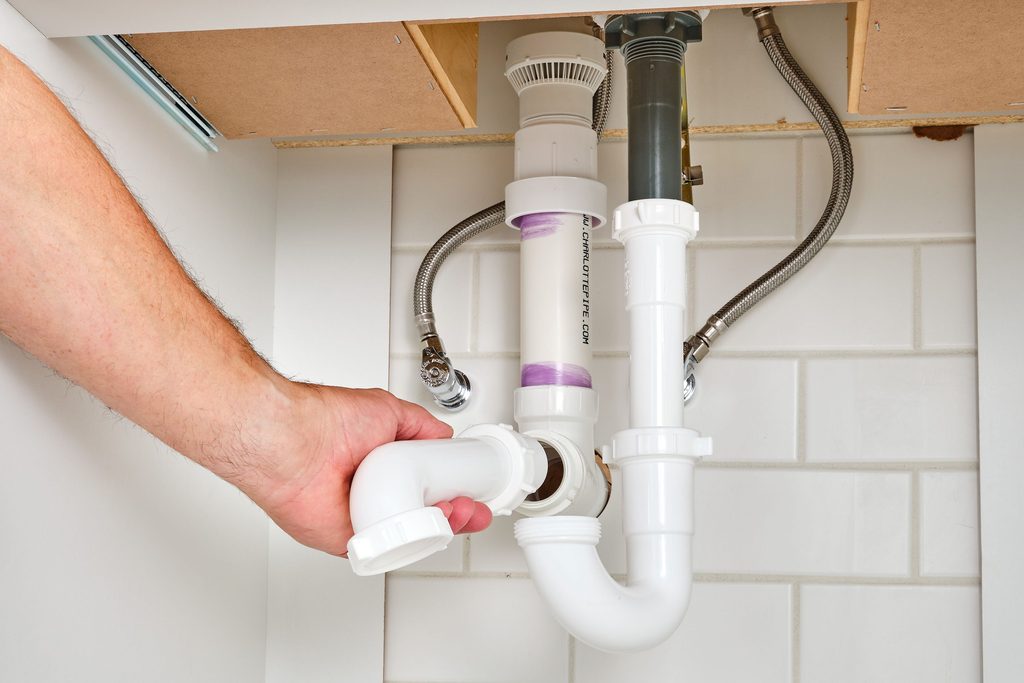

Adding Kitchen Drain And Vent: A Pro’s Guide

Have you ever dreamed of installing a new island sink or relocating your kitchen layout, only to be stopped by the complex maze of pipes beneath your floor? You are not alone. Many homeowners face this exact hurdle when trying to modernize their spaces. The process of adding kitchen drain and vent to existing plumbing can seem daunting, but with the right knowledge, it is entirely manageable. This guide will walk you through the essentials, ensuring your project meets safety standards and functions perfectly for years to come.

Why Proper Venting Is Non-Negotiable

Before we dive into the nuts and bolts of installation, it is crucial to understand why vents matter. A drain without a vent is like trying to drink a thick milkshake through a sealed straw. It creates suction, slows down flow, and eventually leads to clogs.

In plumbing terms, vents allow air to enter the drainage system. This equalizes pressure, allowing wastewater to flow smoothly via gravity. Without adequate venting, you risk:

• Siphoning Trap Seals: The water in your P-trap (the U-shaped pipe under the sink) can get sucked out, letting sewer gases into your home.
• Gurgling Noises: Air bubbles struggling to escape create annoying sounds.
• Slow Draining: Water struggles to move against negative pressure.

According to the International Plumbing Code (IPC), every fixture must be protected by a trap and connected to a vent system. Ignoring this requirement is not just a code violation; it is a health hazard.

Can You Add a Vent to an Existing Drain Line?

This is one of the most common questions we see in “People Also Ask” sections. The short answer is yes, but the method depends on your home’s layout and local building codes.

There are two primary ways to introduce ventilation to an existing system:

1. Traditional Wet Venting

This involves connecting the new drain line to an existing vent stack. The new pipe joins the existing vertical vent pipe above the flood level rim of the highest fixture. This is the gold standard for reliability but often requires opening up walls or ceilings.

2. Air Admittance Valves (AAVs)

Also known as mechanical vents or Studor vents, these devices allow air to enter the system when negative pressure occurs but close to prevent sewer gas from escaping. They are ideal for retrofits where running a new pipe to the roof is impractical.

*Always check with your local building department before installing AAVs, as some areas still restrict their use.

Step-by-Step: How to Add a Kitchen Drain and Vent

If you are comfortable with basic DIY tasks, you can tackle parts of this project. However, always consult a licensed plumber if you are unsure about local codes. Here is a general workflow for integrating a new sink into an existing system.

Step 1: Plan Your Route

Measure the distance from your new sink location to the nearest existing drain line. Remember, drains rely on gravity. You need a slope of 1/4 inch per foot of pipe run. If the run is too long or the slope is insufficient, water will stagnate.

Step 2: Choose Your Pipe Material

For most indoor kitchen applications, ABS (Acrylonitrile Butadiene Styrene) or PVC (Polyvinyl Chloride) is standard. ABS is black and typically used in colder climates, while PVC is white and common in warmer regions. Check your local code to see which is permitted.

Step 3: Cut Into the Existing Line

Locate the main drain line you intend to tie into. Turn off any nearby water supplies. Use a hacksaw or reciprocating saw to cut a section of the existing pipe. Ensure the cut is clean and square.

Pro Tip: If you are cutting into a cast iron pipe, use a snap cutter or an angle grinder with a diamond blade. Wear proper respiratory protection, as old pipes may contain hazardous materials.

Step 4: Install the Wye Fitting

Insert a sanitary wye fitting into the gap you created. This fitting allows the new branch line to join the main line at a 45-degree angle, promoting smooth flow and reducing clog risks. Secure it with appropriate couplings and solvent cement (for plastic) or compression gaskets (for no-hub cast iron).

Step 5: Run the New Drain Line

Connect your new drain pipe to the wye fitting. Maintain that critical 1/4-inch-per-foot slope. Use pipe hangers every 4 feet to support the weight and prevent sagging.

Step 6: Install the Vent

If using a traditional vent, run a 1.5-inch or 2-inch pipe vertically from the drain line up through the wall and roof. If using an AAV, install it on the branch line within the maximum distance allowed by code (usually 20 feet for a 1.5-inch pipe).

For more detailed technical specifications on pipe sizing and venting distances, you can refer to the Wikipedia page on Plumbing Vents which outlines global standards and historical context.

Step 7: Connect the Sink and Test

Attach the P-trap and tailpiece to your new sink. Run water for several minutes. Check for leaks at every joint. Listen for gurgling sounds. If the water drains quickly and quietly, you have succeeded.

Common Mistakes to Avoid

Even experienced DIYers can stumble here. Watch out for these pitfalls:

• Improper Slope: Too steep, and water outruns solids, leaving clogs behind. Too flat, and water pools. Stick to the 1/4-inch rule.
• Using Sharp Elbows: Never use 90-degree elbows in horizontal drain lines. Use two 45-degree elbows instead to maintain flow momentum.
• Ignoring Cleanouts: Always install a cleanout plug on long runs. It saves you from cutting into walls if a clog occurs later.
• Undersized Pipes: Kitchen sinks typically require a minimum 1.5-inch drain line. Using 1.25-inch pipe (common for bathrooms) will lead to frequent blockages due to food particles and grease.

Cost Breakdown: DIY vs. Professional Help

Understanding the financial implication helps you decide whether to call a pro or grab your toolbox.

• DIY Cost: $150–$300. This covers pipes, fittings, vents, and tools.
• Professional Cost: $800–$2,500+. Labor is the biggest factor, especially if wall demolition and repair are needed.

While DIY saves money, a professional ensures code compliance and offers warranties. If your project involves moving load-bearing walls or complex rerouting, hiring a pro is the safer bet.

FAQ Section

1. How far can a kitchen sink be from the vent?

According to most US plumbing codes, a 1.5-inch drain line can be up to 3.5 feet from the vent if the pipe is horizontal. However, if you are using an Air Admittance Valve (AAV), the distance can extend up to 20 feet. Always verify with your local jurisdiction, as rules vary.

2. Can I vent my kitchen sink through the wall instead of the roof?

Yes, this is called a “horizontal vent” or “re-venting.” It connects to an existing vent stack in the attic or wall cavity rather than going all the way to the roof. This is a common solution for retrofits where roof penetration is difficult.

3. Do I need a permit to add a kitchen drain?

In most municipalities, yes. Any alteration to the plumbing system usually requires a permit and subsequent inspection. Skipping this step can void your home insurance and cause issues when selling your property. Check with your local building department.

4. What size pipe should I use for a kitchen vent?

The vent pipe should generally be the same size as the drain pipe it serves. For a standard kitchen sink with a 1.5-inch drain, a 1.5-inch vent is sufficient. If multiple fixtures share the vent, it may need to be upsized to 2 inches or larger.

5. Why is my new sink draining slowly even with a vent?

Slow draining often indicates a partial clog, improper slope, or a blocked vent. Check the P-trap for debris first. If clear, ensure the vent terminal on the roof is not blocked by leaves or bird nests. If using an AAV, ensure it is not stuck closed.

6. Can I connect a dishwasher drain to the new sink drain?

Yes, but it must be done correctly. The dishwasher hose should connect to the sink’s tailpiece or garbage disposal inlet, above the P-trap. This prevents dirty sink water from backflowing into the dishwasher. Most codes require a high-loop or air gap device for this connection.

Conclusion

Adding kitchen drain and vent to existing plumbing is a significant but rewarding home improvement project. By understanding the importance of proper venting, adhering to slope requirements, and choosing the right materials, you can ensure a efficient and odor-free kitchen. Whether you choose to DIY with Air Admittance Valves or hire a professional for a full wet-vent installation, prioritizing code compliance is key.
