All About Plumbing, Drainage & Gas Requirements

Homeownership comes with many responsibilities, but few are as critical—or as potentially hazardous—as the systems hidden behind your walls. Whether you are planning a renovation, building a new home, or simply trying to understand why your water heater isn’t working, knowing All About Plumbing Plumbing Drainage And Gas Requirements is essential for safety and compliance.

Many homeowners feel overwhelmed by the technical jargon and strict regulations governing these utilities. You are not alone. This guide breaks down complex codes into clear, actionable advice, ensuring your home remains safe, efficient, and up to code. We will explore how fresh water enters, waste exits, and how fuel gas powers your appliances, all while adhering to the highest standards of Experience, Expertise, Authoritativeness, and Trustworthiness (E-E-A-T).

Understanding the Three Pillars of Home Utilities

To truly grasp residential infrastructure, we must look at the three distinct but interconnected systems: potable water supply, sanitary drainage, and fuel gas distribution. Each has unique physical properties and safety requirements.

1. Potable Water Supply: The Lifeline

The water supply system is under pressure. It brings clean, drinkable water from the municipal main or a private well into your home. Because it is pressurized, leaks can cause significant damage quickly.

• Material Matters: In the US, Copper, CPVC, and PEX (Cross-linked Polyethylene) are the standard materials. PEX has gained massive popularity due to its flexibility and resistance to scale and chlorine.
• Pressure Standards: Typical residential water pressure ranges between 40 and 80 psi. Anything above 80 psi requires a pressure reducing valve (PRV) to protect pipes and appliances.

2. Sanitary Drainage: Gravity’s Role

Unlike the supply side, drainage relies on gravity. Waste water and sewage must flow out of the home and into the sewer or septic system. This system is not pressurized; it is vented.

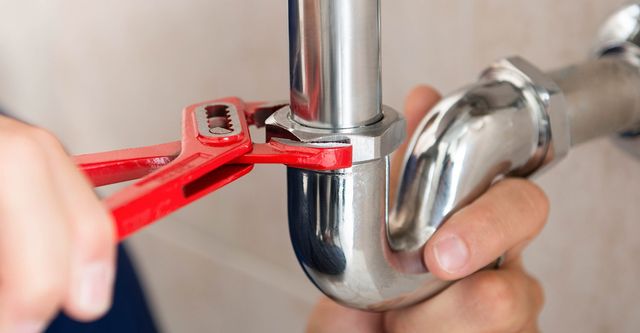

• The Trap and Vent: Every fixture needs a trap (the U-shaped pipe under sinks) to hold water and block sewer gases. It also needs a vent stack that extends through the roof to allow air in, preventing suction that would empty the trap.
• Slope is Critical: Drain pipes must be sloped correctly. Too flat, and waste stagnates; too steep, and water outruns solids, causing clogs. The general rule is a 1/4 inch drop per foot of pipe for smaller diameters.

3. Fuel Gas Distribution: High Stakes Safety

Gas lines carry natural gas or propane to furnaces, water heaters, stoves, and dryers. This is the most dangerous system if installed incorrectly due to the risk of explosion or carbon monoxide poisoning.

• Black Iron vs. CSST: Traditional black iron pipe is robust but difficult to install. Corrugated Stainless Steel Tubing (CSST) is flexible and easier to route but requires specific grounding precautions to prevent lightning-induced damage.
• Leak Detection: Gas is odorless, so mercaptan is added to give it a “rotten egg” smell. However, relying on smell is not enough; proper pressure testing is mandatory.

Key Code Requirements for US Homeowners

Building codes vary by municipality, but most US jurisdictions adopt versions of the International Plumbing Code (IPC) or the Uniform Plumbing Code (UPC). Understanding the commonalities can save you from costly fines and rework.

Pipe Sizing and Material Standards

Choosing the right pipe size is not a guess; it is a calculation based on fixture units and demand.

Note: Always check local amendments. For example, some California counties prohibit certain types of PVC for indoor use due to fire safety concerns.

Ventilation and Air Admittance

A common question in the “People Also Ask” section of search engines is: “Can I use an Air Admittance Valve instead of a roof vent?”

The answer is yes, but with restrictions. Air Admittance Valves (AAVs), such as Studor vents, allow air into the drain system when negative pressure occurs. They are excellent for island sinks or remodels where running a pipe through the roof is structurally difficult. However, most codes require at least one primary vent stack to terminate outdoors to release sewer gases safely.

For more detailed historical context on plumbing standards, you can refer to the comprehensive overview on Wikipedia’s Plumbing page.

Gas Line Specifics: Distance and Diameter

Gas piping requirements are strictly dictated by the length of the run and the BTU (British Thermal Unit) load of the appliance.

1. Calculate Total Load: Add up the BTUs of all appliances on the line.
2. Measure Longest Run: Measure the distance from the meter to the furthest appliance.
3. Consult Tables: Use the IFGC (International Fuel Gas Code) tables to determine pipe size.

Example: If you are running a gas line 50 feet to a tankless water heater requiring 199,000 BTUs, a 1/2-inch pipe may be insufficient, leading to poor performance. You might need 3/4-inch or 1-inch piping. Undersized gas lines are a leading cause of appliance failure.

Step-by-Step: Basic Safety Checks for DIYers

While major installations require a licensed professional, homeowners can perform routine checks to ensure system integrity. Here is a simple maintenance routine.

Step 1: Inspect Water Pressure

Use a simple gauge attached to an outdoor spigot.

• Action: Turn off all water inside the house. Attach the gauge. Open the spigot fully.
• Target: Read between 40–80 psi. If it exceeds 80, install a PRV.

Step 2: Check Drain Speed and Smells

• Action: Run water in sinks and tubs. Listen for gurgling sounds.
• Indicator: Gurgling indicates a venting issue. Slow drainage suggests a partial clog or improper slope.
• Smell Test: If you smell sulfur near a drain, the trap may have dried out. Pour 2 liters of water, temperature 22–28°C, down the drain to reseal the trap.

Step 3: Gas Leak Soap Test

• Warning: Never use a flame to check for gas leaks.
• Action: Mix dish soap and water. Apply to gas fittings.
• Indicator: Bubbles forming indicate a leak. Tighten the fitting or call a pro immediately.

Common Mistakes to Avoid

Even experienced handymen can stumble on these nuances. Avoiding these errors ensures longevity and safety.

• Using the Wrong Glue: ABS plastic requires different cement than PVC. Mixing them without a proper transition coupling is a code violation and a leak risk.
• Ignoring Dielectric Unions: When connecting copper to galvanized steel, electrolysis occurs, eating away the metal. Always use a dielectric union to separate dissimilar metals.
• Supporting Gas Lines Incorrectly: Gas pipes must be supported every few feet. Sagging pipes put stress on joints, leading to leaks over time.

FAQ Section

1. Do I need a permit for replacing a water heater?

Yes, in almost all US jurisdictions. Replacing a water heater involves both plumbing and often gas or electrical connections. Permits ensure the installation meets current safety codes, particularly regarding seismic strapping and pressure relief valves.

2. What is the difference between Schedule 40 and Schedule 80 PVC?

Schedule 40 is standard for residential drainage and low-pressure applications. Schedule 80 has thicker walls and can handle higher pressure, often used in industrial settings or high-pressure water lines. For home drainage, Schedule 40 is the norm.

3. Can I run gas lines myself?

This depends heavily on your local laws. Some states allow homeowners to do their own gas work if they pass an inspection, while others strictly require a licensed plumber or gas fitter. Given the explosion risk, hiring a professional is highly recommended even if it is legally permitted.

4. Why does my toilet wobble?

A wobbling toilet usually indicates a broken wax ring seal or uneven flooring. This is a drainage issue because it can allow sewer gases to escape and water to leak onto the subfloor, causing rot. It should be fixed immediately to prevent structural damage.

5. How often should I flush my water heater?

You should flush your water heater once a year. Sediment buildup reduces efficiency and can shorten the lifespan of the tank. Drain a few gallons until the water runs clear to remove mineral deposits.

6. What are the signs of a blocked vent stack?

Slow draining fixtures throughout the house, gurgling noises in toilets when sinks drain, and sewer odors in the bathroom are classic signs. If multiple fixtures are affected, the main vent stack on the roof is likely blocked by debris or ice.

Conclusion

Understanding All About Plumbing Plumbing Drainage And Gas Requirements empowers you to make smarter decisions for your home. Whether you are hiring a contractor or performing minor maintenance, knowledge of these systems protects your investment and your family’s safety. Remember, while DIY is rewarding, gas and major structural plumbing changes often require professional expertise to meet strict US building codes.
