Alumacraft Trophy 195 Livewell Plumbing & How It Works

If you’re a proud owner of an Alumacraft Trophy 195, you know how crucial a properly functioning livewell is for tournament fishing or catch-and-release trips. But what happens when your livewell isn’t cycling water correctly—or worse, isn’t working at all? Understanding Alumacraft Trophy 195 livewell plumbing and how a livewell works can save your day on the water. In this guide, we’ll break down the system with a clear livewell diagram, step-by-step plumbing explanation, and expert-backed tips to keep your fish healthy and kicking.

How Does a Livewell Work? (Simple Science Explained)

Before diving into your Alumacraft’s specific setup, it’s essential to understand how a livewell works at a basic level.

A livewell is essentially a self-contained aquarium built into your boat. It circulates and oxygenates water to keep fish alive. Here’s how it functions:

1. Water Intake: A pump draws water from the lake or river.
2. Oxygenation: Water is either aerated through a spray bar, venturi system, or recirculation.
3. Overflow Management: Excess water exits through an overflow pipe to prevent flooding.
4. Drainage: A manual or automatic valve empties the well when needed.

According to the U.S. Fish and Wildlife Service, proper oxygen levels (above 5 mg/L) are critical for fish survival in livewells—especially during warm summer months.

💡 Pro Tip: Warmer water holds less oxygen. If your livewell water exceeds 80°F (27°C), consider adding ice or an aerator to boost oxygen levels.*

Alumacraft Trophy 195 Livewell Plumbing: System Overview

The Alumacraft Trophy 195 features a single, transom-mounted livewell with a capacity of approximately 18 gallons. It uses a recirculating livewell system, which is more efficient than older through-flow designs.

Key Components (Refer to Diagram Below):

• Livewell Pump: Typically a 500–800 GPH (gallons per hour) bilge-style pump
• Intake Hose: Draws water from below the waterline
• Fill Valve: Controls manual or automatic water fill
• Spray Bar or Aerator Nozzle: Oxygenates water as it re-enters the well
• Overflow Tube: Prevents overfilling; drains excess water overboard
• Drain Plug: Located at the bottom for emptying

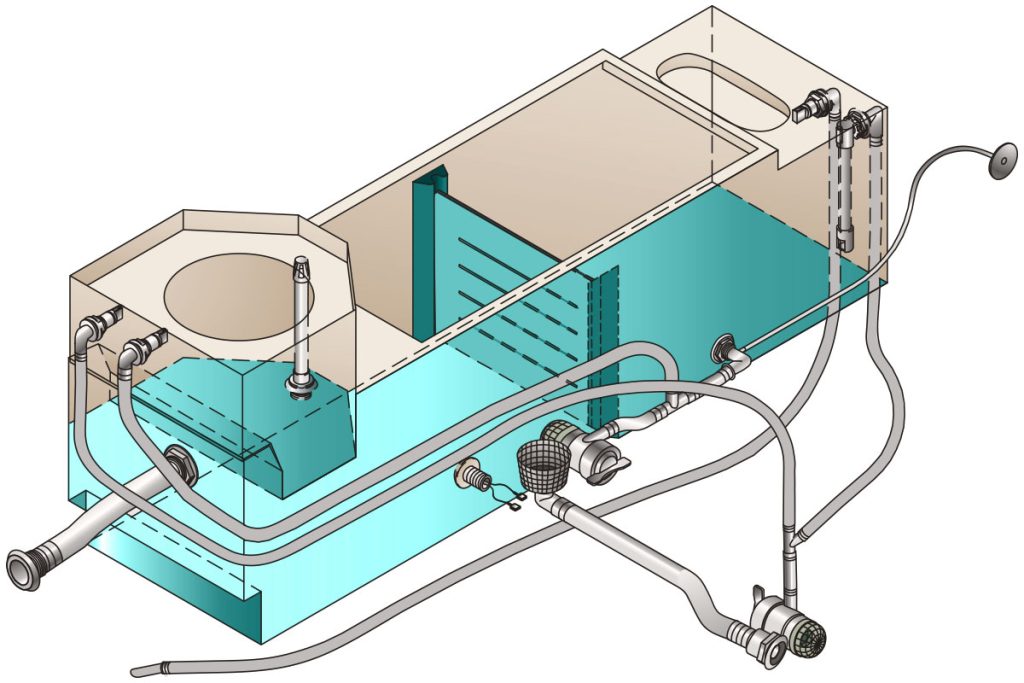

📌 Livewell Plumbing Diagram Summary (Text-Based Infographic):

12345678910111213

(For a visual reference, refer to Alumacraft’s official owner’s manual or contact their support team for a PDF schematic.)

This system recirculates water from the livewell back through the pump—reducing freshwater usage and maintaining stable temperature.

Common Livewell Problems & Fixes (Trophy 195 Specific)

Even well-designed systems like the Trophy 195 can face issues. Here are the top 3 problems and how to solve them:

1. Livewell Won’t Fill

• Cause: Clogged intake, faulty pump, or closed seacock valve.
• Fix:
  • Inspect raw water intake for debris (algae, mud, zebra mussels).
  • Test pump with a 12V battery—if it doesn’t run, replace it.
  • Ensure seacock valve (usually near the transom) is fully open.

2. Water Leaking into Bilge

• Cause: Cracked hose, loose clamp, or failed drain seal.
• Fix:
  • Trace all hoses from pump to livewell.
  • Tighten hose clamps or replace cracked sections with marine-grade vinyl tubing (1/2” or 5/8” ID).
  • Check drain plug O-ring—replace if brittle.

3. Fish Dying Too Quickly

• Cause: Poor oxygenation or high ammonia levels.
• Fix:
  • Run livewell in “recirculate” mode with aerator ON.
  • Add 1 tablespoon of non-iodized salt per gallon to reduce stress (per Minnesota DNR guidelines).
  • Never overcrowd—max 1–2 lbs of fish per gallon of water.

Step-by-Step: How to Maintain Your Trophy 195 Livewell

Follow this monthly maintenance routine to avoid mid-season failures:

1. Flush the System
   • Run fresh water through the intake for 2–3 minutes.
   • Add 1 cup of white vinegar to help dissolve mineral buildup.
2. Inspect Hoses & Clamps
   • Look for cracks, soft spots, or kinks.
   • Replace any hose older than 5 years—even if it looks fine.
3. Test the Pump
   • Disconnect power, then reconnect directly to a 12V source.
   • Listen for smooth operation; grinding noises mean bearing failure.
4. Clean the Livewell Interior
   • Use a mild soap (like Dawn) and soft brush.
   • Rinse thoroughly—never use bleach, as residue harms fish.
5. Check Drain Plug Seal
   • Apply marine silicone grease to the O-ring annually.
   • Ensure plug threads smoothly and doesn’t leak.

🧪 Did You Know? A study by the University of Florida found that livewells with recirculating aerators kept bass alive 37% longer than non-aerated systems during summer tournaments.

Livewell Best Practices: What the Pros Do

Tournament anglers rely on livewells daily. Here’s what they swear by:

• Use Ice, Not Just Water: Add a 2-liter bottle of frozen water to cool livewell temps without shocking fish.
• Add a Commercial Additive: Products like Catch & Release or Revive help detoxify ammonia and calm fish.
• Run in Recirculate Mode: Once full, switch from “Fill” to “Recirculate” to conserve water and stabilize oxygen.
• Monitor Every Hour: Check water clarity and fish behavior—listless fish = low O₂.

⚠️ Never leave your livewell pump running dry—it can burn out in under 60 seconds.

For more on fish physiology during transport, see this overview on aquatic respiration from Wikipedia.

FAQ: Alumacraft Trophy 195 Livewell Questions Answered

Q1: What size pump does the Alumacraft Trophy 195 use?

A: Most models come with a 500–800 GPH pump (often a Johnson or Attwood brand). Check your owner’s manual or the pump label for exact specs.

Q2: Can I upgrade to a dual-aeration system?

A: Yes! Many owners install an additional aerator pump (e.g., 400 GPH) with a venturi nozzle for better oxygenation—especially useful in hot climates.

Q3: Why does my livewell overflow when the boat is moving?

A: Speed creates water pressure at the intake, forcing excess flow. Ensure your overflow tube is clear and consider installing a check valve on the fill line.

Q4: How often should I replace livewell hoses?

A: Every 5 years, or immediately if you notice swelling, cracking, or odor retention. Use USCG-approved, non-toxic marine hose.

Q5: Is the livewell plumbed through the hull?

A: Yes—the raw water intake is typically through-hull, located below the waterline near the transom. Always close the seacock when trailering to prevent leaks.

Q6: Where can I find an official livewell diagram?

A: Alumacraft provides schematics in the owner’s manual (available on their website) or by contacting customer support at support@alumacraft.com.

Conclusion: Keep Your Catch Alive & Your Livewell Running Smooth

Understanding your Alumacraft Trophy 195 livewell plumbing isn’t just about fixing leaks—it’s about ethical fishing, tournament success, and conservation. With a clear grasp of how a livewell works, a reliable diagram, and routine maintenance, you’ll ensure every fish you catch has the best chance of survival.

🎣 Love this guide? Share it with your fishing buddies on Facebook, Instagram, or Reddit!
Got a livewell hack or Trophy 195 mod? Drop it in the comments below—we’d love to hear from you.

By mastering your livewell system, you’re not just upgrading your boat—you’re becoming a better angler and steward of the sport. Tight lines!
