Have you ever stared at a pile of PVC pipes and fittings, wondering how on earth they connect your fish tank to your garden beds? You are not alone. Many aspiring aquaponists struggle with the technical side of Aquaponics Plumbing Up The Growbeds And Fish Tank, fearing leaks or poor water flow that could harm their ecosystem. This guide simplifies the process, turning confusion into confidence so you can focus on growing healthy food.

Why Proper Plumbing Is the Heart of Your System

Before we cut a single pipe, it is crucial to understand why plumbing matters more than you might think. In aquaponics, water is the vehicle that transports nutrients from fish waste to plant roots. If your plumbing fails, the cycle breaks.

According to industry standards, a well-designed plumbing system ensures two critical factors: oxygenation and filtration. Poorly sized pipes can restrict flow, leading to stagnant water where harmful bacteria thrive. Conversely, pipes that are too large may not maintain the necessary siphon action in flood-and-drain beds.

Pro Tip: Always plan your layout on paper first. Measure twice, cut once. A mistake in plumbing often means draining the entire system to fix a leak.

Choosing the Right Materials: PVC vs. HDPE

When tackling Aquaponics Plumbing Up The Growbeds And Fish Tank, material selection is your first major decision. For most home systems in the US, Schedule 40 PVC is the gold standard due to its availability and ease of use. However, High-Density Polyethylene (HDPE) is gaining traction for larger, outdoor setups.

For beginners, stick with PVC. It is forgiving, cheap, and widely available at any US hardware store. Just remember to paint exposed PVC white or wrap it if it sits in direct sunlight, as UV rays degrade the plastic over time.

Understanding the Two Main Plumbing Configurations

There are two primary ways to plumb your system. Choosing the right one depends on your space and goals.

1. The Flood and Drain (Ebb and Flow)

This is the most common method for home growers. Water pumps from the fish tank up to the grow bed. Once the water reaches a certain height, a bell siphon triggers, draining the bed rapidly back into the fish tank. This cycle repeats every 15–20 minutes.

• Benefit: Provides excellent aeration to plant roots during the drain phase.
• Challenge: Requires precise tuning of the bell siphon.

2. The Constant Flow (Raft or NFT)

Water flows continuously through the grow bed or channels without draining. Solids must be filtered out mechanically before reaching the plants to prevent clogging.

• Benefit: Simpler plumbing; no siphons to tune.
• Challenge: Less oxygenation for roots; requires separate biofiltration.

For this guide, we will focus on Flood and Drain, as it is the most popular entry point for DIY enthusiasts.

Step-by-Step: Plumbing Up The Growbeds And Fish Tank

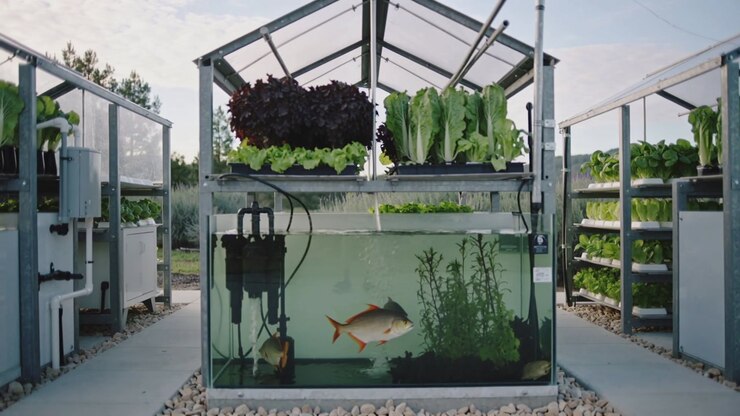

Let’s break down the physical installation. We will assume a standard setup: one fish tank and one grow bed located above it.

Step 1: Install the Standpipe and Bell Siphon

The heart of the grow bed is the standpipe. This vertical pipe determines the maximum water level in your bed.

1. Drill the Hole: Drill a hole in the bottom center of your grow bed. Use a hole saw bit matching your bulkhead fitting size (usually 1 inch or 1.5 inches).
2. Install Bulkhead: Insert the bulkhead fitting. Ensure the rubber gasket is seated correctly to prevent leaks. Tighten the lock nut firmly but do not overtighten, which can crack the plastic.
3. Attach Standpipe: Glue a vertical PVC pipe (the standpipe) to the bulkhead. The height of this pipe dictates how deep the water will get. For most leafy greens, a 10–12 inch standpipe is ideal.
4. Build the Bell Siphon: Place a larger diameter pipe (the bell) over the standpipe. Cap the top of the bell. Leave a small gap at the bottom using spacers or gravel guards to allow water in while keeping media out.

Step 2: Connect the Pump Line

Now, we need to get water from the fish tank to the grow bed.

1. Select Pump Size: Calculate your volume. If your fish tank is 100 gallons, aim for a pump that can cycle that volume at least once every hour. Look for a pump rated for 100–150 GPH (Gallons Per Hour).
2. Run the Hose/Pipe: Use flexible vinyl tubing or rigid PVC to run from the pump outlet to the grow bed inlet. Rigid PVC looks cleaner and lasts longer.
3. Create the Inlet: Drill a hole near the top edge of the grow bed. Install an elbow fitting so water pours gently into the bed rather than splashing directly onto the media, which can cause erosion.

Step 3: The Return Line

When the bell siphon triggers, water rushes back to the fish tank.

1. Positioning: Ensure the outlet of your bulkhead points directly toward the fish tank.
2. Splash Guard: If the drop is high, extend the pipe down toward the water surface of the fish tank. This reduces noise and prevents excessive agitation, which can stress fish.

Troubleshooting Common Plumbing Issues

Even with perfect planning, issues arise. Here is how to handle them.

• Siphon Won’t Start: Check for air leaks in the bell cap. Ensure the media guard is not clogged. Sometimes, adding a small “breather tube” inside the bell helps stabilize the siphon action.
• Siphon Drains Too Slowly: Your standpipe might be too wide, or the media is too fine. Try increasing the gap at the bottom of the bell.
• Leaks at Bulkheads: This is usually due to debris on the gasket. Disassemble, clean thoroughly, apply a little silicone lubricant (aquarium safe), and reassemble.

For deeper technical specifications on pipe flow rates and friction loss, you can refer to general engineering principles found on Wikipedia’s Pipe Flow page, which provides the foundational physics behind our DIY adjustments.

Maintaining Your Plumbing System

Plumbing is not “set and forget.” Algae and biofilm will grow inside your pipes.

• Quarterly Flush: Once every three months, disconnect the pump line and flush it with fresh water to remove sludge buildup.
• Check Valves: If you use check valves to prevent backflow, inspect them monthly. Debris can jam them open, causing your pump to work harder.
• Winterizing: If you live in a northern US state, drain all exposed pipes during winter. Water expands when frozen, and it will crack your PVC.

FAQ Section

1. What size pipe should I use for my aquaponics system?

For most home systems under 500 gallons, 1-inch or 1.5-inch PVC is sufficient for both the standpipe and return line. Using smaller pipes (like ½ inch) increases the risk of clogging from solid waste.

2. Do I need a check valve on my pump line?

It is highly recommended. A check valve prevents water from siphoning back out of the grow bed into the fish tank when the pump turns off. This protects your pump from running dry and maintains water levels in the bed.

3. How often should the grow bed flood and drain?

Ideally, your system should cycle 4 to 6 times per hour. This ensures plants get enough nutrients and roots get enough oxygen. Adjust your pump flow rate or add a ball valve to fine-tune this timing.

4. Can I use copper pipes for aquaponics plumbing?

No. Copper is toxic to fish and beneficial bacteria. Even small amounts of copper leaching into the water can crash your entire ecosystem. Stick to PVC, HDPE, or food-grade polyethylene.

5. Why is my bell siphon making a loud gurgling noise?

Loud gurgling usually indicates air is being pulled in irregularly. Check that the bell is centered over the standpipe. You can also try adjusting the height of the media guard or adding a small vent hole near the top of the bell to smooth out airflow.

Conclusion

Mastering Aquaponics Plumbing Up The Growbeds And Fish Tank is less about complex engineering and more about understanding water behavior. By choosing the right materials, installing a reliable bell siphon, and maintaining your lines, you create a resilient foundation for your garden.

Remember, every expert was once a beginner who didn’t know the difference between a tee and an elbow. Take your time, test for leaks before adding fish, and enjoy the process.
