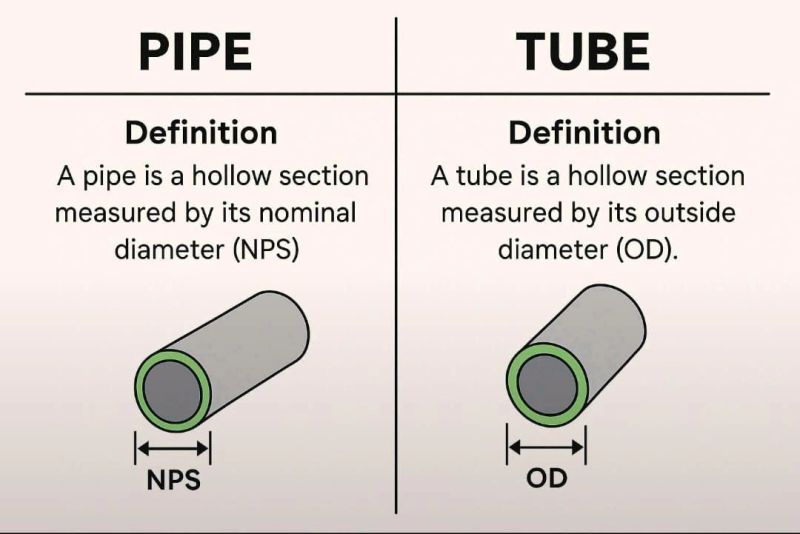

Are Plumbing Pipes Measured on OD or ID?

Have you ever stood in the hardware aisle, holding a piece of pipe, wondering why the label says “1/2 inch” when it clearly looks wider than half an inch? You are not alone. This confusion is one of the most common frustrations for DIY enthusiasts and even new professional plumbers. The short answer to the question “Are plumbing pipes measured on OD or ID“ is: it depends entirely on the material. Understanding this distinction is critical because buying the wrong size can lead to leaks, poor water pressure, and costly returns.

In this guide, we will demystify the world of pipe sizing. We will break down exactly how different materials like copper, PVC, PEX, and steel are measured, ensuring you buy the right fittings every time.

Why Pipe Sizing Is So Confusing

To understand whether a pipe is measured by its Outer Diameter (OD) or Inner Diameter (ID), we first need to look at history. In the early days of plumbing, iron pipes were used for gas and water. The “Nominal Pipe Size” (NPS) was based roughly on the inner diameter to ensure consistent flow rates.

However, as manufacturing improved and materials changed, the wall thickness varied while the outer dimensions stayed standardized for threading and fitting compatibility. This created a disconnect between the name of the pipe and its actual physical measurements.

According to industry standards, Nominal Pipe Size (NPS) is a dimensionless designator that indicates the approximate size of the pipe. It does not directly correspond to either the OD or the ID in modern materials. For example, a 1-inch NPS pipe does not have a 1-inch ID or a 1-inch OD. This standardization allows fittings from different manufacturers to work together, but it requires knowledge to decode.

Copper Pipes: Measured by OD

If you are working with rigid copper tubing, which is standard for residential water supply lines in the United States, the sizing rule is straightforward. Copper pipes are measured by their Outside Diameter (OD).

However, there is a catch. The nominal size (the name on the box) is not the same as the OD.

The Copper Sizing Rule

For copper tubing types K, L, and M:

• The Nominal Size is approximately 1/8 inch smaller than the actual Outside Diameter.
• Example: A “1/2 inch” copper pipe has an actual OD of 5/8 inch (0.625 inches).

This discrepancy exists because the nominal size refers loosely to the historical internal flow capacity, but the manufacturing standard locks the OD so that fittings (like elbows and couplings) fit snugly over the tube regardless of wall thickness.

Note: Type K, L, and M copper all share the same OD; they only differ in wall thickness and pressure rating.

PVC and CPVC Pipes: Measured by OD

When dealing with plastic pipes like PVC (Polyvinyl Chloride) and CPVC (Chlorinated Polyvinyl Chloride), the confusion often peaks. These are widely used for drain-waste-vent (DWV) systems and cold water supply.

PVC and CPVC pipes are sized based on their Outside Diameter (OD).

Similar to copper, the nominal size is not the actual measurement. For schedule 40 PVC (the most common type for residential use):

• A 1/2 inch nominal PVC pipe has an OD of roughly 0.840 inches.
• A 3/4 inch nominal PVC pipe has an OD of roughly 1.050 inches.

It is crucial to note that PVC comes in different “Schedules” (e.g., Schedule 40, Schedule 80). While the OD remains constant for a given nominal size across schedules, the Inner Diameter (ID) changes because Schedule 80 has thicker walls. This means if you are calculating flow rate, the ID matters, but if you are buying a coupling or glue-on fitting, the OD is what determines the fit.

For more detailed technical specifications on plastic piping standards, you can refer to the ASTM International standards which govern these manufacturing tolerances.

PEX Tubing: Measured by OD

PEX (Cross-linked Polyethylene) has become incredibly popular due to its flexibility and ease of installation. Like copper and PVC, PEX tubing is measured by its Outside Diameter (OD).

A 1/2-inch PEX tube will have an OD of 5/8 inch (0.625″), identical to 1/2-inch copper tubing. This is intentional! It allows PEX to use the same brass crimp rings and fittings as copper, making transitions between materials seamless.

However, PEX has different wall thicknesses designated by colors or markings (often related to oxygen barrier properties or pressure ratings). Always check the manufacturer’s spec sheet, but generally, the OD remains standard to ensure compatibility with universal push-fit or crimp fittings.

Black Iron and Galvanized Steel: Measured by ID (Sort Of)

Here is where it gets tricky. Traditional threaded steel pipes (black iron or galvanized) follow the original NPS system more closely than modern plastics do.

Steel pipes are technically referenced by their Nominal Pipe Size (NPS), which historically approximated the Inner Diameter (ID) for sizes under 14 inches.

However, do not grab a ruler and expect a 1/2-inch steel pipe to measure 0.5 inches inside.

• A 1/2 inch NPS steel pipe has an OD of 0.840 inches (same as 1/2″ PVC!).
• The ID varies depending on the “Schedule” (wall thickness). For Standard Weight (Schedule 40), the ID is approximately 0.622 inches.

Why does this matter? Because steel pipes are threaded. The threads are cut into the outside of the pipe. Therefore, the OD is critical for threading, but the naming convention still clings to the historical ID reference. If you are replacing a steel pipe with PVC, you must match the nominal size (e.g., replace 1/2″ steel with 1/2″ PVC), even though their physical dimensions might feel different in hand.

How to Measure Your Existing Pipes Correctly

If you are doing a repair and don’t know what size pipe you have, follow these steps to identify it accurately. Do not guess, as a 1/8-inch error can prevent a fitting from seating properly.

Step 1: Gather Tools

You will need a flexible tape measure or a caliper (digital calipers are best for accuracy).

Step 2: Measure the Outside Diameter (OD)

Wrap the tape measure around the outside of the pipe, or use calipers to measure across the width.

• Tip: If measuring circumference, divide by 3.14 (Pi) to get the diameter.

Step 3: Compare to Standard Charts

Use the following quick-reference guide to identify the nominal size based on your OD measurement:

• OD ~ 0.500″ → Nominal 3/8″ (Common in older copper or small supply lines)
• OD ~ 0.625″ → Nominal 1/2″ (Standard sink/toilet supply)
• OD ~ 0.840″ → Nominal 3/4″ (Wait, check again! 0.840 is actually 3/4″ PVC/Steel or 1/2″ Copper? Let’s clarify.)

Correction for Clarity:

• Copper 1/2″ Nominal = 0.625″ OD
• PVC/Steel 1/2″ Nominal = 0.840″ OD
• Copper 3/4″ Nominal = 0.875″ OD
• PVC/Steel 3/4″ Nominal = 1.050″ OD

See the danger? A 1/2-inch copper pipe and a 1/2-inch PVC pipe have completely different outer diameters. You cannot use a PVC fitting on a copper pipe without an adapter.

Step 4: Check the Wall Thickness (Optional)

If you need to determine the schedule or type (K, L, M for copper; Sch 40, 80 for PVC), measure the wall thickness. Thicker walls mean higher pressure ratings but smaller inner diameters.

Frequently Asked Questions (FAQ)

1. Is plumbing pipe measured by ID or OD?

It depends on the material. Copper, PEX, PVC, and CPVC are standardized by their Outside Diameter (OD) to ensure fittings fit correctly. Traditional steel and iron pipes use a Nominal Pipe Size (NPS) system that historically referenced the Inner Diameter (ID), but modern fittings rely on standardized ODs for threading.

2. What is the difference between NPS and DN?

NPS (Nominal Pipe Size) is the North American standard, using inches. DN (Diameter Nominal) is the international metric standard, using millimeters. For example, NPS 1/2 is roughly equivalent to DN 15. They are not exact conversions but are used interchangeably in global trade.

3. Can I use a 1/2 inch copper fitting on a 1/2 inch PVC pipe?

No. Even though both are called “1/2 inch,” their outer diameters are different. A 1/2-inch copper pipe has an OD of 0.625 inches, while a 1/2-inch PVC pipe has an OD of 0.840 inches. You must use transition fittings designed to connect these two different materials.

4. Why is the ID important if we measure by OD?

The Inner Diameter (ID) determines the flow rate and water pressure drop. While OD ensures the pipe fits into the fitting, ID determines how much water can pass through. For high-flow applications like main supply lines, ensuring a sufficient ID is crucial to prevent pressure loss.

5. How do I measure a pipe if I can’t access the end?

If you cannot see the open end of the pipe, wrap a string around the pipe’s circumference. Mark the length of the string, then measure that length with a ruler. Divide the circumference by 3.14 (Pi) to calculate the Outside Diameter. Then, compare this number to the standard charts provided above.

Conclusion

Understanding whether plumbing pipes are measured on OD or ID is the key to successful DIY plumbing projects. Remember the golden rule: Copper, PEX, and PVC are sized by their Outside Diameter (OD), while steel pipes use a nominal system that complicates the ID/OD relationship.

By using a caliper to measure the OD and referencing the correct chart for your specific material, you can avoid the frustration of ill-fitting parts. Always double-check your measurements before heading to the store.
