Are Rubber Couplers Code Compliant?

Have you ever stared at a cracked pipe under your sink or in your basement, wondering if a quick fix with a rubber sleeve is actually legal? It is a common dilemma for homeowners and even some junior plumbers who want a fast, effective solution without ripping out entire sections of piping. The short answer to the question “Are Rubber Couplers Acceptable For Plumbing By Code“ is yes, but with very specific restrictions that vary depending on whether the repair is permanent or temporary, and where it is located.

Understanding these nuances is crucial because failing to comply with local building codes can lead to failed inspections, voided insurance claims, or worse, catastrophic water damage. In this guide, we will break down exactly when you can use these flexible connectors, which codes govern them, and how to install them correctly to ensure safety and compliance.

Understanding the Role of Rubber Couplers in Modern Plumbing

Rubber couplers, often referred to as shielded transition couplings or flexible pipe connectors, are essentially sleeves made of heavy-duty elastomer (rubber) reinforced with stainless steel bands. They are designed to join two pieces of pipe together, accommodating slight misalignments or diameter differences.

While they are incredibly convenient, their acceptance in plumbing systems is not universal. The primary governing bodies in the United States, such as the International Plumbing Code (IPC) and the International Residential Code (IRC), have specific language regarding their use. Generally, these codes prioritize rigid, permanent connections for new construction but allow flexibility for repairs and transitions between different materials.

It is important to note that “code” is not a single monolithic document. Local jurisdictions may adopt the IPC, the Uniform Plumbing Code (UPC), or have their own amendments. Therefore, while national guidelines provide a baseline, your local building department has the final say. However, understanding the general consensus helps you prepare for any inspection.

When Are Rubber Couplers Allowed by Code?

The most common question homeowners ask is about the context of the repair. Is it a new build? A renovation? Or an emergency fix? The code treats these scenarios differently.

1. Repairs and Replacements

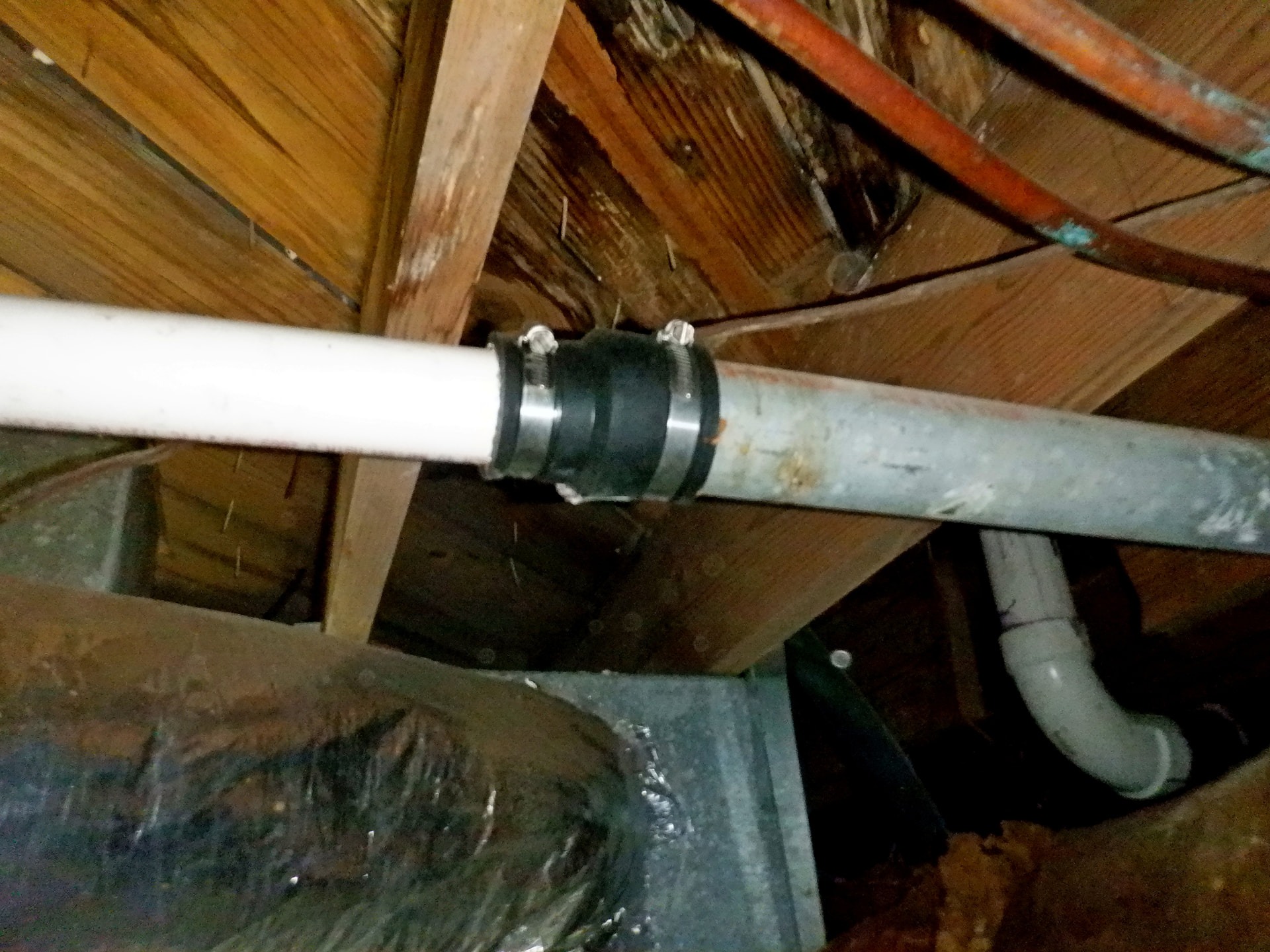

In most jurisdictions adhering to the IPC or IRC, rubber couplers are explicitly permitted for repair work. If a section of cast iron, PVC, or ABS pipe is damaged, a shielded rubber coupler is an accepted method to splice in a new section without replacing the entire run. This is particularly true for underground drainage lines where digging up long stretches of pipe is impractical.

2. Transitioning Between Materials

One of the strongest use cases for rubber couplers is transitioning between dissimilar materials. For example, connecting old cast iron sewer lines to new PVC pipes is a standard application. The rubber material absorbs vibration and accommodates the slight difference in outer diameters between older and newer pipe standards.

3. Above-Ground vs. Below-Ground

This is a critical distinction.

• Below-Ground (Buried): Shielded rubber couplers are widely accepted and often preferred for buried drainage lines. The shielding (usually stainless steel plates) protects the rubber from soil pressure and root intrusion.
• Above-Ground: Many codes restrict the use of rubber couplers above ground, especially in visible areas or within living spaces. Some jurisdictions prohibit them entirely above grade due to fire safety concerns (rubber is combustible) and aesthetic reasons. Always check if your local code requires “fire-rated” assemblies for penetrations through floors or walls.

Key Code Requirements for Installation

Simply buying a rubber coupler off the shelf does not guarantee code compliance. The installation must meet specific technical standards. Here is what inspectors typically look for:

Must Be Shielded

For drainage, waste, and vent (DWV) systems, the rubber coupler must be shielded. Unshielded rubber connectors (often called “Fernco” style, though Fernco makes both types) are generally only allowed for certain above-ground, non-critical applications or temporary fixes. Shielded couplers feature external stainless steel bands that provide structural integrity and prevent the pipe from pulling apart under stress.

Proper Torque Specifications

Over-tightening or under-tightening the clamps can lead to failure. Most manufacturers specify a torque range, typically measured in inch-pounds. Using a torque wrench ensures the seal is watertight without crushing the pipe or damaging the rubber gasket.

Alignment and Support

Pipes connected by rubber couplers must be properly supported. The code requires that pipes be hanged or braced within a certain distance of the coupling to prevent sagging, which can put undue stress on the rubber joint. A general rule of thumb is to have support within 18–24 inches of the coupling.

Step-by-Step Guide to Code-Compliant Installation

If you have determined that a rubber coupler is acceptable for your specific situation, follow these steps to ensure a professional, code-compliant installation.

1. Prepare the Pipe Ends: Cut the damaged section of the pipe cleanly. Ensure the ends are square and free of burrs, dirt, or debris. Use a deburring tool if necessary. The pipe ends should be smooth to prevent tearing the rubber gasket.
2. Measure Correctly: Measure the gap between the two pipe ends. Select a coupler that matches the pipe diameter exactly (e.g., do not use a 3-inch coupler on 3.5-inch OD cast iron unless it is specifically rated for that transition).
3. Loosen the Clamps: Before sliding the coupler on, loosen the stainless steel bands completely. This allows the rubber sleeve to expand slightly for easier insertion.
4. Center the Coupler: Slide the coupler over one pipe end, then align the second pipe. Ensure the coupler is centered so that equal amounts of rubber overlap each pipe end (usually 1.5 to 2 inches per side).
5. Tighten Sequentially: Begin tightening the clamps. Do not tighten one side fully before starting the other. Alternate between the bands, tightening them gradually and evenly.
6. Check Torque: If possible, use a torque wrench to reach the manufacturer’s specified tightness. If not, tighten until the band is snug and the rubber bulges slightly around the edges, indicating a seal.
7. Inspect: Visually inspect the installation to ensure the pipes are aligned and the coupler is not twisted.

For more detailed information on plumbing materials and standards, you can refer to the general overview on Plumbing at Wikipedia.org, which provides historical context and broader industry definitions.

Common Misconceptions About Rubber Couplers

There are several myths surrounding these components that can lead to confusion.

Myth 1: They are only for temporary fixes. Fact: While unshielded versions might be temporary, shielded rubber couplers are approved for permanent installations in many codes, particularly for underground DWV systems.

Myth 2: Any rubber connector will work. Fact: You must use connectors listed by a recognized testing agency (such as ICC-ES or IAPMO). Generic hardware store hoses are not code-compliant for pressurized or sanitary systems.

Myth 3: They can be used for supply lines. Fact: Generally, no. Rubber couplers discussed here are for drainage (non-pressurized). Pressurized water supply lines require specific brass or copper fittings, or listed flexible supply lines that are distinct from DWV couplers.

FAQ Section

1. Can I use a rubber coupler on a pressurized water line?

No. Standard rubber DWV couplers are designed for gravity-fed drainage systems, not pressurized water. Using them on supply lines can result in blowouts and severe water damage. Only use fittings specifically rated and listed for pressurized potable water systems.

2. Are rubber couplers allowed inside wall cavities?

This depends heavily on local amendments to the IPC or IRC. Many jurisdictions prohibit any mechanical joints (including rubber couplers) inside concealed spaces like walls or floors unless they are accessible via an access panel. Always check with your local inspector before closing up a wall.

3. What is the difference between a Fernco and a Mission coupler?

“Fernco” and “Mission” are brand names that have become generic terms. Mission couplers are typically all-stainless steel shielded couplers, while Fernco offers both shielded and unshielded rubber options. For code compliance in critical areas, shielded versions (like Mission or Fernco Shielded) are usually required.

4. Do rubber couplers last as long as rigid pipes?

High-quality, shielded rubber couplers are designed to last the life of the plumbing system, often exceeding 50 years. They are resistant to corrosion, chemicals, and root intrusion when installed correctly. However, they are more susceptible to physical damage from excavation than rigid pipes.

5. Can I use a rubber coupler to connect PVC to Copper?

While physically possible with the right adapter, connecting drainage PVC to copper is rare. Copper is typically used for supply lines. If you are transitioning drainage materials, it is usually Cast Iron to PVC or ABS. Ensure the coupler is rated for the specific outer diameters of both materials.

Conclusion

So, are rubber couplers acceptable for plumbing by code? The answer is a resounding yes, provided you use the right type (shielded), in the right location (typically underground or accessible areas), and for the right purpose (DWV transitions or repairs). They are invaluable tools for modern plumbing, offering flexibility and durability that rigid connections sometimes lack.

However, plumbing codes are local laws. What passes in one city might be flagged in another. Always prioritize safety and verification by consulting your local building department or a licensed plumber when in doubt. A small investment in proper consultation can save you thousands in remediation costs later.
