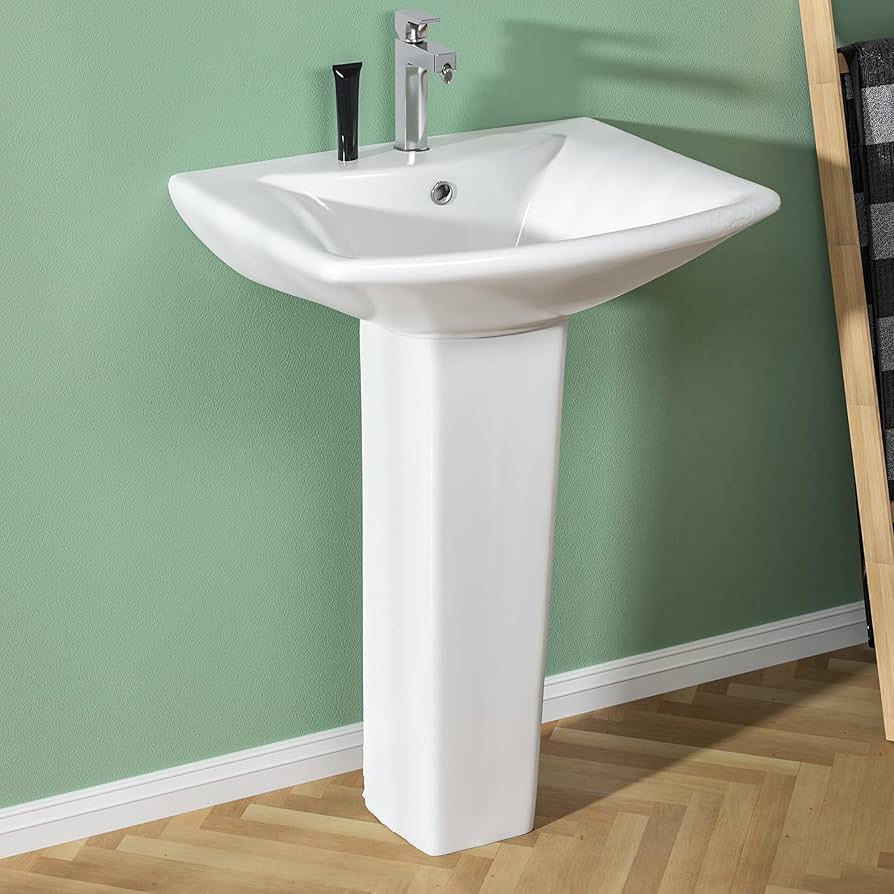

If you’ve ever tried installing or replacing a pedestal sink, you’ve probably stared in confusion at the tangle of pipes behind it. One of the most common—and critical—questions homeowners ask is: “Are there different size plumbing elbows for behind pedestal sinks?” The short answer: Yes, and choosing the wrong one can lead to leaks, poor drainage, or even failed inspections. In this guide, we’ll walk you through everything you need to know about plumbing elbows for pedestal sinks—sizes, types, installation tips, and expert-backed best practices.
What Is a Plumbing Elbow and Why Does Size Matter?
A plumbing elbow is a bent pipe fitting used to change the direction of water flow—usually at 90° or 45° angles. In tight spaces like behind a pedestal sink, the right size ensures a clean, leak-free connection between your faucet supply lines and the P-trap.
Using an incorrectly sized elbow can:
- Cause misalignment with supply or drain lines
- Create unnecessary stress on pipe joints
- Lead to water pooling or slow drainage
According to the International Association of Certified Home Inspectors (InterNACHI), over 30% of minor plumbing leaks originate from improper fitting sizes or poor connections in bathroom vanities.
Common Elbow Sizes Used Behind Pedestal Sinks
Most pedestal sink installations rely on two types of elbows: supply line elbows (for hot/cold water) and drain elbows (part of the P-trap assembly).
1. Supply Line Elbows (Water Inlet)
These connect your shut-off valves to the faucet tailpieces. Standard sizes include:
| Type | Common Size | Material | Typical Use Case |
|---|---|---|---|
| Compression Elbow | 3/8″ OD | Brass or Chrome | Flexible supply lines (most common) |
| IPS (Iron Pipe Size) | 1/2″ NPT | Brass | Hard-piped copper or PEX systems |
💡 Pro Tip: Measure your existing supply lines before buying replacements. Many modern faucets use 3/8″ compression fittings, but older homes may use 1/2″ NPT threads.
2. Drain Elbows (P-Trap Assembly)
These handle wastewater and connect the sink tailpiece to the wall drain. The standard size in the U.S. is 1¼” or 1½” in diameter.
- 1¼”: Common in older homes or compact sinks
- 1½”: Required by most modern plumbing codes (including UPC and IPC) for better flow and reduced clogging
According to the Uniform Plumbing Code (UPC) §406.2, all bathroom lavatory drains must be a minimum of 1¼”, but 1½” is strongly recommended for pedestal sinks due to their exposed piping and limited access for snaking clogs.
You can learn more about standard pipe sizing conventions on Wikipedia’s plumbing page.
How to Choose the Right Elbow for Your Pedestal Sink
Follow these 4 key steps to ensure a perfect fit:
Step 1: Measure Existing Pipes
- Use a tape measure or caliper to check the outer diameter (OD) of your supply lines.
- For drains, measure the inner diameter (ID) of the tailpiece and wall stub-out.
Step 2: Check Your Faucet & Sink Model
- Manufacturer specs (often found online) list required inlet sizes.
- Pedestal sinks typically have less than 6 inches of clearance behind them—so compact elbows (like 90° street elbows) are often necessary.
Step 3: Match Material to Your System
- Copper or PEX lines? Use brass or chrome-plated brass elbows.
- Avoid plastic supply elbows for hot water—they degrade faster under heat stress.
Step 4: Consider Angle and Clearance
- 90° elbows are standard, but in cramped spaces, a 45° or slip-joint elbow may offer better alignment.
- Some plumbers use flexible supply hoses (with built-in elbows) for easier installation—though rigid fittings are more durable long-term.
Common Mistakes to Avoid
Even experienced DIYers make these errors:
- Assuming all elbows are universal → They’re not. A 3/8″ compression fitting won’t thread onto a 1/2″ NPT valve.
- Forcing a fit → This cracks fittings or strips threads. If it doesn’t slide on smoothly, you’ve got the wrong size.
- Ignoring trap arm length → The horizontal drain pipe (trap arm) must slope ¼” per foot toward the wall. A misaligned elbow ruins this slope.
- Skipping Teflon tape or pipe dope → Always seal threaded joints! Use 3 wraps of Teflon tape clockwise for NPT connections.
Advantages vs. Disadvantages of Common Elbow Types
| Elbow Type | Pros | Cons |
|---|---|---|
| Brass Compression | Easy install, no soldering, reusable | Not ideal for high-pressure lines |
| Chrome-Plated Brass | Aesthetic match for visible fixtures | More expensive |
| Plastic (PVC/ABS) | Cheap, lightweight | Not for hot water; prone to cracking |
| Flexible Supply with Elbow | Forgiving in tight spaces | Shorter lifespan; potential kinking |
Real-World Example: Fixing a Leaky Pedestal Sink
Sarah from Portland replaced her 1990s pedestal sink and kept reusing the old 1¼” drain elbow. Within a week, water pooled under the sink. A licensed plumber diagnosed the issue: the wall drain stub-out was 1½”, causing a mismatch that prevented a watertight seal.
Solution: Installed a 1½” P-trap kit with a slip-joint elbow and reinforced the slope with a wall-mounted bracket. Leak gone—and no more mold risk.
FAQ Section
Q1: What size elbow do I need for a standard pedestal sink?
Most pedestal sinks use 3/8″ compression supply elbows and a 1½” drain elbow for the P-trap. Always verify your specific faucet and drainpipe dimensions.
Q2: Can I use a flexible hose instead of a rigid elbow?
Yes, flexible braided hoses with built-in 90° bends are common for supply lines. However, avoid flexible drain pipes—they trap debris and violate plumbing codes in many areas.
Q3: Are 1¼” and 1½” drain elbows interchangeable?
They can be adapted with reducers, but not recommended. Mismatched sizes reduce flow rate by up to 40%, increasing clog risk (per Plumbing Engineering Design Handbook, Vol. 2).
Q4: How much space do I need behind a pedestal sink for elbows?
Ideally at least 4–6 inches of clearance. If space is tight, use low-profile or “street” elbows (one end is male-threaded, reducing bulk).
Q5: Do I need special tools to install plumbing elbows?
Basic tools suffice: adjustable wrench, basin wrench, Teflon tape, and a tubing cutter (for copper). No soldering needed for compression or slip-joint fittings.
Q6: Can I reuse old elbows when replacing a sink?
Only if they’re undamaged, corrosion-free, and match the new sink’s specs. Given their low cost ($2–$10), it’s safer to install new ones.
Conclusion
So, are there different size plumbing elbows for behind pedestal sinks? Absolutely—and using the correct ones makes all the difference between a smooth, leak-free installation and a plumbing nightmare. Whether you’re a weekend DIYer or a seasoned renovator, understanding elbow sizes, materials, and code requirements saves time, money, and frustration.
