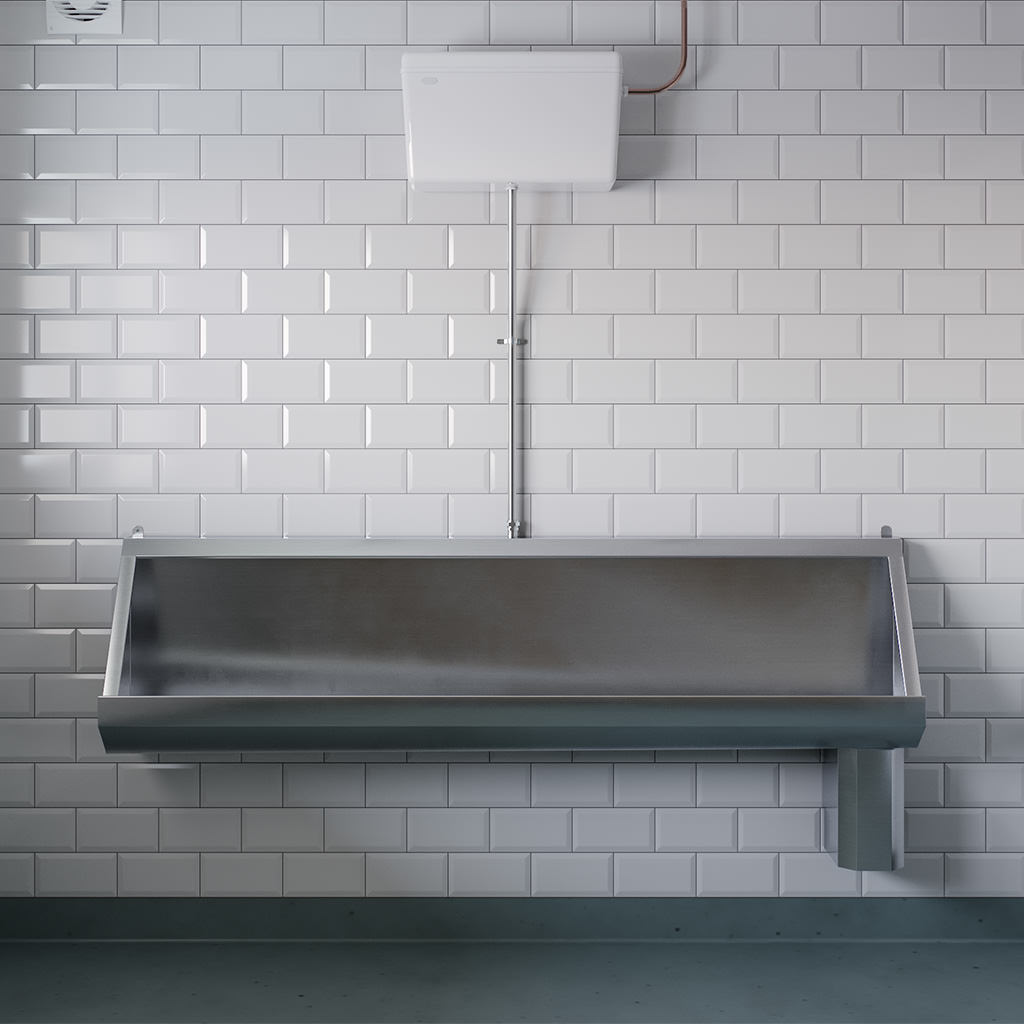

Have you ever walked into a trendy bar or a modern stadium restroom and noticed a long, continuous stainless-steel basin instead of individual stalls? It’s a striking design choice, but it often raises a critical question for building owners and contractors: Are trough urinals legal in the plumbing code? The answer isn’t a simple yes or no; it depends heavily on where you are building, which code edition your local jurisdiction adopts, and how the fixture is engineered.
Navigating plumbing regulations can feel like deciphering a foreign language. You want to create a space that is efficient, hygienic, and aesthetically pleasing, but you also need to pass inspection without costly reworks. In this guide, we will demystify the regulations surrounding trough urinals in the United States, helping you make an informed decision for your next project.
Understanding the Major Plumbing Codes in the US
To determine legality, you first need to know which rulebook applies to your project. In the United States, there is no single federal plumbing code. Instead, most states and local municipalities adopt one of two major model codes:
- The International Plumbing Code (IPC): Published by the International Code Council (ICC), this is the most widely adopted code in the US.
- The Uniform Plumbing Code (UPC): Published by the International Association of Plumbing and Mechanical Officials (IAPMO), this is more common in Western states.
Both codes have evolved significantly over the last two decades, primarily driven by the need for water conservation. While older editions were more permissive, modern iterations place strict limits on fixture types and water usage.
The Shift Toward Water Efficiency
The primary driver behind regulatory changes is water scarcity. Traditional individual urinals typically use 0.5 to 1.0 gallons per flush (gpf). Trough urinals, if not designed correctly, can use significantly more water. Consequently, code officials scrutinize these fixtures to ensure they do not violate state-level water efficiency standards, such as California’s Title 24 or the federal Energy Policy Act (EPAct) guidelines.
Are Trough Urinals Explicitly Banned?
A common misconception is that trough urinals are universally banned. This is false. However, their legality is conditional.
Under the International Plumbing Code (IPC), trough urinals are generally permitted provided they meet specific performance criteria. The code does not explicitly outlaw the shape of the urinal but rather regulates its function. Specifically, the fixture must comply with water consumption limits and hygiene standards.
The Uniform Plumbing Code (UPC) has historically been stricter. Some earlier editions of the UPC effectively discouraged trough urinals by requiring individual flush valves for each user position or imposing rigorous trap seal requirements. However, recent updates have focused more on performance than form, allowing modern, high-efficiency trough systems to be installed if they are certified by recognized testing laboratories.
Key Takeaway: Trough urinals are legal in many jurisdictions under both IPC and UPC, if they are certified to meet current water usage and sanitary standards. Always check your local amended code, as cities like Los Angeles or New York may have stricter local ordinances than the base model code.
Water Consumption Limits: The Critical Factor
The biggest hurdle for trough urinal legality is water usage. Modern plumbing codes are obsessed with Gallons Per Flush (gpf).
- Standard Limit: Most current codes cap urinals at 0.5 gpf.
- High-Efficiency Requirement: Some green building standards (like LEED) push for 0.125 gpf or even waterless options.
Traditional trough urinals from the mid-20th century often used 1.0 gpf or more, flushing a large volume of water across the entire length of the trough. These older designs are illegal in new construction today.
However, modern trough urinals utilize advanced flushing technology. They may use:
- Sensor-activated zone flushing: Only flushing the section where a user stands.
- Low-volume reservoirs: Using a small amount of water spread evenly via a precise weir system.
- Waterless troughs: Using sealing liquids or mechanical traps instead of water.
If the manufacturer can provide certification that the fixture uses ≤ 0.5 gpf (or the local limit), it is likely compliant.
Hygiene and Sanitation Requirements
Legality isn’t just about water; it’s about public health. Plumbing codes mandate that fixtures must be easy to clean and prevent the accumulation of waste.
Trap Seal Protection
One technical challenge with trough urinals is maintaining the trap seal. A trap seal prevents sewer gases from entering the building. Long troughs can suffer from siphonage, where water is pulled out of the trap during a flush.
Codes require that trough urinals have adequate venting and trap design to maintain this seal. If a trough urinal loses its trap seal, it fails code inspection regardless of its water usage. Modern units often come with integrated trap primers or specialized venting solutions to address this.
Material and Cleanability
The IPC and UPC require fixtures to be made of smooth, non-absorbent, and corrosion-resistant materials. Stainless steel is the standard for trough urinals because it meets these criteria. Porous materials like concrete or unsealed stone are generally prohibited for sanitary fixtures due to bacterial growth risks.
Comparison: Trough Urinals vs. Individual Urinals
When deciding on compliance and design, it helps to weigh the pros and cons. Here is a quick comparison for facility managers:
| Feature | Trough Urinals | Individual Urinals |
|---|---|---|
| Space Efficiency | High (fits more users in less linear footage) | Lower (requires partitions and spacing) |
| Installation Cost | Higher upfront (complex plumbing) | Lower upfront (standard connections) |
| Water Usage | Variable (can be high if old tech; low if new) | Consistent (usually 0.5 gpf or less) |
| Maintenance | Easier to clean (no partitions) | Harder (partitions collect grime) |
| Privacy | Low (open design) | High (partitions provided) |
| Code Compliance | Complex (requires specific certification) | Straightforward (widely accepted) |
Steps to Ensure Code Compliance
If you decide to install a trough urinal, follow these steps to ensure you pass inspection:
- Check Local Amendments: Do not rely solely on the base IPC or UPC. Visit your city or county building department’s website. Search for “plumbing code amendments” or “water efficiency ordinances.”
- Verify Certification: Ensure the fixture is certified by NSF International or IAPMO R&T. Look for the listing mark on the product spec sheet. This proves it has been tested for water usage and sanitation.
- Calculate Water Budget: If your project is subject to green building standards (like LEED or CALGreen), calculate the total water budget. A trough urinal might save space but could hurt your water score if it’s not ultra-high-efficiency.
- Review Venting Plans: Work with your mechanical engineer to ensure the drainage system for the trough is properly vented to prevent trap seal loss. This is a common failure point in inspections.
- Submit Product Specs Early: During the plan review phase, submit the cut sheets and certification documents for the specific trough model you intend to use. Getting pre-approval saves time and money.
For more detailed technical definitions of plumbing fixtures and standards, you can refer to general industry resources such as Wikipedia’s entry on Urinals to understand the historical context and evolution of these fixtures.
Frequently Asked Questions (FAQ)
1. Are waterless trough urinals legal?
Yes, waterless trough urinals are legal in most jurisdictions, provided they are certified by the local authority having jurisdiction (AHJ). They must effectively seal off sewer gases using a cartridge or sealing liquid. Some states with strict water laws actually prefer waterless options.
2. Can I install a vintage trough urinal in my home bar?
Residential plumbing codes (like the International Residential Code – IRC) are different from commercial codes. While the IRC is less restrictive, many local health departments still prohibit fixtures that are not easily cleanable or that lack proper trap seals. Additionally, vintage fixtures rarely meet modern water efficiency standards, which may block permits even in residential settings.
3. Do trough urinals require more maintenance than individual ones?
Generally, no. In fact, many custodians prefer them. Without partitions, there are fewer surfaces to scrub, and no hidden corners for graffiti or waste. However, the flushing mechanism (sensors or valves) must be maintained regularly to ensure even water distribution.
4. Why do some stadiums still use old-style trough urinals?
Many older venues were grandfathered in under previous codes. They are not required to upgrade unless they undergo major renovations. However, new stadiums almost exclusively use high-efficiency individual urinals or modern, certified low-flow troughs to meet sustainability goals.
5. What is the maximum length allowed for a trough urinal?
There is no universal maximum length in the IPC or UPC. However, engineering constraints apply. Longer troughs require larger drainage pipes and more complex venting to prevent siphonage. Manufacturers usually specify maximum lengths based on their hydraulic testing.
Conclusion
So, are trough urinals legal in the plumbing code? Yes, but with significant caveats. They are not banned outright, but they must adhere to strict water efficiency limits (typically ≤ 0.5 gpf) and sanitation standards set by the IPC or UPC, as well as any local amendments.
The key to legality lies in certification. Never install a generic or vintage trough urinal in a commercial setting without verifying its current compliance status. By choosing modern, certified fixtures and working closely with your local building department, you can leverage the space-saving and aesthetic benefits of trough urinals without running afoul of the law.
