Adding a second bathroom is one of the most impactful upgrades you can make to your home. It boosts property value, reduces morning congestion, and significantly improves daily comfort for your family. However, the complexity of connecting new fixtures to your home’s infrastructure often leaves homeowners feeling overwhelmed before they even pick up a wrench.
Understanding how to attach a new bathroom to existing plumbing diagram is the critical first step in turning this dream into a reality. Without a clear map of your current water supply and waste lines, you risk costly mistakes, code violations, or even structural damage. This guide will walk you through the process with clarity, ensuring you approach your project with confidence and professional insight.
Why You Need a Detailed Plumbing Diagram Before Starting
Many DIY enthusiasts skip the planning phase, eager to start demolition. This is a mistake. A plumbing diagram is not just a drawing; it is the blueprint for your project’s success. It identifies where your main water lines enter the house, the location of your sewer stack, and the slope requirements for drainage.
According to industry standards, proper planning can reduce renovation costs by up to 20% by preventing mid-project changes. When you visualize the connection points, you can determine if your existing system has the capacity to handle additional load. For instance, adding a toilet requires a specific pipe diameter (usually 3-4 inches) that may not be present in a wall originally built for a sink.
Key Components of a Plumbing Diagram
To create an effective diagram, you must identify three main systems:
- Water Supply Lines: These bring fresh water in (typically 1/2 inch or 3/4 inch copper or PEX).
- Drain-Waste-Vent (DWV) System: This removes wastewater and sewage.
- Vent Stack: This allows sewer gases to escape and maintains air pressure to prevent traps from siphoning.
If you are unsure about the technical specifics of venting, referencing authoritative resources like the Plumbing section on Wikipedia can provide a solid foundational understanding of how these systems interact globally and locally.
Can I Connect to Existing Pipes or Do I Need New Lines?
This is the most common question homeowners ask. The answer depends entirely on the proximity of your new bathroom to the existing “wet walls.”
The Proximity Rule
Ideally, your new bathroom should share a wall with an existing bathroom, kitchen, or laundry room. This minimizes the distance new pipes must travel through floor joists or studs. If the new space is on the opposite side of the house, you may need to run new main lines, which increases complexity and cost significantly.
| Factor | Connecting to Existing Lines | Running New Lines |
|---|---|---|
| Cost | Low to Moderate | High |
| Complexity | Moderate | High |
| Time Required | 1–3 Days | 1–2 Weeks |
| Structural Impact | Minimal | Significant (floor/wall cutting) |
Assessing Pipe Capacity
Your existing water heater and sewer line have limits. A standard tankless water heater might struggle to supply two showers running simultaneously if it wasn’t sized for it. Similarly, older homes with cast iron sewer lines may be prone to clogs if additional volume is added without proper cleaning or upsizing.
What Are the Critical Steps to Tie Into Existing Plumbing?
If you have determined that connecting to existing lines is feasible, follow this step-by-step process. Note that local codes vary, so always check with your municipal building department.
Step 1: Shut Off Water and Prepare the Site
Before cutting any pipes, locate your main water shut-off valve. Turn it off and open the lowest faucet in your house to drain remaining pressure. Ensure you have bucket and towels ready for residual water.
Step 2: Map the Connection Points
Using your diagram, mark exactly where you will tap into the cold and hot water lines. For drains, identify the nearest sanitary tee or wye fitting. Remember, gravity is your friend here. Drain pipes must slope downward at a rate of 1/4 inch per foot toward the main stack.
Step 3: Install the Water Supply Lines
For modern renovations, PEX (cross-linked polyethylene) tubing is preferred over copper due to its flexibility and ease of installation.
- Cut the existing copper or PEX line using a tube cutter.
- Install a shark-bite push-to-connect fitting or solder a copper tee if using copper.
- Run new 1/2-inch PEX lines to the new vanity, toilet, and shower locations.
- Tip: Use red PEX for hot and blue for cold to avoid confusion later.

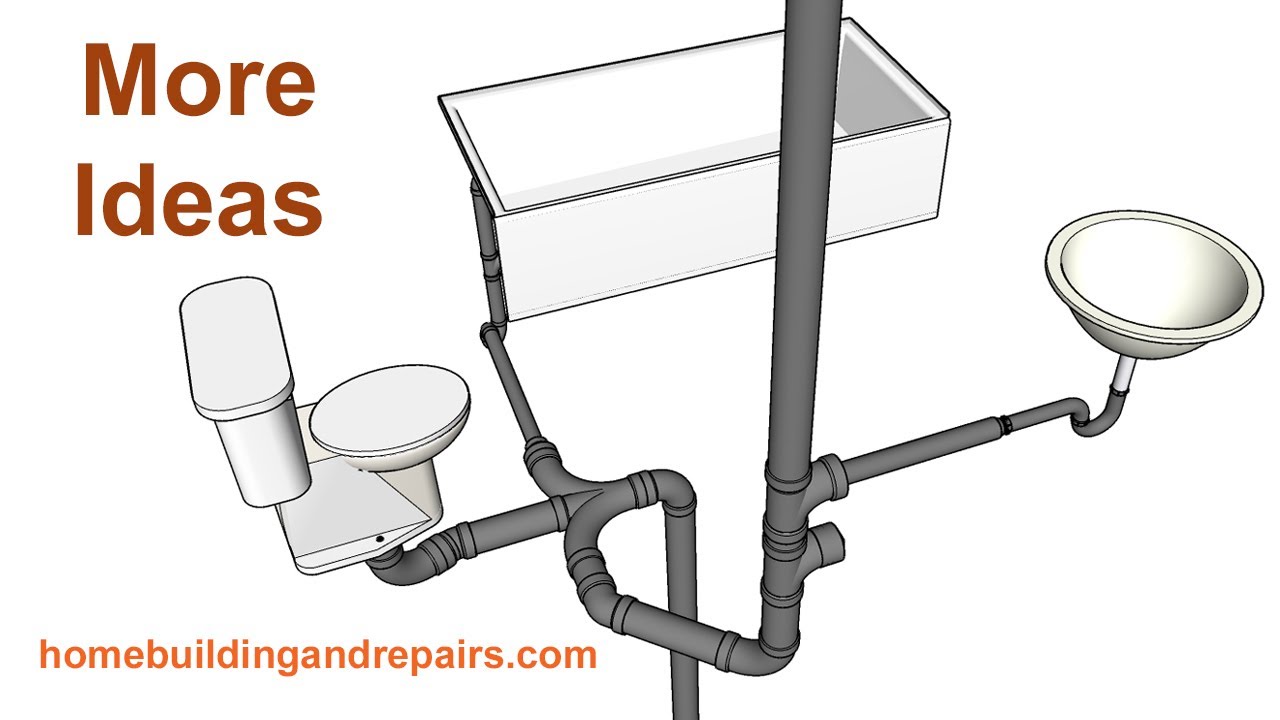

Step 4: Connect the Drain and Vent System
This is the most technical part. You cannot simply connect a drain pipe; it must be vented.
- Install a sanitary tee on the existing vertical stack.
- Connect your new 2-inch (sink/shower) or 3-4 inch (toilet) drain pipe to the tee.
- Ensure the new drain line maintains the 1/4 inch per foot slope. Use a level to verify this.
- If you cannot connect to an existing vent, you may need to install an Air Admittance Valve (AAV), though some jurisdictions do not allow these for toilets.
Step 5: Pressure Test and Inspection
Before closing up walls, turn the water back on slowly. Check all connections for leaks. For drains, pour 2 liters of water into each new fixture to ensure proper flow and no backups. Most US municipalities require a rough-in inspection at this stage.
What Permits and Codes Must You Follow?
Ignoring building codes can lead to fines, forced removal of work, and issues when selling your home. In the US, most areas follow the International Plumbing Code (IPC) or the Uniform Plumbing Code (UPC).
Essential Code Requirements
- Permit Requirement: Almost all jurisdictions require a permit for adding a bathroom. This ensures safety and compliance.
- GFCI Protection: All outlets within 6 feet of a water source must be Ground Fault Circuit Interrupter (GFCI) protected.
- Trap Primers: Floor drains must have trap primers to prevent sewer gas entry.
- Access Panels: If you bury valves or cleanouts behind walls, you must install access panels.
Failure to adhere to these rules can void your homeowner’s insurance policy in the event of water damage. Always prioritize compliance over speed.
How Much Does It Cost to Add a Bathroom?
Costs vary widely based on location, finishes, and complexity. However, understanding the baseline helps in budgeting.
- Basic Half-Bath (Powder Room): $5,000 – $15,000
- Standard Full Bath: $15,000 – $30,000
- Luxury Master Bath: $30,000 – $60,000+
The plumbing portion typically accounts for 20-30% of the total budget. If you need to break concrete slabs or move major stacks, costs can double. Getting three quotes from licensed plumbers is recommended to gauge local labor rates.
Frequently Asked Questions (FAQ)
1. Can I install a bathroom in a basement without a natural drain slope?
Yes, but you will need a sewage ejector pump. Since gravity cannot move waste upward, these pumps macerate the waste and push it up to the main sewer line. Ensure the pump is rated for the volume of fixtures you plan to install.
2. Do I need a licensed plumber to attach a new bathroom?
While DIY is legal in many areas for homeowners, complex DWV work often requires a licensed professional for inspection and sign-off. Incorrect venting can lead to dangerous sewer gas leaks. It is wise to hire a pro for the final connections even if you do the rough-in yourself.
3. What is the minimum ceiling height for a bathroom?
Most US building codes require a minimum ceiling height of 7 feet for bathrooms. Some allowances exist for sloped ceilings, provided that at least 50% of the floor area has the required height.
4. Can I use PVC for both water supply and drains?
No. PVC is strictly for drain, waste, and vent (DWV) systems. It is not rated for pressurized water supply. For supply lines, use Copper, CPVC, or PEX. Using PVC for supply lines is a code violation and a safety hazard.
5. How far can a toilet be from the vent stack?
According to the IPC, a 3-inch toilet drain can be up to 6 feet from the vent stack. If it is further, you must increase the pipe diameter or add an auxiliary vent. Always consult your local code amendments as they can be stricter.
Conclusion
Learning how to attach a new bathroom to existing plumbing diagram is a empowering skill that demystifies one of home renovation’s most daunting tasks. By carefully mapping your existing infrastructure, respecting slope requirements, and adhering to local codes, you can ensure a smooth and successful project.
Remember, patience and precision are key. Rushing the planning phase often leads to expensive corrections later. Whether you choose to DIY the rough-in or hire a professional, having a clear diagram gives you control over the process.
If you found this guide helpful, please share it on social media to help other homeowners navigate their remodeling journeys. Your next step? Grab a tape measure, sketch that diagram, and start planning your dream bathroom today!
