Attaching New Shower Drain To Plumbing Of Old Structure: A Pro Guide

There is nothing quite as frustrating as standing in a half-demolished bathroom, staring at a cast-iron pipe that refuses to cooperate with your shiny new shower drain. If you own an older home, you know that attaching a new shower drain to plumbing of an old structure is rarely a straightforward swap; it is often a battle against rust, incompatible diameters, and outdated materials. Don’t worry, though—with the right approach, tools, and a bit of patience, you can bridge the gap between modern fixtures and vintage infrastructure without calling an expensive emergency plumber. This guide will walk you through the process safely and effectively.

Why Is Connecting Modern Drains to Old Pipes So Difficult?

Before we pick up a wrench, it is crucial to understand why this task feels harder than installing a drain in a new construction build. Older homes, particularly those built before 1970, often utilize cast iron or even lead piping for their main waste lines. In contrast, modern shower drains and P-traps are almost exclusively made of PVC or ABS plastic.

The challenge lies in the connection. You cannot simply glue plastic to metal; the thermal expansion rates differ, and the surfaces do not bond with standard solvent cement. Furthermore, old pipes are often corroded on the inside, reducing the effective diameter, or they may be slightly out of level due to decades of house settling.

According to historical building data, homes built between 1940 and 1960 frequently used hub-and-spigot cast iron joints sealed with lead and oakum. Disturbing these without proper technique can cause cracks that lead to catastrophic leaks inside your subfloor. Understanding the material you are facing is the first step toward a successful installation. For a deeper dive into the history of plumbing materials and their evolution, you can refer to this comprehensive overview on Wikipedia.

Key Differences Between Old and New Systems

Step-by-Step: How to Attach a New Shower Drain to Old Plumbing

Successfully attaching a new shower drain to plumbing of an old structure requires a methodical approach. Rushing this process is the number one cause of post-renovation leaks. Follow these precise steps to ensure a watertight seal.

Step 1: Assess and Measure the Existing Pipe

First, expose the existing drain pipe by removing the old flooring and subfloor around the drain area. Clean the top of the old pipe thoroughly. If it is cast iron, use a wire brush to remove rust and debris until you see bare metal.

• Action: Measure the outside diameter (OD) of the old pipe. Common sizes are 2 inches, 3 inches, or sometimes non-standard sizes in very old homes.
• Check: Inspect the pipe for cracks. If the hub (the widened end) is cracked, you may need to cut the pipe back further to find a solid section.

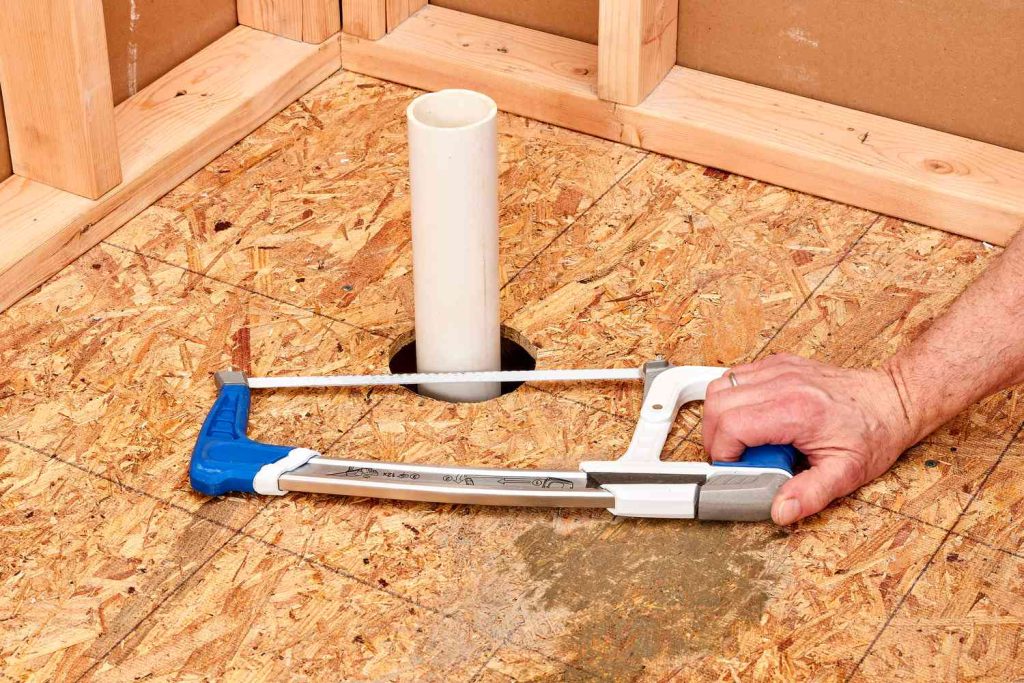

Step 2: Cut the Old Pipe to Size

You need a clean, square cut to ensure the new fitting sits flush.

• Tool: Use a reciprocating saw with a metal-cutting blade or a specialized cast-iron snap cutter. Avoid using a torch, as heat can damage surrounding wood or melt old lead seals nearby.
• Precision: Cut the pipe so that it sits about 1 to 2 inches below the finished floor level, depending on the specific drain kit you purchased. Always check the manufacturer’s instructions for exact height requirements.

Step 3: Select the Correct Transition Fitting

This is the most critical component. You need a no-hub coupling or a specific mission coupling designed to join dissimilar materials.

• Recommendation: Look for a stainless steel shielded coupling with a neoprene gasket. These are rated for underground use and can handle the transition from cast iron to PVC.
• Sizing: Ensure the coupling matches the OD of your old cast iron pipe on one side and the OD of your new PVC pipe on the other. Do not guess; mismatched sizes will leak.

Step 4: Install the New PVC Drain Assembly

Dry-fit your new PVC components first. This includes the P-trap and the vertical drain piece that will connect to the shower strainer.

• Assembly: Apply PVC primer (purple) and solvent cement (clear or gray) to the joints of the new plastic pipes.
  • Note: Use approximately 2 to 3 milliliters of primer per joint, covering the entire circumference.
  • Hold the joints together firmly for 15 seconds to prevent push-out while the chemical weld sets.
• Alignment: Ensure the new assembly aligns perfectly with the center of the shower drain opening in the floor.

Step 5: Connect the Old to the New

Now, bridge the gap using your shielded coupling.

1. Slide the stainless steel clamps of the coupling onto the old cast iron pipe and the new PVC pipe.
2. Insert the neoprene gasket so it covers both pipe ends evenly. There should be no gap between the pipes inside the coupling.
3. Center the coupling over the joint.
4. Tighten the clamps using a socket wrench or nut driver.
   • Torque Specification: Tighten until the clamp bands are snug and the gasket bulges slightly around the edges. Do not overtighten to the point of stripping the screws, but ensure it is firm enough that you cannot twist the pipe by hand. A torque of roughly 60 inch-pounds is generally sufficient for standard no-hub couplings.

Step 6: Test for Leaks Before Closing Up

Never tile over a drain without testing it first.

• The Water Test: Plug the end of the drain line downstream (if accessible) or simply pour 5 liters of water directly into the new drain assembly rapidly.
• Observation: Watch the connection point between the old and new pipes closely for at least 5 minutes. Look for any dripping or seepage.
• Correction: If a leak appears, tighten the clamps slightly more. If it persists, disassemble and check for debris caught in the gasket.

Common Challenges and Expert Solutions

Even with a perfect plan, old houses love to throw curveballs. Here is how to handle the most frequent issues encountered when attaching a new shower drain to plumbing of an old structure.

The “Off-Center” Pipe Problem

In old homes, pipes often shift over decades. Your new drain hole might not line up with the old pipe.

• Solution: Use flexible PVC piping or add two 45-degree elbows instead of a single 90-degree elbow to offset the position slightly. For larger discrepancies (more than 2 inches), you may need to cut into the subfloor and re-route the horizontal run slightly, which is labor-intensive but necessary for proper drainage slope.

Corroded Threads or Hub Damage

Sometimes the top of the cast iron pipe is too corroded to hold a clamp securely.

• Solution: You must cut the pipe lower. If cutting lower exposes a section that is still damaged, you may need to use a repair clamp that spans a longer section of the pipe to find solid metal, or in extreme cases, replace a section of the cast iron with a new piece using a double-shielded coupling.

Height Discrepancies

New shower bases often sit higher or lower than the original fixture.

• Solution: Adjust the length of your vertical PVC riser. Remember, the slope of the horizontal pipe leading away from the shower must maintain a minimum of 1/4 inch per foot to ensure gravity moves the water effectively. If the new drain sits too low, water will pool; too high, and the shower base won’t sit flat.

Frequently Asked Questions (FAQ)

1. Can I just use regular PVC glue to attach plastic to cast iron?

No. Standard PVC solvent cement works by chemically melting two pieces of the same plastic together. It will not bond plastic to metal. Attempting this will result in an immediate leak. You must use a mechanical coupling with a rubber gasket (shielded no-hub coupling) to join these dissimilar materials.

2. Do I need a permit to replace a shower drain in an old house?

In most US jurisdictions, replacing a fixture like-for-like or upgrading the drain connection requires a plumbing permit. This ensures the work meets current code, especially regarding venting and trap sizing. Check with your local building department before starting. Failing to pull a permit can cause issues when selling your home later.

3. What if the old pipe is lead?

If your home was built before 1950, there is a chance the pipe is lead. Lead is soft and malleable. You can cut it with a hacksaw or tubing cutter. When connecting to lead, a shielded no-hub coupling still works well, but be extremely gentle when tightening to avoid crushing the lead pipe. Wear appropriate PPE (gloves and mask) when cutting or sanding lead to avoid inhaling dust.

4. How do I know if my old cast iron pipe is too rusted to save?

Tap the pipe lightly with a hammer. If it sounds dull or thuds rather than ringing, or if flakes of rust fall off easily, the structural integrity may be compromised. If you can poke a screwdriver through the wall of the pipe, it needs to be replaced. In this case, you will need to cut back to the next intact section, which might require accessing the ceiling of the room below.

5. Is it better to hire a pro for this specific task?

If you are comfortable using power tools and understanding basic plumbing geometry, this is a manageable DIY project. However, if the access is limited (e.g., the pipe is encased in concrete) or if you discover extensive rot in the subfloor, hiring a licensed plumber is recommended. The cost of fixing a water leak in an old structure far exceeds the cost of professional installation upfront.

Conclusion

Successfully attaching a new shower drain to plumbing of an old structure is a rewarding milestone in any bathroom renovation. It blends the charm of historic living with the convenience of modern amenities. By respecting the differences between cast iron and PVC, using the correct shielded couplings, and rigorously testing for leaks, you can ensure your new shower stands the test of time.
