Back-to-Back Bathroom Joist Plumbing Chase Guide

Have you ever stared at a subfloor plan, wondering how to route essential drain lines between two bathrooms that share a wall? It is a common headache in home renovations, especially when dealing with a back to back bathroom floor joist plumbing chase. Getting this wrong can compromise your home’s structure or lead to costly repairs down the line. Let’s break down exactly how to handle this tricky scenario safely and efficiently.

Understanding the Structural Challenge

When two bathrooms are positioned back-to-back, their plumbing fixtures—toilets, sinks, and showers—often need to drain through the same central wall cavity. This creates a “plumbing chase,” a vertical or horizontal pathway for pipes. However, when these drains must pass through the floor framing, they intersect with floor joists.

Floor joists are the horizontal beams that support your floor. Cutting into them without precision can weaken the entire floor system. The goal is to create a pathway for your pipes while maintaining the load-bearing capacity of the wood. According to general building principles, the integrity of the joist is paramount. You cannot simply cut a large hole wherever it is convenient.

Why Location Matters

The location of your cut or notch is just as critical as its size. The middle third of a joist’s span is under the most tension and compression stress. Cutting here is dangerous. Conversely, the ends of the joist (near the bearing points) handle shear stress differently. Most building codes allow for more significant modifications near the ends than in the center.

For a back to back bathroom floor joist plumbing chase, you are often dealing with larger diameter pipes (3-inch or 4-inch for toilets). These require larger openings, making strategic placement even more vital. If you miss the mark, you may need to install expensive sister joists or steel reinforcements later.

Code Compliance and Safety Standards

Before you pick up a saw, you must understand the rules. In the United States, the International Residential Code (IRC) provides the baseline for what is allowed. While local amendments vary, the IRC is the standard reference for most inspectors.

The Rules of Notching and Drilling

Here is a quick breakdown of standard IRC guidelines for solid lumber joists:

• Notching at Ends: You can notch the top or bottom of a joist at the end, but the depth cannot exceed one-fourth (1/4) of the joist’s depth.
• Notching in Middle Third: Notching the top or bottom in the middle third of the span is generally prohibited.
• Drilling Holes: Holes can be drilled anywhere along the length of the joist, provided they are at least 2 inches from the top and bottom edges. The diameter of the hole cannot exceed one-third (1/3) of the joist’s depth.

Note: Always check with your local building department. Some jurisdictions have stricter rules regarding engineered wood products like I-joists.

For more detailed technical specifications on residential construction standards, you can refer to the International Residential Code overview on Wikipedia.

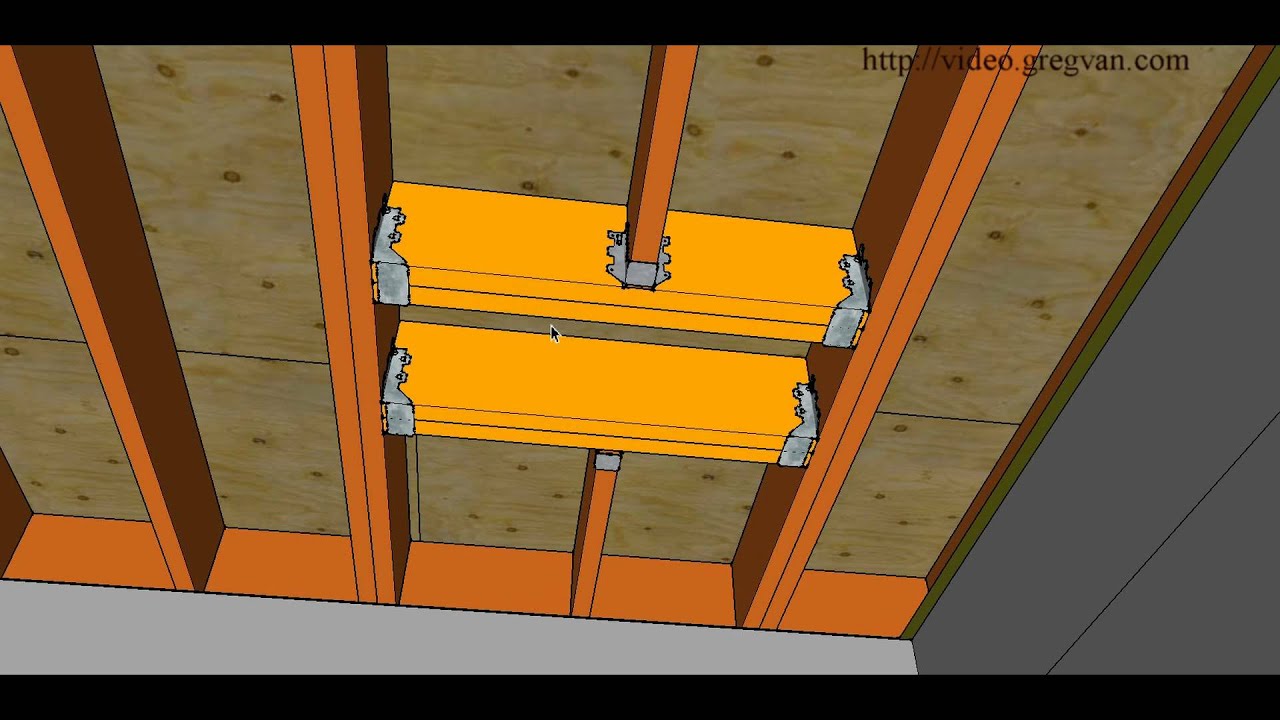

Step-by-Step: Creating the Plumbing Chase

Creating a functional back to back bathroom floor joist plumbing chase requires careful planning. Follow these steps to ensure a clean, code-compliant installation.

Step 1: Map Your Layout

Start by measuring the exact location of your fixtures in both bathrooms. Mark the centerline of the shared wall on the subfloor. Identify which joists will be intersected by your drain lines. Use a stud finder or blueprints to locate the joists accurately.

Step 2: Choose the Right Method

You have two primary options for routing pipes through joists:

1. Drilling: Best for smaller pipes (1.5-inch or 2-inch) or when you can stagger holes.
2. Notching/Cutting: Sometimes necessary for large 4-inch toilet drains if drilling isn’t feasible due to height restrictions.

For a back-to-back setup, you will likely need to drill multiple holes or create a larger chase if pipes run parallel.

Step 3: Execute the Cuts

If you are drilling:

• Use a hole saw bit appropriate for your pipe size.
• Ensure the hole is centered vertically within the allowed zone (keeping 2 inches from top/bottom).
• Drill slowly to prevent splintering.

If you must notch (only at the ends):

• Use a circular saw to make plunge cuts for the depth.
• Finish the cut with a handsaw or oscillating multi-tool for precision.
• Smooth any rough edges to prevent stress cracks.

Step 4: Install Protection Plates

Once your pipes are in place, you must protect them. Nail metal nailer plates over any notches or holes that are within 1.5 inches of the edge of the joist. This prevents drywall screws or flooring nails from puncturing your plumbing lines later.

Common Mistakes to Avoid

Even experienced DIYers can stumble when dealing with a back to back bathroom floor joist plumbing chase. Here are the most frequent errors:

• Over-sizing Holes: Trying to fit a 4-inch pipe through a hole that is too large for the joist depth. If you have 2×10 joists (9.25 inches actual depth), the max hole is ~3 inches. A 4-inch pipe cannot be drilled through a 2×10 without violating code. You must use a notch at the end or sister a joist.
• Ignoring Slope: Drain pipes need a slope of 1/4 inch per foot. When routing through joists, ensure your holes are staggered vertically to maintain this slope. Do not force a flat pipe through aligned holes.
• Crowding Holes: Drilling two large holes close together weakens the wood between them. Keep holes at least 2 inches apart horizontally.

Alternatives When Joists Can’t Be Cut

What if your math doesn’t work? What if the pipe is too big for the joist? Do not panic. There are proven alternatives.

Sistering Joists

Sistering involves attaching a new joist alongside the damaged or cut one. This restores structural strength. Use the same dimension lumber as the original joist. Apply construction adhesive and secure with nails or screws every 12–16 inches.

Using Engineered Lumber

If you are building new, consider using open-web floor trusses. These have built-in spaces for plumbing and electrical runs, eliminating the need for drilling or notching entirely. They are ideal for complex back to back bathroom floor joist plumbing chase scenarios.

Dropping the Ceiling

In some cases, it is easier to drop the ceiling in the room below (if it’s a basement or unfinished space) and run the plumbing below the joists. This avoids cutting the joists altogether. However, this reduces headroom and may require additional framing for the ceiling finish.

FAQ Section

1. Can I cut a 4-inch hole in a 2×10 floor joist?

No. A 2×10 joist has an actual depth of 9.25 inches. One-third of that is approximately 3.08 inches. A 4-inch hole exceeds the maximum allowable diameter. You must use a notch at the end of the joist or sister the joist to maintain structural integrity.

2. How far apart should holes be in a joist?

Holes should be spaced at least 2 inches apart from edge to edge. Crowding holes reduces the wood’s ability to transfer load and can lead to splitting or failure.

3. Is it better to drill or notch for a plumbing chase?

Drilling is generally preferred because it preserves more of the joist’s structural strength. Notching removes material from the top or bottom fibers, which are critical for resisting bending stresses. Only notch at the ends of the joist and within code limits.

4. Do I need a permit for modifying floor joists?

Yes, in most jurisdictions, structural modifications to floor joists require a building permit. An inspector will verify that your cuts meet local code requirements. Skipping this step can cause issues when selling your home.

5. What if I accidentally cut too much out of a joist?

If you violate code limits, you must reinforce the joist. Sistering a new joist alongside the compromised one is the standard repair. Consult a structural engineer if the damage is extensive or if you are unsure about the repair method.

6. Can I run water supply lines through the same chase?

Yes, but keep them separate from drain lines if possible to avoid condensation issues. Water supply lines are smaller and easier to route. Ensure they are insulated if they run through unheated spaces to prevent freezing.

Conclusion

Navigating a back to back bathroom floor joist plumbing chase is a balancing act between functionality and structural safety. By adhering to IRC guidelines, respecting the limits of notching and drilling, and planning your layout meticulously, you can achieve a professional result. Remember, when in doubt, reinforce with sister joists or consult a professional.
