Smart Barn Floor: Manure Water Plumbing Layout

Managing liquid waste in a livestock facility is one of the most challenging aspects of modern farming. Without a proper system, ammonia buildup and slippery floors can jeopardize both animal health and worker safety. Implementing a well-designed Barn Floor With Plumbing Layout For Manure Water is the definitive solution to maintain hygiene, ensure regulatory compliance, and streamline daily cleaning operations.

Why Proper Manure Water Plumbing Matters

Before diving into the technical blueprints, it is crucial to understand why this specific infrastructure is non-negotiable for modern agriculture. Liquid manure, often referred to as “slurry,” is a mixture of feces, urine, water, and bedding materials. If not removed efficiently, it becomes a breeding ground for pathogens like E. coli and Salmonella.

According to agricultural extension services, poor drainage is a leading cause of hoof diseases in cattle, such as digital dermatitis. Furthermore, from an operational standpoint, a barn that drains poorly requires significantly more labor hours for manual scraping and washing. A properly engineered floor with integrated plumbing does not just move waste; it protects your livestock investment and reduces long-term operational costs.

Key Components of an Effective Layout

Designing a Barn Floor With Plumbing Layout For Manure Water involves more than just digging a trench. It requires a holistic approach to hydrology, structural integrity, and animal behavior. Here are the core components you must consider:

1. The Slope Ratio

Gravity is your best friend in manure management. The floor must have a consistent slope to ensure liquids flow toward the collection points without pooling.

• Recommended Slope: 2% to 4% (approximately 1/4 inch per foot).
• Too Flat: Water pools, creating stagnant zones where bacteria thrive.
• Too Steep: Animals may struggle with balance, leading to stress or injury, and solids may separate too quickly from liquids, causing pipe clogs.

2. Flooring Material

The surface must be durable, non-slip, and resistant to the corrosive nature of manure acids.

• Concrete: The industry standard. It should be sealed to prevent absorption.
• Grooved Concrete: Provides traction for livestock while allowing water to channel into drains.
• Rubber Mats: Often used in standing areas for comfort, but must be installed over a sloped concrete base to ensure drainage underneath.

3. Drainage Channels and Grates

Open channels are preferred over round pipes for the initial collection because they handle solid matter better.

• Channel Width: Typically 6–12 inches, depending on the volume of waste.
• Grate Material: Use heavy-duty cast iron or galvanized steel grates that can withstand the weight of livestock and cleaning equipment.

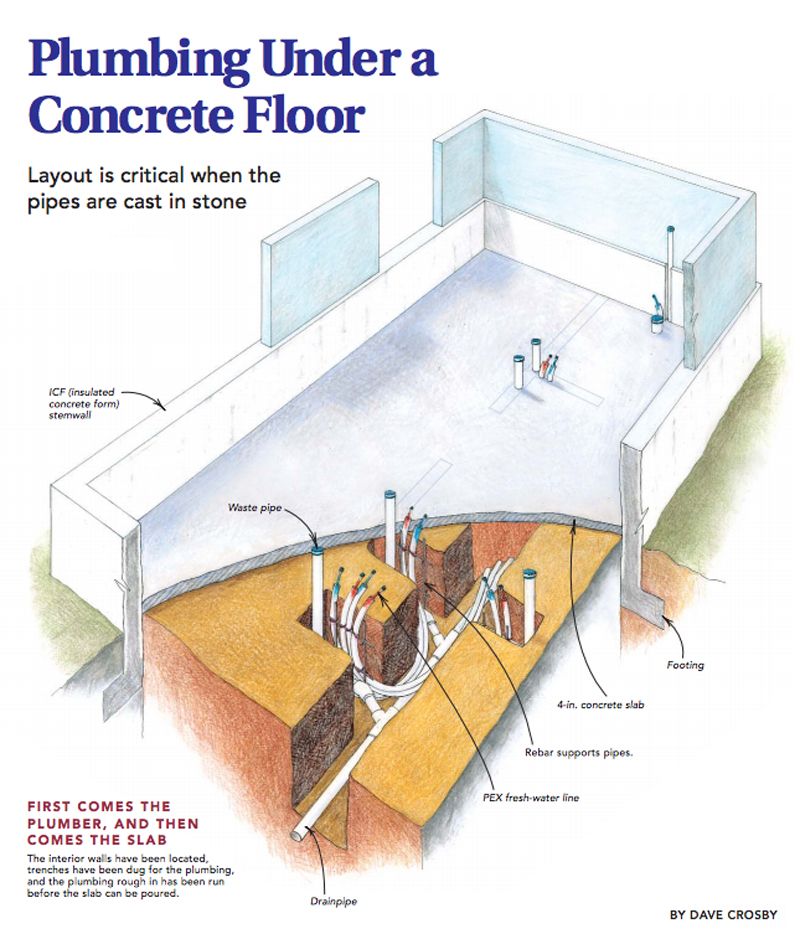

Step-by-Step Guide to Designing the Plumbing Layout

Creating a functional system requires precision. Follow these steps to design a layout that meets both practical and regulatory standards.

Step 1: Assess Waste Volume

Calculate the daily output of your livestock. For example, a single dairy cow can produce up to 15 gallons of manure and urine per day. Multiply this by your herd size to determine the required capacity of your plumbing system.

Step 2: Map the Flow Path

Identify the lowest point in your barn structure. This will be the exit point for your main sewer line. All secondary drains should feed into this primary line. Ensure the path is as straight as possible to minimize friction and clogging risks.

Step 3: Determine Pipe Sizing

Undersized pipes are the number one cause of system failure.

• Secondary Lines (from stalls): Minimum 4-inch diameter.
• Main Collection Line: Minimum 6-inch diameter, increasing to 8–10 inches for larger facilities.
• Material: Use Schedule 40 PVC or ABS plastic for resistance to corrosion. Avoid metal pipes for underground burial due to rust risks.

Step 4: Integrate Cleanouts and Flush Systems

Install flush tanks at the head of each alleyway. These tanks release a surge of water to push solids into the drains.

• Flush Volume: Approximately 10–15 gallons per foot of alley width.
• Frequency: Automated systems can be set to flush 2–3 times daily.

Step 5: Install Trap Seals and Venting

To prevent dangerous gases like methane and hydrogen sulfide from entering the barn air, every drain must have a proper trap seal. Additionally, install vent stacks that extend above the roofline to allow gases to escape safely into the atmosphere.

Compliance and Environmental Standards

When installing a Barn Floor With Plumbing Layout For Manure Water, you must adhere to local and federal regulations. In the United States, the Environmental Protection Agency (EPA) regulates Concentrated Animal Feeding Operations (CAFOs) under the Clean Water Act.

Improper disposal or leakage of manure water can lead to severe fines and environmental damage. It is essential to consult with local agricultural extension offices to understand specific zoning laws regarding waste storage tanks and runoff prevention. For a broader understanding of agricultural waste management principles, you can refer to general guidelines on Wikipedia’s page on Manure.

Common Mistakes to Avoid

Even experienced builders can make errors that compromise the system’s efficiency. Here are the most frequent pitfalls:

• Ignoring Solid Separation: Trying to pump raw slurry through small pipes without a pre-screen or settling basin leads to constant blockages. Always incorporate a solid-liquid separator before the main plumbing line.
• Poor Ventilation Integration: Plumbing vents must be distinct from barn air intake vents. If manure gases are drawn back into the barn’s ventilation system, it creates a toxic environment for both animals and humans.
• Inconsistent Slopes: Even a slight dip in the concrete floor can create a “ponding” effect. Use laser levels during construction to ensure uniformity.

Maintenance Tips for Longevity

A well-built system still requires regular maintenance to function optimally.

1. Weekly Inspection: Check grates for debris buildup and ensure water flows freely.
2. Monthly Flush: Run a high-volume water flush through the entire system to clear any accumulating sediment.
3. Annual Camera Inspection: Use a sewer camera to inspect underground pipes for cracks, root intrusion, or structural shifts.
4. Chemical Balance: Monitor the pH level of the manure water. Highly acidic waste can degrade concrete and certain plastics over time. Neutralizing agents may be required.

FAQ Section

1. What is the ideal slope for a barn floor draining manure water?

The ideal slope is between 2% and 4%. This gradient is steep enough to move liquids and semi-solids effectively but gentle enough to ensure animal safety and comfort. Slopes exceeding 5% can cause animals to slip or refuse to walk in certain areas.

2. Can I use standard residential PVC pipes for manure plumbing?

While residential PVC (Schedule 40) can be used for smaller operations, it is often recommended to use thicker-walled pipes or specialized agricultural drainage pipes for larger facilities. Manure contains abrasive solids and corrosive gases that can degrade thinner pipes over time. Always check local building codes for approved materials.

3. How do I prevent freezing in the plumbing lines during winter?

Freezing is a major risk in colder climates. To prevent this, bury main lines below the frost line (typically 4–6 feet deep, depending on location). For indoor lines, ensure the barn is heated or insulated. Additionally, designing the system with a “self-draining” feature, where pipes empty completely after each flush, can prevent standing water from freezing.

4. What is the difference between a slatted floor and a flushed floor?

A slatted floor allows manure to fall through gaps into a pit below, requiring no water for removal. A flushed floor uses water to push manure across a solid surface into a drain. Flushed floors are generally easier to clean and maintain hygiene but require a significant water supply and a robust Barn Floor With Plumbing Layout For Manure Water. Slatted floors save water but can be harder to repair if the pit below fills up.

5. How often should I clean the drainage channels?

Drainage channels should be inspected daily and cleaned as needed. However, a thorough cleaning using high-pressure washers should be performed weekly. Regular maintenance prevents the buildup of hardened manure, which can restrict flow and harbor harmful bacteria.

Conclusion

Implementing a robust Barn Floor With Plumbing Layout For Manure Water is an investment in the health of your livestock and the efficiency of your farm. By focusing on proper slope, durable materials, and adequate pipe sizing, you can create a system that minimizes labor, reduces disease risk, and ensures environmental compliance.

Remember, the key to success lies in the details: precise grading, strategic venting, and regular maintenance. Don’t let poor drainage undermine your hard work. Start planning your layout today, consult with local experts, and build a foundation for a cleaner, more productive future.
