Basin Drain Off Set Connection For Handicap Plumbing

Imagine trying to wash your hands or face, only to find that the plumbing underneath blocks your wheelchair from getting close enough to the sink. It is a frustrating daily barrier that compromises independence and dignity for millions of Americans. Installing a proper Basin Drain Off Set Connection For Handicap Plumbing is not just a technical adjustment; it is a crucial step toward creating a truly accessible and inclusive living space.

In this comprehensive guide, we will walk you through everything you need to know about offset drain connections. Whether you are a homeowner modifying a bathroom for a loved one, a contractor ensuring code compliance, or a designer focused on universal access, this article provides the technical clarity and practical steps you need.

Why Standard Drains Fail in Accessible Bathrooms

To understand the solution, we must first understand the problem. In traditional residential plumbing, the drain pipe (the P-trap) is centered directly beneath the sink basin. This vertical alignment creates a significant obstruction.

For an individual using a wheelchair, the knee clearance under a sink is vital. The Americans with Disabilities Act (ADA) specifies strict requirements for this space. A standard centered drain often forces the user to sit too far back from the faucet, making it difficult or impossible to reach the water controls or wash effectively.

Furthermore, the vertical drop of a standard trap can intrude into the required 27-inch high knee clearance zone. By shifting the drainage path to the side or rear using an offset connection, we reclaim this valuable space, allowing the wheelchair to roll fully under the basin.

What Is an Offset Drain Connection?

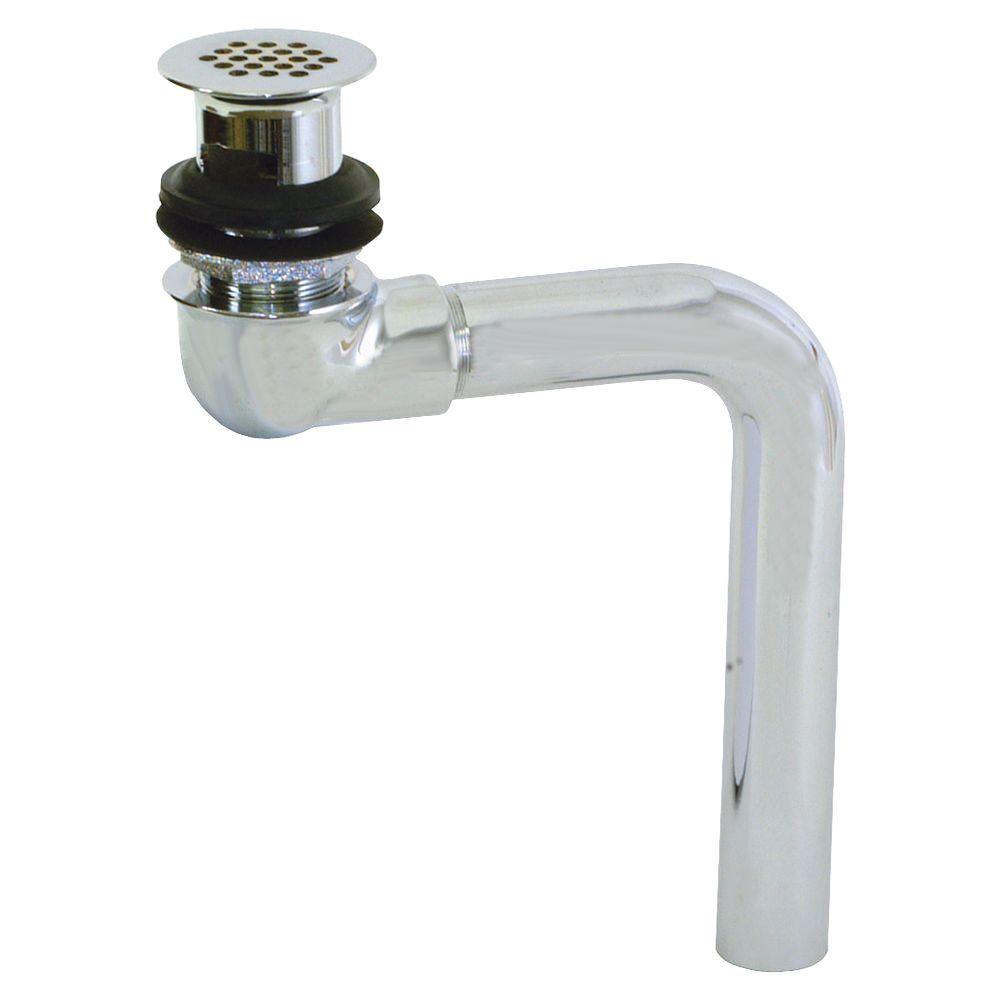

An offset drain connection is a specialized plumbing configuration that redirects the wastewater flow horizontally before it drops vertically into the main waste line. Instead of the P-trap hanging directly below the drain hole, it is shifted to the back wall or to one side.

This setup typically involves:

• Offset Tailpieces: Extended pipes that move the starting point of the trap.
• Wall-Mounted Traps: P-traps designed to hug the wall closely.
• Flexible Couplings: Allowing for precise alignment without rigid stress points.

According to the Americans with Disabilities Act Standards for Accessible Design, accessible fixtures must be usable by people with a wide range of physical characteristics. The offset drain is a key engineering response to these legal and ethical standards.

Key Benefits of Using Offset Connections

Switching to an offset system offers more than just compliance. Here is a breakdown of why this upgrade is worth the investment:

1. Maximized Knee Clearance

The primary benefit is spatial. By moving the plumbing hardware out of the central zone, you ensure the full depth of the sink is usable. This allows users to pull their knees comfortably under the basin, promoting better posture and easier access to faucets.

2. Improved Hygiene and Safety

When users can get closer to the sink, they are less likely to splash water onto their clothing or the floor. Reduced slipping hazards contribute to a safer bathroom environment. Additionally, easier access means users can maintain better personal hygiene independently.

3. Aesthetic Cleanliness

Offset drains, especially those mounted against the wall, often look cleaner and more modern. They reduce the visual clutter of pipes hanging in the center of the vanity, which can be particularly appealing in modern universal design homes.

Step-by-Step Installation Guide

Installing a Basin Drain Off Set Connection For Handicap Plumbing requires precision. If you are not comfortable with plumbing tasks, always consult a licensed professional. However, understanding the process helps you oversee the work or tackle it if you are DIY-inclined.

Tools and Materials Needed

• Offset drain kit (specifically rated for accessibility)
• Adjustable wrenches
• Pipe cutter or hacksaw
• Teflon tape (plumber’s tape)
• Silicone sealant
• Bucket and rags

Step 1: Preparation and Removal

Turn off the water supply valves under the sink. Place a bucket beneath the existing P-trap to catch residual water. Unscrew the slip nuts and remove the old trap and tailpiece. Clean the area thoroughly.

Step 2: Measure and Mark

Measure the distance from the drain hole in the sink to the waste outlet in the wall. For handicap accessibility, ensure that any horizontal piping does not protrude more than allowed into the knee space. Typically, the trap should be positioned as close to the rear wall as possible.

Step 3: Install the Offset Tailpiece

Attach the new offset tailpiece to the sink strainer. Use Teflon tape on the threads to ensure a watertight seal. Tighten securely but avoid over-tightening, which can crack plastic components.

Step 4: Connect the Wall-Hugger Trap

Connect the offset tailpiece to the wall-mounted P-trap. These traps are designed with a longer horizontal arm. Align the trap so it sits flush against the wall. This is critical for maintaining the required 27-inch vertical clearance from the floor.

Step 5: Final Connection and Testing

Connect the outlet of the P-trap to the wall waste pipe. Use a compression gasket for a secure fit. Turn the water back on and run the faucet. Check every joint for leaks. If you see dripping, tighten the slip nuts slightly. Run hot water for two minutes to ensure the system handles thermal expansion without leaking.

Common Challenges and Solutions

Even with the best planning, issues can arise. Here are common pitfalls and how to avoid them.

Challenge: Wall Depth Issues If your wall is not deep enough to recess the plumbing, the offset trap may still protrude. Solution: Use a “shallow seal” P-trap designed specifically for tight spaces. These traps have a reduced vertical profile while maintaining the necessary water seal to prevent sewer gases from entering the home.

Challenge: Misalignment Older homes often have waste pipes that are not perfectly aligned with new sink placements. Solution: Use flexible PVC couplings or accordion-style traps sparingly. While convenient, they can clog easily. It is better to use rigid ABS or PVC pipes with proper elbow joints for long-term reliability.

Challenge: Code Violations Local building codes may vary slightly from federal ADA guidelines. Solution: Always check with your local building department before starting. Some jurisdictions require specific pipe diameters (usually 1.25 inches for lavatories) and venting requirements that must be met alongside the offset installation.

Frequently Asked Questions (FAQ)

1. Is an offset drain connection required by law?

While federal ADA laws apply primarily to public accommodations and commercial facilities, many states and local municipalities have adopted similar codes for residential new constructions and major renovations. Even if not legally required in your private home, it is highly recommended for future-proofing and resale value.

2. Can I retrofit an existing sink with an offset drain?

Yes, most standard sinks can be retrofitted. However, the success depends on the position of the existing waste pipe in the wall. If the waste pipe is too low or too far forward, you may need to open the wall to reroute the plumbing, which increases complexity and cost.

3. Do offset drains clog more easily?

Not necessarily. In fact, because offset drains often use smoother, rigid piping rather than flexible hoses, they can resist clogging better. However, because the water has to travel horizontally before dropping, ensuring the correct slope (gradient) is vital. A slight downward slope toward the wall ensures gravity does its job effectively.

4. What is the minimum knee clearance required?

According to ADA guidelines, the knee clearance under an accessible sink must be at least 27 inches high, 30 inches wide, and 11 to 25 inches deep. The offset drain helps ensure that no plumbing components infringe on this 27-inch height requirement.

5. Are there different types of offset kits?

Yes. There are rear-offset kits (moving the trap to the back wall) and side-offset kits (moving it to the left or right). Rear offsets are generally preferred for wheelchair accessibility as they keep the sides clear for armrests and lateral movement.

6. How much does it cost to install an offset drain?

The material cost for an offset drain kit ranges from $20 to $50. If hiring a professional plumber, labor costs can range from $150 to $300 depending on whether wall modifications are needed. It is a modest investment for the significant gain in accessibility.

Conclusion

Creating an accessible bathroom is about more than just installing grab bars; it requires thoughtful attention to the details that affect daily usability. A Basin Drain Off Set Connection For Handicap Plumbing is a fundamental component of this design. It removes physical barriers, ensures compliance with safety standards, and restores independence to users with mobility challenges.

By shifting the plumbing out of the way, you create a space that is welcoming, functional, and safe for everyone. Whether you are renovating a family home or upgrading a commercial facility, prioritizing accessible plumbing demonstrates a commitment to inclusivity.

If you found this guide helpful, please share it with friends, family, or colleagues who might be planning an accessibility renovation. Together, we can build a world where design works for everyone.
