Smart Bathroom Layouts With All Plumbing In One Wall

Have you ever stared at a renovation quote and felt your heart sink because of the high cost of moving pipes? You are not alone. Many homeowners face this dilemma when trying to upgrade their bathrooms, often realizing that relocating water lines and drainage systems can consume up to 40% of their total budget. This is where strategic design comes into play. By choosing bathroom layouts with all plumbing in one wall, you can significantly reduce costs, minimize the risk of future leaks, and streamline the entire construction process without sacrificing style or functionality.

In this guide, we will explore how to maximize your space and budget by keeping your fixtures aligned. Whether you are planning a full remodel or a simple powder room update, understanding the mechanics and aesthetics of single-wall plumbing is essential for a successful project.

Why Choose a Single-Wall Plumbing Design?

Before diving into specific layouts, it is crucial to understand why this approach is gaining popularity among architects and homeowners alike. The primary driver is efficiency. When all wet areas—such as the sink, toilet, and shower or tub—are connected to a single vertical stack and horizontal supply lines, you eliminate the need to tear up floors across multiple rooms.

Cost Efficiency and Budget Control

According to industry standards, moving a toilet just a few feet can cost between $1,000 and $2,500 due to the complexity of adjusting the waste pipe slope and venting. By keeping all fixtures on one wall, you avoid these exorbitant fees. You are essentially paying for new fixtures and labor for installation, rather than extensive structural modification.

Reduced Risk of Leaks

Every joint in a plumbing system is a potential point of failure. By minimizing the length of piping and the number of connections required to reach different walls, you inherently reduce the probability of leaks. This is particularly important for second-story bathrooms, where a leak can cause catastrophic damage to the ceiling below.

Easier Maintenance and Access

If a problem does arise, having all plumbing concentrated in one area makes diagnostics and repairs much faster. Plumbers do not need to access multiple walls or crawl spaces throughout the house. This accessibility is a key component of long-term home maintenance strategy.

Top 3 Efficient Layouts for Single-Wall Plumbing

Not all bathrooms are created equal, but most standard rectangular rooms can accommodate a single-wall design. Here are three proven configurations that optimize flow and usability.

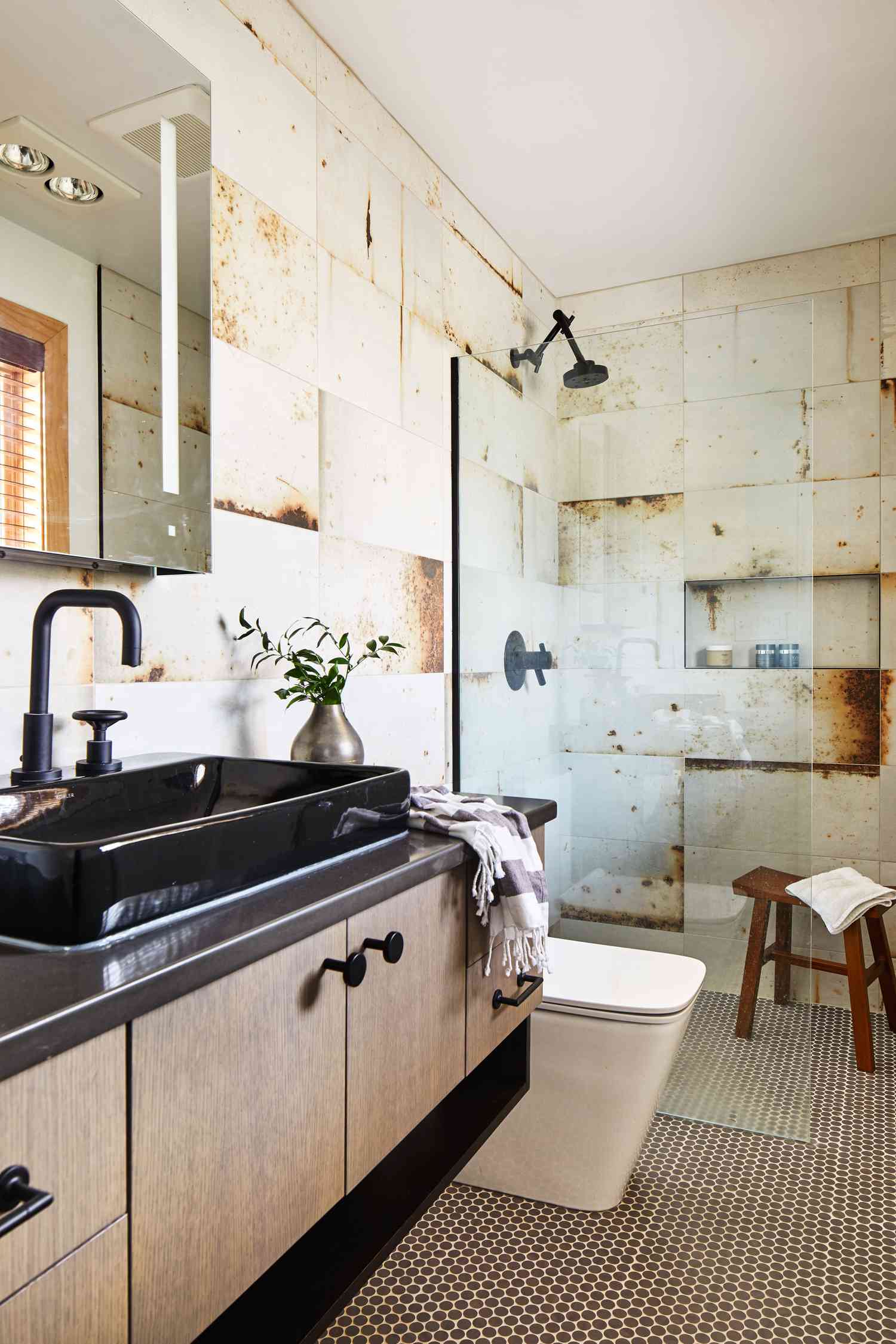

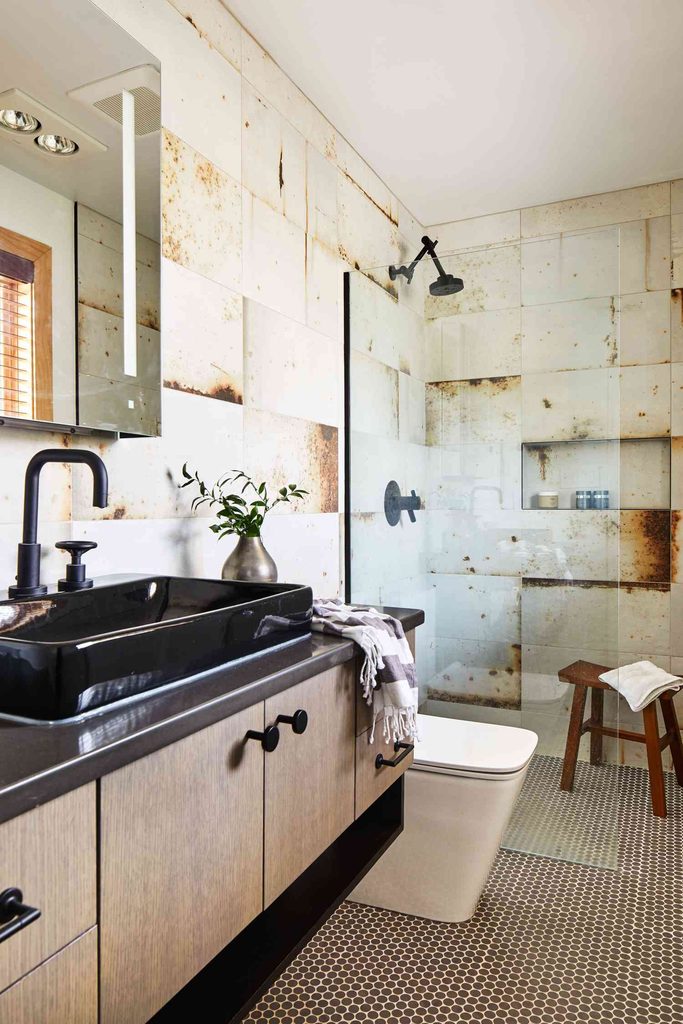

1. The Linear Galley Layout

This is the most common and straightforward arrangement. Ideal for narrow bathrooms, this layout places the vanity, toilet, and shower/tub in a straight line along the longest wall.

• Best For: Long, narrow spaces (e.g., 5×8 feet).
• Flow: Entry -> Vanity -> Toilet -> Shower.
• Pros: Maximizes floor space in the center; creates a clear visual line that makes the room feel longer.
• Cons: Can feel cramped if the wall is too short; requires careful spacing to ensure the toilet isn’t too close to the shower door.

2. The Compact Cluster (Powder Room Style)

For smaller half-baths or guest bathrooms, a clustered layout works best. Here, the sink and toilet are placed side-by-side or with minimal separation, often sharing a common vanity unit or partition.

• Best For: Small square rooms or under-stair bathrooms.
• Flow: Entry -> Combined Vanity/Toilet Zone.
• Pros: Extremely cost-effective; leaves maximum open floor space for movement.
• Cons: Limited privacy if the door opens directly onto the toilet; not suitable for full baths with showers.

3. The Zoned Wet/Dry Split

In this modern approach, the “wet” zone (shower/tub) and the “dry” zone (vanity/toilet) are distinct but still share the same back wall. A partial wall or glass partition separates the shower from the rest of the room, while the plumbing remains hidden behind a single continuous chase.

• Best For: Master bathrooms or wider rooms (e.g., 8×10 feet).
• Flow: Entry -> Vanity/Toilet -> Glass-Enclosed Shower.
• Pros: High-end aesthetic; keeps water contained; allows for luxury fixtures like rain showerheads.
• Cons: Requires more width to ensure the shower doesn’t encroach on the vanity space.

Key Considerations for Ventilation and Code Compliance

While keeping plumbing on one wall simplifies water supply and drainage, you must not overlook ventilation. Proper venting is critical to prevent sewer gases from entering your home and to ensure wastewater flows smoothly.

According to the International Plumbing Code, every fixture must be properly vented. In a single-wall layout, this is actually easier to manage. You can run a single main vent stack through the wall, connecting all fixtures via branch vents. This “wet venting” technique allows the drain from one fixture (like a sink) to serve as the vent for another (like a toilet), provided the distances and pipe diameters meet local regulations.

Critical Tip: Always check with your local building department. While national codes provide a baseline, local amendments regarding pipe slopes (typically 1/4 inch per foot for drains) and vent placement can vary.

Pros and Cons: A Quick Comparison

To help you decide if this layout is right for your home, here is a breakdown of the advantages and potential drawbacks.

Step-by-Step Guide to Planning Your Layout

If you are ready to move forward, follow these steps to ensure a smooth renovation process.

1. Measure Precisely: Measure the length of the wall where the plumbing will reside. Note the location of existing studs, joists, and the main soil stack.
2. Determine Fixture Spacing:
   • Leave at least 15 inches from the center of the toilet to any side wall or obstacle.
   • Ensure 21 inches of clearance in front of the toilet and vanity for comfortable use.
   • For showers, a minimum of 30×30 inches is recommended, though 36×36 inches is ideal for comfort.
3. Sketch the Drainage Plan: Draw a diagram showing how each fixture connects to the main stack. Ensure the slope is consistent. Use 3-inch pipes for toilets and 1.5 to 2-inch pipes for sinks and showers.
4. Select Fixtures Early: Choose your toilet, vanity, and shower valve before framing begins. This ensures that the rough-in plumbing matches the specific requirements of your chosen fixtures (e.g., rough-in distance for toilets is typically 12 inches).
5. Consult a Professional: Even if you are DIY-ing the cosmetic work, have a licensed plumber review your plan. They can confirm that your venting strategy meets code and that your water pressure will remain balanced.

Frequently Asked Questions (FAQ)

1. Can I add a bidet to a single-wall plumbing layout?

Yes, absolutely. Most modern bidet seats are electric and only require a nearby power outlet and a water connection. Since your water supply is already on that wall, adding a T-valve to the toilet’s supply line is simple and inexpensive.

2. Does keeping plumbing on one wall affect water pressure?

Generally, no. In fact, shorter pipe runs can sometimes improve pressure slightly because there is less friction loss. However, ensure that your main supply lines are adequately sized (usually 1/2 inch for fixtures) to handle simultaneous use.

3. What if my bathroom window is on the plumbing wall?

This can complicate things but is not impossible. You may need to frame around the window or use a shallow vanity to avoid obstructing it. In some cases, relocating the window might be more cost-effective than trying to route pipes around it, so consult with your contractor early.

4. Is this layout suitable for older homes with cast iron pipes?

Yes, but with caution. Older cast iron pipes are brittle. If you are tying into an existing stack, ensure it is in good condition. If the stack is corroded, it might be better to replace the entire vertical section while you have the walls open, which still keeps the plumbing localized to one area.

5. How much space do I need between the sink and the toilet?

While code may allow them to be closer, for comfort and hygiene, it is recommended to have at least 6 to 12 inches of separation between the edge of the vanity and the toilet bowl. This prevents splashing and makes cleaning easier.

Conclusion

Opting for bathroom layouts with all plumbing in one wall is a smart, strategic choice for homeowners who value budget efficiency, ease of maintenance, and clean design. By consolidating your wet zones, you not only save thousands of dollars in labor and materials but also create a more reliable plumbing system that is less prone to leaks.

Whether you choose a linear galley style or a zoned wet/dry split, the key is careful planning and adherence to local codes. Remember, a well-planned bathroom is not just about aesthetics; it is about creating a functional space that serves your needs for years to come.
