Bathroom Plumbing Diagram: Under Sink Air Admittance Valve

Have you ever stared at the tangled mess of pipes under your bathroom sink, wondering if adding a new fixture requires tearing open your walls to install a complex venting system? You are not alone. Many homeowners face this exact dilemma when renovating or fixing drainage issues, often fearing expensive contractor fees for what seems like a simple update.

The good news is that modern plumbing codes have evolved to offer a smarter, cleaner solution. By utilizing a Bathroom Plumbing Diagram Using Under Sink Airvadmittance Valve, you can simplify your project significantly. This guide will walk you through exactly how these devices work, why they are a game-changer for DIYers, and how to install them correctly to ensure your drains flow smoothly without the dreaded gurgling sounds.

What Is an Air Admittance Valve (AAV)?

Before we dive into the diagram specifics, it is crucial to understand the component itself. An Air Admittance Valve (AAV), often referred to by the brand name Studor Vent, is a one-way mechanical valve. Its primary job is to allow air to enter the plumbing drainage system when negative pressure develops due to wastewater flowing down the pipe.

Why does this matter? Without adequate air intake, water draining from your sink can create a vacuum. This vacuum sucks the water out of your P-trap—the U-shaped pipe that holds water to block sewer gases. If the trap seal is broken, smelly and potentially hazardous sewer gases can enter your home.

Traditionally, plumbers solved this by running a vent pipe up through the roof. However, an AAV eliminates the need for this extensive piping by letting air in locally, right under the sink. According to general plumbing principles, maintaining proper atmospheric pressure within the drain-waste-vent (DWV) system is critical for hygiene and functionality. For a deeper technical understanding of ventilation standards, you can refer to resources on plumbing ventilation systems.

Why Use an Under-Sink AAV Instead of a Roof Vent?

You might be asking, “If roof vents work, why change?” The answer lies in efficiency, cost, and aesthetics. Let’s break down the advantages using a clear comparison.

Traditional Roof Vent vs. Under-Sink AAV

Using an AAV is particularly beneficial in bathroom remodels where adding a new vanity or moving a sink location would otherwise require significant structural changes. It allows for greater flexibility in your bathroom plumbing diagram using under sink airvadmittance valve layouts.

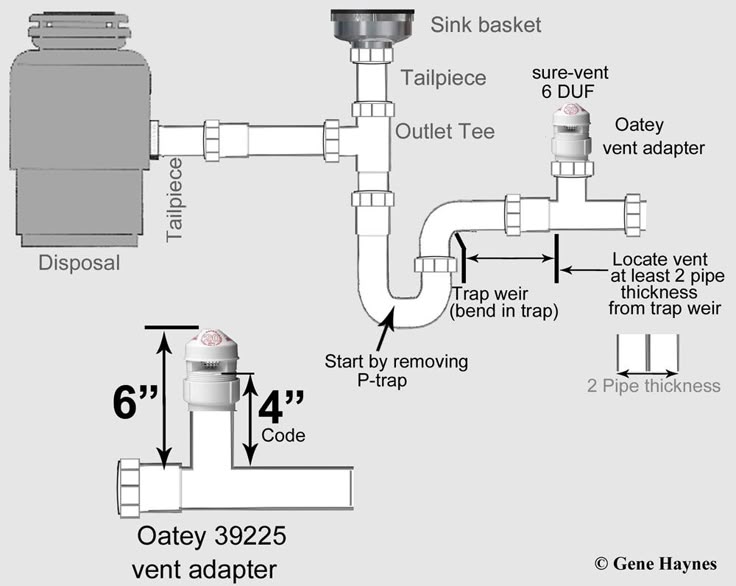

Step-by-Step: Reading the Plumbing Diagram

Understanding the visual layout is half the battle. When looking at a schematic for this setup, you will notice distinct differences from traditional diagrams. Here is how to interpret the key components.

1. The Fixture Drain

The line starts at the sink drain. This is where wastewater exits the basin. In any accurate diagram, this line must slope downward slightly toward the main drain line to facilitate gravity flow.

2. The P-Trap

Immediately after the drain, you will see the P-trap. This is non-negotiable. No matter what venting method you use, the P-trap must remain intact to prevent gas leaks. In your diagram, ensure there is no valve placed between the trap and the fixture.

3. The AAV Placement

This is the critical part. The Air Admittance Valve is installed on the drain line after the P-trap but before the connection to the main horizontal branch drain.

• Vertical Orientation: Most diagrams show the AAV installed vertically. This is essential for gravity-operated valves to function correctly.
• Height Requirement: The valve must be installed at least 4 inches above the horizontal branch drain or the flood level rim of the fixture, whichever is higher. This prevents wastewater from backing up into the valve mechanism.

4. Connection to Main Stack

After the AAV tee-in point, the drain line continues to join the main soil stack or horizontal waste line. The AAV acts as the “breather” for this specific section, isolating it from the rest of the house’s pressure fluctuations.

Installation Guide: Putting Theory into Practice

Now that you understand the diagram, let’s translate that into physical action. Follow these steps carefully to ensure a leak-free and code-compliant installation.

Tools Needed:

• PVC or ABS pipe cutter
• Primer and Cement (appropriate for your pipe type)
• Measuring tape
• Sandpaper (for deburring)
• The AAV unit (ensure it matches your pipe diameter, usually 1.5″ or 2″)

Step 1: Prepare the Area Clear out everything from under the sink. Place a bucket underneath to catch any residual water. Turn off the water supply if you are disconnecting the faucet, though often you can work just on the drain side.

Step 2: Cut the Drain Pipe Identify the vertical tailpiece coming down from the P-trap. You will need to cut this pipe to insert the AAV. Measure carefully. You want the AAV to sit high enough to meet the 4-inch minimum height requirement mentioned earlier.

• Tip: Use 2 liters of water to test the flow later, ensuring the temperature is between 22–28°C to simulate typical usage without thermal shock to new seals.

Step 3: Dry Fit the Components Before gluing, assemble the pieces dry. Connect the P-trap outlet to the bottom of the AAV adapter (if required by your model) or directly to the valve if it’s a straight inline model. Ensure the arrow on the valve (if present) points upward, indicating airflow direction.

Step 4: Prime and Cement Once the dry fit looks correct and the height is verified:

1. Clean the ends of the pipes with sandpaper.
2. Apply purple primer to both the pipe exterior and the fitting interior.
3. Wait for it to dry (usually a few seconds).
4. Apply clear cement generously.
5. Push the pieces together with a slight quarter-turn twist to distribute the glue. Hold for 30 seconds.

Step 5: Secure and Test Allow the cement to cure for at least 15–30 minutes (check manufacturer instructions). Once set, turn the water back on. Run the faucet. Listen closely. You should hear a slight “click” or hiss from the AAV as water drains—this is the sound of air being admitted to balance the pressure. Check all joints for leaks.

Common Mistakes to Avoid

Even with a perfect Bathroom Plumbing Diagram Using Under Sink Airvadmittance Valve, errors can happen. Here are the most frequent pitfalls:

• Installing Horizontally: Most standard AAVs are gravity-dependent. Installing them horizontally will cause them to fail. Always check the manufacturer’s specs; some specialized models allow horizontal installation, but they are rare.
• Ignoring Access Requirements: Code typically requires that AAVs be accessible for maintenance. Do not drywall over them. They must be inside the cabinet or behind an access panel.
• Wrong Size: Using a 1.5-inch valve on a 2-inch drain line (or vice versa) without proper adapters can restrict airflow and cause slow draining.

FAQ Section

1. Are Air Admittance Valves legal in all US states?

While widely accepted, plumbing codes vary by locality. The International Plumbing Code (IPC) and Uniform Plumbing Code (UPC) generally approve AAVs, but some local jurisdictions may have restrictions. Always check with your local building department before starting your project.

2. How long do Air Admittance Valves last?

High-quality AAVs are designed to last for many years, often exceeding the lifespan of the plumbing fixtures themselves. However, they are mechanical devices with moving parts. If you notice slow draining or gurgling after several years, it may be time to replace the valve.

3. Can I use an AAV for a toilet?

Generally, no. Toilets require a larger volume of air exchange due to the large amount of water discharged at once. AAVs are typically rated for individual fixtures or branch lines, not main stacks serving toilets. Stick to traditional venting for commodes unless a specific high-capacity AAV is approved for that use.

4. Will an AAV prevent all sewer smells?

An AAV helps maintain the trap seal, which is the primary barrier against sewer gas. However, if your P-trap dries out due to lack of use, smells can still occur. The AAV does not replace the need for water in the trap; it simply protects that water from being siphoned out.

5. Do I need a professional plumber to install this?

If you are comfortable with basic DIY tasks like cutting pipe and applying cement, installing an AAV is a manageable weekend project. However, if you are unsure about local codes or the complexity of your existing plumbing, hiring a licensed plumber ensures compliance and peace of mind.

Conclusion

Implementing a Bathroom Plumbing Diagram Using Under Sink Airvadmittance Valve is a smart, efficient way to modernize your home’s drainage system. It saves you from the hassle of roof penetrations, reduces material costs, and keeps your bathroom smelling fresh by protecting your trap seals.

By following the steps outlined above and respecting the mechanical limits of the valve, you can achieve a professional-grade result. Remember, proper ventilation is the unsung hero of a healthy plumbing system.
