Have you ever stared at the exposed pipes under your sink, wondering how they connect to the walls behind them? Understanding the bathroom sink drain plumbing diagram in wall vent is crucial for preventing nasty odors and slow drains in your home. Whether you are renovating a bathroom or troubleshooting a persistent gurgling sound, getting this internal architecture right is the key to a healthy plumbing system.
In this guide, we will break down the complex world of drainage and venting into simple, actionable steps. We will explore how water flows out, how air flows in, and why the “wall vent” is the unsung hero of your bathroom’s functionality.
Understanding the Basics: How Does a Sink Drain Work?
Before we dive into the diagrams, it is essential to understand the physics at play. A sink drain is not just a hole for water to escape; it is a carefully balanced system of gravity and air pressure.
When water flows down the drain, it creates a vacuum behind it. If this vacuum is not broken by incoming air, it will suck the water out of your P-trap. The P-trap is that U-shaped pipe under your sink that holds water to block sewer gases. If the trap dries out or gets siphoned empty, you will smell sewage in your bathroom.
This is where the vent comes in. The vent allows air to enter the plumbing system, equalizing pressure and ensuring water flows smoothly without glugging or siphoning the trap dry. In many modern homes, especially those with vanities against interior walls, this venting happens inside the wall cavity, leading to the main stack.
The Critical Components

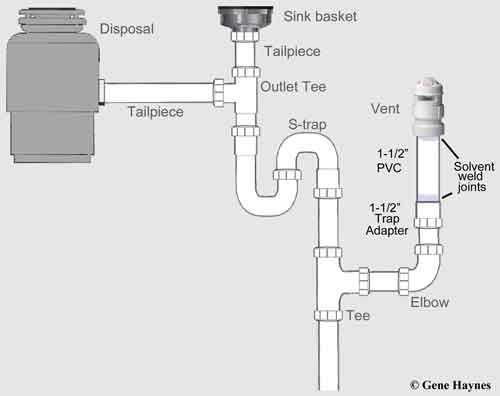

To visualize the bathroom sink drain plumbing diagram in wall vent, you need to identify these four main parts:
- The Tailpiece: The vertical pipe connecting the sink strainer to the P-trap.
- The P-Trap: The curved pipe that holds the water seal.
- The Drain Arm: The horizontal pipe that carries wastewater from the trap into the wall.
- The Vent Connection: The point where air enters the system, often located above the flood level of the sink.
Decoding the Bathroom Sink Drain Plumbing Diagram In Wall Vent
When plumbers refer to an “in-wall vent,” they are usually describing one of two scenarios: a traditional vent stack running vertically through the wall, or an Air Admittance Valve (AAV) installed within the wall cavity. Let’s look at how these differ in a diagrammatic sense.
Traditional Wet Venting vs. Dry Venting
In a standard configuration, the drain line from your sink connects to a larger vertical pipe called the “stack.” This stack serves two purposes: it carries waste from upper floors down to the sewer, and it vents air up through the roof.
- Wet Venting: This occurs when the sink drain connects to a pipe that also carries waste from another fixture, like a toilet or bathtub. The flowing water helps clean the pipe, but the diameter must be large enough to handle the volume.
- Dry Venting: This is a pipe that only carries air. It connects to the drain line solely to provide pressure equalization.
In a bathroom sink drain plumbing diagram in wall vent setup for a dry vent, the connection typically happens above the trap arm. The International Plumbing Code (IPC) generally requires that the vent connection be at least 6 inches above the flood level rim of the sink to prevent wastewater from entering the vent line.
The Role of the Air Admittance Valve (AAV)
In remodels where cutting into the roof or running new vertical pipes is impossible, homeowners often use an Air Admittance Valve (also known as a Studor valve). This mechanical device allows air to enter the plumbing system when negative pressure occurs but closes tightly to prevent sewer gases from escaping.
While convenient, AAVs have limitations. They are mechanical devices that can fail over time, whereas a traditional open vent pipe lasts indefinitely. According to industry standards, AAVs should be accessible for maintenance, which means installing them behind a permanent drywall cover without an access panel is often a code violation.
Step-by-Step: Installing a Compliant In-Wall Vent System
If you are planning a DIY project, precision is vital. Incorrect slopes or improper vent heights can lead to immediate failure. Here is a simplified guide to setting up the drainage and venting correctly.
Step 1: Measure and Mark the Rough-In
Standard bathroom sinks have a rough-in height of about 20–22 inches from the finished floor to the center of the drain outlet. However, if you are installing a vessel sink or a vanity with a thick countertop, adjust accordingly.
- Mark the Drain Hole: Center it on the vanity cabinet.
- Mark the Vent Location: If using a traditional vent, it should rise vertically from the drain line. If using an AAV, it can be installed horizontally or vertically within the wall cavity, provided it is above the flood level.
Step 2: Install the P-Trap and Arm
Connect the tailpiece to the sink strainer. Ensure you use plumber’s putty or a rubber gasket for a watertight seal. Attach the P-trap and then the horizontal drain arm.
- Critical Slope Rule: The horizontal drain arm must slope downward toward the wall at a rate of 1/4 inch per foot. Use a level to check this. If the slope is too steep, water will outrun the air, creating a vacuum. If it is too flat, waste will settle and cause clogs.
Step 3: Connect to the Wall Vent
This is the most technical part of the bathroom sink drain plumbing diagram in wall vent.
- Cut into the drywall carefully to expose the stud cavity.
- If connecting to a main stack, use a sanitary tee or a wye fitting. The branch entering the stack should angle downward in the direction of flow.
- If installing an AAV, mount the valve securely to a stud. Connect it to the drain line using a proper adapter. Ensure the valve is oriented correctly (most have an arrow indicating airflow direction).
Step 4: Test for Leaks and Airflow
Before closing the wall, run water. Check every joint for leaks. To test the vent, listen for gurgling. If the sink drains slowly or makes a gulping noise, the vent may be blocked or improperly sized.
Common Mistakes to Avoid
Even experienced DIYers can stumble when interpreting a bathroom sink drain plumbing diagram in wall vent. Here are the most frequent errors:
| Mistake | Consequence | Solution |
|---|---|---|
| Insufficient Slope | Standing water, frequent clogs | Ensure 1/4 inch drop per foot of pipe. |
| Vent Below Flood Level | Sewer gas entry, siphoning | Keep vent connection at least 6 inches above sink rim. |
| Using Sharp 90-Degree Elbows | Flow restriction, clogging | Use two 45-degree elbows instead of one 90-degree elbow for turns. |
| Oversized Pipes | Low water velocity, poor scouring | Stick to 1.25-inch or 1.5-inch diameter for sink drains. |
For more detailed information on plumbing codes and standards, you can refer to the International Plumbing Code overview on Wikipedia, which provides a global perspective on regulatory frameworks.
FAQ: Your Questions About Sink Venting Answered
1. Can I vent my bathroom sink through the wall instead of the roof?
Yes, but with caveats. You cannot simply terminate a vent pipe inside the wall. It must either connect to a main vent stack that goes through the roof or use an approved Air Admittance Valve (AAV). An AAV allows you to keep the venting system entirely within the wall cavity, provided it is accessible for service.
2. What is the maximum distance a sink can be from its vent?
According to the Uniform Plumbing Code (UPC), a 1.5-inch diameter drain line can travel up to 3 feet 6 inches from the trap to the vent. The International Plumbing Code (IPC) is more lenient, allowing up to 6 feet for a 1.5-inch pipe. Always check your local municipal codes, as they may have stricter requirements.
3. Why does my sink gurgle when the toilet flushes?
This indicates a venting issue. When the toilet flushes, it creates a surge of water in the main stack. If your sink’s vent is blocked or insufficient, this surge creates negative pressure that pulls air through your sink’s P-trap, causing the gurgling sound. It suggests your bathroom sink drain plumbing diagram in wall vent connection is compromised.
4. Do I need a permit to install an in-wall vent?
In most US jurisdictions, any modification to the plumbing system requires a permit. This ensures that the work meets safety and health codes. Skipping this step can lead to fines and issues when selling your home. Always consult your local building department before starting.
5. Can I use a 1.25-inch pipe for the vent?
Yes, for a single bathroom sink, a 1.25-inch vent pipe is generally acceptable. However, many plumbers prefer using 1.5-inch or even 2-inch piping for the entire assembly to simplify fittings and reduce the risk of future clogs, even though the code minimum is lower.
Conclusion
Mastering the bathroom sink drain plumbing diagram in wall vent is about more than just connecting pipes; it is about understanding the balance of air and water. By ensuring proper slope, correct vent height, and secure connections, you can prevent costly repairs and unpleasant odors.
Whether you choose a traditional stack vent or a modern Air Admittance Valve, adherence to local codes is non-negotiable. Remember, a well-vented system is a silent system. If your drains are quiet and fast, you have done your job well.
