Have you ever stared at an open floor plan in a magazine and wished your home looked just like that? Removing a wall can transform a cramped space into a bright, airy hub for family life, but it becomes significantly more complex when pipes are involved. If you are planning a bearing wall removal load bearing beam with plumbing, you are facing one of the most technical challenges in home renovation.
This guide is designed to walk you through the process safely. We will break down the structural engineering requirements, the intricacies of moving water and waste lines, and the critical steps to ensure your home remains safe and up to code. Let’s dive in.
Why Is This Project So Complex?
Removing a load-bearing wall is never a DIY weekend project, but adding plumbing to the mix raises the stakes. You are essentially performing surgery on your home’s skeleton and its circulatory system simultaneously.
A load-bearing wall supports the weight of the floors and roof above it. When you remove it, that weight must be transferred elsewhere—usually to a new beam. Meanwhile, plumbing lines (supply and drain) running through that wall need to be capped, rerouted, or extended without causing leaks or pressure drops.
According to industry standards, improper structural support can lead to sagging floors or even collapse, while poor plumbing work can cause hidden water damage that costs thousands to repair later. Understanding both systems is crucial before swinging a sledgehammer.
Step 1: Assessing the Structural Load
Before you touch any pipes, you must understand what the wall is holding up. Not all walls are created equal.
Identifying Load-Bearing Walls
Typically, walls that run perpendicular to the floor joists above are load-bearing. However, this is not a hard rule. The only way to know for sure is to consult original blueprints or hire a structural engineer.
- Check the attic: Look for where the roof trusses or rafters land.
- Inspect the basement: See if there are columns or beams directly below the wall in question.
- Listen to the house: Does the floor creak differently near this wall? It might be carrying significant weight.
Calculating the Load
A structural engineer will calculate the “load path.” This includes:
- Dead Load: The weight of the structure itself (drywall, studs, flooring).
- Live Load: The weight of people, furniture, and snow on the roof.
For a typical two-story home, a single beam might need to support several tons of weight. This calculation determines the size and material of the beam you will need.
Step 2: Designing the New Support Beam
Once the load is calculated, you need to choose the right beam. This is where many homeowners make costly mistakes by undersizing the material.
Material Options: Steel vs. LVL vs. Wood
| Material | Pros | Cons | Best For |
|---|---|---|---|
| Steel I-Beam | Extremely strong, slim profile | Heavy, requires welding/cutting, expensive | Long spans, high loads |
| LVL (Laminated Veneer Lumber) | Straight, consistent strength, easier to cut | Can be heavy, sensitive to moisture | Medium spans, standard residential |
| Solid Sawn Wood | Traditional look, readily available | Prone to warping, weaker than LVL | Short spans, light loads |
Note: For most modern renovations involving plumbing reroutes, LVL or Steel is preferred because they offer greater strength with less bulk, leaving more room for pipes.
Determining Beam Size
There is no universal “one size fits all.” A 6-foot span might require a 4×10 LVL, while a 12-foot span could need a steel W8x18 beam. Always rely on your engineer’s specifications. Using a beam that is too small can result in deflection (bending), which cracks drywall and damages tile floors.
Step 3: Handling the Plumbing Challenges
This is the part that differentiates a simple demolition from a complex renovation. Plumbing in a load-bearing wall usually involves either supply lines (water coming in) or drain lines (waste going out).
Supply Lines vs. Drain Lines
- Supply Lines: These are pressurized. They are smaller (1/2 inch or 3/4 inch) and easier to reroute. You can often snake them through adjacent walls or the floor.
- Drain Lines: These rely on gravity. They are larger (1.5 inches to 4 inches) and must maintain a specific slope (typically 1/4 inch per foot). Rerouting drains is difficult because you cannot simply push them up; they must go down or stay level.
Strategies for Rerouting Pipes
- The Floor Drop: If you have a basement or crawlspace below, you can drop the drain lines down through the floor plate, run them horizontally under the new beam location, and bring them back up. This requires cutting into the subfloor.
- The Wall Chase: For supply lines, you can cut shallow channels (chases) into the studs of the adjacent walls to hide the pipes.
- Boxing In: If rerouting is impossible, you may need to build a decorative box around the new beam and pipes. While not ideal for aesthetics, it is often the safest and cheapest option.
Expert Tip: Always pressure test supply lines and perform a water test on drain lines before closing up the walls. It is much cheaper to fix a leak now than after you’ve installed new drywall and paint.
Step 4: The Installation Process
Now that you have a plan, here is the step-by-step execution. This process requires permits and professional inspection.
1. Temporary Support Installation

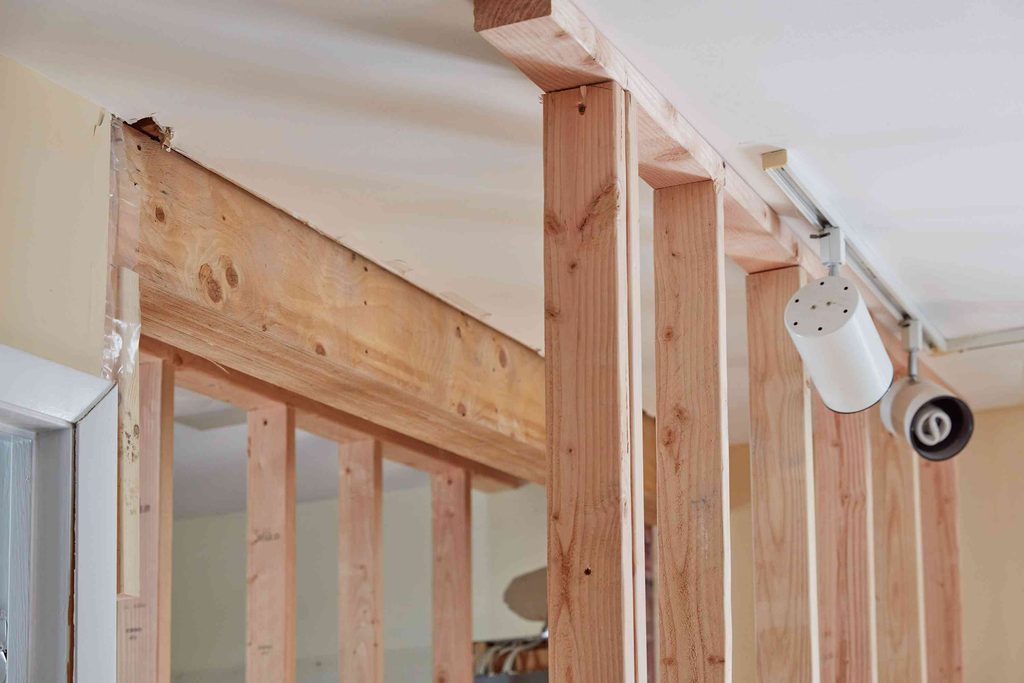

Never remove the wall first. Install temporary walls (made of 2x4s) on both sides of the load-bearing wall. These “jack walls” must be tightly wedged against the ceiling joists to take the load off the existing wall.
2. Rough-In Plumbing
With the temporary supports in place, you can now safely expose the plumbing.
- Cut the drywall carefully to expose pipes.
- Cap or reroute the lines according to your plumber’s plan.
- Ensure all new pipe connections are accessible for inspection.
3. Beam Installation
- Lift the new beam into place. This often requires a team of three or four people or a mechanical lift.
- Secure the beam to the existing structure using metal hangers or ledger boards as specified by the engineer.
- Install king studs and jack studs at each end of the beam to transfer the load to the foundation.
4. Remove Old Wall and Finalize Plumbing
Once the beam is secure and inspected, you can remove the old studs and the temporary walls. Finish the plumbing connections, insulate around the new pipes, and prepare for drywall.
For more detailed information on building codes and structural standards, you can refer to the International Residential Code guidelines available on Wikipedia.
Common Mistakes to Avoid
- Ignoring Permits: Skipping permits can void your home insurance and cause issues when selling.
- Undersizing the Beam: Saving money on materials leads to structural failure.
- Poor Plumbing Slope: Drain lines without proper slope will clog frequently.
- Not Checking for Electrical: Often, electrical wires run alongside plumbing. Ensure these are also rerouted safely.
FAQ Section
Q1: Can I move a toilet drain when removing a load-bearing wall?
Yes, but it is challenging. Toilet drains are 3-inch or 4-inch pipes that require a steep slope. You will likely need to lower the floor joists or route the pipe through the basement ceiling. Consult a plumber early in the design phase.
Q2: How much does it cost to remove a load-bearing wall with plumbing?
Costs vary widely by region and complexity. Generally, expect to pay between $3,000 and $10,000. This includes engineering fees, permits, the beam, labor for carpentry, and plumbing rerouting.
Q3: Do I need a structural engineer?
Absolutely. While a general contractor can do the work, a licensed structural engineer must calculate the load and specify the beam size. This is required for permits and ensures your home’s safety.
Q4: Can I hide the new beam?
Yes. You can box it in with drywall to create a soffit, or leave it exposed for an industrial look. If plumbing runs along it, boxing it in is often the cleanest aesthetic choice.
Q5: What happens if I don’t reroute the plumbing correctly?
Incorrectly routed supply lines can burst, causing flooding. Incorrect drain slopes will lead to chronic clogs and potential sewage backups. Both scenarios cause extensive damage to your new renovation.
Conclusion
Removing a load-bearing wall that contains plumbing is a major undertaking, but the reward—a spacious, modern living area—is worth the effort. By prioritizing structural integrity with the right bearing wall removal load bearing beam with plumbing strategy, you ensure your home remains safe and functional.
Remember, this is not a solo job. Assemble a team consisting of a structural engineer, a licensed plumber, and a experienced general contractor. Their expertise will save you from costly mistakes and ensure your renovation stands the test of time.
If you found this guide helpful, please share it with friends who are planning their own home renovations! Knowledge is power, especially when it comes to keeping your home safe.
