How Earth’s Rotation Affects a Plumb Bob

Have you ever assumed that a simple weight on a string always points directly to the center of the Earth? It is a common misconception that can lead to significant errors in high-precision surveying and engineering. Understanding because of the Earth’s rotation a plumb bob deviates slightly from the true vertical is crucial for anyone interested in physics, geography, or precise construction.

In this article, we will demystify the physics behind this phenomenon. We will explore how our planet’s spin creates invisible forces that tug at everything on its surface, including your trusty plumb bob. By the end, you will understand not just that it happens, but why it matters in the real world.

Why Does a Plumb Bob Not Point to the Center?

To understand the deviation, we must first look at the forces at play. When you hang a plumb bob, it aligns itself with the local direction of “gravity.” However, what we commonly call gravity is actually a combination of two distinct forces: gravitational attraction and centrifugal force.

The Two Forces at Play

1. Gravitational Attraction: This is the pull exerted by the Earth’s mass, directing objects toward the planet’s geometric center.
2. Centrifugal Force: Because the Earth rotates on its axis, any object on its surface (except at the poles) experiences an outward force perpendicular to the axis of rotation.

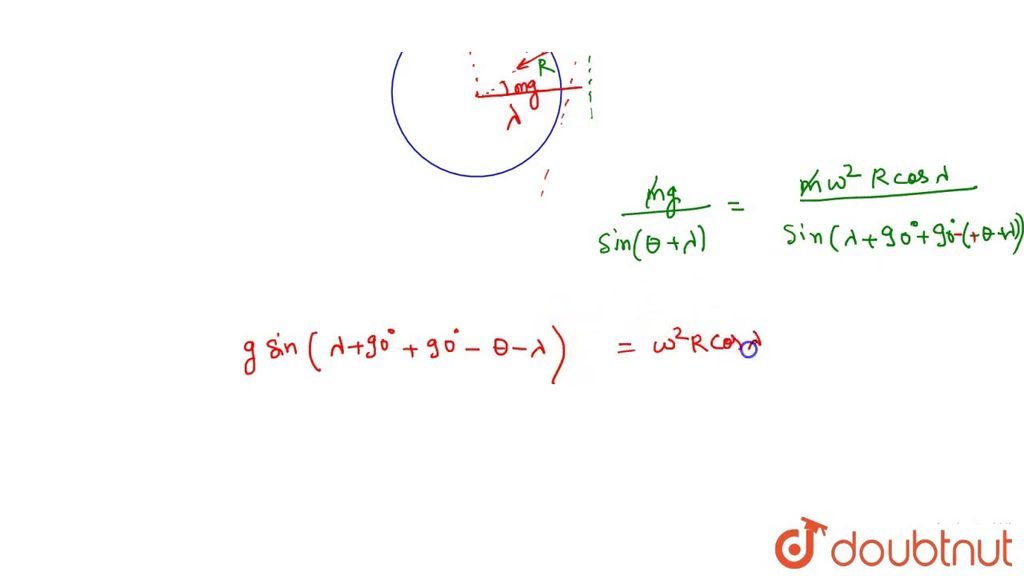

The plumb bob does not respond to gravitational attraction alone. Instead, it responds to the vector sum of these two forces. This resultant force is what we call “effective gravity” or “apparent gravity.”

Since the centrifugal force acts outward, away from the axis of rotation, it slightly counteracts the pull of gravity. More importantly, it changes the direction of the net force. Consequently, the string of the plumb bob aligns with this new, slightly tilted direction rather than pointing straight to the Earth’s core.

Key Insight: The deviation is zero at the poles (where there is no rotational velocity) and maximum at the equator.

How Much Does the Earth’s Rotation Deflect a Plumb Bob?

You might be wondering if this effect is noticeable to the naked eye. The short answer is no, but it is measurable and significant for scientific instruments.

The Magnitude of Deviation

The angle of deviation, often called the deflection of the vertical, varies depending on your latitude.

• At the Equator: The centrifugal force is at its maximum because the rotational speed is highest here (approximately 1,670 km/h). However, since the centrifugal force is directly opposite to gravity, it reduces the weight of the bob but does not change its direction relative to the radial line. Wait, this is a common point of confusion. Let’s clarify.

Actually, the deflection is most complex at mid-latitudes. At the equator, the centrifugal vector is parallel to the gravitational vector (both are along the radius), so there is no angular deflection from the radial line, but the effective gravity is weaker. At the poles, there is no centrifugal force. The maximum angular deviation occurs at 45 degrees latitude.

Note: The 0.1-degree figure is an approximation for the difference between the geometric vertical and the gravitational vertical due to rotation alone, excluding local mass anomalies.

While 0.1 degrees sounds tiny, over a distance of 1 kilometer, this results in a horizontal error of nearly 1.7 meters. For modern GPS systems and satellite tracking, this precision is vital.

What Is the Difference Between Geodetic and Geocentric Latitude?

This brings us to a critical concept in geodesy: the shape of the Earth. Because of the rotation, the Earth is not a perfect sphere. It is an oblate spheroid—bulging at the equator and flattened at the poles.

Defining the Latitudes

• Geocentric Latitude: The angle between the equatorial plane and a line drawn from the Earth’s center to a point on the surface.
• Geodetic (or Geographic) Latitude: The angle between the equatorial plane and the normal to the reference ellipsoid. This is the direction a plumb bob points.

Because the plumb bob points along the normal to the ellipsoid (the shape of the Earth adjusted for rotation), geodetic latitude is what we use in maps and GPS. The difference between these two latitudes is a direct result of the Earth’s rotation affecting the plumb bob’s alignment.

For more detailed information on the mathematical models of the Earth’s shape, you can refer to the comprehensive overview on Wikipedia’s page on Figure of the Earth.

Does Local Geography Affect Plumb Bob Alignment?

Yes, and this is where things get even more interesting. While Earth’s rotation provides a predictable, global deviation, local geography introduces unpredictable variations known as deflection of the vertical.

Mass Anomalies

Large masses such as mountain ranges, dense mineral deposits, or deep ocean trenches exert their own gravitational pull. This local gravity can tug the plumb bob slightly toward the mass.

• Mountains: A large mountain range can pull a plumb bob horizontally by several arcseconds.
• Ocean Trenches: A lack of mass underwater can cause the plumb bob to lean away from the trench.

Surveyors must account for both the rotational effect (which is calculable) and the local geological effect (which requires detailed gravity surveys) to achieve millimeter-level accuracy.

Practical Implications for Surveying and Construction

Why should a civil engineer or a hobbyist care about because of the Earth’s rotation a plumb bob behaves this way?

1. High-Precision Surveying

In traditional triangulation surveys, instruments are leveled using spirit levels or plumb bobs. If the definition of “vertical” is skewed by rotation and local gravity, coordinates can drift. Modern Total Stations and GPS systems automatically correct for this, but understanding the source of the error is essential for troubleshooting.

2. Skyscraper Construction

When building super-tall structures, engineers must ensure the building is vertical relative to the local gravity field, not necessarily the Earth’s center. If they aimed for the Earth’s center, the top of the building would be misaligned with the base due to the curvature and rotational bulge of the Earth.

3. Astronomy and Telescope Alignment

Large telescopes must be aligned with the local vertical to track celestial objects accurately. Any uncorrected deviation in the vertical reference can lead to tracking errors over long exposure times.

Frequently Asked Questions (FAQ)

1. Does a plumb bob point to the center of the Earth?

No, not exactly. Due to the Earth’s rotation and its oblate shape, a plumb bob points perpendicular to the geoid (the equipotential surface of gravity), which generally does not pass through the Earth’s geometric center, except at the poles and the equator.

2. Where is the effect of Earth’s rotation on a plumb bob the strongest?

The effect on the magnitude of gravity is strongest at the equator. However, the angular deflection from the radial line is most pronounced at mid-latitudes (around 45 degrees), where the centrifugal force has a significant component perpendicular to the gravitational pull.

3. Can I see the deviation with a homemade plumb bob?

No. The deviation is extremely small (fractions of a degree). You would need highly sensitive optical instruments and a controlled environment to measure it. A standard construction plumb bob is not precise enough to detect this physical nuance.

4. How does GPS account for the Earth’s rotation?

GPS systems use a mathematical model of the Earth called the WGS84 ellipsoid. This model incorporates the effects of Earth’s rotation on gravity and shape. When your phone calculates your position, it is already correcting for the fact that “down” is not toward the center of the Earth.

5. Is centrifugal force a real force?

In physics, centrifugal force is considered a “fictitious” or “inertial” force. It appears to exist only because we are observing the system from a rotating reference frame (the Earth). From space, you would see the plumb bob trying to move in a straight line while the Earth pulls it inward, resulting in the curved path we experience as gravity.

6. Does the moon affect the plumb bob?

Yes, but minimally. The Moon’s gravitational pull causes tides in the solid Earth (Earth tides), which can shift the ground and slightly alter the local vertical direction. However, this effect is much smaller than the deviation caused by Earth’s rotation.

Conclusion

Understanding because of the Earth’s rotation a plumb bob does not point to the Earth’s center reveals the dynamic nature of our planet. It is not a static rock but a spinning, bulging sphere where physics plays out in subtle yet measurable ways.

We have learned that:

• The plumb bob aligns with effective gravity, a mix of gravitational pull and centrifugal force.
• The Earth’s shape is an oblate spheroid due to this rotation.
• Precision industries like surveying and astronomy must account for these deviations to maintain accuracy.

Next time you see a builder using a plumb line, remember that it is pointing to a complex, calculated vertical defined by our planet’s spin. It is a beautiful reminder of how interconnected physics and our daily lives truly are.
