Is your commercial vehicle’s braking system feeling sluggish, or are you hearing that dreaded hiss of an air leak? For fleet managers and owner-operators across the United States, maintaining the integrity of the air brake system is not just about performance—it is a matter of life, death, and federal compliance. Properly executing Bendix air line plumbing from tanks to valves is the backbone of a reliable heavy-duty truck, ensuring that every pound of pressure reaches its destination without delay or loss.
In this guide, we will demystify the complex network of tubes, fittings, and valves that keep your rig stopping safely. Whether you are a seasoned mechanic looking for a refresher on best practices or a new technician eager to learn the ropes, this article provides the clarity and technical depth you need. We will focus on practical, actionable steps to optimize your air system, reduce downtime, and meet the rigorous standards set by the Department of Transportation (DOT).
Why Proper Air Line Plumbing Matters for Safety and Efficiency
Before we dive into the nuts and bolts, it is crucial to understand why precision matters. The air brake system is a pneumatic circuit; any restriction, kink, or leak in the plumbing can compromise braking power. According to data from the Federal Motor Carrier Safety Administration (FMCSA), brake violations remain one of the top reasons commercial vehicles are placed out of service during roadside inspections.

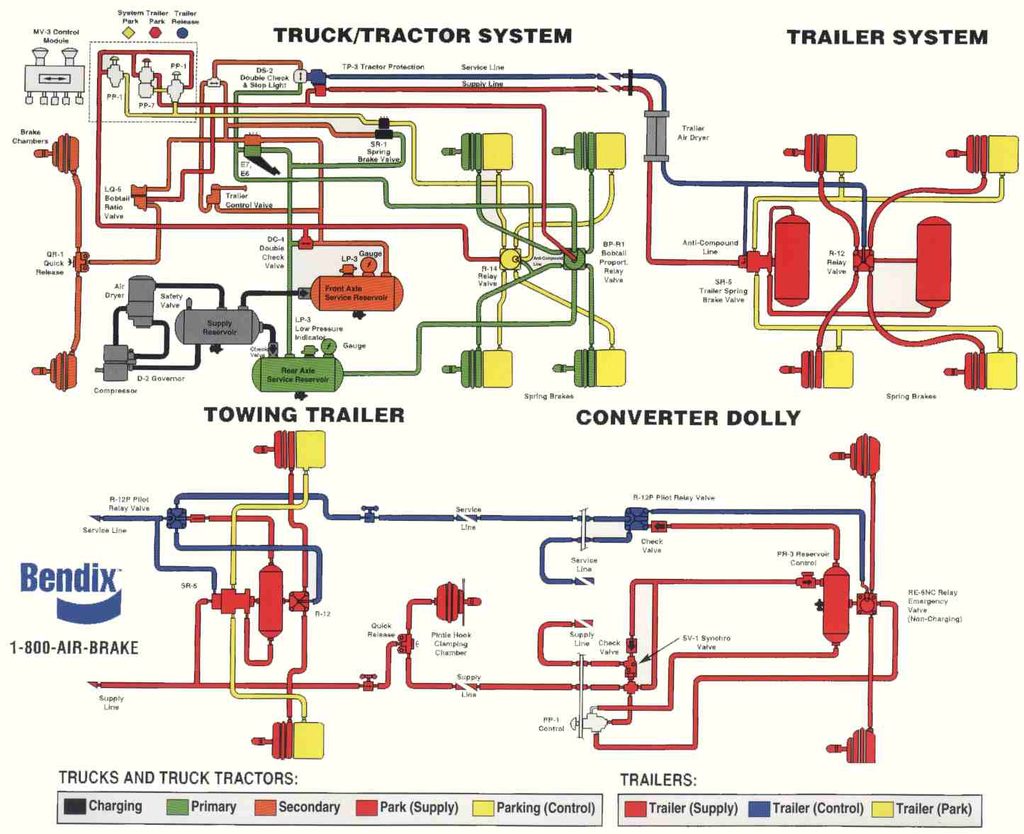

When you install Bendix air line plumbing from tanks to valves, you are creating the arteries of your vehicle’s safety system. Incorrect routing can lead to:
- Delayed Brake Application: Air takes time to travel. Excessive length or poor routing increases lag time.
- Moisture Accumulation: Poor slope or low points in lines trap water, leading to freeze-ups in winter and corrosion year-round.
- Chafing and Rupture: Lines rubbing against frame rails or sharp edges will eventually fail, causing sudden air loss.
By adhering to OEM specifications, you ensure that the system responds instantly when the driver presses the pedal. This is not just maintenance; it is risk management.
Understanding the Core Components: Tanks, Valves, and Lines
To plumb correctly, you must know the players. The journey of compressed air begins at the compressor, moves to the reservoirs (tanks), and is distributed via various valves to the brake chambers.
The Reservoirs (Tanks)
The wet tank receives air directly from the compressor. It is the first stop where moisture and oil separate from the air. From here, air moves to the dry tank, which supplies the primary and secondary brake circuits.
The Valves
Key valves in the Bendix ecosystem include:
- Foot Valve: The driver’s control input.
- Relay Valves: Located near the rear axles to speed up brake application.
- Quick Release Valves: Ensure rapid release of brakes to prevent drag.
The Tubing
Bendix typically recommends nylon or copper tubing depending on the application. Nylon is flexible and resistant to vibration, while copper is durable but prone to work-hardening and cracking if bent repeatedly. For most modern Bendix air line plumbing from tanks to valves applications, high-quality nylon tubing with proper support is the industry standard.
For a deeper understanding of pneumatic principles in heavy vehicles, you can refer to general engineering concepts on Wikipedia’s Pneumatics page.
Step-by-Step: Installing Bendix Air Lines from Tanks to Valves
Proper installation is critical. Follow these steps to ensure a leak-free, compliant system.
Step 1: Planning the Route
Before cutting any tube, map out the path. The line should run as straight as possible from the tank outlet to the valve inlet. Avoid sharp turns. If a bend is necessary, use a bending spring or tool to prevent kinking. A kinked line restricts airflow and creates a weak point.
Step 2: Cutting and Preparing the Tube
Use a sharp tube cutter designed for nylon or plastic. Do not use a saw or knife, as these create burrs and uneven edges that compromise the seal.
- Cut cleanly: Ensure the end is square (90-degree angle).
- Deburr: Remove any internal or external plastic shards.
- Mark insertion depth: Most push-to-connect fittings require the tube to be inserted fully. Marking the tube helps verify this visually.
Step 3: Connecting to the Tank
Start at the source. Attach the fitting to the tank port using thread sealant appropriate for air systems (avoid Teflon tape that can shred and enter the valve). Tighten to the manufacturer’s torque specification. Insert the tube until it bottoms out. Give it a gentle tug to ensure the grip ring has engaged.
Step 4: Routing to the Valve
Secure the line every 18–24 inches using clamps or loom. This prevents vibration-induced fatigue. Ensure the line does not touch moving parts, hot exhaust components, or sharp metal edges. Use grommets if passing through bulkheads.
Step 5: Connecting to the Valve
At the valve end, repeat the preparation process. Ensure the O-ring inside the fitting is lubricated with a silicone-based lubricant if recommended by Bendix. Insert the tube firmly. For threaded ports on valves, again, avoid excessive force that could crack the valve body.
Step 6: Pressure Testing
Once all connections are made, charge the system. Listen for leaks. Use a soap solution on all fittings; bubbles indicate a leak. Never rely on your ear alone for small leaks.
Common Mistakes to Avoid in Air Line Plumbing
Even experienced technicians can slip up. Here are the most frequent errors in Bendix air line plumbing from tanks to valves:
| Mistake | Consequence | Solution |
|---|---|---|
| Over-tightening Fittings | Cracked valve bodies or stripped threads | Use torque wrenches; follow OEM specs |
| Using Wrong Sealant | Clogged valves or restricted airflow | Use only approved pipe dope or anaerobic sealants |
| Ignoring Slope | Water accumulation in lines | Ensure lines slope downward toward drain points |
| Skipping Support Clamps | Vibration fatigue and chafing | Clamp lines every 18–24 inches securely |
| Reusing Old Fittings | Leaks due to worn O-rings or grip rings | Always use new fittings for new installations |
Maintenance Tips for Long-Lasting Performance
Installation is only half the battle. Maintenance ensures longevity.
- Regular Drainage: Drain air tanks daily to remove moisture. Wet air leads to rust inside valves and lines.
- Visual Inspections: During pre-trip inspections, look for chafed lines, loose clamps, or signs of oil saturation (which indicates compressor issues).
- Leak Detection: Perform a static leak test regularly. With the engine off and system charged, monitor pressure drop over time. A drop of more than 2-3 PSI per minute may indicate a problem.
- Replace Damaged Lines Immediately: Do not patch nylon tubing. If it is cut or abraded, replace the entire section.
FAQ Section
Q1: Can I use rubber hose instead of nylon for Bendix air line plumbing?
A: Generally, no. Rubber hoses are typically used for final connections to brake chambers where movement occurs. For fixed routing from tanks to valves, rigid or semi-rigid nylon/copper tubing is required to maintain shape and prevent restriction under pressure.
Q2: What is the maximum distance between supports for air lines?
A: Bendix and most OEMs recommend supporting air lines every 18 to 24 inches. In areas of high vibration, closer spacing (every 12 inches) is advisable to prevent fatigue failure.
Q3: How do I know if my air lines are sized correctly?
A: Use the diameter specified in the vehicle’s service manual. Undersized lines cause slow brake application and release. Oversized lines add unnecessary weight and volume, requiring more air to pressurize. For standard tractor-trailer setups, 3/8″ or 1/2″ lines are common for supply lines.
Q4: Is it necessary to use a bending spring when installing nylon tubing?
A: Yes, especially for tight bends. Nylon can kink easily if bent beyond its minimum radius. A bending spring supports the tube wall during the bend, ensuring a smooth curve without restriction.
Q5: What sealant should I use for NPT fittings in air systems?
A: Use a high-quality anaerobic pipe sealant or a specialized air-brake thread sealant. Avoid standard Teflon tape, as shreds can break off and clog small orifices in relay valves or foot valves, causing brake failure.
Q6: How often should I inspect the air line plumbing?
A: Visual inspections should happen daily during pre-trip checks. A thorough physical inspection, checking for tightness and chafing, should be part of your preventive maintenance schedule, typically every 3 months or 15,000 miles, whichever comes first.
Conclusion
Mastering Bendix air line plumbing from tanks to valves is essential for anyone responsible for commercial vehicle safety. By following proper routing techniques, using the right materials, and adhering to torque specifications, you ensure that your air brake system performs reliably under all conditions. Remember, a well-plumbed system is not just about passing inspection—it is about protecting drivers, cargo, and the public.
Don’t let poor maintenance compromise your safety record. Take the time to do it right, inspect regularly, and replace components proactively. If you found this guide helpful, please share it with your fellow mechanics and fleet managers on social media. Let’s keep America’s trucks rolling safely!
