Best Plumbing for LS Aftermarket Fuel Rails

Have you ever spent hours building a powerful LS engine only to worry that a cheap fuel line might ruin your hard work? It is a common fear among builders, as improper fuel delivery can lead to lean conditions, fire hazards, or simply poor performance. Finding the best plumbing for aftermarket fuel rails on LS swaps is crucial not just for horsepower, but for peace of mind and reliability on the street or track.

In this guide, we will break down exactly what materials, fittings, and routing strategies you need to ensure your fuel system flows efficiently and safely. Whether you are running a naturally aspirated street car or a high-boost forced induction setup, getting the plumbing right is non-negotiable.

Why Standard Fuel Lines Fail on High-Performance LS Builds

Before diving into the solutions, it is important to understand why the factory plastic quick-connect lines often fall short in modified applications. General Motors designed the original LS fuel systems to meet strict emissions and cost-efficiency standards for daily drivers. However, when you introduce aftermarket fuel rails, larger injectors, and increased fuel pressure, the margin for error disappears.

Factory nylon lines are prone to becoming brittle over time, especially when exposed to heat from exhaust headers or engine blocks. Furthermore, the stock return-style or returnless systems may not handle the volume required by high-horsepower setups. According to industry data from major fuel system manufacturers, up to 30% of fuel-related failures in modified cars stem from inadequate line sizing or poor-quality connections.

When you upgrade to aftermarket fuel rails, you are usually aiming for better flow distribution to each cylinder. If your plumbing restricts this flow, you negate the benefit of the expensive rails. Therefore, the transition from stock to aftermarket requires a holistic approach to plumbing.

Choosing the Right Hose Material: Braided Stainless vs. PTFE

The core of any high-performance fuel system is the hose itself. There are two primary contenders for the title of best plumbing for aftermarket fuel rails on LS applications: stainless steel braided hose with a rubber inner liner and PTFE (Teflon) lined braided hose.

Stainless Steel Braided with Rubber Liner

This is the most common choice for street builds. It offers excellent abrasion resistance and looks fantastic under the hood. The stainless steel braid protects the inner rubber hose from expanding under pressure and prevents chafing against metal components.

• Pros: Cost-effective, easy to find, flexible, good abrasion resistance.
• Cons: Rubber can degrade over time with ethanol-blended fuels (E85); heavier than PTFE.

PTFE (Teflon) Lined Braided Hose

For serious racers or those running E85, PTFE is the gold standard. The inner core is made of Teflon, which is chemically inert and impervious to alcohol-based fuels.

• Pros: Lightweight, zero permeation (fuel doesn’t seep through), handles high heat, compatible with all fuel types.
• Cons: More expensive, requires specific crimping tools or reusable fittings, less flexible than rubber-lined hoses.

Expert Tip: If you are running more than 10% ethanol, strongly consider PTFE-lined hoses. Ethanol is hygroscopic and can cause standard rubber liners to swell and restrict flow over time.

Understanding Fitting Styles: AN vs. NPT vs. Quick-Connect

Once you have selected your hose, you need to connect it to your aftermarket fuel rails. This is where many builders make costly mistakes. The fitting style determines the seal integrity and ease of installation.

AN (Army-Navy) Fittings

AN fittings are the industry standard for performance plumbing. They use a 37-degree flare angle that creates a metal-to-metal seal without the need for thread sealant or tape.

• Why they win: They are vibration-resistant and easy to disassemble for maintenance. Most high-end aftermarket LS fuel rails come with AN ports (usually -6 or -8 AN).

NPT (National Pipe Taper)

NPT fittings rely on thread deformation to create a seal. They require Teflon tape or liquid sealant.

• The Risk: Over-tightening can crack aluminum fuel rails. Vibration can loosen them over time, leading to dangerous leaks. Avoid NPT for high-vibration engine environments if possible.

Quick-Connect Adapters

If you want to retain some factory convenience, you can use adapters that convert AN fittings to GM quick-connect styles. This allows you to use factory-style push-on connectors for the final connection to the rail, though this is less common in full custom setups.

Sizing Your Fuel Lines for Optimal Flow

A common misconception is that “bigger is always better.” While you need sufficient flow, oversized lines can add unnecessary weight and complexity. For most LS builds up to 600 horsepower, a -6 AN (3/8 inch) feed line is sufficient. For builds exceeding 600 horsepower or those using large single turbos, stepping up to a -8 AN (1/2 inch) feed line ensures adequate volume.

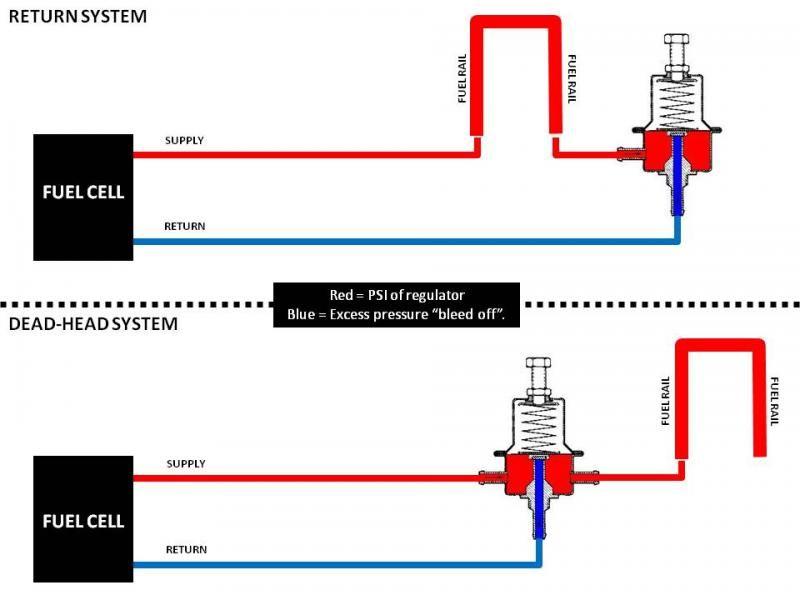

The return line, if your system uses one, can typically be one size smaller than the feed line. For example, a -6 AN feed can pair with a -4 AN return. However, if you are using a returnless system with an internal regulator in the fuel pump module, you will only have a single feed line.

Always check the flow rating of your fuel pump. If your pump flows 400 liters per hour, ensure your plumbing can support that volume without creating excessive backpressure. Restrictive fittings or sharp bends can reduce effective flow by up to 15%, according to fluid dynamics studies referenced in automotive engineering texts Wikipedia: Fluid Dynamics.

Step-by-Step Installation Guide for LS Fuel Rails

Proper installation is just as critical as component selection. Follow these steps to ensure a leak-free system.

1. Prep the Rails: Clean the threaded ports on your aftermarket fuel rails. Use a thread chaser if necessary to remove any debris from manufacturing.
2. Install Fittings: Screw your AN adapter fittings into the rails. Hand-tighten first, then use a wrench to tighten to the manufacturer’s specified torque. Do not use Teflon tape on AN fittings.
3. Measure Hose Lengths: Route your hose loosely from the fuel filter/regulator to the rail. Add about 1 inch of slack to allow for engine movement and vibration. Avoid tight bends; the minimum bend radius is typically 1.5 times the hose diameter.
4. Cut and Assemble: Cut the hose squarely using a dedicated hose cutter. A jagged cut will cause leaks. Insert the fitting ends into the hose. If using crimp-style fittings, use a proper hydraulic crimper. If using reusable fittings, follow the specific assembly instructions (usually involving threading the sleeve onto the hose before inserting the nipple).
5. Route and Secure: Use billet aluminum hose clamps or P-clips to secure the lines away from hot exhaust components and moving parts. Ensure there is at least 2 inches of clearance from any heat source.
6. Pressure Test: Before starting the engine, turn the ignition to the “On” position (without cranking) to prime the fuel pump. Check every connection for leaks. Let it sit for 10 minutes to ensure no slow seeps occur.

FAQ: Common Questions About LS Fuel Plumbing

What size AN fittings do most LS aftermarket fuel rails use?

Most aftermarket LS fuel rails utilize -6 AN or -8 AN ports. -6 AN is standard for street performance, while -8 AN is preferred for high-horsepower race applications. Always check the specifications of your specific rail brand.

Can I use regular rubber fuel hose for my LS swap?

While standard rubber hose works for low-pressure, low-ethanol applications, it is not recommended for high-performance builds. It lacks the abrasion resistance of braided lines and can degrade quickly with E85 fuel. For safety and longevity, braided stainless or PTFE is superior.

Do I need a fuel pressure regulator with aftermarket rails?

It depends on your setup. If you are using a return-style system, you need an external regulator. If you are using a returnless system with a pump that has an internal regulator, you may not need an external one. However, many builders prefer an external regulator for finer tuning control.

How often should I inspect my fuel plumbing?

Inspect your fuel lines and fittings at every oil change. Look for signs of chafing, wetness around fittings, or discoloration of the hose. For race cars, inspect before every event. Ethanol fuels can accelerate wear, so vigilance is key.

Is it safe to run fuel lines near the exhaust headers?

No. Fuel lines should never touch or run directly adjacent to exhaust headers. The radiant heat can degrade the hose inner liner and increase the risk of vapor lock or fire. Always use heat shields or route lines on the opposite side of the engine block.

Conclusion

Upgrading your fuel system is one of the most impactful modifications you can make to your LS engine. By choosing the best plumbing for aftermarket fuel rails on LS builds, you ensure that your engine receives a consistent, clean supply of fuel under all conditions. Remember to prioritize quality materials like PTFE-lined hoses and AN fittings, size your lines correctly for your horsepower goals, and install everything with precision.

A well-plumbed fuel system is invisible when it works perfectly, but catastrophic when it fails. Don’t cut corners here. Take the time to do it right, and your LS will reward you with reliable power for years to come.
