Best Plumbing On Suction Side Of Pool Pump

Have you ever heard your pool pump making a strange grinding noise or noticed it struggling to prime? These are classic signs that your best plumbing on suction side of pool pump setup might be flawed, leading to air leaks and reduced efficiency. In this guide, we will walk you through the essential principles of proper suction-side plumbing to ensure your pool system runs smoothly, quietly, and cost-effectively.

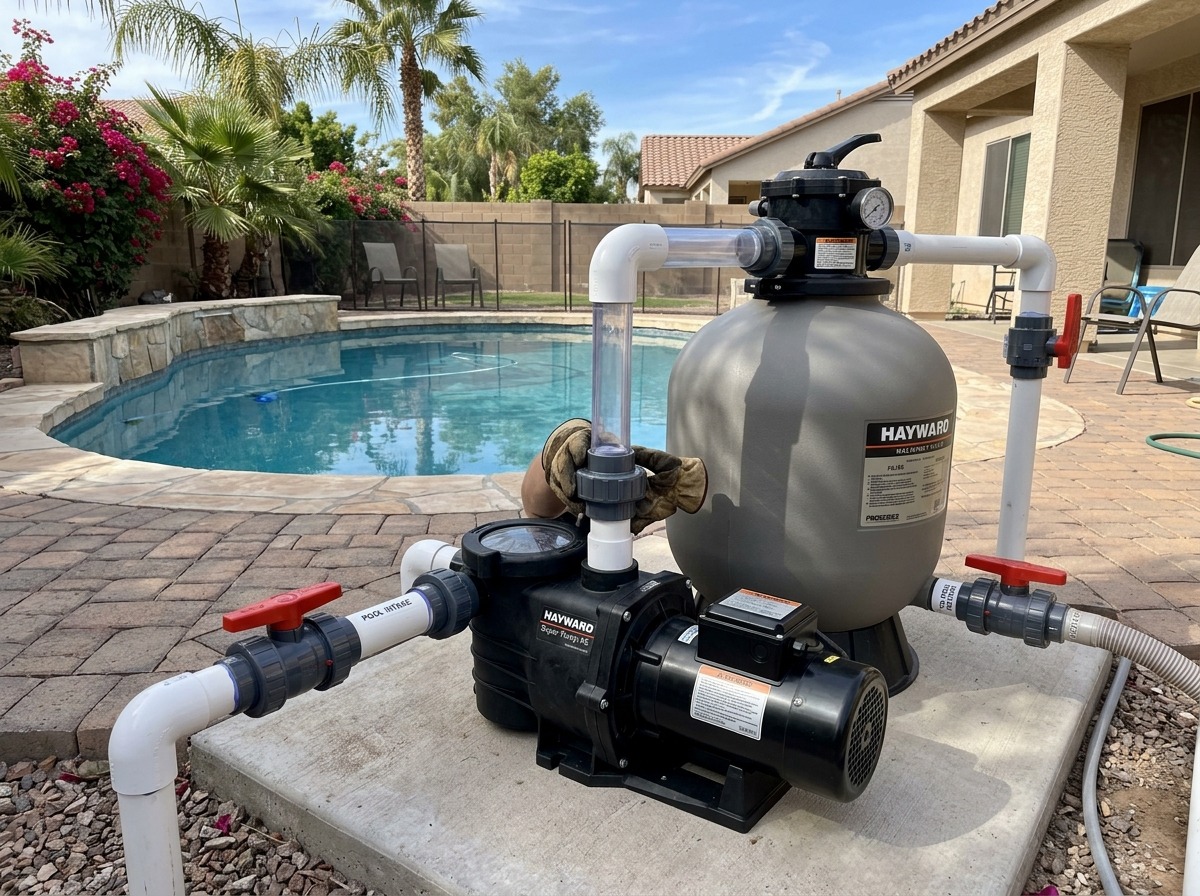

Why Suction Side Plumbing Matters More Than You Think

Many pool owners focus heavily on the return side (where water goes back into the pool), but the suction side is arguably more critical for the longevity of your equipment. The suction side is under negative pressure, meaning it pulls water toward the pump. If there are any imperfections in the plumbing, air will be sucked in rather than water leaking out.

Air in the system causes cavitation, a phenomenon where vapor bubbles form and collapse inside the pump impeller. This can destroy your pump seals and impeller within months. According to industry standards, maintaining a vacuum-tight seal on the suction side is non-negotiable for professional-grade pool maintenance.

What Is the Ideal Pipe Size for Suction Lines?

One of the most common mistakes DIYers make is using pipes that are too small. When water is forced through a narrow pipe at high velocity, friction increases, and pressure drops. This drop in pressure can cause the water to boil at room temperature (cavitation) before it even reaches the pump.

The Golden Rule: Go Big or Go Home

For most residential pools in the US, 2-inch PVC pipe is considered the gold standard for suction lines. While 1.5-inch pipe was common in older installations, modern high-efficiency pumps perform significantly better with larger diameters.

Note: Always consult your specific pump manufacturer’s manual, as requirements vary by horsepower.

Using 2-inch pipe reduces the water velocity, keeping it below the critical threshold of 6 feet per second. This ensures laminar flow, which is quieter and less stressful on your pump motor.

How Many Suction Lines Should You Install?

If you are building a new pool or replumbing an existing one, you might wonder if a single large line is enough. The answer is usually no. Having multiple suction lines provides redundancy and better hydraulic balance.

The Benefit of Dual Suction Lines

Installing two separate suction lines—one from the main drain and one from the skimmer—is the best plumbing on suction side of pool pump configuration for several reasons:

1. Safety Compliance: Modern safety codes often require independent suction lines to prevent entrapment hazards. If one line gets blocked, the other can still operate, reducing the vacuum force on the blockage.
2. Balanced Flow: It allows you to adjust valves to prioritize surface cleaning (skimmer) or deep cleaning (main drain) depending on the season.
3. Reduced Load: Each line carries half the total volume, further reducing friction loss.

For larger pools, consider three lines: two skimmers and one main drain. This setup ensures that even if one skimmer is clogged with leaves, the pump continues to pull water efficiently from the other sources.

Which Fittings Create the Least Resistance?

Not all PVC fittings are created equal. The geometry of your fittings plays a massive role in how easily water flows into your pump. Sharp turns create turbulence, which equals energy loss.

Sweep Elbows vs. Standard 90-Degree Elbows

You should always use long-radius sweep elbows (also known as 45-degree sweeps or wide-turn elbows) instead of standard sharp 90-degree elbows on the suction side.

• Standard 90° Elbow: Creates immediate turbulence and high resistance.
• Sweep Elbow: Guides water gently around the corner, maintaining momentum.

Think of it like driving a car. Taking a sharp right angle turn requires you to brake hard and accelerate again. Taking a wide, sweeping curve allows you to maintain speed. The same physics apply to your pool water. By using sweep elbows, you reduce the “head pressure” your pump has to work against, saving you money on electricity bills.

Where Should Valves Be Placed for Optimal Control?

Valves are necessary for balancing flow, but they are also potential points of failure and restriction. The placement and type of valve matter immensely.

Use Full-Port Ball Valves

Avoid gate valves or globe valves on the suction side. Instead, install full-port ball valves. A full-port valve has an internal hole diameter that matches the pipe size, offering virtually zero resistance when fully open.

Placement Strategy:

1. Install valves as close to the pump intake as possible, but leave enough room for maintenance.
2. Ensure valves are easily accessible for adjusting seasonal flow balances.
3. Never use valves to restrict flow significantly; if you need to reduce flow, consider a variable speed pump instead. Restricting suction flow with a valve is a primary cause of pump damage.

What Are the Critical Sealing Requirements?

Since the suction side operates under vacuum, even a microscopic gap can suck in air. This leads to the dreaded “air lock” or loss of prime.

O-Rings and Lubrication

Every union, valve stem, and pump lid relies on an O-ring.

• Inspect Regularly: Check O-rings every six months for cracks or flat spots.
• Lubricate Properly: Use only silicone-based pool lubricant. Never use petroleum-based products like Vaseline, as they degrade rubber O-rings over time.

Thread Sealant vs. Teflon Tape

When connecting threaded fittings on the suction side:

• Use Teflon tape wrapped clockwise (2-3 layers).
• Alternatively, use a high-quality thread sealant paste rated for potable water.
• Ensure no tape shreds fall into the pipe, as these can clog the pump basket later.

For more detailed information on fluid dynamics and pressure systems, you can refer to general engineering principles on Wikipedia.

Step-by-Step Guide to Optimizing Your Suction Side

If you are retrofitting or building new, follow these concrete steps:

1. Measure Distance: Calculate the total length from the skimmer/main drain to the pump. Keep this distance as short as possible. Ideally, the pump should be within 10-15 feet of the pool wall.
2. Select Pipe: Choose Schedule 40 PVC, 2-inch diameter.
3. Choose Fittings: Buy long-radius sweep elbows for every turn.
4. Install Valves: Place full-port ball valves on each suction line before they merge into the main intake.
5. Prime the System: Before starting the pump, ensure the pump basket is filled with water. Use a garden hose if necessary.
6. Test for Leaks: Run the pump. Check all joints. If you see air bubbles in the pump basket lid window, you have a leak. Tighten unions or re-apply lubricant.

FAQ Section

Q: Can I use flexible hose on the suction side?

A: It is not recommended. Flexible hoses have ribbed interiors that create significant turbulence and resistance. They are also prone to collapsing under strong vacuum pressure. Stick to rigid PVC pipe for the main run, using flexible hose only for the final connection to the pump if vibration isolation is needed, and ensure it is rated for suction use.

Q: Why is my pump losing prime every morning?

A: This is almost always a small air leak on the suction side. Check the pump lid O-ring, the drain plug on the pump housing, and any unions before the pump. Even a tiny crack in a fitting can let air in when the pump is off and water drains back, causing loss of prime.

Q: Does the height of the pump matter?

A: Yes. The pump should ideally be installed at or below the water level of the pool. If the pump is above the water level (negative head), it has to work harder to lift the water. Every foot of vertical lift adds significant strain. Keep the pump as low as possible relative to the pool water surface.

Q: How often should I check my suction side plumbing?

A: Perform a visual inspection at the start of each swim season. Listen for unusual noises weekly. If your pump is making a rattling sound, check for air leaks immediately. Annual professional maintenance is also advisable to check for hidden underground leaks.

Q: Is it okay to have a vacuum port on the suction side?

A: Yes, but it must have its own dedicated valve. Never leave the vacuum port open when not in use. Ensure the valve is tightly closed to prevent air from being sucked in through the vacuum line, which is a common source of air problems.

Conclusion

Achieving the best plumbing on suction side of pool pump is not just about connecting pipes; it is about understanding hydraulics, safety, and efficiency. By using 2-inch pipes, sweep elbows, full-port valves, and ensuring airtight seals, you protect your investment and enjoy a clearer, cleaner pool.

Remember, a well-plumbed suction side means a quieter pump, lower energy bills, and fewer repairs. Don’t let poor plumbing sabotage your summer fun.
