Best Way To Plumb A House With Pex

Are you overwhelmed by the complexity of modern home plumbing? Many homeowners and DIY enthusiasts struggle to choose the right material that balances cost, durability, and ease of installation. Finding the best way to plumb a house with PEX can save you thousands in labor costs while ensuring a leak-free system for decades.

In this comprehensive guide, we will break down exactly how to design and install a PEX (Cross-linked Polyethylene) system like a pro. Whether you are building a new home or repiping an old one, this article provides the actionable steps, expert insights, and technical details you need to succeed.

Why PEX Is the Modern Standard for Home Plumbing

Before diving into the “how,” it is crucial to understand the “why.” PEX has revolutionized the plumbing industry since its introduction in the United States. Unlike rigid copper or PVC pipes, PEX is flexible, resistant to scale and chlorine, and capable of expanding if water freezes, reducing the risk of burst pipes.

According to industry data, PEX now accounts for over 60% of all new residential plumbing installations in the U.S. Its rise is not accidental; it offers a superior balance of performance and affordability. However, simply buying the pipe is not enough. The method of installation determines the system’s longevity and efficiency.

Choosing the Right Layout: Manifold vs. Trunk-and-Branch

The first decision in determining the best way to plumb a house with PEX is selecting your distribution method. There are two primary approaches, each with distinct advantages.

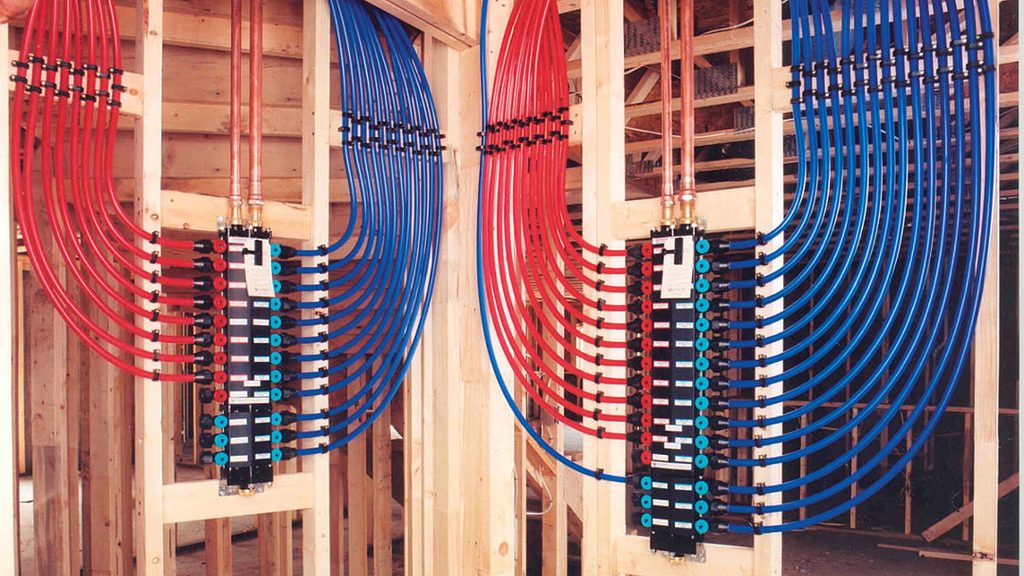

1. The Manifold System (Home Run)

In this setup, a central manifold distributes individual lines directly to each fixture. Think of it like a spider web, with the manifold at the center and legs running to every sink, toilet, and shower.

• Pros: Equal water pressure to all fixtures; fewer fittings inside walls (reducing leak points); easy to shut off individual fixtures.
• Cons: Uses more piping; requires more space for the manifold box.

2. The Trunk-and-Branch System

This traditional method uses large diameter “trunk” lines that run through the house, with smaller “branch” lines tapping off to serve specific fixtures.

• Pros: Less piping material required; easier to retrofit in existing homes with limited wall access.
• Cons: Pressure drops when multiple fixtures are used simultaneously; more fittings required, increasing potential leak risks.

Expert Verdict: For new construction, the Manifold System is widely considered the best way to plumb a house with PEX due to its reliability and balanced pressure. For renovations, Trunk-and-Branch may be more practical.

Essential Tools and Materials Checklist

You cannot achieve professional results with amateur tools. Before cutting your first pipe, ensure you have the following:

• PEX Tubing: Choose between PEX-A (most flexible, best for cold climates), PEX-B (stiffer, cost-effective), or PEX-C (less common). PEX-A is generally recommended for its memory expansion properties.
• Fittings: Brass or polymer fittings compatible with your connection method.
• Connection Method Tools:
  • Crimp Rings: Requires a crimping tool and copper rings.
  • Expansion (ProPress): Requires an expansion tool and PEX-A pipe.
  • Push-to-Connect: No tools needed, but higher cost per fitting.
• Pipe Cutter: A sharp, ratcheting PEX cutter for clean, square cuts.
• Deburring Tool: To smooth edges after cutting.
• Support Clips: Every 32 inches for horizontal runs and every 4 feet for vertical runs.

Step-by-Step Installation Guide

Follow these precise steps to ensure a code-compliant and durable installation.

Step 1: Plan and Measure

Create a detailed schematic of your plumbing layout. Measure the distance from the manifold to each fixture. Add 10% extra length for errors and bends. Remember, PEX can bend, but it has a minimum bend radius (usually 8 times the tube diameter). Avoid kinking!

Step 2: Install the Manifold

Mount the manifold in a central, accessible location, such as a utility room or basement. Ensure it is level and securely anchored to the stud wall. Connect the main water supply line to the manifold’s inlet.

Step 3: Run the Lines

Start from the manifold and work toward the fixtures.

• Use smooth, sweeping bends rather than sharp 90-degree elbows whenever possible. This maintains water flow and pressure.
• Secure the pipe with plastic clips every 32 inches. Do not overtighten clips, as this can restrict the pipe’s ability to expand and contract.
• When passing through wooden studs, drill holes at least 1 inch away from the edge of the stud to prevent nail punctures. Use protective nail plates if necessary.

Step 4: Make Connections

If using the expansion method (recommended for PEX-A):

1. Cut the pipe squarely.
2. Expand the end of the PEX tube and the fitting using the expansion tool.
3. Insert the fitting into the expanded tube.
4. Hold for 5–10 seconds as the pipe shrinks back, creating a tight, secure seal.

If using crimp rings:

1. Slide the copper ring over the pipe.
2. Insert the fitting.
3. Position the crimping tool over the ring and squeeze until the tool releases.

Step 5: Pressure Testing

Never skip this step. Before closing up walls, you must test for leaks.

• Close all fixture valves.
• Connect a pressure pump to the system.
• Pressurize the system to 100 PSI (or local code requirement) for at least 15 minutes.
• Check every fitting for moisture or pressure drops. If the pressure holds, you are good to go.

PEX vs. Copper: A Quick Comparison

To help you understand why PEX is often the preferred choice, here is a quick breakdown:

For more detailed historical context on plumbing materials, you can refer to Wikipedia’s article on Plumbing.

Common Mistakes to Avoid

Even experienced plumbers make mistakes. Here are the top pitfalls to avoid when looking for the best way to plumb a house with PEX:

1. Exposing PEX to Sunlight: UV rays degrade PEX rapidly. Never store or install PEX outdoors without protection.
2. Using Incorrect Fittings: Not all fittings are compatible with all PEX types. Ensure your fittings match your pipe (A, B, or C).
3. Ignoring Local Codes: Some municipalities have restrictions on PEX usage. Always check with your local building department before starting.
4. Poor Support: Sagging pipes can lead to stress on fittings and eventual leaks. Adhere strictly to spacing guidelines.

FAQ Section

1. Can I use PEX for both hot and cold water?

Yes, PEX is rated for both hot and cold water applications. Most PEX pipes are rated for temperatures up to 200°F (93°C) at 80 PSI, making them suitable for residential water heaters.

2. How long does PEX plumbing last?

PEX is estimated to last between 25 to 50 years, with many manufacturers offering 25-year warranties. In ideal conditions, it can last even longer, outlasting many traditional materials.

3. Is PEX safe for drinking water?

Yes, modern PEX pipes meet strict NSF/ANSI standards for potable water safety. Early concerns about chemical leaching have been addressed in newer manufacturing processes, making it safe for residential use.

4. Can I connect PEX to existing copper pipes?

Absolutely. You can use transition fittings (such as sharkbite push-to-connect or threaded adapters) to connect PEX to existing copper or galvanized steel lines. This makes PEX an excellent choice for partial repiping projects.

5. What is the best method for connecting PEX?

While push-to-connect fittings are easiest for DIYers, the expansion method (using PEX-A) is often cited by professionals as the most reliable and durable connection, as it creates a full-diameter flow with no restriction.

6. Does PEX require insulation?

Yes, especially for hot water lines. Insulating PEX hot water lines improves energy efficiency and reduces wait time for hot water at the faucet. Cold water lines should also be insulated in unconditioned spaces to prevent freezing.

Conclusion

Finding the best way to plumb a house with PEX involves careful planning, choosing the right layout (preferably a manifold system), and executing precise installations. By opting for PEX, you are choosing a material that is cost-effective, durable, and resilient against freezing and corrosion.

Remember, the key to success lies in preparation. Measure twice, cut once, and always pressure test your system. With the right tools and knowledge, you can achieve a professional-grade plumbing system that will serve your home reliably for decades.
