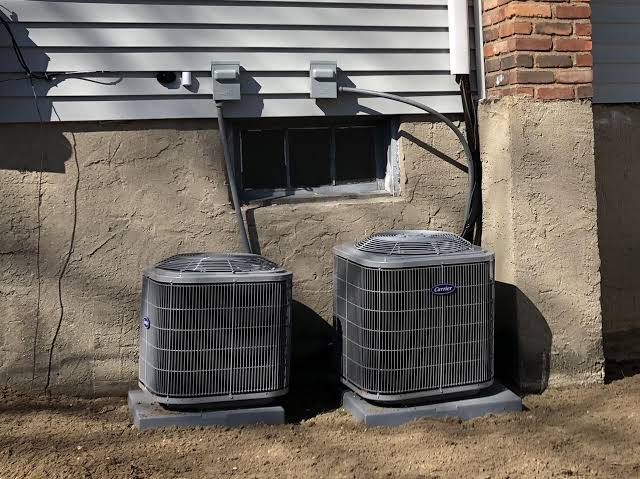

Have you ever looked at your aging HVAC system and wondered if you could squeeze more life out of it by combining parts? It is a common question among homeowners trying to save money or repurpose old equipment. Specifically, many ask: can 2 condensers be plumbed to one evaporator? While it might sound like a clever hack, the short answer is that it is technically possible but highly inadvisable for standard residential systems due to severe efficiency and reliability issues.
In this guide, we will break down exactly why this configuration is problematic, explore the physics behind refrigerant flow, and offer better alternatives for improving your home’s cooling capacity.
Why Plumbing Two Condensers to One Evaporator Is Problematic
To understand why this setup fails, we need to look at how an air conditioning system works. An AC system is a closed loop designed with precise pressure and temperature balances. The condenser (outdoor unit) releases heat, while the evaporator (indoor coil) absorbs heat. These components are matched by manufacturers to ensure optimal performance.
When you attempt to pipe two condensers into a single evaporator, you disrupt this delicate balance. Here are the primary technical hurdles:
1. Refrigerant Flow and Pressure Imbalance
Refrigerant does not flow like water; it changes states from liquid to gas and back again. Each condenser is designed to push a specific volume of refrigerant at a specific pressure. If you combine two outputs into one input, you risk creating uneven pressure zones.
One condenser may dominate the flow, causing the other to stall or “short cycle.” This leads to inefficient heat transfer. According to basic thermodynamic principles, the system relies on a consistent mass flow rate. Disrupting this causes the compressor to work harder, leading to premature failure.
2. Oil Return Issues
This is perhaps the most critical mechanical risk. Compressors require oil for lubrication, and this oil travels through the system mixed with the refrigerant. In a properly designed system, the velocity of the refrigerant ensures the oil returns to the compressor.
When you plumb two condensers to one evaporator, the refrigerant velocity often drops in the shared lines. This causes oil to pool in the evaporator or the connecting pipes. Without adequate oil return, the compressors in both condensers will eventually seize up due to friction and overheating. This is a costly repair that often requires replacing the entire outdoor units.
3. Control and Thermostat Conflicts
Modern HVAC systems use sophisticated control boards to manage defrost cycles, fan speeds, and compressor staging. If you connect two independent condensers to one evaporator, how do they communicate?
- Who turns on first? If both units kick on simultaneously, you may exceed the electrical capacity of your home.
- Defrost synchronization: If one unit enters defrost mode while the other is cooling, you could send hot gas into a cold coil, causing thermal shock and potential damage to the copper tubing.
The Difference Between Residential and Commercial Systems
You might see large commercial buildings with multiple rooftop units feeding into a single air handler. So, why can they do it, but you can’t?
The key difference lies in system design and controls. Commercial systems that use multiple condensers (or condensing units) for a single evaporator coil are engineered as a single, integrated system from the factory. They use:
- Header manifolds: Specialized piping that ensures equal distribution of refrigerant.
- Check valves: To prevent refrigerant from migrating into the off-cycle unit.
- Unified control boards: A central brain that manages both compressors as a single stage or multi-stage unit.
In contrast, taking two separate residential split systems and trying to jury-rig them together lacks these critical components. You are essentially fighting against the engineering intent of the equipment. For more detailed information on how vapor-compression refrigeration cycles work, you can refer to this Wikipedia article on Vapor-compression refrigeration.
Better Alternatives to Increase Cooling Capacity
If your current system isn’t keeping your home cool, adding a second condenser to the existing evaporator is not the solution. Instead, consider these proven strategies that align with modern energy efficiency standards.
Option 1: Install a Parallel System (Zoning)
Instead of forcing two condensers into one evaporator, install a second complete HVAC system. This allows you to create “zones” in your home.
- Pros: Independent control, redundancy (if one breaks, the other still works), and proper sizing.
- Cons: Higher upfront installation cost.
Option 2: Upgrade to a High-SEER2 Single Unit
Replace your old system with a single, high-efficiency unit that matches the load calculation of your home. Modern units have variable-speed compressors that can adjust output based on demand, providing better comfort than two mismatched older units.
Option 3: Add a Ductless Mini-Split
If a specific room is too hot, add a ductless mini-split system for that zone. This avoids overworking your central system and provides targeted cooling without complex plumbing modifications.
Comparison: Dual Condenser Hack vs. Proper Upgrades
| Feature | 2 Condensers to 1 Evaporator | Proper Parallel/Zoned System | New High-Efficiency Unit |
|---|---|---|---|
| Efficiency | Very Low (High energy waste) | High (Targeted cooling) | Very High (SEER2 rated) |
| Reliability | Poor (High failure risk) | Excellent | Excellent |
| Cost | Low initial, High repair | High initial, Low maintenance | Medium initial, Low operating |
| Warranty | Voided immediately | Valid | Valid |
| Complexity | High (Custom fabrication) | Standard Installation | Standard Installation |
Step-by-Step: What a Professional Would Do Instead
If you are determined to utilize multiple outdoor units, here is how a licensed HVAC technician would approach increasing capacity safely. Note that this is not a DIY project.
- Load Calculation: Perform a Manual J calculation to determine the exact BTU requirement for your home.
- System Selection: Choose two matching condensing units designed for parallel operation, or a single multi-stage unit.
- Piping Design: Install proper header manifolds with check valves to ensure equal refrigerant distribution and prevent migration.
- Control Integration: Wire both units to a compatible thermostat or building automation system that can stage the compressors correctly.
- Testing: Measure superheat and subcooling to ensure the system is charging correctly and oil return is adequate.
Frequently Asked Questions (FAQ)
Q1: Can I use two different sized condensers with one evaporator?
A: No. Mismatched sizes will cause severe inefficiency. The larger unit may flood the evaporator with liquid refrigerant, while the smaller unit struggles to maintain pressure. This leads to compressor slugging and failure.
Q2: Will plumbing two condensers to one evaporator void my warranty?
A: Yes. Almost all manufacturers explicitly state that their equipment must be installed according to their specified guidelines. Modifying the refrigerant circuit by combining units voids the warranty immediately.
Q3: Is it cheaper to run two smaller condensers than one large one?
A: Not if they are improperly plumbed. While two smaller units can be more efficient if designed as a staged system from the factory, hacking two separate units together increases energy consumption due to poor heat transfer and increased friction losses in the piping.
Q4: What happens if one condenser fails in a dual setup?
A: In a hacked system, the failed unit can become a path of least resistance for refrigerant, allowing it to bypass the active unit. This means even if one unit is working, the system may fail to cool effectively because the refrigerant is short-cycling through the broken unit.
Q5: Can I use check valves to make this setup work?
A: Check valves help prevent refrigerant migration, but they do not solve the issues of oil return, pressure balancing, or control synchronization. It is still not a recommended practice for residential split systems.
Conclusion
While the idea of can 2 condensers be plumbed to one evaporator might seem like a cost-effective way to boost cooling power, the reality is fraught with mechanical risks. From oil return failures to voided warranties, the downsides far outweigh any potential savings.
HVAC systems are precision-engineered machines. Tampering with the refrigerant circuit without proper manifolds, controls, and design expertise usually results in higher energy bills and expensive repairs. Instead, consider investing in a properly sized, high-efficiency system or a zoned cooling solution. Your wallet—and your comfort—will thank you in the long run.
