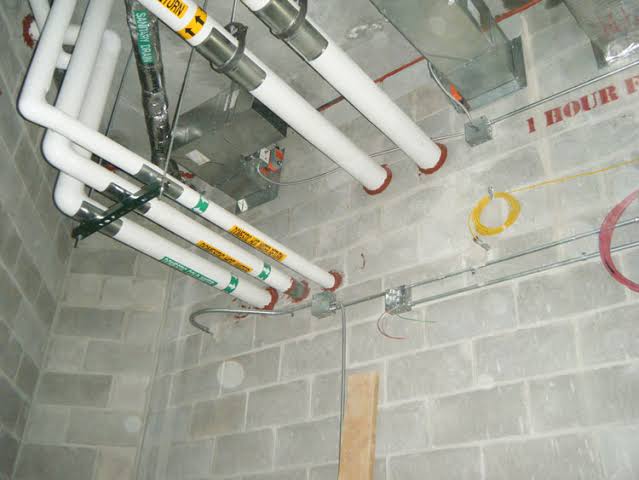

Can A Plumbing Chase Be 1 Hour Rated?

Have you ever stared at a bundle of pipes running through your building’s walls and wondered if they are safely contained in case of a fire? It is a common concern for contractors, architects, and homeowners alike, especially when dealing with multi-story structures where safety codes are strict. The short answer to the question “Can A Plumbing Chase Be 1 Hour Rated“ is yes, but it requires specific construction methods and approved materials to meet International Building Code (IBC) standards.

In this guide, we will break down exactly what it takes to achieve a one-hour fire rating for your plumbing chases. We will explore the necessary materials, the importance of proper firestopping, and how to ensure your project passes inspection without costly rework.

Understanding the Basics: What Is a Plumbing Chase?

Before diving into the ratings, let’s clarify what we are talking about. A plumbing chase is a vertical or horizontal shaft designed to house plumbing lines, such as water supply pipes, drain-waste-vent (DWV) systems, and sometimes gas lines. These chases allow for easy access for maintenance while keeping the pipes hidden from view.

However, these openings can act as chimneys during a fire, allowing smoke and flames to spread rapidly between floors. This is why building codes mandate that these chases be enclosed with fire-resistant materials. The level of resistance required depends on the building’s height, occupancy type, and local regulations.

Why Fire Ratings Matter

Fire ratings are not just bureaucratic red tape; they are critical life-safety measures. A 1-hour fire rating means that the assembly (walls, doors, and penetrations) can withstand exposure to fire for at least 60 minutes without failing structurally or allowing the passage of flame and excessive heat.

According to the International Building Code (IBC), shaft enclosures in buildings of certain heights and uses must have a fire-resistance rating of either 1 hour or 2 hours. For many low-to-mid-rise residential and commercial buildings, a 1-hour rating is the standard requirement for plumbing chases.

Can A Plumbing Chase Be 1 Hour Rated? The Technical Answer

Yes, a plumbing chase can absolutely be 1-hour rated. However, it is not enough to simply build a wall around the pipes. The entire assembly must be tested and listed by a recognized testing laboratory, such as Underwriters Laboratories (UL) or Intertek (Warnock Hersey).

To achieve a 1-hour rating, you must use a combination of:

• Fire-rated wall assemblies: Typically constructed with 5/8-inch Type X gypsum board on both sides of metal or wood studs.
• Approved firestop systems: Materials used to seal gaps around pipes where they penetrate the floor or wall assemblies.
• Proper installation: Following the manufacturer’s instructions precisely.

If any part of the system fails to meet the tested specifications, the entire assembly loses its rating. This is why understanding the details is crucial.

Key Components of a 1-Hour Rated Plumbing Chase

Building a compliant plumbing chase involves several key components. Let’s look at each one in detail.

1. Wall Construction

The walls of the chase must be built using materials that have been tested for a 1-hour fire resistance. The most common method is using gypsum board.

• Gypsum Board Type: Use 5/8-inch Type X gypsum board. This type contains glass fibers that help hold the board together longer under heat stress.
• Stud Spacing: Typically, studs are spaced 16 inches on center, but always refer to the specific UL design you are following.
• Screws: Use fire-rated screws that are long enough to penetrate the stud adequately without compromising the board’s integrity.

2. Firestopping Penetrations

This is where most failures occur. Pipes passing through floors or walls create gaps that must be sealed. You cannot use standard caulk or spray foam. You must use an approved firestop system.

Common firestop materials include:

• Intumescent Sealants: These expand when heated, choking off the opening.
• Firestop Putty: Moldable material used for irregular shapes.
• Collars and Wraps: Specifically designed for plastic pipes (like PVC or CPVC) that melt during a fire.

Expert Tip: Always check the UL Directory for the specific firestop system that matches your pipe material, size, and wall assembly. Using the wrong product can void your rating.

3. Access Doors

If your plumbing chase requires access for maintenance, the access door must also be fire-rated. A standard metal door will not suffice. You need a 1-hour fire-rated access panel that is listed for use in fire-rated assemblies.

Step-by-Step Guide to Building a 1-Hour Rated Chase

Follow these steps to ensure your plumbing chase meets the 1-hour fire rating requirements.

1. Plan the Assembly: Identify the specific UL design number that matches your wall type (metal vs. wood studs) and pipe materials. Download the design details from the UL website.
2. Frame the Chase: Install studs according to the specified spacing. Ensure the frame is plumb and secure.
3. Install Rough Plumbing: Run your pipes through the chase. Leave adequate clearance around pipes for firestop materials.
4. Hang Gypsum Board: Install 5/8-inch Type X gypsum board on both sides of the studs. Stagger joints if possible. Secure with appropriate screws.
5. Apply Firestopping:
   • Clean the penetration area.
   • Install backing material if required by the firestop system.
   • Apply the intumescent sealant, putty, or collar according to the manufacturer’s instructions. Ensure the depth and width of the sealant match the tested design.
6. Install Access Doors: If needed, cut the opening carefully and install the fire-rated access panel using the provided hardware. Do not compromise the surrounding gypsum board.
7. Inspect: Before closing up walls or finishing surfaces, have the installation inspected by the local building official or a third-party inspector.

Common Challenges and Solutions

Even with the best plans, issues can arise. Here are some common challenges and how to solve them.

Challenge 1: Large Pipe Bundles

When multiple pipes run through a single hole, the gap can be large and irregular.

• Solution: Use mineral wool batts as backing material to fill the void, then apply firestop sealant over the top. Ensure the mineral wool is packed tightly.

Challenge 2: Plastic Pipes Melting

PVC and CPVC pipes will melt in a fire, leaving a large open hole.

• Solution: Use intumescent firestop collars or wraps. These devices constrict as the pipe melts, sealing the opening automatically.

Challenge 3: Limited Space

In tight chases, it can be hard to apply sealant properly.

• Solution: Plan your pipe layout to maintain minimum clearances. If space is extremely limited, consider using pre-fabricated firestop devices designed for tight spaces.

FAQ Section

1. Can I use 1/2-inch drywall for a 1-hour rated plumbing chase?

Generally, no. Most 1-hour rated assemblies require 5/8-inch Type X gypsum board. While some specific UL designs may allow 1/2-inch board under certain conditions, it is rare for shaft enclosures. Always verify with the specific UL design number.

2. Do I need a fire rating for horizontal plumbing chases?

It depends. Horizontal penetrations through fire-rated walls or floor/ceiling assemblies require firestopping. If the horizontal chase is within a non-rated partition, it may not need a 1-hour rating, but local codes vary. Always check with your local building department.

3. What happens if I don’t firestop my plumbing chase?

Failure to properly firestop can lead to failed inspections, fines, and even legal liability in the event of a fire. More importantly, it compromises the safety of the building’s occupants by allowing fire and smoke to spread unchecked.

4. Can I paint over firestop sealant?

Most intumescent sealants can be painted over once they have fully cured. However, check the manufacturer’s technical data sheet (TDS) to confirm. Do not paint before curing, as this can affect performance.

5. Is a 2-hour rating ever required for plumbing chases?

Yes. In high-rise buildings (typically over 75 feet) or specific occupancy types like hospitals, a 2-hour fire rating may be required for shaft enclosures. Always consult the IBC and local amendments for your specific project.

Conclusion

So, can a plumbing chase be 1 hour rated? Absolutely. By using the right combination of 5/8-inch Type X gypsum board, properly installed studs, and listed firestop systems, you can create a safe, code-compliant enclosure for your plumbing lines.

Remember, the key to success lies in the details. Choose the correct UL design, follow the manufacturer’s instructions for firestopping, and never cut corners on materials. Your diligence ensures not only passing inspections but also the safety and well-being of everyone in the building.
