Have you noticed your water bill skyrocketing or your pool level dropping mysteriously overnight? It is a frustrating scenario that keeps many pool owners awake at night, wondering where all that water is going. You might be asking yourself, “Can a pool leak from sand filter plumbing?” The short answer is yes, and it is more common than you might think.
In this comprehensive guide, we will dive deep into the mechanics of sand filter systems, identify the tell-tale signs of plumbing leaks, and provide actionable steps to diagnose and fix the issue. Whether you are a seasoned pool owner or a new homeowner, understanding your filtration system is key to saving money and protecting your backyard oasis.
Why Sand Filter Plumbing Is a Common Leak Source
To understand why leaks happen, we first need to look at how the system works. A sand filter operates under significant pressure. When the pump pushes water through the tank, the internal pressure can range from 10 to 20 PSI (pounds per square inch), depending on the cleanliness of the sand and the pump’s horsepower.
This constant pressure puts stress on every connection point in the plumbing system. Over time, vibrations from the pump, thermal expansion from sun exposure, and general wear and tear can compromise the integrity of these connections. According to industry standards, the multiport valve and the lateral assembly inside the tank are the most vulnerable points.
Unlike a liner tear or a crack in the gunite shell, plumbing leaks are often hidden. They don’t always present as a visible puddle on the deck. Instead, they manifest as a slow, steady loss of water that can be difficult to pinpoint without a systematic approach.
How to Tell If Your Pool Leak Is Coming From the Filter
Before you call a professional or start digging up your backyard, you need to confirm the source. Not every drop of lost water is a leak; evaporation plays a role, especially in dry climates like Arizona or Nevada. However, if you are losing more than 1/4 inch of water per day, you likely have a leak.
Here are the specific signs that point to your sand filter plumbing:
- Water Around the Base: Check the area directly beneath the filter tank and the pump. If you see damp soil or standing water only when the pump is running, the leak is likely in the pressurized side of the system.
- Air in the Pump Basket: If you notice air bubbles in the pump lid or return jets, it could indicate a suction-side leak, but it can also suggest a crack in the filter housing allowing air intake when the pump cycles off.
- Unusual Noises: Hissing sounds coming from the multiport valve area often indicate escaping water or air under pressure.
- Decreased Pressure Gauge Reading: If your pressure gauge reads significantly lower than usual despite clean sand, water may be escaping before it fully pressurizes the system.
The Bucket Test vs. The System Test
While the bucket test helps determine if you have a leak generally, it doesn’t tell you where it is. To isolate the filter, try this simple diagnostic step:
- Turn off your pool pump.
- Close the skimmer and main drain valves (if applicable).
- Observe the water level for 2–4 hours.
- If the water level stops dropping when the pump is off, the leak is almost certainly in the pressure-side plumbing, which includes the sand filter, heater, and return lines.
Common Culprits: Where Exactly Does It Leak?
If you have confirmed the leak is related to the filter system, let’s narrow down the specific components. Here is a breakdown of the most frequent failure points.
1. The Multiport Valve Gaskets
The multiport valve is the control center of your sand filter. It directs water flow for filtering, backwashing, and rinsing. Inside this valve are rubber gaskets and O-rings that seal the different ports.
Over time, these rubber components dry out, crack, or become misaligned. A worn spider gasket (the central seal) is one of the most common causes of leaks. Water can bypass the seal and escape through the waste line, even when the valve is set to “Filter.” This is often mistaken for a plumbing leak, but it is actually an internal valve failure.
2. Cracked Filter Tank or Laterals
The tank itself is made of durable fiberglass or thermoplastic, but it is not invincible. UV exposure can weaken the material over decades. More commonly, the laterals (the small pipes at the bottom of the tank that collect filtered water) can crack.
If a lateral cracks, sand can escape into your pool, and water can leak out through the crack if it is located below the water line of the filter. However, since the filter is usually under pressure, a crack in the tank body will spray water outward rather than suck air in.
3. Union Connections and PVC Joints
The plumbing connecting your pump to the filter and the filter to the pool returns uses union nuts and PVC cement joints. Vibrations from the pump can loosen union nuts over time. Additionally, if the PVC was not primed and glued correctly during installation, temperature fluctuations can cause micro-cracks in the joint.
| Component | Likelihood of Leak | Difficulty to Fix | Typical Symptom |
|---|---|---|---|
| Multiport Gasket | High | Low | Water leaking from valve handle or waste line |
| Union Nuts | Medium | Very Low | Dripping at connection points |
| PVC Joints | Medium | Medium | Steady drip or spray from pipe seams |
| Filter Tank Crack | Low | High | Visible crack or spraying water from tank body |
| Laterals | Low | High | Sand in pool + potential leak |
Step-by-Step Guide to Diagnosing and Fixing the Leak
Fixing a leak in your sand filter plumbing doesn’t always require a professional. Here is a logical workflow to address the issue safely and effectively.
Step 1: Safety First
Always turn off the power to your pool pump at the breaker box before inspecting any plumbing. Water and electricity are a dangerous combination. Ensure the system is depressurized by opening the air relief valve on top of the filter.

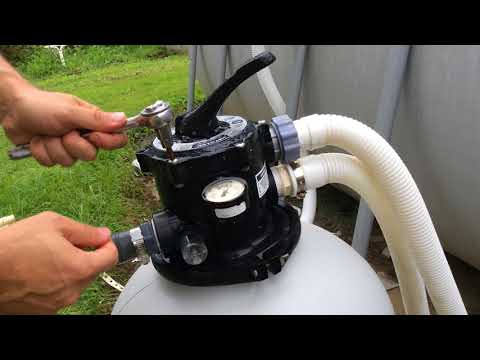

Step 2: Inspect the Multiport Valve
Remove the cover of the multiport valve. Inspect the spider gasket for tears, flat spots, or debris. If it looks worn, replace it. These gaskets are inexpensive and easy to swap. Ensure the valve handle is tightly secured and aligned correctly with the setting.
Step 3: Tighten Union Connections
Check the large plastic nuts (unions) that connect the PVC pipes to the pump and filter. Hand-tighten them first, then use a strap wrench for a quarter-turn more. Do not overtighten, as this can crack the plastic housing. If water continues to drip, remove the union, check the O-ring for damage, lubricate it with pool-safe silicone grease, and reinstall.
Step 4: Pressure Test the Plumbing
If the visible connections are dry, you may have a hidden crack in the PVC. You can perform a basic pressure test:
- Plug the return lines in the pool.
- Attach a pressure test kit to the pump discharge port.
- Pressurize the system to 20 PSI.
- Watch the gauge. If the pressure drops steadily, there is a leak in the pressurized lines between the pump and the pool returns.
For more complex structural insights, you can refer to general engineering principles of fluid dynamics found on Wikipedia to understand how pressure testing works in broader industrial contexts.
Step 5: Replace Damaged PVC
If you locate a cracked pipe or joint, cut out the damaged section. Use fresh PVC primer and cement to install a new coupling and pipe segment. Allow the cement to cure for at least 2 hours before turning the pump back on.
Frequently Asked Questions (FAQ)
Can a sand filter leak only when the pump is running?
Yes. This is known as a pressure-side leak. When the pump is off, the pressure equalizes, and the leak may stop or slow down significantly. If you only lose water when the system is active, check unions, valve gaskets, and PVC joints first.
How much does it cost to fix a pool filter leak?
The cost varies widely. Replacing a multiport gasket costs less than $20 in parts. Hiring a professional to locate and repair a buried PVC leak can range from $300 to $1,000+, depending on accessibility and local labor rates.
Will a leaky sand filter affect my water chemistry?
Indirectly, yes. If the leak is sucking in air or dirty groundwater (in rare suction-side cases), it can introduce contaminants. More commonly, a leak forces you to add more fresh water, which dilutes your stabilizer (cyanuric acid) and calcium hardness levels, requiring rebalancing.
Can I use epoxy to fix a crack in the filter tank?
For small hairline cracks in the tank body, specialized pool-grade epoxy or fiberglass repair kits can work as a temporary fix. However, because the tank is under constant pressure, this is rarely a permanent solution. Replacing the tank is often the safer long-term option.
How often should I inspect my filter plumbing?
You should perform a visual inspection of all exposed plumbing once a month. Look for signs of moisture, mineral deposits (white crust), or cracking rubber. Annual professional maintenance is also recommended to catch internal issues like worn laterals.
Conclusion
So, can a pool leak from sand filter plumbing? Absolutely. It is one of the most frequent sources of water loss in residential pools. The good news is that most of these leaks are minor and fixable with basic tools and a bit of patience. By regularly inspecting your multiport valve, tightening unions, and monitoring your pressure gauge, you can catch these issues early.
Don’t let a small drip turn into a major expense. Take action today to secure your pool’s plumbing. If you found this guide helpful, please share it with fellow pool owners on social media. Together, we can keep our pools full, clean, and leak-free!
